Ceiling Sam Wall Shelf Combo – Wall Storage with Integrated Bike Slide

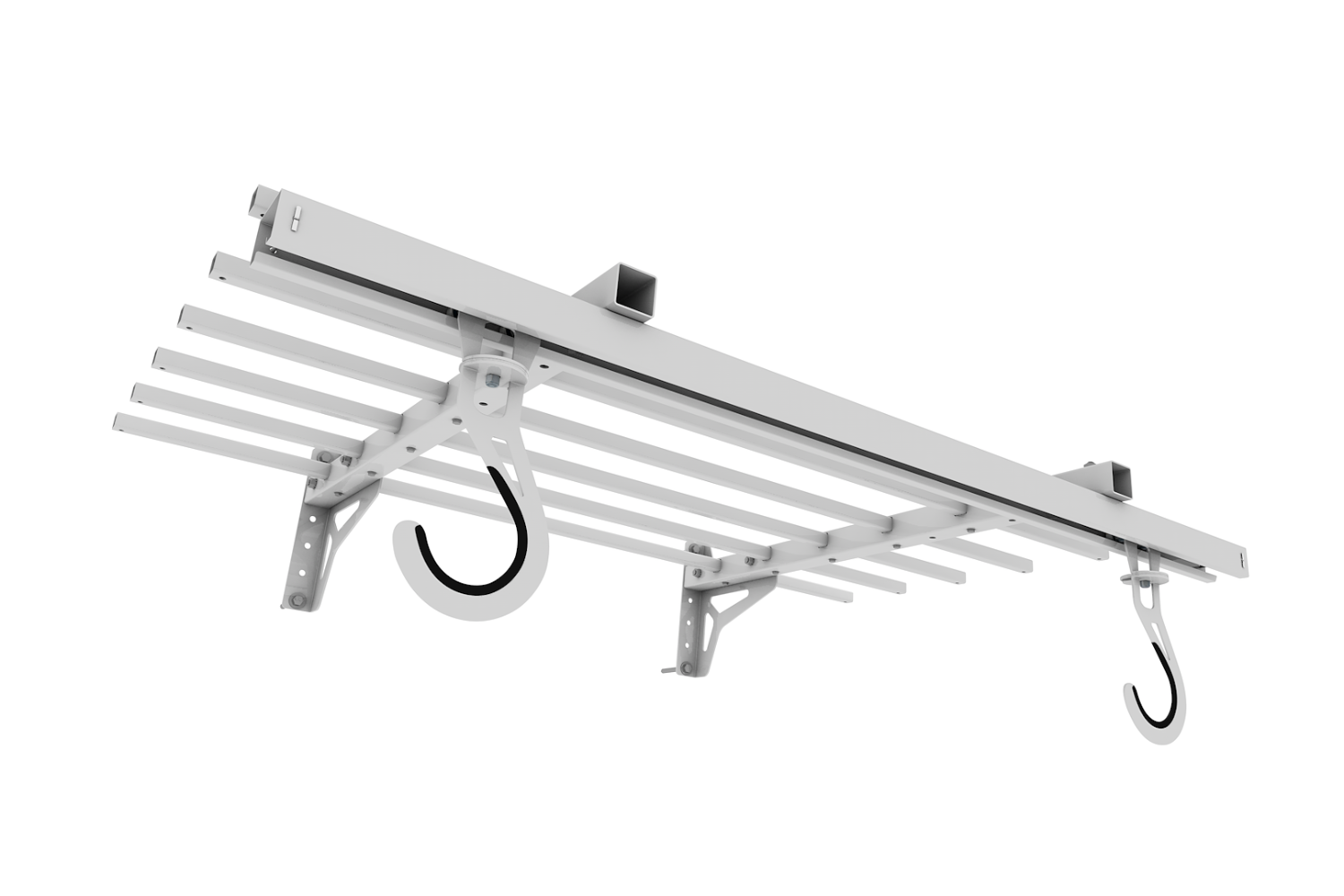

The Ceiling Sam Wall Shelf Combo is a wall-mounted storage system combining a heavy-duty 32"×48" shelf platform rated for 250 lbs with an integrated Bike Slide underneath — 2 hooks included (additional hooks available), each rated for 75 lbs per hook — for wall-mounted storage above and organized bike hanging below in a single wall footprint. Industrial-grade powder-coated steel construction, stud or masonry mounting, DIY install with detailed instructions included. Made in the USA. SKU: WS, BKS.
One Wall Footprint. Two Storage Systems. Bikes and Gear Off the Floor.
Most garages have two separate storage problems competing for the same wall space: you need a heavy-duty shelf for totes, tools, and gear, and you need somewhere to hang bikes that isn't the floor or a flimsy wall hook. The Ceiling Sam Wall Shelf Combo solves both in a single wall footprint: the 32"×48" platform handles 250 lbs of distributed shelf storage above, while the integrated Bike Slide underneath holds 2 or more bikes on sliding, rotating hooks — each rated for 75 lbs — keeping them off the floor and individually accessible without moving other bikes. It mounts to wall studs or masonry, requires no ceiling clearance or joist alignment, and installs with standard tools and detailed instructions. Made in the USA.

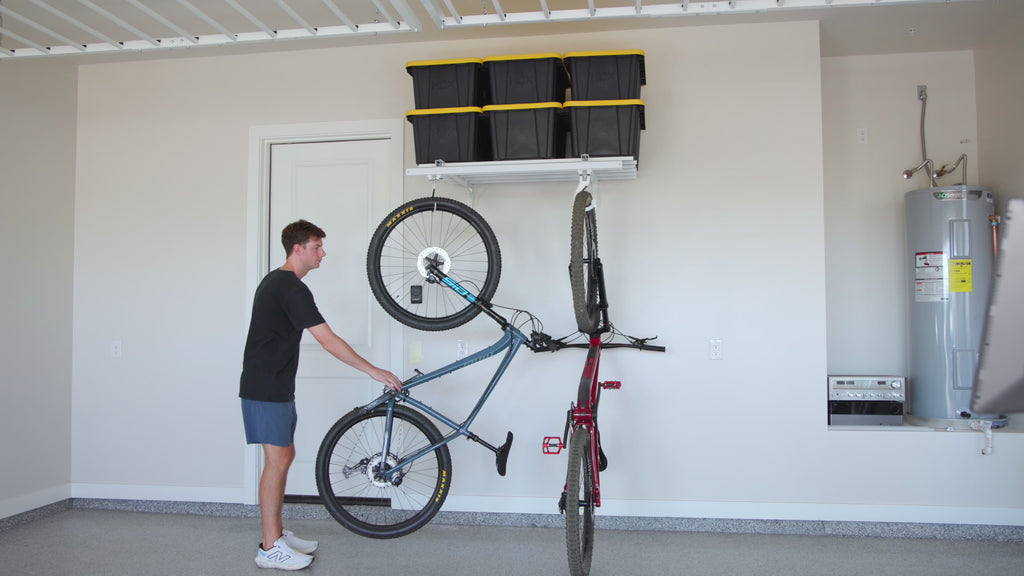

See it in action:
Shelf, Bike Slide & Mounting Specifications

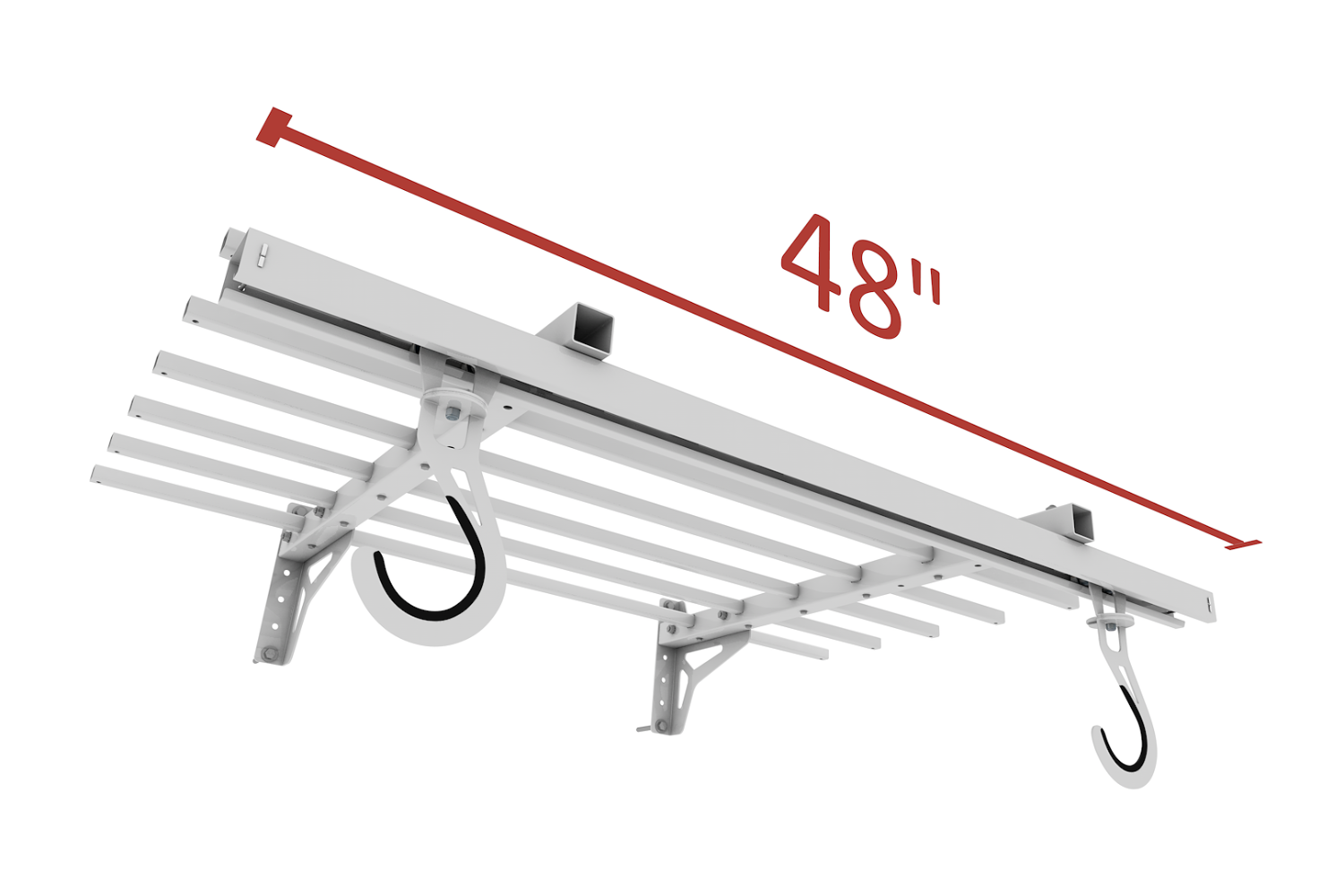

- Shelf Platform Dimensions: 32" × 48"
- Shelf Load Capacity: 250 lbs distributed — weight must be distributed across the platform surface, not concentrated at a single point
- Integrated Bike Slide: 2 hooks included (additional hooks available) — each hook rated for 75 lbs; hooks slide and rotate independently for individual bike access and tight-space positioning
- Material: Industrial-grade steel
- Finish: Powder-coated
- Mounting Type: Wall-mounted — studs or masonry
- Installation: DIY — detailed step-by-step instructions included
- Origin: Made in the USA
- SKU: WS, BKS
Installation Requirements, Load & Mounting Considerations
Watch the full installation walkthrough before you begin:
- Stud Mounting: For wood-framed walls, mount to wall studs — verify stud spacing and confirm the 48" shelf width aligns with available stud attachment points; do not mount to drywall alone; the combined shelf load plus bike hook loads places greater demand on stud connections than the standalone Wall Shelf
- Masonry Mounting: For concrete or block walls, use appropriate masonry anchors rated for the combined shelf and bike load — verify wall material and anchor specifications before installation
- Mounting Height: Choose mounting height to allow sufficient clearance below the shelf for the Bike Slide hooks and hanging bikes — bikes hang vertically from the hooks; verify that the full bike length clears the floor at your selected mounting height
- Shelf Distributed Load: 250 lb shelf capacity is a distributed load rating — spread weight evenly across the 32"×48" surface; do not concentrate load at the front edge or at one end
- Bike Hook Load: Each Bike Slide hook is rated for 75 lbs — verify the weight of each bike before hanging; do not exceed 75 lbs on any individual hook; bike hook loads are independent of the 250 lb shelf platform rating
- Hook Rotation & Spacing: Each hook rotates to angle the bike for the tightest wall fit — space hooks to accommodate handlebar and frame width without contact between adjacent bikes
- Additional Hooks: The Bike Slide component supports additional hooks beyond the included 2 — contact us for hook expansion options before ordering if you need more than 2 bike positions
- Combo vs. Standalone Wall Shelf: Choose the Combo for combined shelf storage and bike hanging in one wall footprint; choose the standalone Wall Shelf if you don't need integrated bike storage
- Combo vs. Ceiling Bike Storage: The Wall Shelf Combo mounts to the wall and requires no ceiling clearance; choose the Bike Slide or Bike Slide Pro for ceiling-mounted bike storage on a dedicated overhead track
- Wall Shelf vs. Ceiling Storage: For overhead ceiling storage of totes, tools, and seasonal gear, see the Heavy-Duty Pro rack series, Storage Elevator series, or Tote Slide series
The GarageForm Difference: Technical Authority, Not Just a Catalog
Technical Screening: We don't list storage products without vetting them. The Ceiling Sam Wall Shelf Combo has been verified for 250 lb shelf platform capacity, 75 lb per-hook Bike Slide rating, stud and masonry mounting compatibility, and mounting height requirements for hanging bikes to ensure the performance data on this page reflects the actual system — not marketing copy.
Direct Expert Support: We serve as your technical interface. If you need assistance selecting the correct mounting approach for your wall type, verifying stud spacing for the 48" shelf, determining mounting height for your bike sizes, or choosing between the Combo and standalone Wall Shelf or ceiling bike storage options, our experts provide pre-sale consulting at no charge.
Straightforward Purchasing: Free shipping on this system. If the Wall Shelf Combo doesn't meet your mounting or load requirements after delivery, our return process is handled by our specialized team — not a generalist call center.
