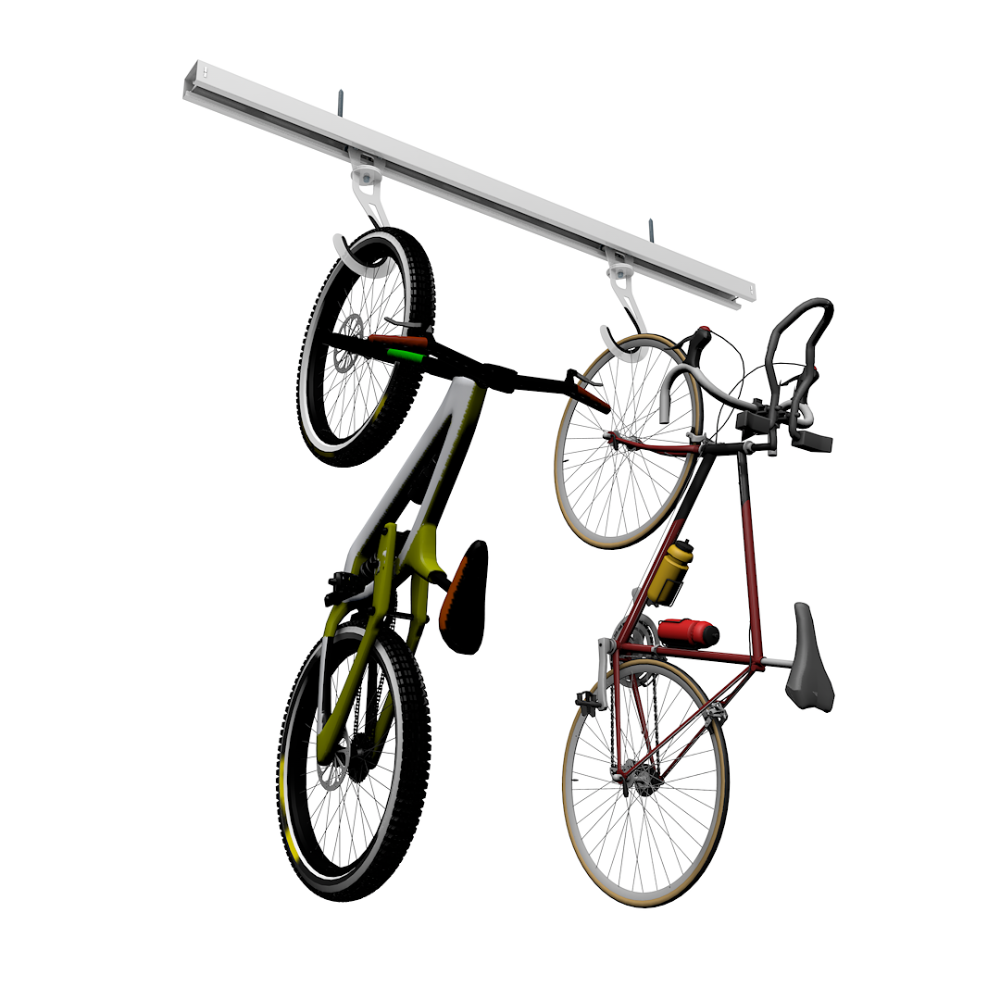

Ceiling Sam Bike Slide – Overhead Ceiling Bike Storage System
The Ceiling Sam Bike Slide is a ceiling-mounted overhead bike storage system with a 48" track, sliding and rotating hooks, rated for 75 lbs per hook — available in two configurations: 2 hooks ($249, SKU BKS) or 4 hooks ($389). Bikes hang from the ceiling, slide along the track for individual access, and rotate on the hook for tight-space positioning. DIY install with detailed instructions included. Made in the USA.
Bikes Off the Floor. Out of the Way. Still Accessible When You Need Them.
Bikes stored on the floor block vehicles, collect in corners, and fall over. Bikes hung on wall hooks damage drywall and require awkward lifting angles. The Ceiling Sam Bike Slide solves both problems: bikes hang vertically from the ceiling on rotating hooks that slide along a 48" overhead track, keeping them completely off the floor and out of the traffic path while remaining individually accessible without moving other bikes. The rotating hook lets you angle each bike for the tightest possible ceiling fit — handlebars and pedals positioned to minimize the footprint in the overhead zone. At 75 lbs per hook, it handles full-size adult bikes, e-bikes, and heavier mountain bikes within the per-hook rating. Choose 2 hooks for a single-car garage or targeted bike storage, or 4 hooks for a full household fleet in a single 48" track run. Made in the USA.
See it in action:
Track, Hook & Installation Specifications
- Track Length: 48"
- Hook Configuration: 2 hooks ($249, SKU BKS) or 4 hooks ($389)
- Weight Capacity: 75 lbs per hook
- Operation: Sliding hooks — each hook slides independently along the 48" track; rotating hooks — each hook rotates to angle the bike for optimal ceiling fit
- Installation: DIY — detailed instructions included; ceiling-mounted to joists
- Origin: Made in the USA
- SKU: BKS (2-hook configuration)
Installation Requirements, Bike Compatibility & Clearance Considerations
Watch the full installation walkthrough before you begin:
- Ceiling Height Requirement: Bikes hang vertically from the hook — verify that your ceiling height accommodates the full length of your tallest bike plus the hook and track mounting hardware; measure your longest bike from wheel to wheel and confirm clearance before ordering
- Joist Mounting: Track mounts to ceiling joists — verify joist spacing and direction at the intended installation location; the 48" track must align with available joist attachment points along its length
- Per-Hook Load: 75 lbs per hook — verify the weight of each bike before hanging; do not exceed 75 lbs on any individual hook regardless of total system load
- Hook Rotation: Each hook rotates to angle the bike — use rotation to minimize handlebar and pedal protrusion into the garage space and to fit bikes closer together on the track
- Hook Spacing: Hooks slide independently along the 48" track — space hooks to accommodate the width of each bike's handlebars and frame without contact between adjacent bikes
- 2 vs. 4 Hook Configuration: Choose 2 hooks for 1–2 bikes or a single-car garage with limited overhead space; choose 4 hooks for a full household fleet of 3–4 bikes on a single 48" track run
- Bike Slide vs. Bike Slide Pro: Choose the standard Bike Slide (48" track, 2 or 4 hooks) for 1–4 bikes in a standard single-car garage footprint; choose the Bike Slide Pro (96" track, 4/6/8 hooks) for larger fleets or garages with more overhead ceiling run
- Bike Slide vs. Storage Elevator / Tote Slide: The Bike Slide is purpose-built for bike storage; for general overhead storage of totes, tools, and seasonal gear, see the Storage Elevator series, Tote Slide, or Heavy-Duty Pro rack series
The GarageForm Difference: Technical Authority, Not Just a Catalog
Technical Screening: We don't list overhead storage products without vetting them. The Ceiling Sam Bike Slide has been verified for per-hook load rating, hook rotation and slide mechanism, and ceiling joist mounting requirements to ensure the performance data on this page reflects the actual system — not marketing copy.
Direct Expert Support: We serve as your technical interface. If you need assistance selecting between the 2-hook and 4-hook configurations, verifying ceiling height clearance for your specific bikes, or confirming joist spacing for the 48" track, our experts provide pre-sale consulting at no charge.
Straightforward Purchasing: Free shipping on this system. If the Bike Slide doesn't meet your clearance or compatibility requirements after delivery, our return process is handled by our specialized team — not a generalist call center.
