Ceiling Sam Tote Slide – Overhead Garage Storage System
The Ceiling Sam Tote Slide is a ceiling-mounted overhead storage rail system measuring 37.5" × 81", rated for 150 lbs total load (30 lbs per tote recommended), holding 3–5 standard storage totes on sliding rails — designed to mount above the garage door in the dead ceiling space most garages never use. Industrial-grade powder-coated steel construction, patented design, DIY install with all hardware included, Lifetime Limited Warranty. Made in the USA. SKU: TS.
The Space Above Your Garage Door Is the Most Wasted Storage Zone in Your Garage

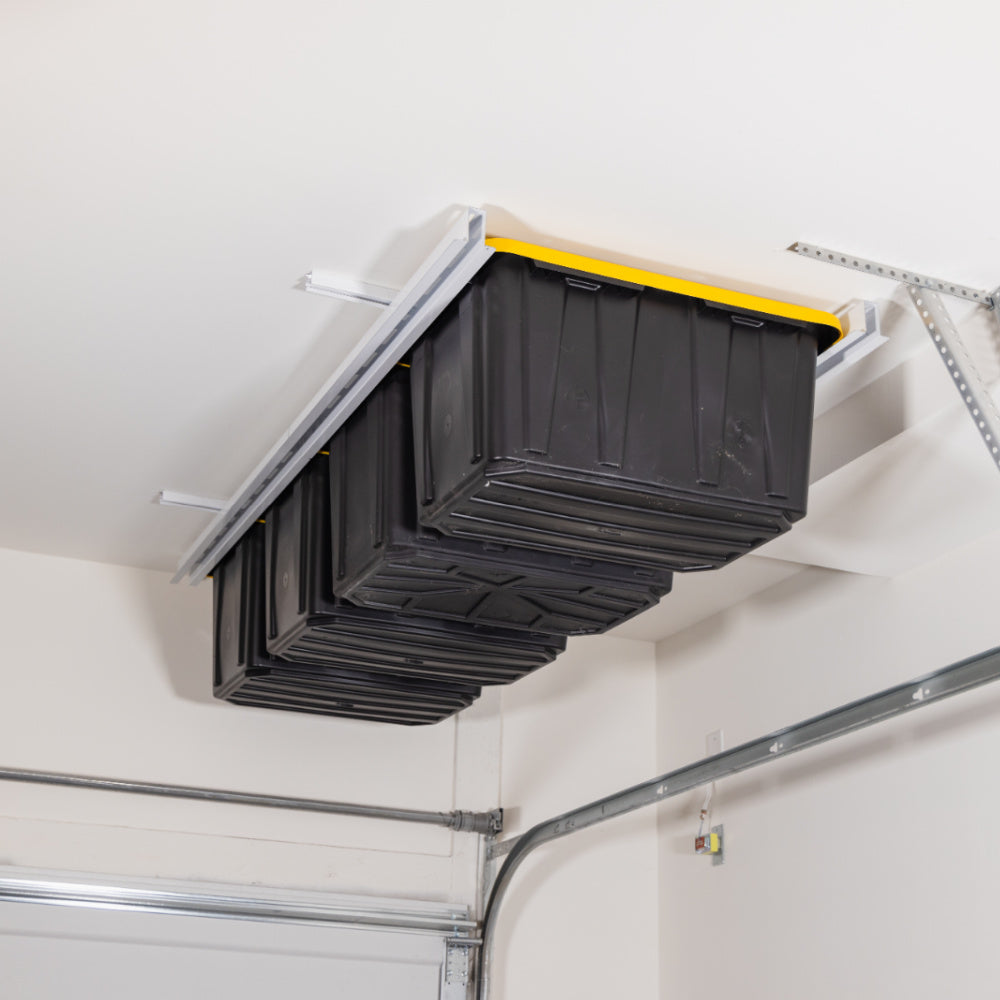

The ceiling above the garage door is structurally sound, consistently overhead, and almost universally unused — because standard shelving can't go there and ceiling racks require too much vertical clearance. The Ceiling Sam Tote Slide is engineered specifically for that zone: the 37.5"×81" rail system mounts directly to the ceiling joists above the door opening, and standard storage totes slide in and out on the rails without a ladder struggle. 17-gallon totes hang 15" from the ceiling; 27-gallon totes hang 18" — clearing the garage door mechanism while keeping seasonal gear, holiday decorations, and bulky bins accessible and off the floor. The modular design is expandable as your storage needs grow, and everything ships in one box with all hardware included.

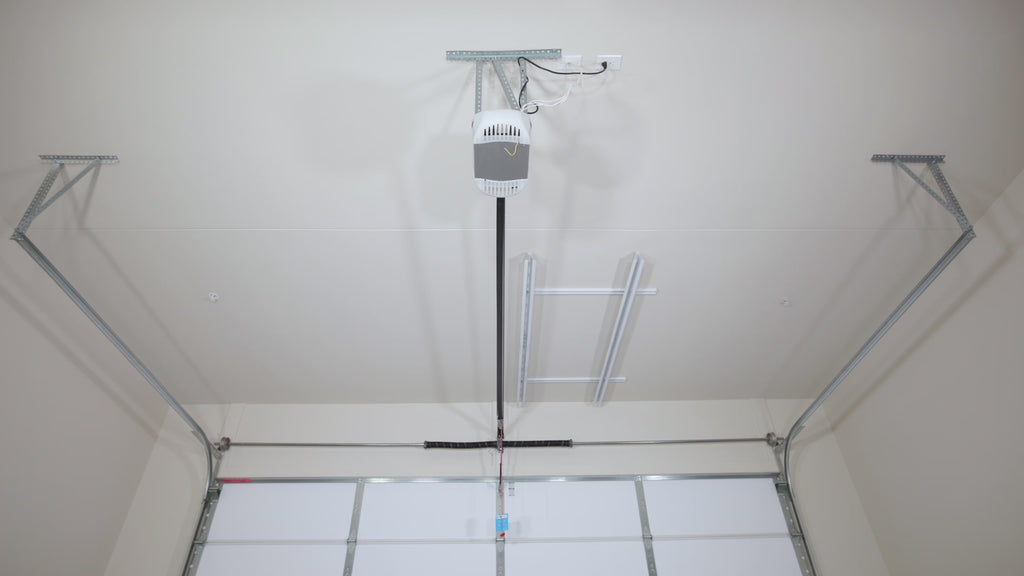

See it in action:
Another look:
Rail System, Load & Installation Specifications

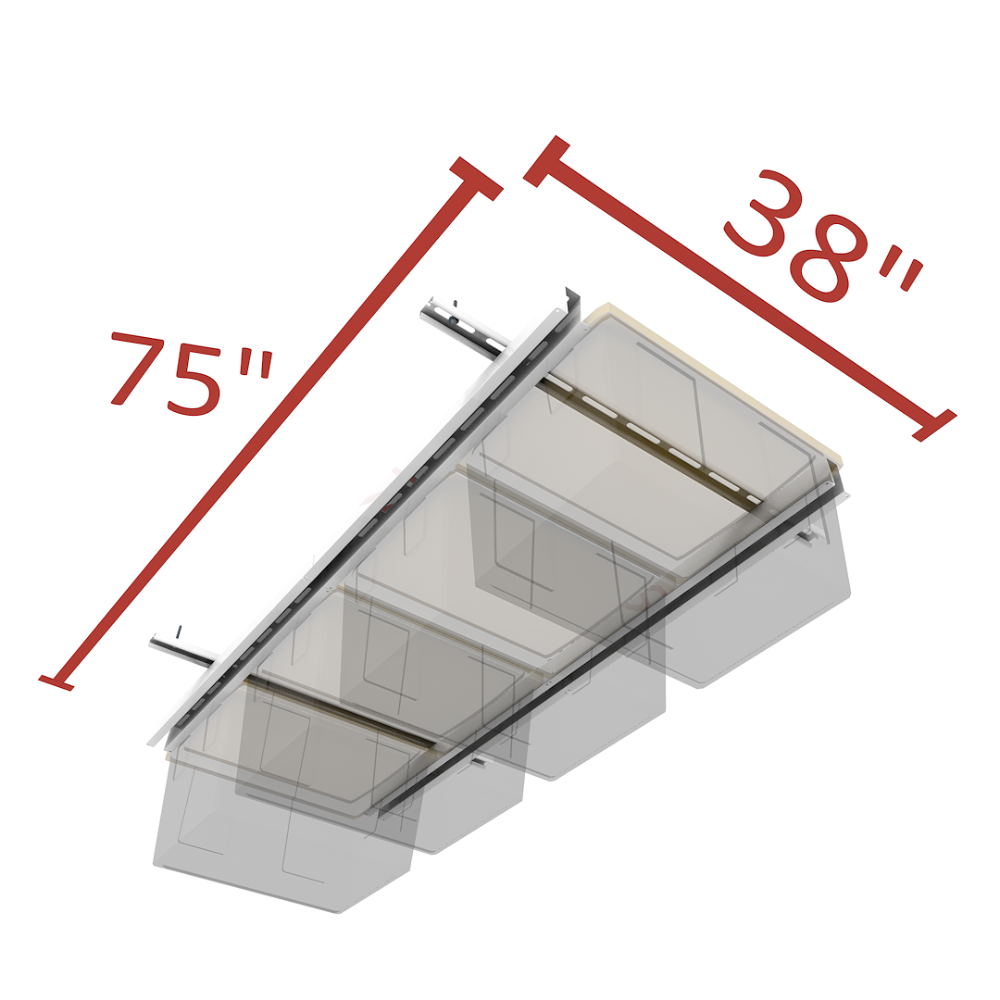

- Dimensions: 37.5" × 81"
- Total Load Capacity: 150 lbs
- Per-Tote Load: 30 lbs recommended maximum per tote
- Tote Capacity: 3–5 standard storage totes
- Tote Hang Distance: 17-gallon totes hang 15" from ceiling; 27-gallon totes hang 18" from ceiling
- Material: Industrial-grade powder-coated steel
- Design: Modular and expandable — add sections as storage needs grow
- Installation: DIY — all parts and hardware included in one box; detailed instructions included
- Warranty: Lifetime Limited Warranty
- Patent: Patented design
- Origin: Made in the USA
- SKU: TS
- Note: Totes sold separately.
Installation Requirements, Tote Compatibility & Clearance Considerations
Watch the full installation walkthrough before you begin:
- Mounting Location: Designed to mount above the garage door opening — verify ceiling joist spacing and direction at the intended installation location before ordering; the 81" rail length must align with available joist attachment points
- Garage Door Clearance: Totes hang 15"–18" from the ceiling depending on tote size — verify that the loaded tote hang position clears your garage door mechanism (opener rail, springs, and door panel in the open position) before installation
- Ceiling Height Requirement: The system requires sufficient ceiling height above the garage door to accommodate the rail mounting hardware plus tote hang distance — measure from ceiling to the top of your garage door in the open position and confirm clearance for your tote size (15" for 17-gallon, 18" for 27-gallon)
- Tote Compatibility: Designed for standard storage totes — 17-gallon and 27-gallon totes confirmed compatible; verify tote lip/rim dimensions against rail specifications before purchasing non-standard tote sizes; totes are not included
- Per-Tote Load: 30 lbs recommended per tote — total system capacity is 150 lbs distributed across all totes; do not exceed 30 lbs per individual tote even if total system load is below 150 lbs
- Modular Expansion: The system is expandable — additional rail sections can be added to increase tote capacity beyond the base 3–5 tote configuration
- Standard vs. Tote Slide Pro: Choose the standard Tote Slide (37.5"×81", 3–5 totes, 150 lbs) for smaller garages or tighter ceiling footprints; choose the Tote Slide Pro (75"×81", 9–15 totes, 450 lbs) for maximum overhead tote capacity
- Need bin storage in a specific ceiling or wall location? The Bin Slide (40.5"×65", 4–5 bins, 200 lbs) is a fixed-rail system that mounts to ceiling joists or wall studs — ideal for targeted bin storage outside the above-door zone
- Want tote storage integrated with a heavy-duty rack? The 4'×8' Heavy-Duty Pro Combo combines a 1,000 lb ceiling rack with an integrated Tote Slide underneath — two storage systems in one ceiling footprint
- Tote Slide vs. Storage Elevator: Choose the Tote Slide for fixed overhead tote storage above the garage door with no moving lift mechanism; choose the Storage Elevator series for lowerable platforms that bring storage down to floor level without a ladder
The GarageForm Difference: Technical Authority, Not Just a Catalog
Technical Screening: We don't list overhead storage products without vetting them. The Ceiling Sam Tote Slide has been verified for load capacity rating, tote hang clearance dimensions, joist mounting requirements, and garage door compatibility considerations to ensure the performance data on this page reflects the actual system — not marketing copy.
Direct Expert Support: We serve as your technical interface. If you need assistance verifying garage door clearance for your specific door mechanism, confirming joist spacing compatibility for the 81" rail, or choosing between the Tote Slide, Tote Slide Pro, Bin Slide, Heavy-Duty Pro Combo, and Storage Elevator for your garage layout, our experts provide pre-sale consulting at no charge.
Straightforward Purchasing: Free shipping on this system. If the Tote Slide doesn't meet your clearance or compatibility requirements after delivery, our return process is handled by our specialized team — not a generalist call center.
