Ceiling Sam 4x4 Storage Elevator - Retractable Ceiling Storage Lift

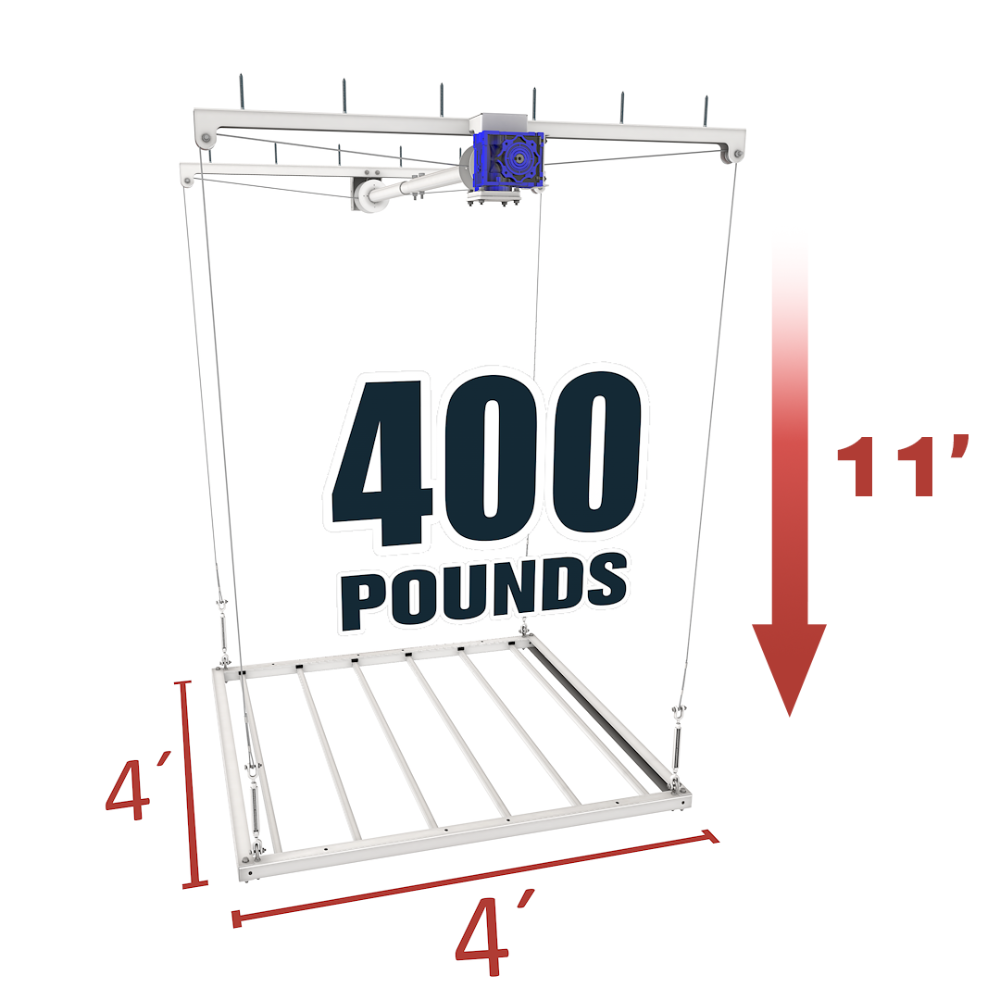

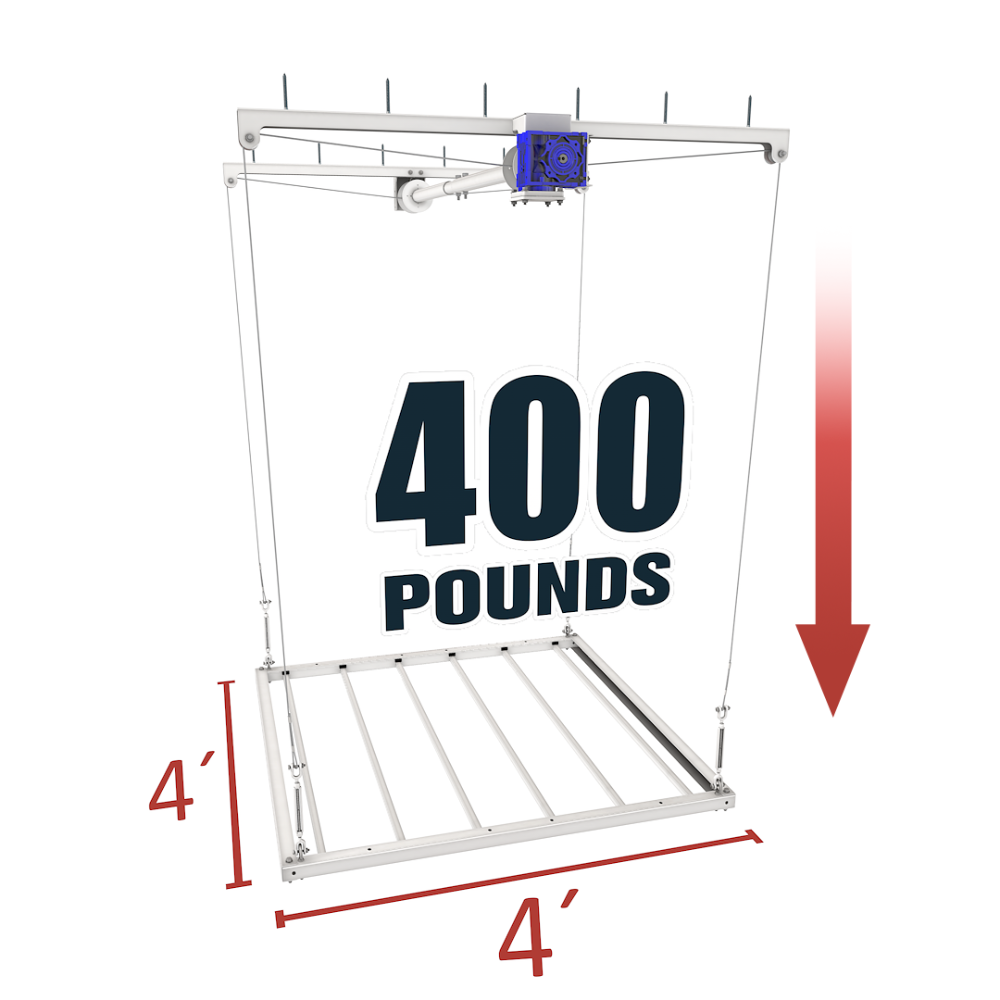

The Ceiling Sam 4'×4' Storage Elevator is a retractable ceiling-mounted storage platform rated for 400 lbs of distributed load, with an 8' or 11' drop length, drill-powered operation, and a 4'×4' (16 sq ft) platform — available in two variants: 8'–11' ceiling height ($999) and 11.5'–14' ceiling height ($1,099). Made in the USA. Limited Lifetime Warranty.
Why Garage Floor Storage Fails — and What the Ceiling Can Do Instead

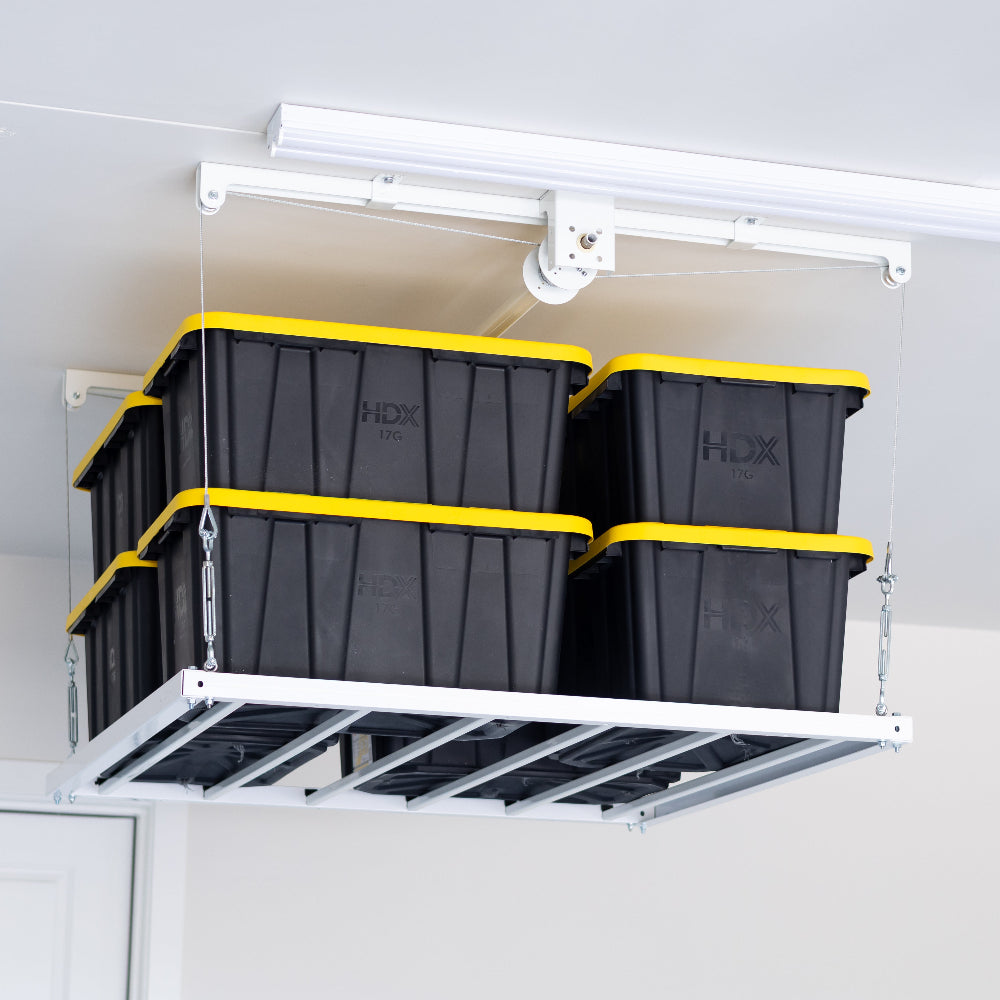

Seasonal items, totes, camping gear, and holiday decorations occupy floor and wall space for 10 months of the year while being used for two. The Ceiling Sam 4'×4' Storage Elevator reclaims that space by moving it overhead: the 4'×4' platform raises flush to the ceiling when not in use, returning the full garage floor to vehicles, workbenches, and active storage. When you need access, a standard drill lowers the platform in seconds — no ladder required, no manual lifting, no ceiling-height gymnastics. At 400 lbs distributed capacity, it handles the full weight of a season's worth of totes, tools, or equipment in a single platform footprint, backed by a Limited Lifetime Warranty.

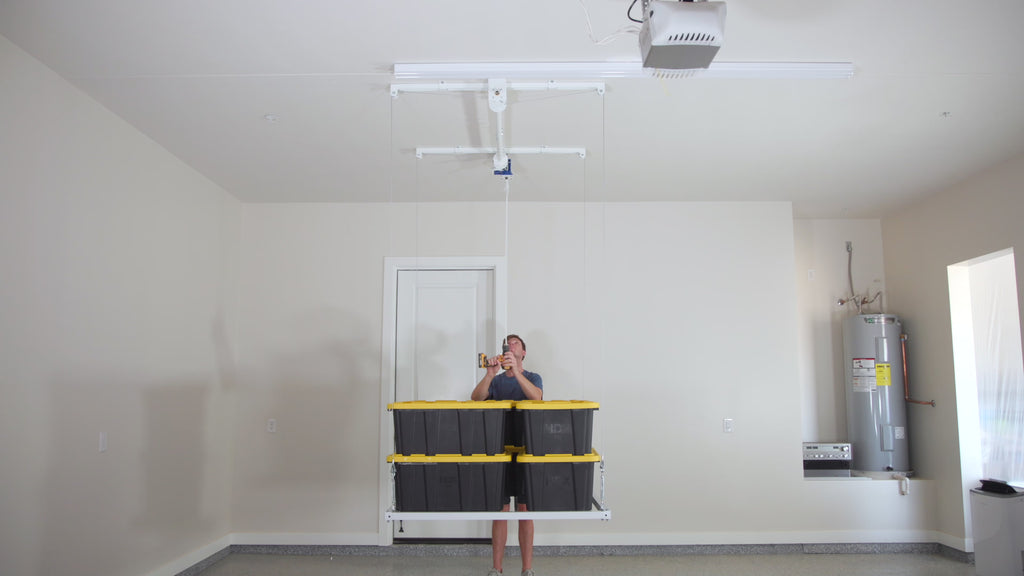

See it in action:
Platform, Load & Operation Specifications
- Platform Dimensions: 4' × 4' (16 sq ft)
- Load Capacity: 400 lbs distributed — weight must be distributed across the platform surface, not concentrated at a single point
- Drop Length: 8' (8'–11' ceiling variant) or 11' (11.5'–14' ceiling variant)
- Ceiling Height Range: 8'–11' (SKU R4X4) or 11.5'–14' (SKU R4X4M)
- Power Source: Drill-powered — operates with any standard corded or cordless drill; no electrical wiring or dedicated circuit required
- Installation: DIY install — designed for standard garage ceiling joist mounting without professional installation
- Warranty: Limited Lifetime Warranty
- Origin: Made in the USA
- Vendor: Ceiling Sam
Variants:
- 8'–11' Ceiling Height — $999 (SKU R4X4): 8' drop length — for standard residential garage ceilings
- 11.5'–14' Ceiling Height — $1,099 (SKU R4X4M): 11' drop length — for taller garage, workshop, or commercial ceilings
Ceiling Height Selection, Installation Requirements & Load Considerations
Watch the full installation walkthrough before you begin:
- Ceiling Height Selection — Critical: Your ceiling height must exceed the drop length of the selected variant. For the 8' drop variant, ceiling height must be greater than 8'. For the 11' drop variant, ceiling height must be greater than 11'. Measure your ceiling height before selecting a variant — selecting the wrong variant requires a return and exchange
- Ceiling Height Measurement: Measure from finished floor to the underside of the ceiling joists (not drywall) at the intended installation location — joist depth adds to usable clearance
- Joist Mounting: The platform mounts to ceiling joists — verify joist spacing and structural capacity at the intended installation location before ordering; consult a structural engineer if joists are non-standard or if the installation location is above a living space
- Platform Footprint: 4' × 4' — plan installation location to avoid conflicts with garage door tracks, light fixtures, HVAC runs, and vehicle roof clearance when the platform is in the lowered position
- Vehicle Clearance: When lowered, the platform descends to within the drop length of the ceiling — verify that the lowered platform position clears the roof of any vehicle parked beneath it
- Distributed Load: 400 lb capacity is a distributed load rating — spread weight evenly across the 4'×4' surface; do not stack all weight at the center or at one corner
- Drill Operation: Any standard corded or cordless drill operates the lift mechanism — no dedicated power source, wiring, or outlet required at the ceiling
- DIY Install: Designed for homeowner installation — standard tools required; follow the included installation instructions for joist attachment and cable tensioning before loading the platform
- Not sure which platform size is right for your ceiling? Ceiling Sam also offers the 4'×6' Storage Elevator and the 4'×8' Storage Elevator for larger ceiling footprints and storage volumes. Contact us and we'll help you size the right platform for your garage layout
