Ceiling Sam 4x4 Heavy-Duty Pro Ceiling Storage Rack
The Ceiling Sam 4'×4' Heavy-Duty Pro is a fixed ceiling-mounted storage rack rated for 400 lbs of distributed load, with a 4'×4' (16 sq ft) platform and adjustable mounting depth from 20" to 40" — engineered for permanent overhead storage of tools, totes, seasonal gear, and heavy equipment. DIY install with detailed instructions included. Made in the USA. SKU: 4X4-HDP.
Permanent Overhead Storage Built for Loads That Standard Ceiling Racks Can't Handle

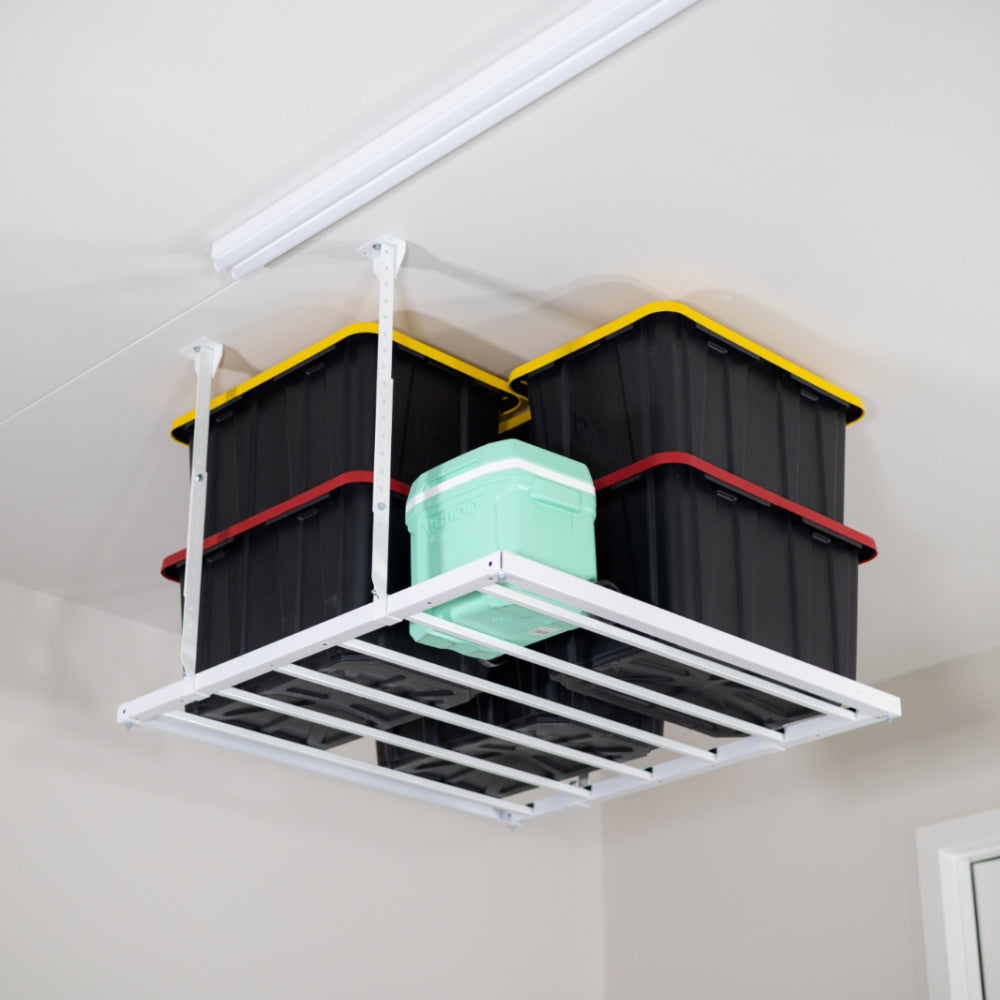

Most ceiling storage racks are rated for light seasonal bins and holiday decorations. The Ceiling Sam 4'×4' Heavy-Duty Pro is built for the loads that don't fit that category — heavy tools, dense equipment cases, full tote loads, and gear that needs to stay overhead year-round without the rack flexing under the weight. At 400 lbs distributed capacity across a 4'×4' platform, it handles serious storage volume in a fixed overhead footprint that returns the full garage floor to vehicles and active use. The adjustable mounting depth — 20" to 40" from the ceiling — lets you dial in the hang height to clear garage door mechanisms, vehicle rooflines, and overhead obstructions specific to your garage layout. Everything installs with standard tools and detailed instructions included.

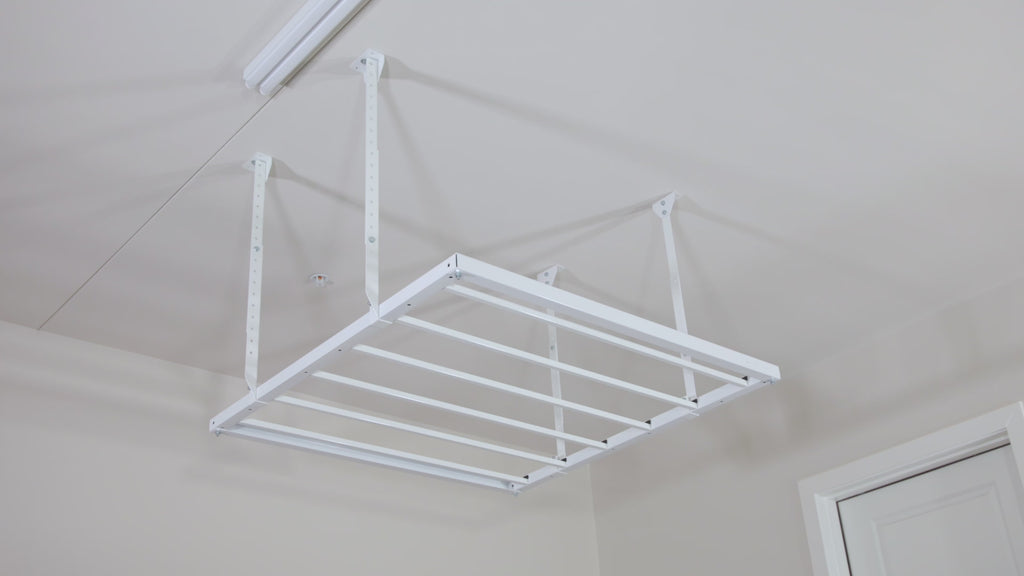

See it in action:
Platform, Load & Mounting Specifications

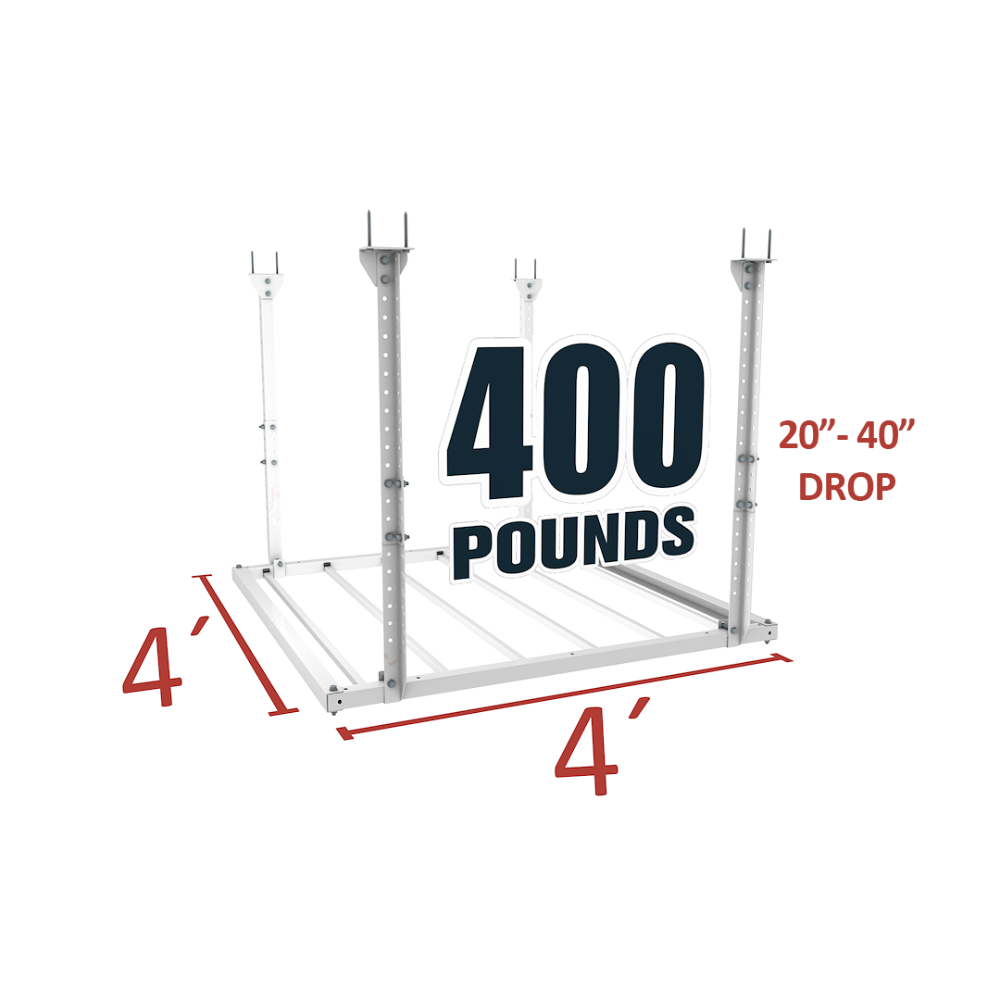

- Platform Dimensions: 4' × 4' (16 sq ft)
- Load Capacity: 400 lbs distributed — weight must be distributed across the platform surface, not concentrated at a single point
- Adjustable Mounting Depth: 20" to 40" from ceiling — set at installation to clear your specific garage door mechanism, vehicle roofline, and overhead obstructions
- Operation: Fixed rack — platform is stationary once installed; not a lowerable lift system
- Installation: DIY — detailed step-by-step instructions included; designed for standard ceiling joist mounting
- Origin: Made in the USA
- SKU: 4X4-HDP
Installation Requirements, Depth Adjustment & Load Considerations
Watch the full installation walkthrough before you begin:
- Mounting Depth Selection: Set the mounting depth (20"–40") at installation based on your garage door mechanism clearance, vehicle roofline height, and any overhead obstructions — depth is adjustable at install but is fixed once the rack is loaded; plan your depth before mounting
- Joist Mounting: Mounts to ceiling joists — verify joist spacing and structural capacity at the intended installation location before ordering; consult a structural engineer if joists are non-standard or if the installation location is above a living space
- Platform Footprint: 4' × 4' — plan installation location to avoid conflicts with garage door tracks, light fixtures, HVAC runs, and vehicle roof clearance at the selected mounting depth
- Vehicle Clearance: At minimum depth (20" from ceiling), the platform bottom sits 20" below the ceiling — verify this clears the roof of any vehicle parked beneath at your specific ceiling height; use the 40" maximum depth only where ceiling height and vehicle clearance allow
- Distributed Load: 400 lb capacity is a distributed load rating — spread weight evenly across the 4'×4' surface; do not concentrate load at the center or at one corner
- Fixed Rack vs. Storage Elevator: The Heavy-Duty Pro is a fixed rack — items stored on it require a ladder or step stool for access; choose the Storage Elevator series if you need a lowerable platform that brings storage down to floor level without a ladder
- Heavy-Duty Pro Platform Sizing: The 4'×4' is the entry-level Heavy-Duty Pro footprint at 400 lbs and 16 sq ft; the 4'×6' Heavy-Duty Pro covers 24 sq ft at 600 lbs; the 4'×8' Heavy-Duty Pro covers 32 sq ft at 1,000 lbs; the 4'×8' Heavy-Duty Pro Combo adds an integrated Tote Slide for dual-layer storage in one ceiling footprint
The GarageForm Difference: Technical Authority, Not Just a Catalog
Technical Screening: We don't list overhead storage products without vetting them. The Ceiling Sam 4'×4' Heavy-Duty Pro has been verified for load capacity rating, adjustable depth range, and joist mounting requirements to ensure the performance data on this page reflects the actual rack — not marketing copy.
Direct Expert Support: We serve as your technical interface. If you need assistance selecting the correct mounting depth for your garage layout, verifying joist structural capacity, or choosing between the Heavy-Duty Pro rack configurations and the Storage Elevator series for your storage workflow, our experts provide pre-sale consulting at no charge.
Straightforward Purchasing: Free shipping on this rack. If the 4'×4' Heavy-Duty Pro doesn't meet your clearance or structural requirements after delivery, our return process is handled by our specialized team — not a generalist call center.
