Ceiling Sam Bike Slide Pro – Overhead Ceiling Bike Storage System

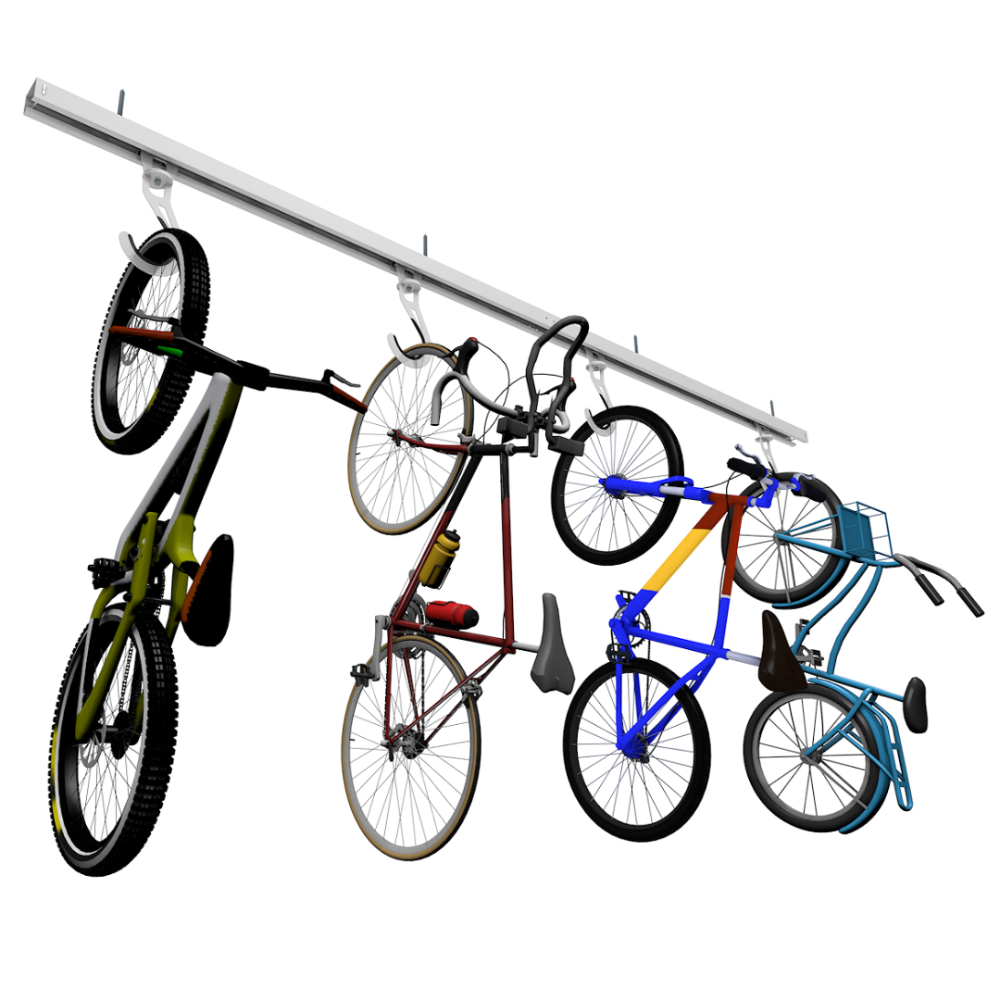

The Ceiling Sam Bike Slide Pro is a ceiling-mounted overhead bike storage system with a 96" track, sliding and rotating hooks, rated for 75 lbs per hook — available in three configurations: 4 hooks ($399, SKU BKSP), 6 hooks ($539), or 8 hooks ($639). Bikes hang from the ceiling, slide along the track for individual access, and rotate on the hook for tight-space positioning. DIY install with detailed instructions included. Made in the USA.
Bikes Off the Floor. Out of the Way. Still Accessible When You Need Them.
Bikes stored on the floor block vehicles, collect in corners, and fall over. Bikes hung on wall hooks damage drywall and require awkward lifting angles. The Ceiling Sam Bike Slide Pro solves both problems at scale: bikes hang vertically from the ceiling on rotating hooks that slide along a 96" overhead track — double the track length of the standard Bike Slide — keeping a full household fleet or multi-bike collection completely off the floor and out of the traffic path while remaining individually accessible without moving other bikes. The rotating hook lets you angle each bike for the tightest possible ceiling fit, and with 4, 6, or 8 hook configurations, the Pro handles everything from a family of four to a serious cycling household. At 75 lbs per hook, it accommodates full-size adult bikes, e-bikes, and heavier mountain bikes within the per-hook rating. Made in the USA.
See it in action:
Track, Hook & Installation Specifications

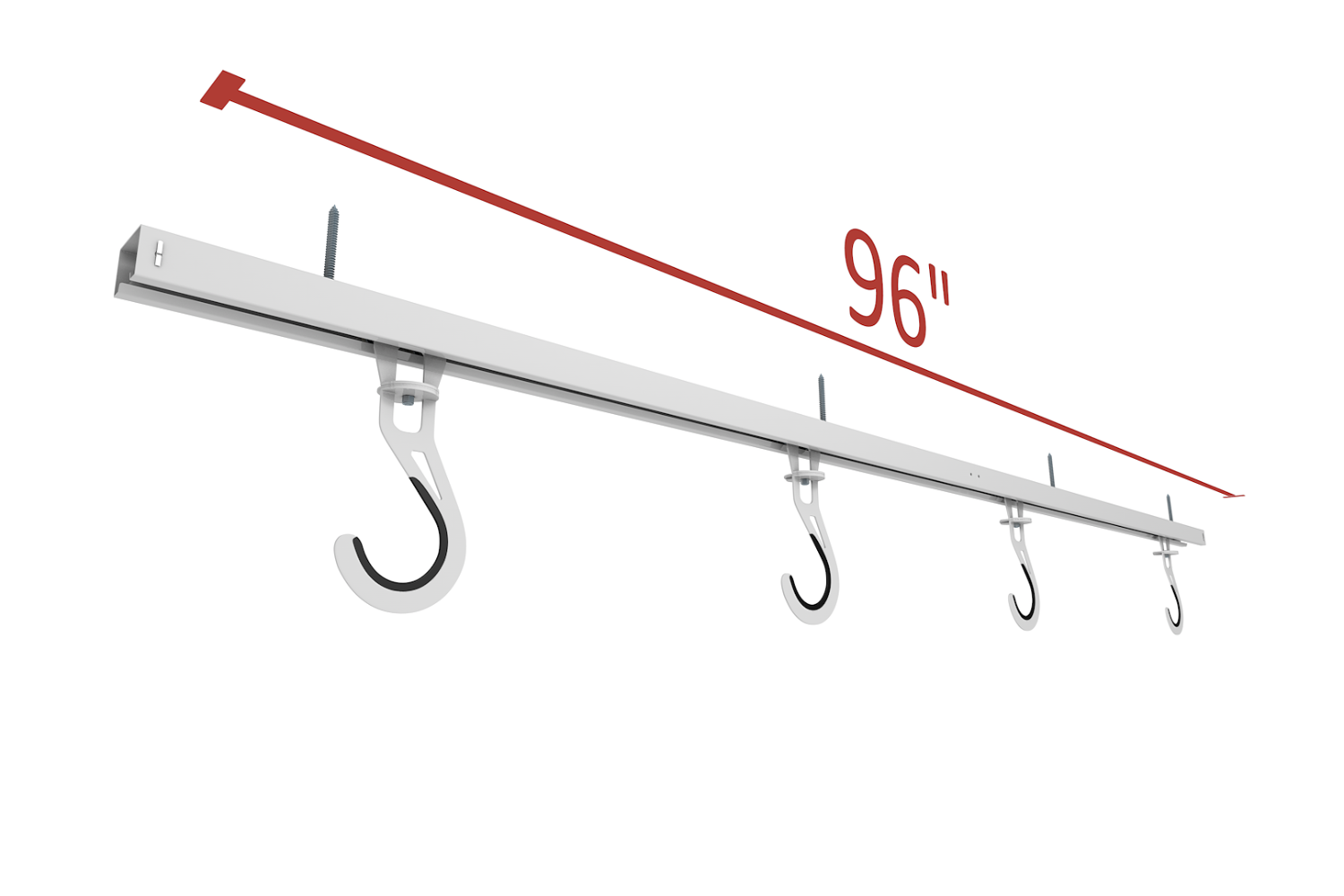

- Track Length: 96"
- Hook Configurations: 4 hooks ($399, SKU BKSP) / 6 hooks ($539) / 8 hooks ($639)
- Weight Capacity: 75 lbs per hook
- Total Capacity: 300 lbs (4-hook) / 450 lbs (6-hook) / 600 lbs (8-hook) at 75 lbs per hook
- Operation: Sliding hooks — each hook slides independently along the 96" track; rotating hooks — each hook rotates to angle the bike for optimal ceiling fit
- Installation: DIY — detailed instructions included; ceiling-mounted to joists
- Origin: Made in the USA
- SKU: BKSP (4-hook configuration)
Installation Requirements, Bike Compatibility & Clearance Considerations

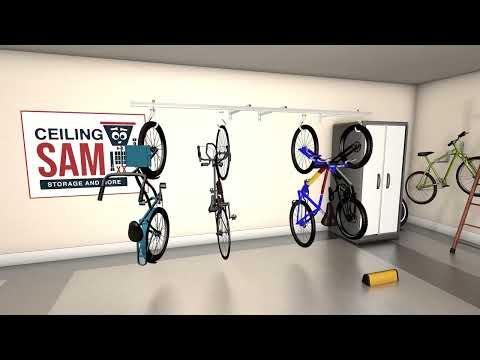

Watch the full installation walkthrough before you begin:
- Ceiling Height Requirement: Bikes hang vertically from the hook — verify that your ceiling height accommodates the full length of your tallest bike plus the hook and track mounting hardware; measure your longest bike from wheel to wheel and confirm clearance before ordering
- Joist Mounting: Track mounts to ceiling joists — verify joist spacing and direction at the intended installation location; the 96" track spans a significantly larger joist footprint than the standard 48" Bike Slide — confirm your joist layout accommodates the full 96" track length and provides sufficient attachment points
- Per-Hook Load: 75 lbs per hook — verify the weight of each bike before hanging; do not exceed 75 lbs on any individual hook regardless of total system load or hook configuration selected
- Hook Rotation: Each hook rotates to angle the bike — use rotation to minimize handlebar and pedal protrusion into the garage space and to fit bikes closer together on the track
- Hook Spacing: Hooks slide independently along the 96" track — space hooks to accommodate the width of each bike's handlebars and frame without contact between adjacent bikes; the longer track gives more flexibility for spacing heavier or wider bikes
- Hook Configuration Selection: Choose 4 hooks for a family of 3–4 bikes; choose 6 hooks for 5–6 bikes or a mix of adult and children's bikes; choose 8 hooks for maximum fleet storage or a dedicated cycling household
- Pro vs. Standard Bike Slide: Choose the Pro (96" track, 4/6/8 hooks) for larger fleets or garages with more overhead ceiling run; choose the standard Bike Slide (48" track, 2 or 4 hooks) for 1–4 bikes in a standard single-car garage footprint
- Bike Slide vs. Storage Elevator / Tote Slide: The Bike Slide Pro is purpose-built for bike storage; for general overhead storage of totes, tools, and seasonal gear, see the Storage Elevator series, Tote Slide, or Heavy-Duty Pro rack series
