Ceiling Sam Wall Shelf – Heavy-Duty Garage Wall Storage

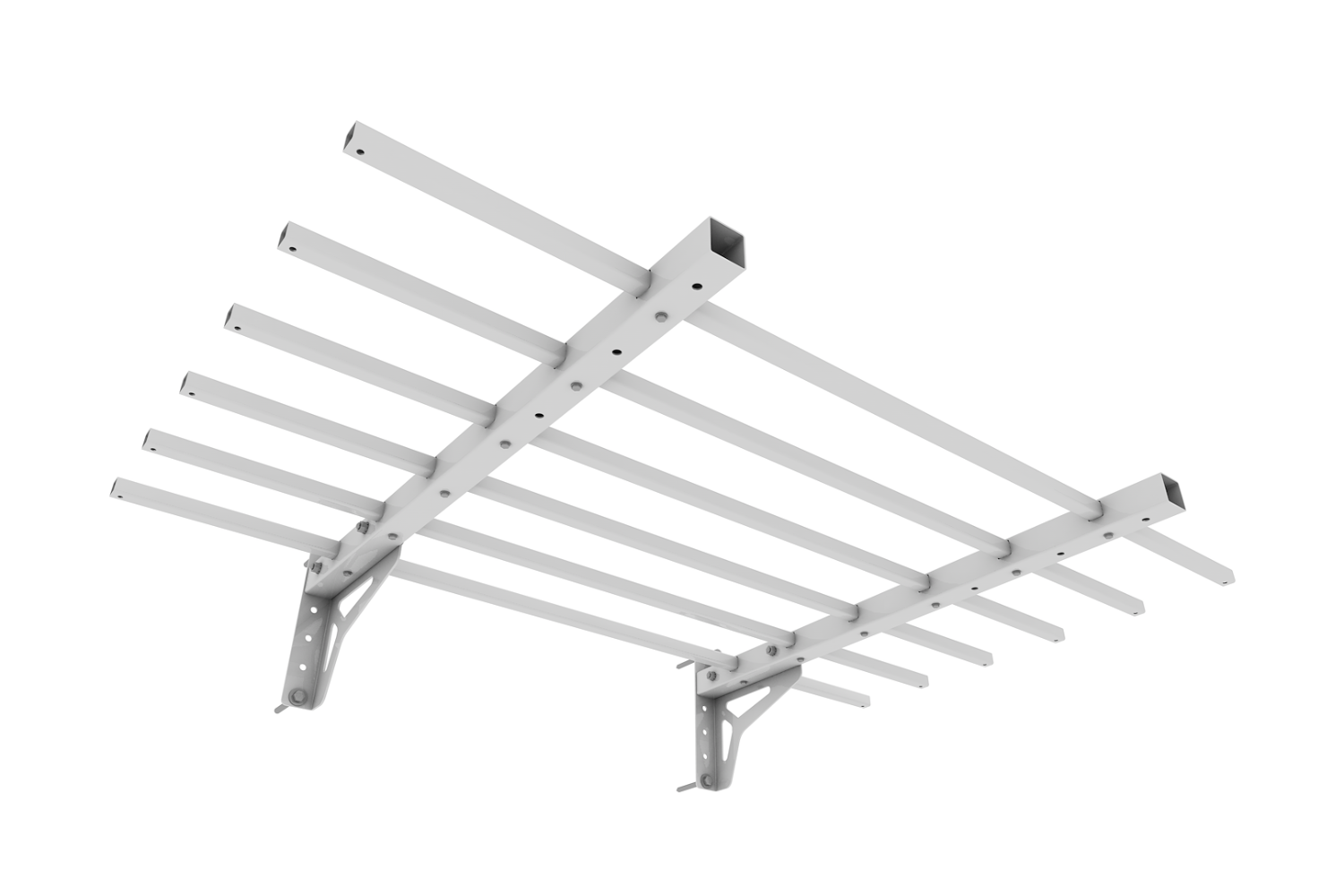

The Ceiling Sam Wall Shelf is a heavy-duty wall-mounted storage shelf measuring 32" × 48", rated for 250 lbs of distributed load, constructed from industrial-grade powder-coated steel — designed for stud or masonry mounting to put unused wall space to work for bulky items, totes, tools, and gear. DIY install with detailed instructions included. Made in the USA. SKU: WS.
Heavy-Duty Wall Storage That Holds What Standard Shelving Can't

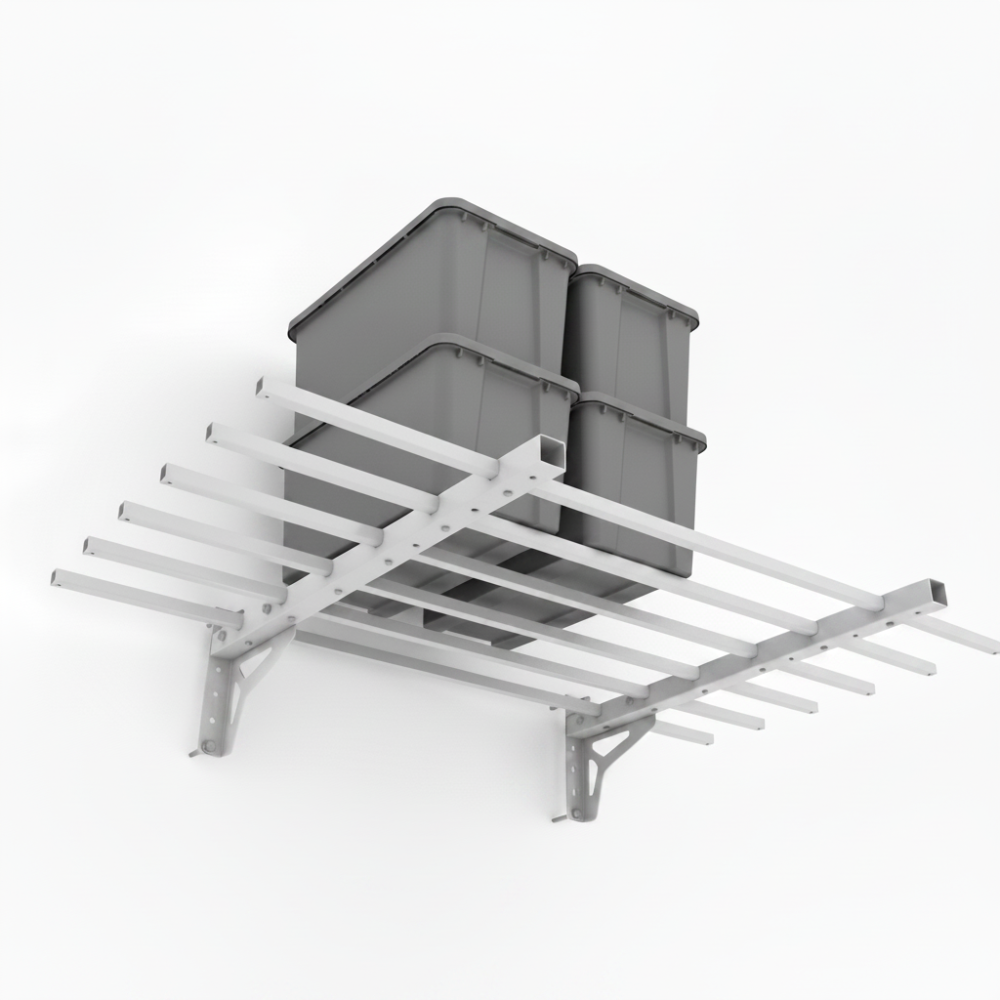

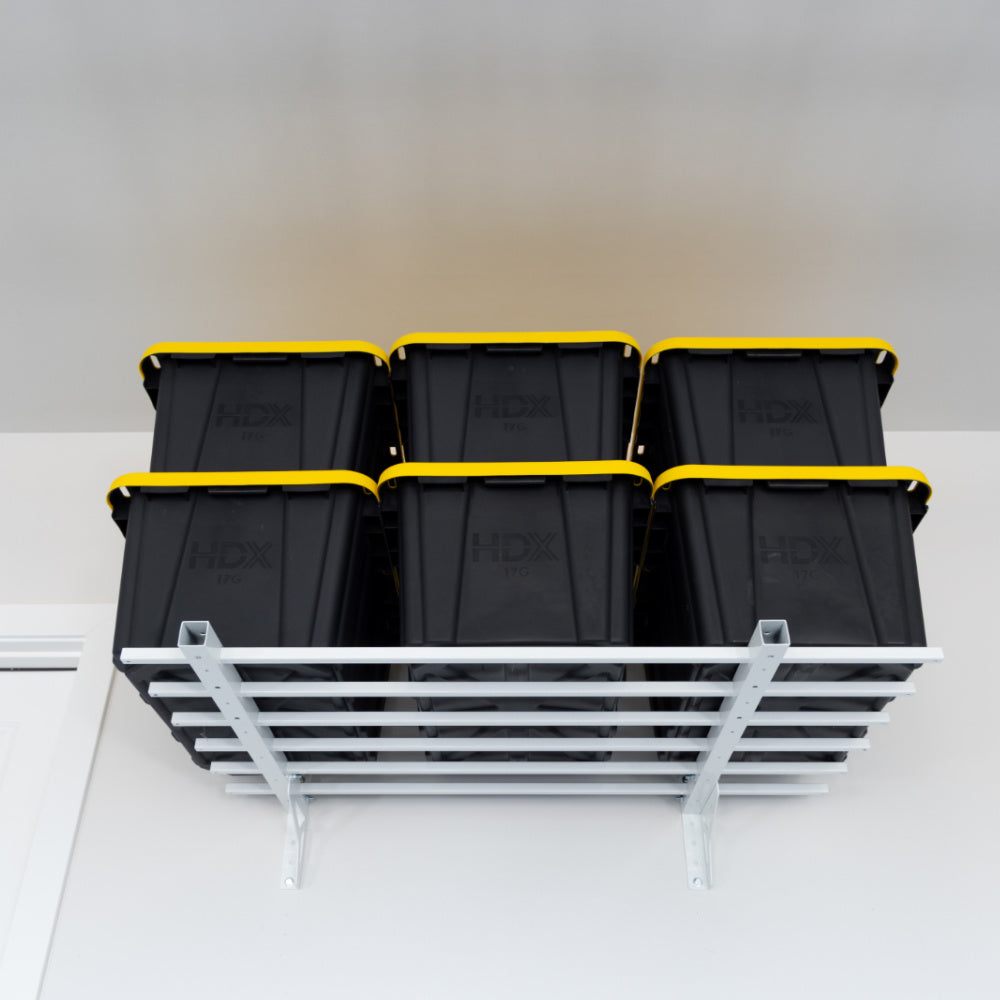

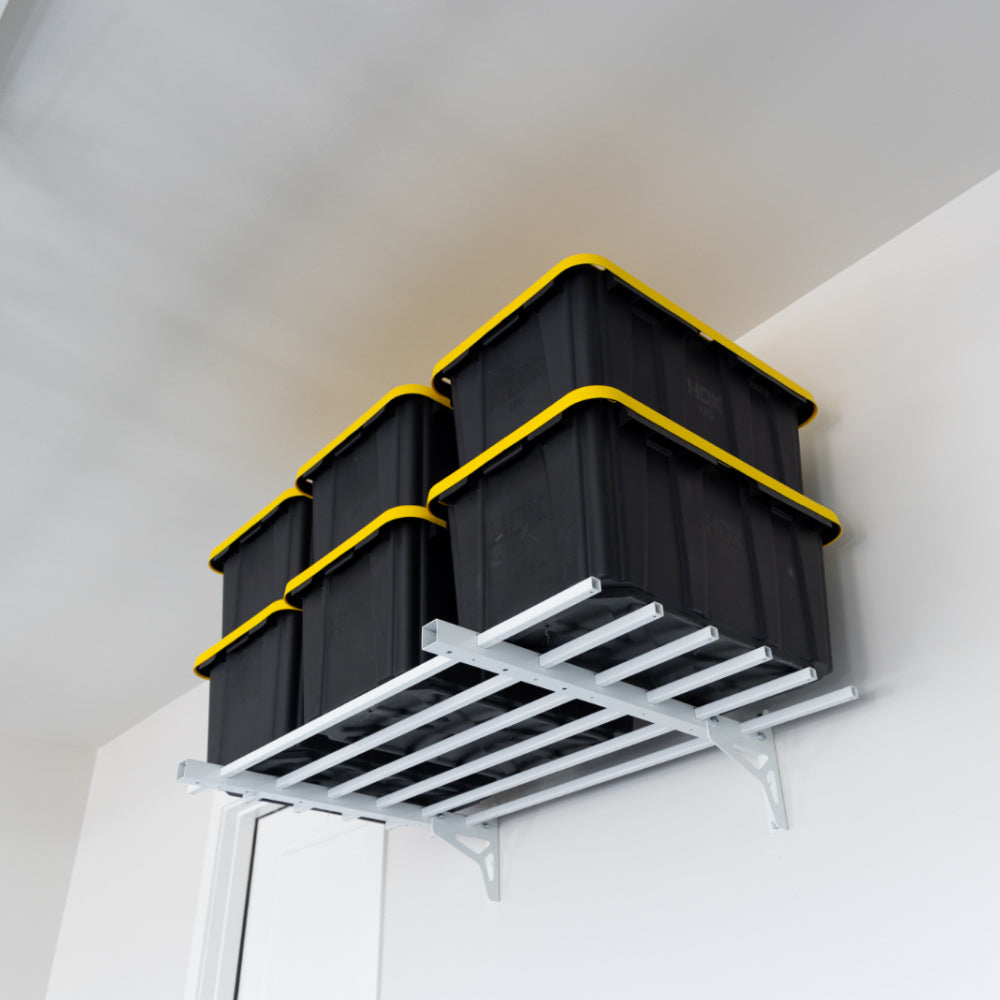

Standard wire shelving and bracket shelves are built for light loads — paint cans, small bins, and lightweight gear. The Ceiling Sam Wall Shelf is built for the loads that don't fit that category: at 250 lbs distributed capacity across a 32"×48" platform of industrial-grade powder-coated steel, it handles full tote loads, heavy tools, equipment cases, and bulky seasonal gear that would overwhelm a standard wall shelf. It mounts directly to wall studs or masonry — no ceiling clearance required, no joist alignment needed — making it the right solution for any wall zone in the garage where you need serious storage capacity at a fixed, accessible height. Everything installs with standard tools and detailed instructions included. Made in the USA.

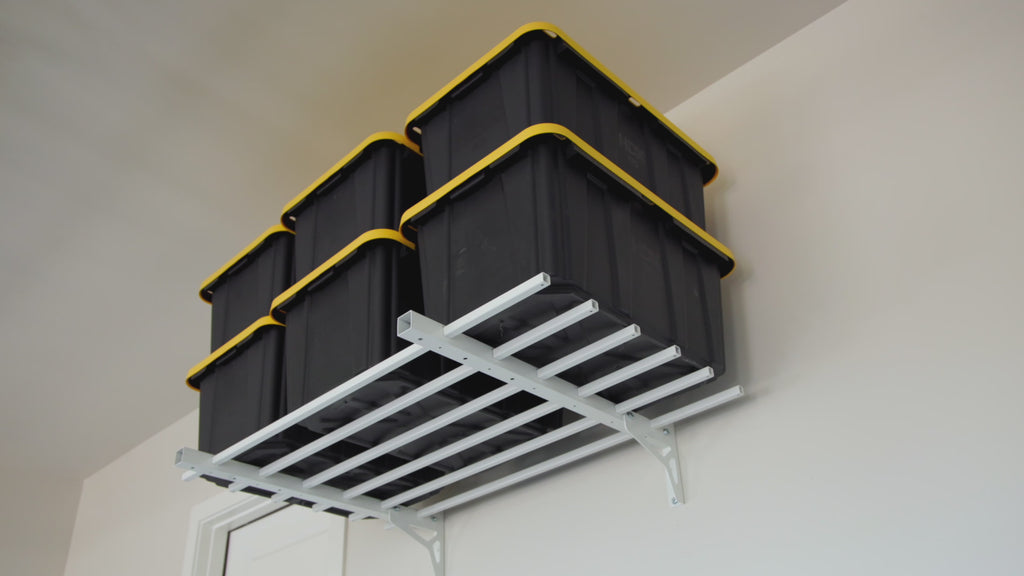

See it in action:
Shelf, Load & Mounting Specifications

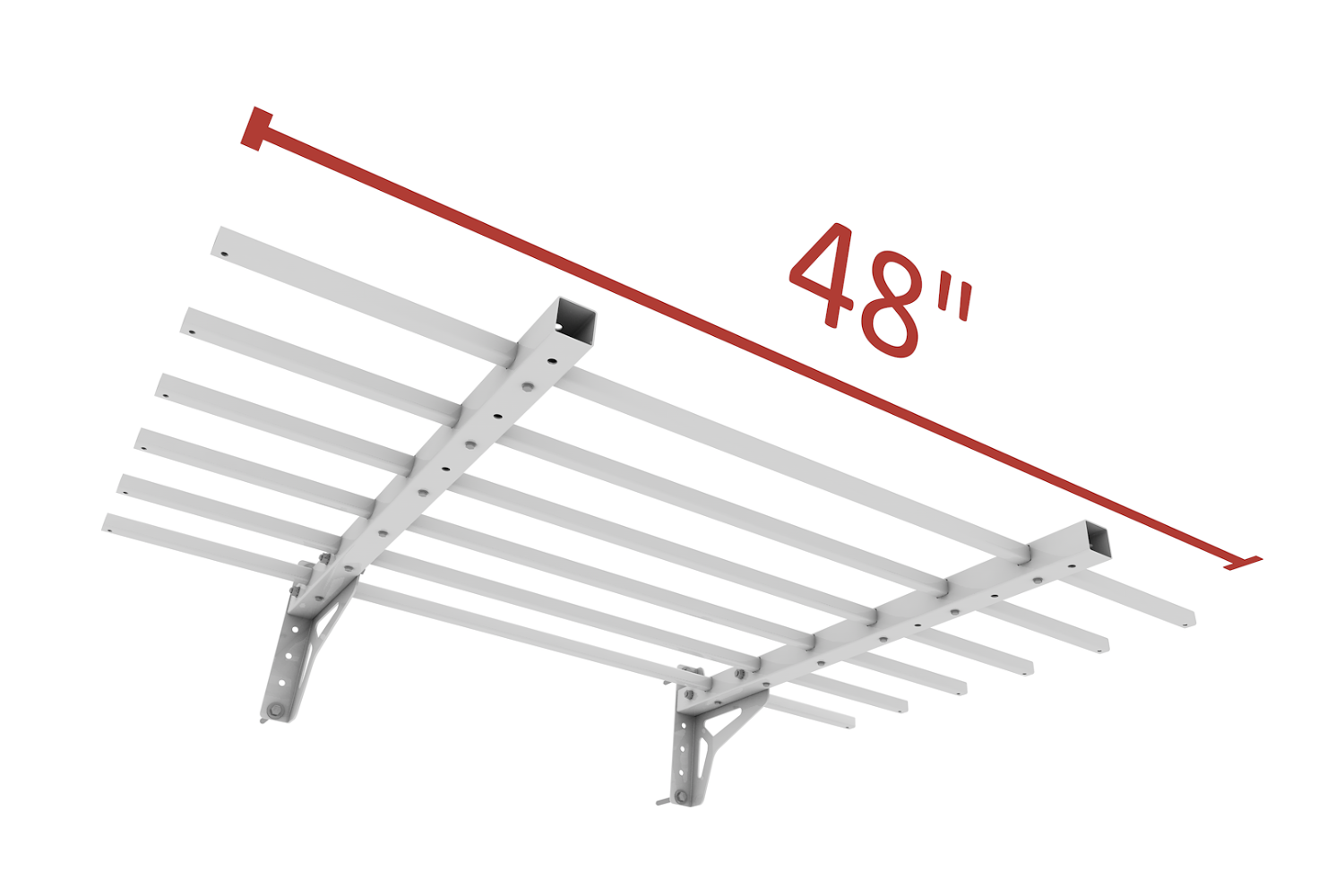

- Platform Dimensions: 32" × 48"
- Load Capacity: 250 lbs distributed — weight must be distributed across the platform surface, not concentrated at a single point
- Material: Industrial-grade steel
- Finish: Powder-coated
- Mounting Type: Wall-mounted — studs or masonry
- Installation: DIY — detailed step-by-step instructions included
- Origin: Made in the USA
- SKU: WS
Installation Requirements, Load & Mounting Considerations
Watch the full installation walkthrough before you begin:
- Stud Mounting: For wood-framed walls, mount to wall studs — verify stud spacing and confirm the 48" shelf width aligns with available stud attachment points; do not mount to drywall alone
- Masonry Mounting: For concrete or block walls, use appropriate masonry anchors rated for the load — verify wall material and anchor specifications before installation
- Mounting Height: Choose mounting height based on the items you plan to store and the clearance needed below the shelf for floor-level equipment or vehicles
- Distributed Load: 250 lb capacity is a distributed load rating — spread weight evenly across the 32"×48" surface; do not concentrate load at the front edge or at one end of the shelf
- Wall Shelf vs. Wall Shelf Combo: The standard Wall Shelf is a dedicated storage platform; the Wall Shelf Combo integrates a Bike Slide underneath for combined wall storage and bike hanging in a single wall footprint — ideal if you need both shelf storage and bike organization on the same wall
- Wall Shelf vs. Ceiling Storage: The Wall Shelf mounts to the wall at a fixed accessible height — no ceiling clearance or joist alignment required; for overhead ceiling storage, see the Heavy-Duty Pro rack series, Storage Elevator series, or Tote Slide series
