Ceiling Sam Tote Slide Pro – Overhead Garage Storage System

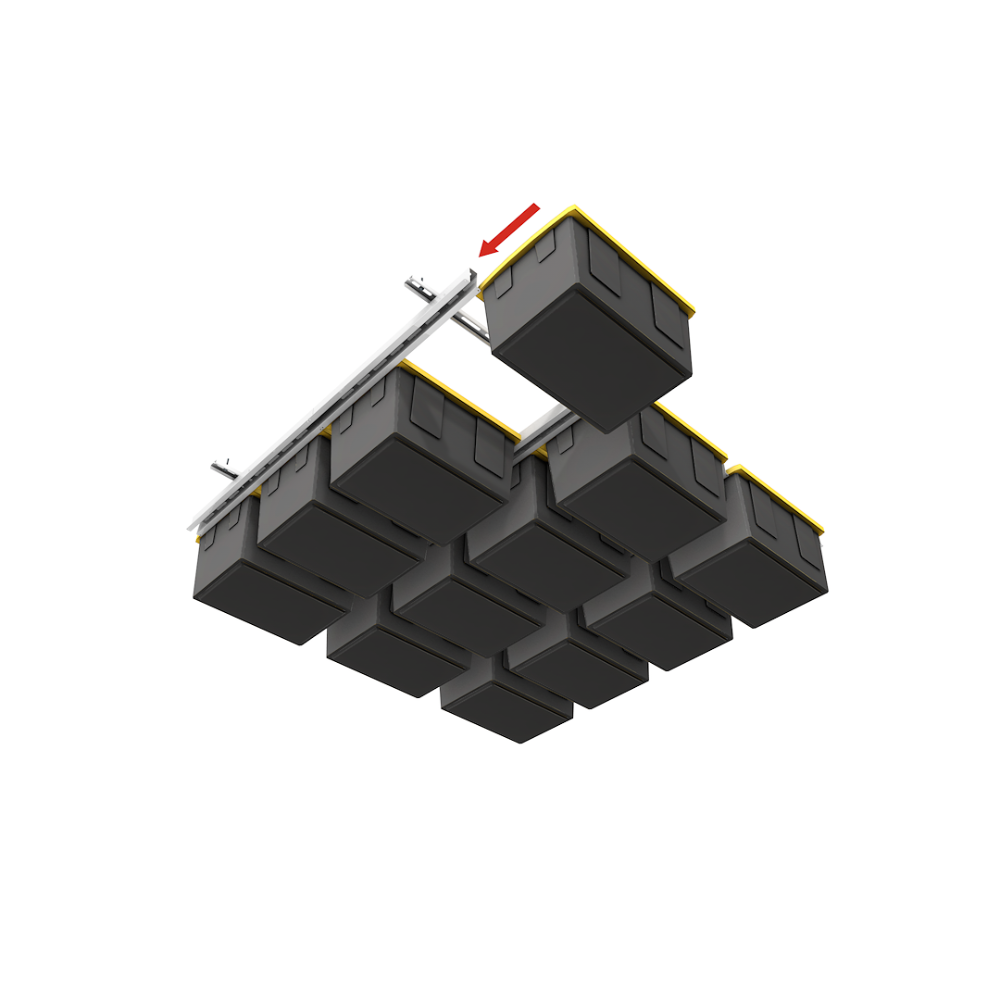

The Ceiling Sam Tote Slide Pro is a heavy-duty ceiling-mounted overhead storage rail system measuring 75" × 81", rated for 450 lbs total load (30 lbs per tote recommended), holding 9–15 standard storage totes on sliding rails — designed to mount above the garage door in the dead ceiling space most garages never use. Industrial-grade powder-coated steel construction, patented modular design, DIY install with all hardware included in one box, Lifetime Limited Warranty. Made in the USA. SKU: TSP.
The Space Above Your Garage Door Is the Most Wasted Storage Zone in Your Garage

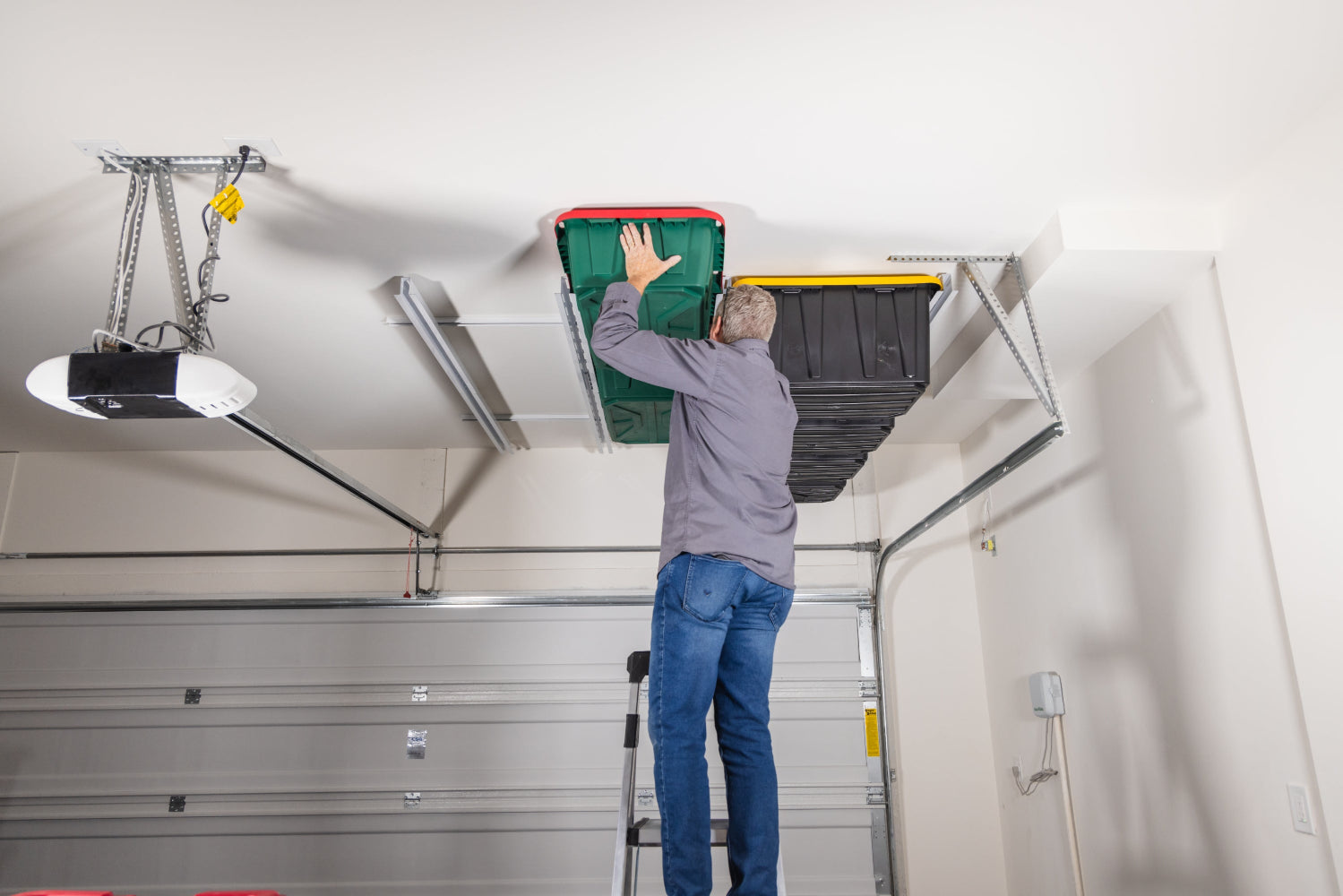

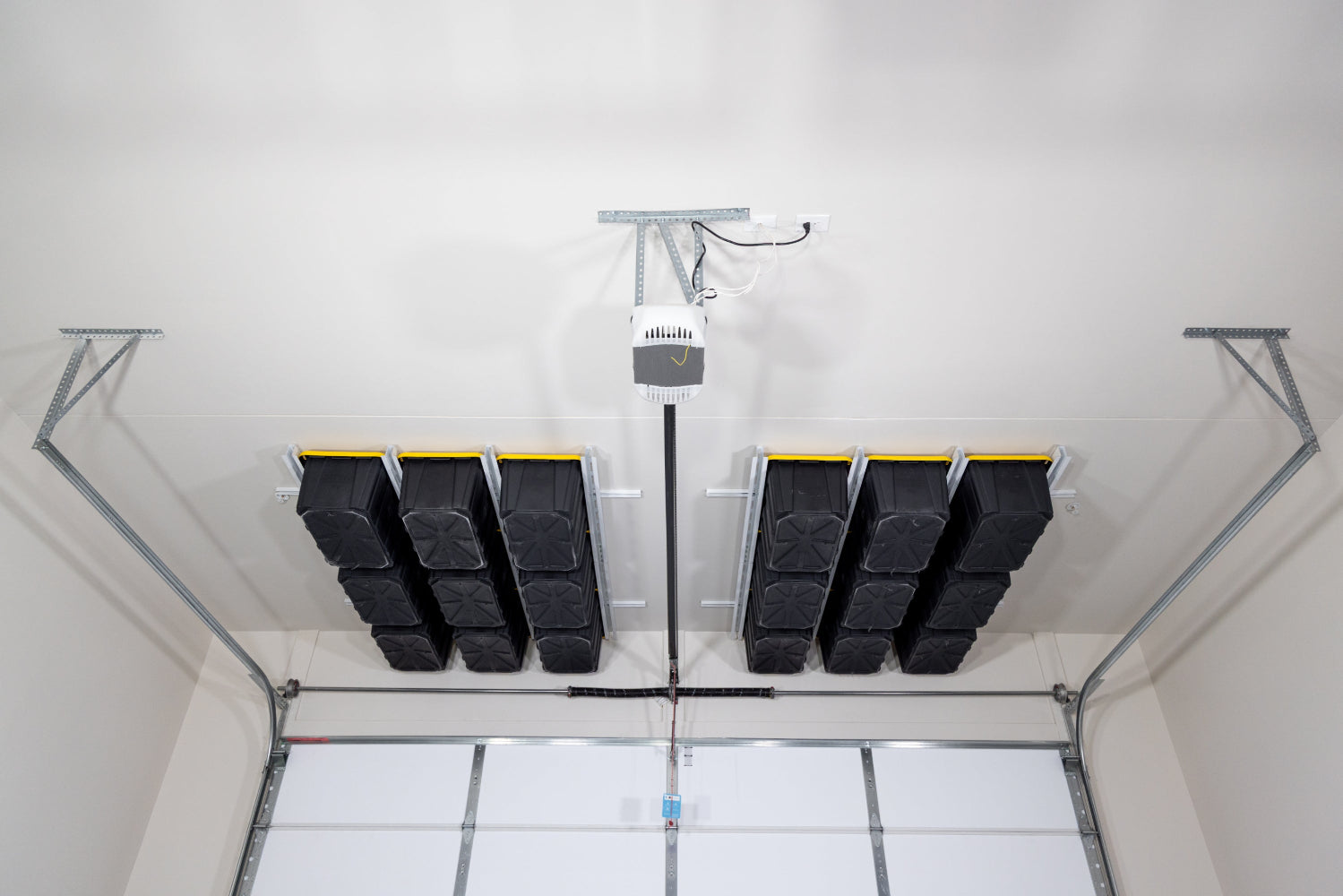

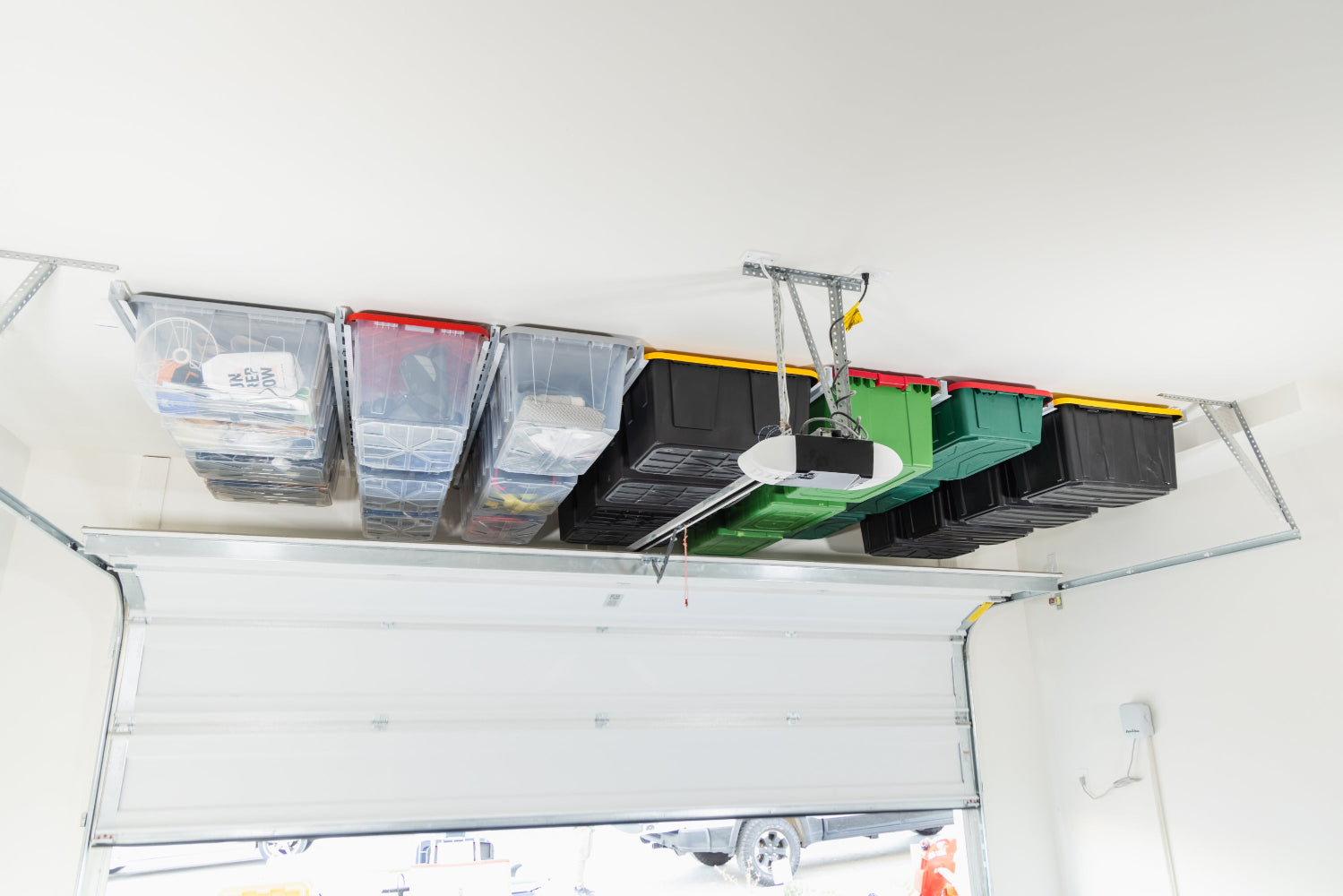

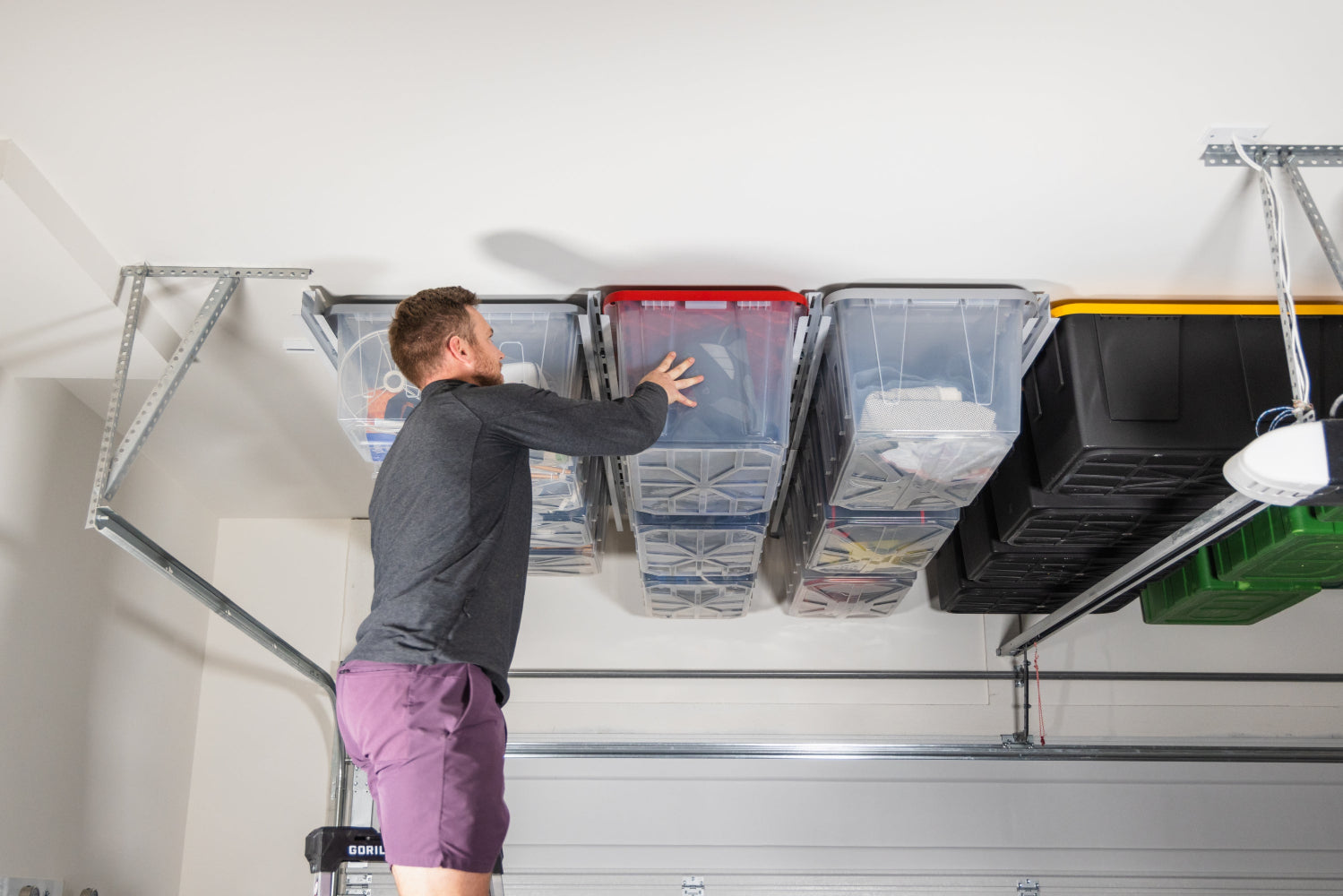

The ceiling above the garage door is structurally sound, consistently overhead, and almost universally unused — because standard shelving can't go there and ceiling racks require too much vertical clearance. The Ceiling Sam Tote Slide Pro is engineered specifically for that zone: the 75"×81" rail system mounts directly to the ceiling joists above the door opening and holds 9 to 15 standard storage totes on smooth sliding rails — no ladder struggle, no reorganizing the garage to reach what's stored. At 450 lbs total capacity across up to 15 totes, it handles a full year's worth of seasonal gear, holiday decorations, camping equipment, and bulky bins in a single overhead footprint. 17-gallon totes hang 15" from the ceiling; 27-gallon totes hang 18" — clearing the garage door mechanism while keeping everything accessible. The modular design is expandable, and when you purchase two systems you gain an extra row of storage.

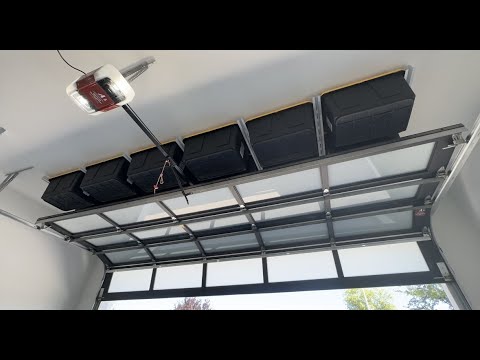

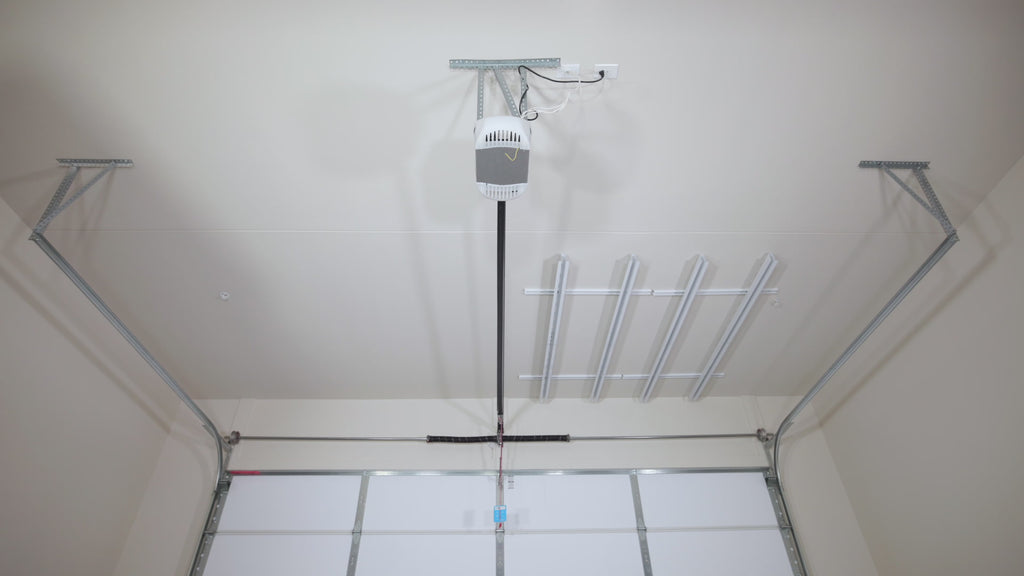

See it in action:

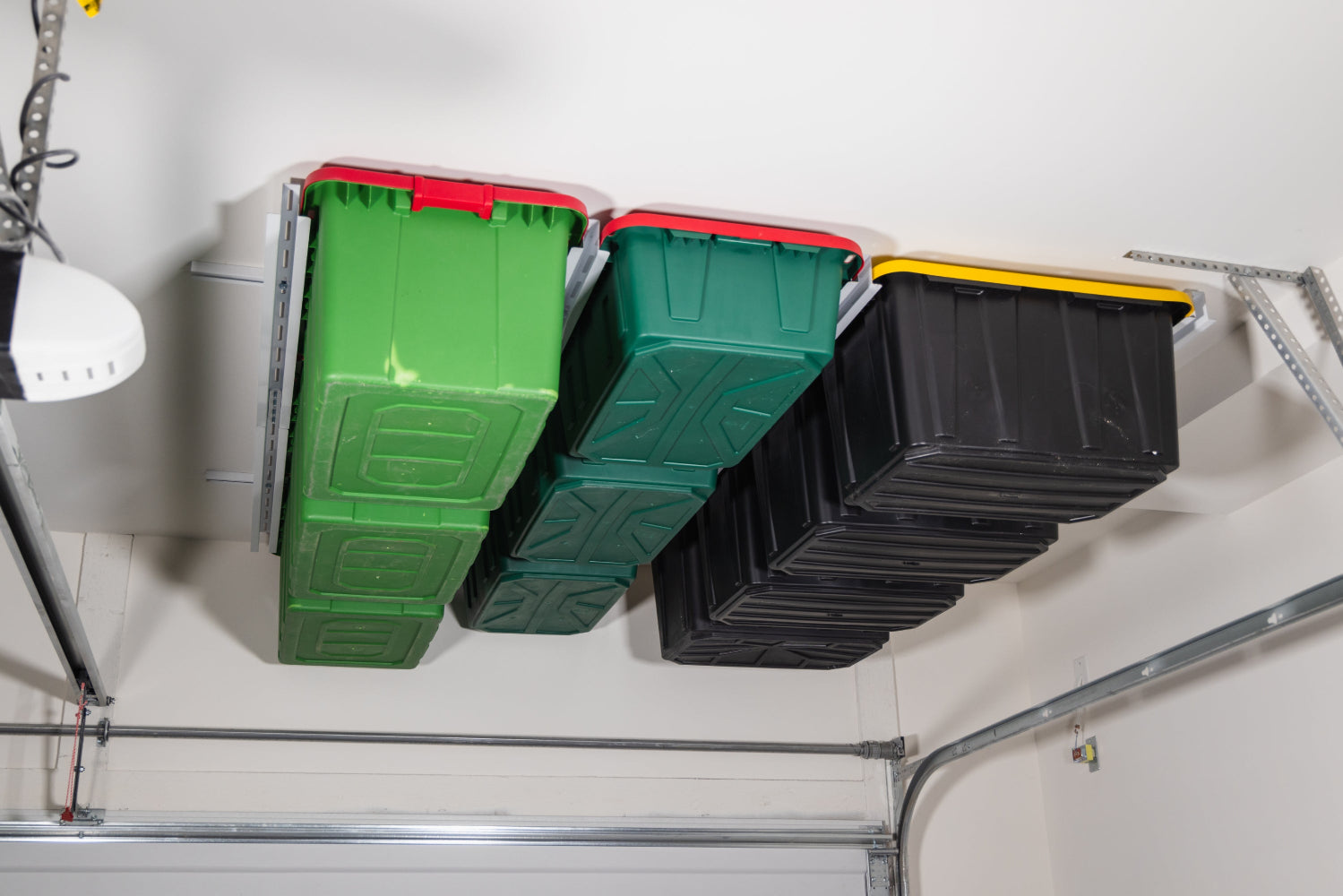

Another look:
Rail System, Load & Installation Specifications

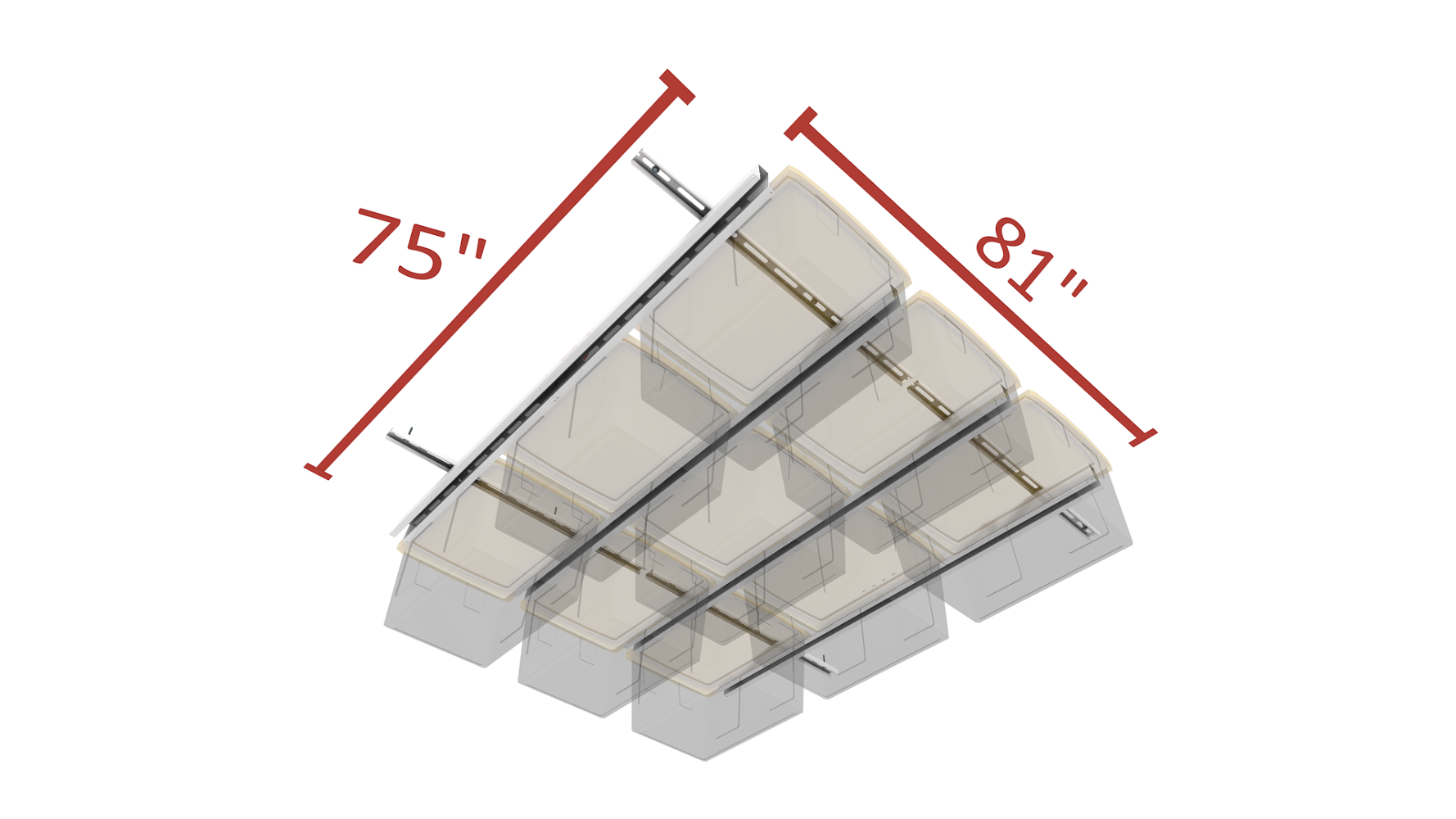

- Dimensions: 75" × 81"
- Total Load Capacity: 450 lbs
- Per-Tote Load: 30 lbs recommended maximum per tote
- Tote Capacity: 9–15 standard storage totes
- Tote Hang Distance: 17-gallon totes hang 15" from ceiling; 27-gallon totes hang 18" from ceiling
- Material: Industrial-grade powder-coated steel
- Design: Modular and expandable — purchase 2 systems to add an extra row of storage
- Installation: DIY — all parts and hardware included in one box; detailed instructions included
- Warranty: Lifetime Limited Warranty
- Patent: Patented design
- Origin: Made in the USA
- SKU: TSP
- Note: Totes sold separately.
Installation Requirements, Tote Compatibility & Clearance Considerations

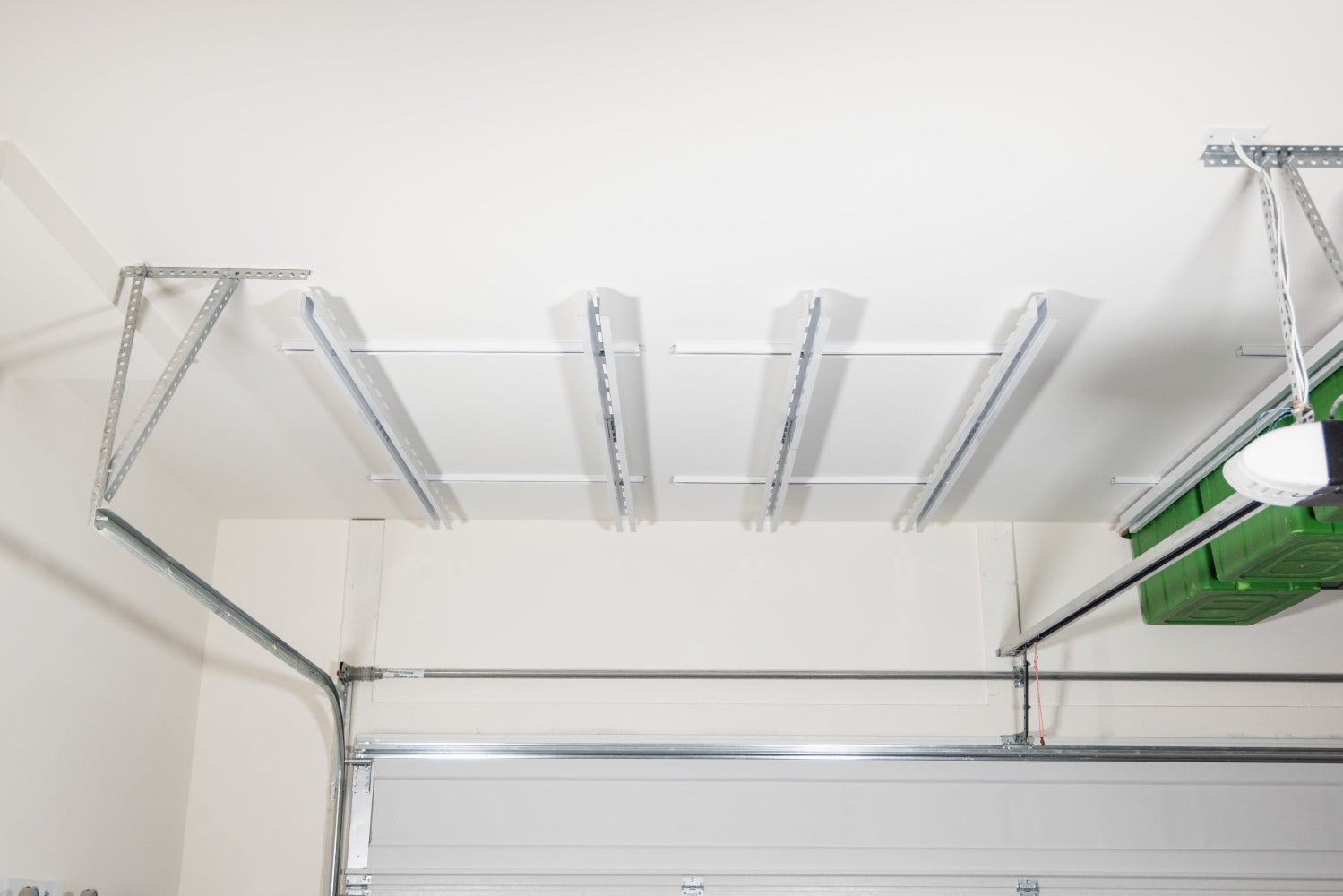

- Mounting Location: Designed to mount above the garage door opening — verify ceiling joist spacing and direction at the intended installation location before ordering; the 75"×81" footprint is significantly larger than the standard Tote Slide and requires more joist attachment points across the full 75" width
- Garage Door Clearance: Totes hang 15"–18" from the ceiling depending on tote size — verify that the loaded tote hang position clears your garage door mechanism (opener rail, springs, and door panel in the open position) before installation
- Ceiling Height Requirement: Measure from ceiling to the top of your garage door in the open position and confirm clearance for your tote size (15" for 17-gallon, 18" for 27-gallon)
- Tote Compatibility: Designed for standard storage totes — 17-gallon and 27-gallon totes confirmed compatible; verify tote lip/rim dimensions against rail specifications before purchasing non-standard tote sizes; totes are not included
- Per-Tote Load: 30 lbs recommended per tote — total system capacity is 450 lbs distributed across all totes; do not exceed 30 lbs per individual tote even if total system load is below 450 lbs
- Dual-System Expansion: Purchasing two Tote Slide Pro systems adds an extra row of storage — plan ceiling joist layout and available width before ordering a second unit
- Pro vs. Standard Tote Slide: Choose the Pro (75"×81", 9–15 totes, 450 lbs) for maximum overhead tote capacity; choose the standard Tote Slide (37.5"×81", 3–5 totes, 150 lbs) for smaller garages or tighter ceiling footprints
- Need bin storage in a specific ceiling or wall location? The Bin Slide (40.5"×65", 4–5 bins, 200 lbs) is a fixed-rail system that mounts to ceiling joists or wall studs — ideal for targeted bin storage outside the above-door zone
- Want tote storage integrated with a heavy-duty rack? The 4'×8' Heavy-Duty Pro Combo combines a 1,000 lb ceiling rack with an integrated Tote Slide underneath — two storage systems in one ceiling footprint
- Tote Slide vs. Storage Elevator: Choose the Tote Slide Pro for fixed overhead tote storage above the garage door with no moving lift mechanism; choose the Storage Elevator series for lowerable platforms that bring storage down to floor level without a ladder
