Ceiling Sam 4x8 Heavy-Duty Pro Combo - Ceiling Rack with Integrated Tote Slide
The Ceiling Sam 4'×8' Heavy-Duty Pro Combo is a fixed ceiling-mounted storage rack rated for 1,000 lbs of distributed load on a 4'×8' (32 sq ft) platform, with an integrated Tote Slide underneath — 4 hooks included, stores up to 5 bins below the rack platform — and adjustable mounting depth from 20" to 40". Two storage systems in one ceiling footprint: heavy platform storage above, tote organization below. DIY install with detailed instructions included. Made in the USA. SKU: 4X8-HDPC.
One Ceiling Footprint. Two Storage Systems. Zero Floor Space Used.
The 4'×8' Heavy-Duty Pro Combo solves the problem that every serious garage storage setup eventually runs into: you need both heavy platform storage for tools and equipment and organized tote storage for seasonal gear — but you only have so much ceiling real estate to work with. The Combo integrates both into a single 4'×8' ceiling footprint: the 1,000 lb rated platform handles heavy tools, equipment cases, and dense gear above, while the integrated Tote Slide below holds up to 5 bins on 4 hooks — seasonal decorations, camping gear, and bulky items that would otherwise compete for floor space. The adjustable mounting depth — 20" to 40" from the ceiling — lets you dial in the hang height to clear your garage door mechanism, vehicle roofline, and overhead obstructions. Everything installs with standard tools and detailed instructions included. Made in the USA.

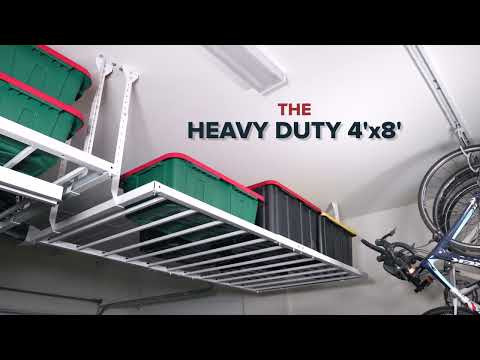

See it in action:
Platform, Tote Slide & Mounting Specifications
- Platform Dimensions: 4' × 8' (32 sq ft)
- Platform Load Capacity: 1,000 lbs distributed — weight must be distributed across the platform surface, not concentrated at a single point
- Integrated Tote Slide: 4 hooks included — stores up to 5 bins underneath the rack platform
- Adjustable Mounting Depth: 20" to 40" from ceiling — set at installation to clear your specific garage door mechanism, vehicle roofline, and overhead obstructions
- Operation: Fixed rack — platform is stationary once installed; not a lowerable lift system
- Installation: DIY — detailed step-by-step instructions included; designed for standard ceiling joist mounting
- Hardware Included: 4 hooks for Tote Slide; all rack mounting hardware included
- Origin: Made in the USA
- SKU: 4X8-HDPC
- Note: Totes sold separately.
Installation Requirements, Depth Adjustment & Load Considerations
Watch the full installation walkthrough before you begin:
- Mounting Depth Selection: Set the mounting depth (20"–40") at installation based on your garage door mechanism clearance, vehicle roofline height, and overhead obstructions — depth is adjustable at install but fixed once the rack is loaded; account for the additional clearance needed below the platform for the hanging totes when selecting depth
- Tote Clearance Below Platform: The integrated Tote Slide hangs bins below the rack platform — verify that the total system height (mounting depth + tote hang distance) clears your vehicle roofline and garage door mechanism in the open position before installation
- Joist Mounting: Mounts to ceiling joists — the 4'×8' platform spans the largest joist footprint in the Heavy-Duty Pro lineup; verify joist spacing, direction, and structural capacity across the full 8' dimension before ordering; the 1,000 lb platform load rating places the greatest structural demand on joist connections — consult a structural engineer if joists are non-standard, if span direction doesn't align with the 8' platform length, or if the installation location is above a living space
- Platform Footprint: 4' × 8' — plan installation location to avoid conflicts with garage door tracks, light fixtures, HVAC runs, and vehicle roof clearance at the selected mounting depth
- Platform Distributed Load: 1,000 lb capacity is a distributed load rating for the rack platform — spread weight evenly across the full 4'×8' surface; do not concentrate load at the center or at either end
- Tote Load: Load totes to a safe hanging weight — do not overload individual hooks; distribute bin weight evenly across all 4 hooks
- Fixed Rack vs. Storage Elevator: The Heavy-Duty Pro Combo is a fixed rack — items on the platform require a ladder for access; choose the Storage Elevator series if you need a lowerable platform that brings storage down to floor level without a ladder
- Combo vs. Standalone Heavy-Duty Pro: Choose the Combo for dual-layer storage (heavy platform + tote organization) in a single ceiling footprint; choose the standalone 4'×8' Heavy-Duty Pro if you don't need integrated tote storage below the platform; smaller platform options available in the 4'×4' and 4'×6' configurations
The GarageForm Difference: Technical Authority, Not Just a Catalog
Technical Screening: We don't list overhead storage products without vetting them. The Ceiling Sam 4'×8' Heavy-Duty Pro Combo has been verified for 1,000 lb platform load capacity, integrated Tote Slide hook configuration, adjustable depth range, and joist mounting requirements to ensure the performance data on this page reflects the actual system — not marketing copy.
Direct Expert Support: We serve as your technical interface. If you need assistance selecting the correct mounting depth to accommodate both the rack platform and hanging totes, verifying joist structural capacity for the 1,000 lb rating, or choosing between the Combo and standalone Heavy-Duty Pro configurations, our experts provide pre-sale consulting at no charge.
Straightforward Purchasing: Free shipping on this system. If the 4'×8' Heavy-Duty Pro Combo doesn't meet your clearance or structural requirements after delivery, our return process is handled by our specialized team — not a generalist call center.
