Ceiling Sam 4x8 Storage Elevator PRO - 700 lb Retractable Ceiling Storage Lift
The Ceiling Sam 4'×8' Storage Elevator PRO is a heavy-duty retractable ceiling-mounted storage platform rated for 700 lbs of distributed load, with 8', 11', or 17' drop length options, drill-powered operation, and a 4'×8' (32 sq ft) platform — available in three variants: 8'–11' ceiling height ($1,799), 11.5'–14' ceiling height ($1,899), and 14'–17' ceiling height for RV storage ($1,999). Made in the USA. Limited Lifetime Warranty.
700 Pounds. Three Drop Heights. One Platform That Works for Any Ceiling.

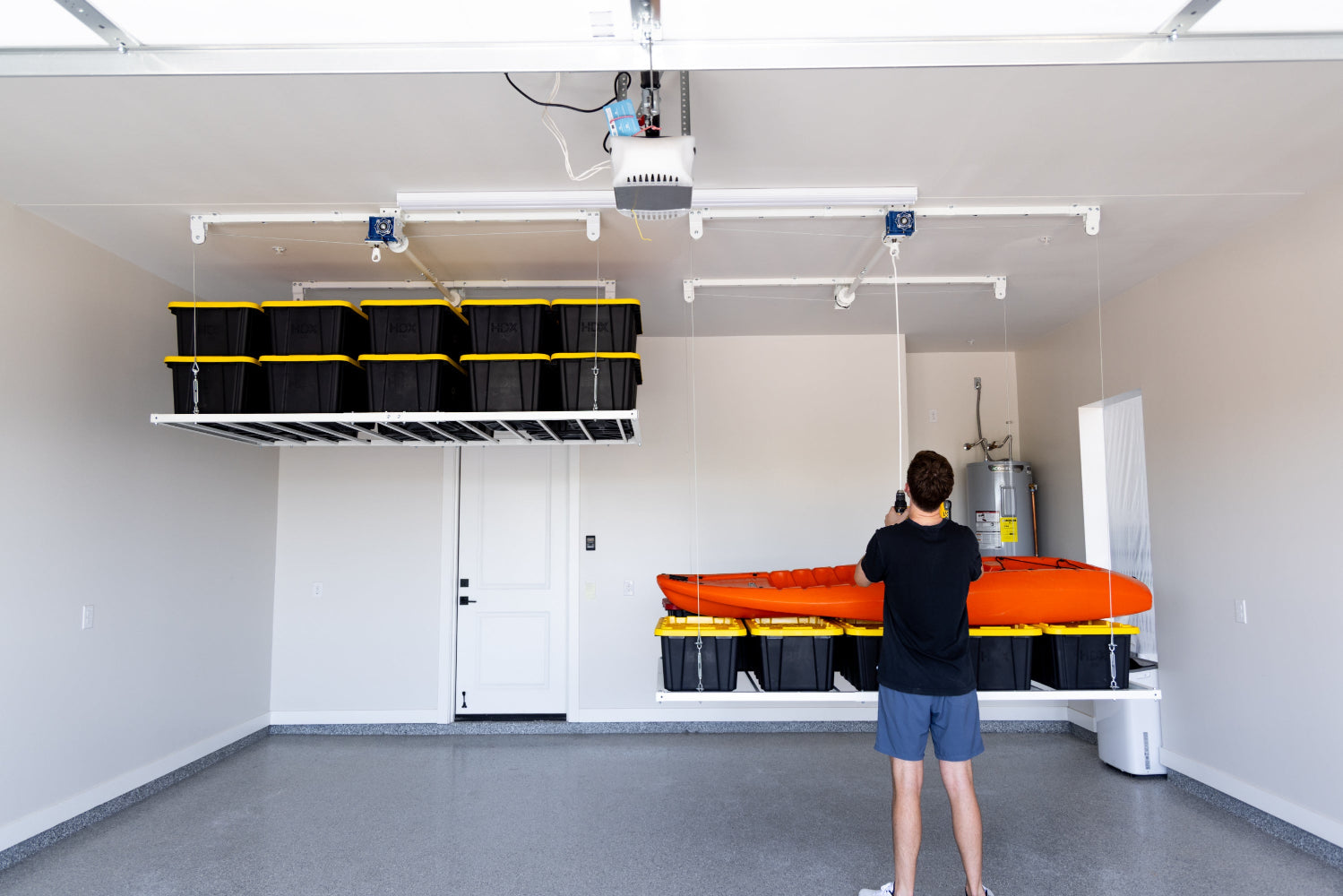

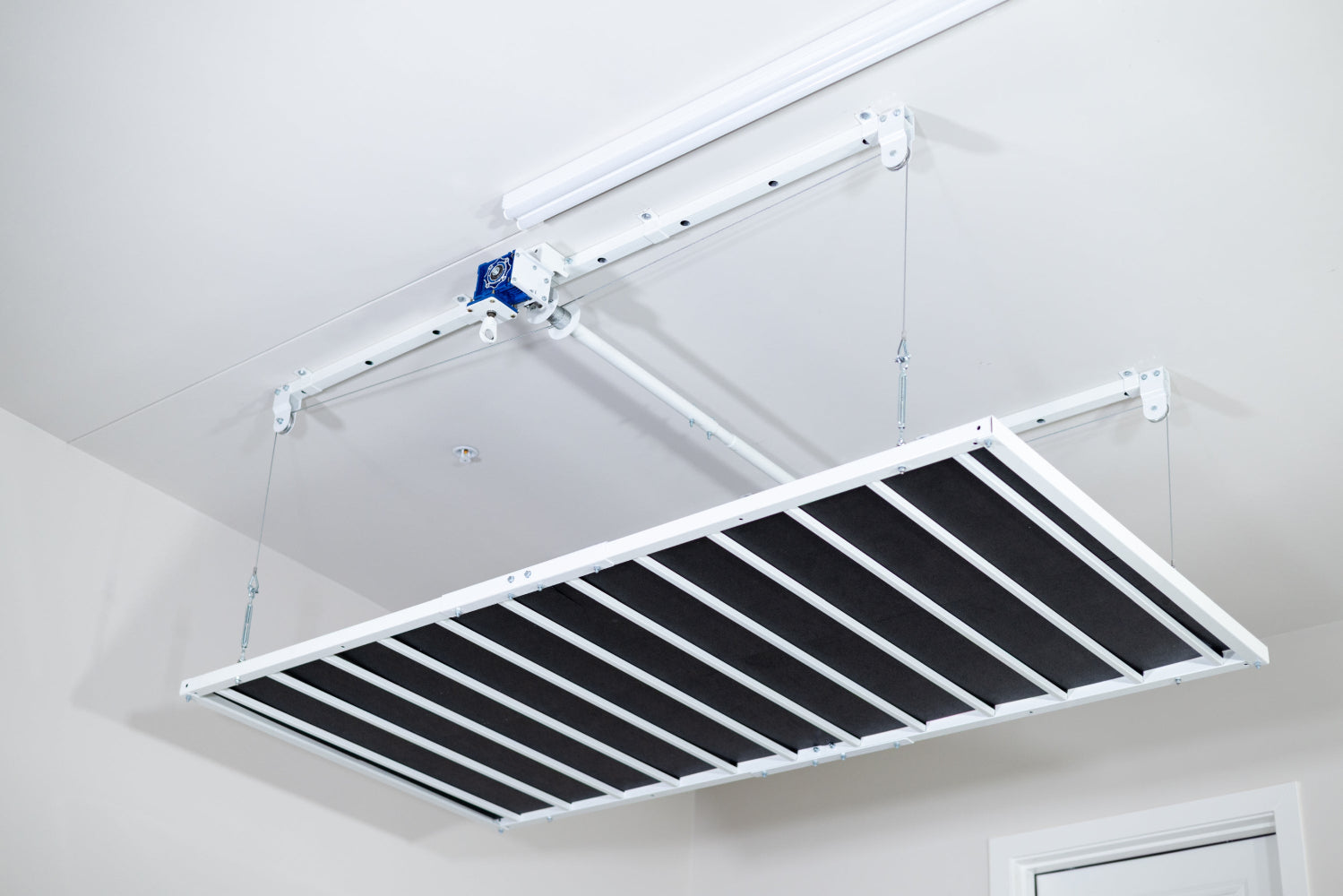

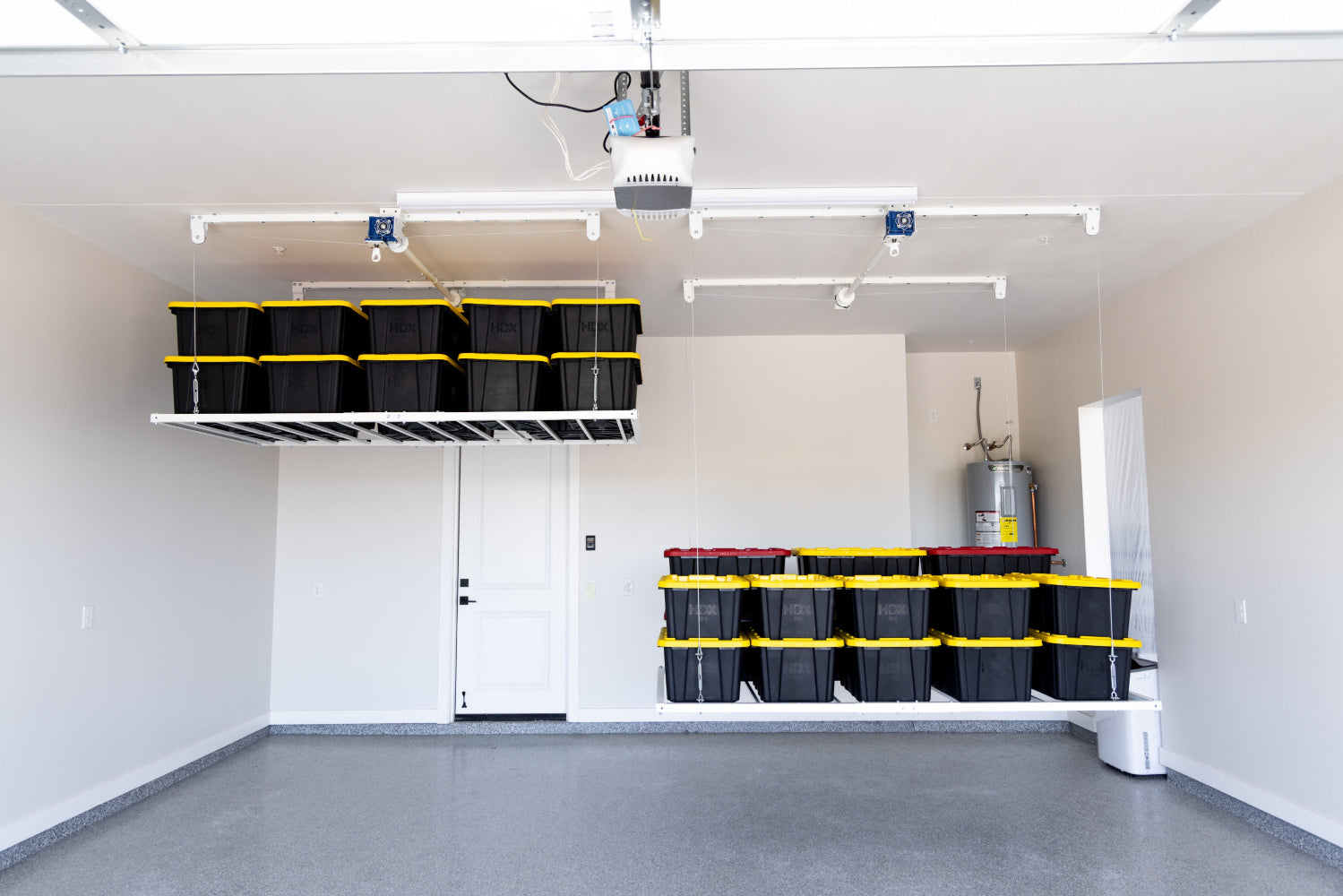

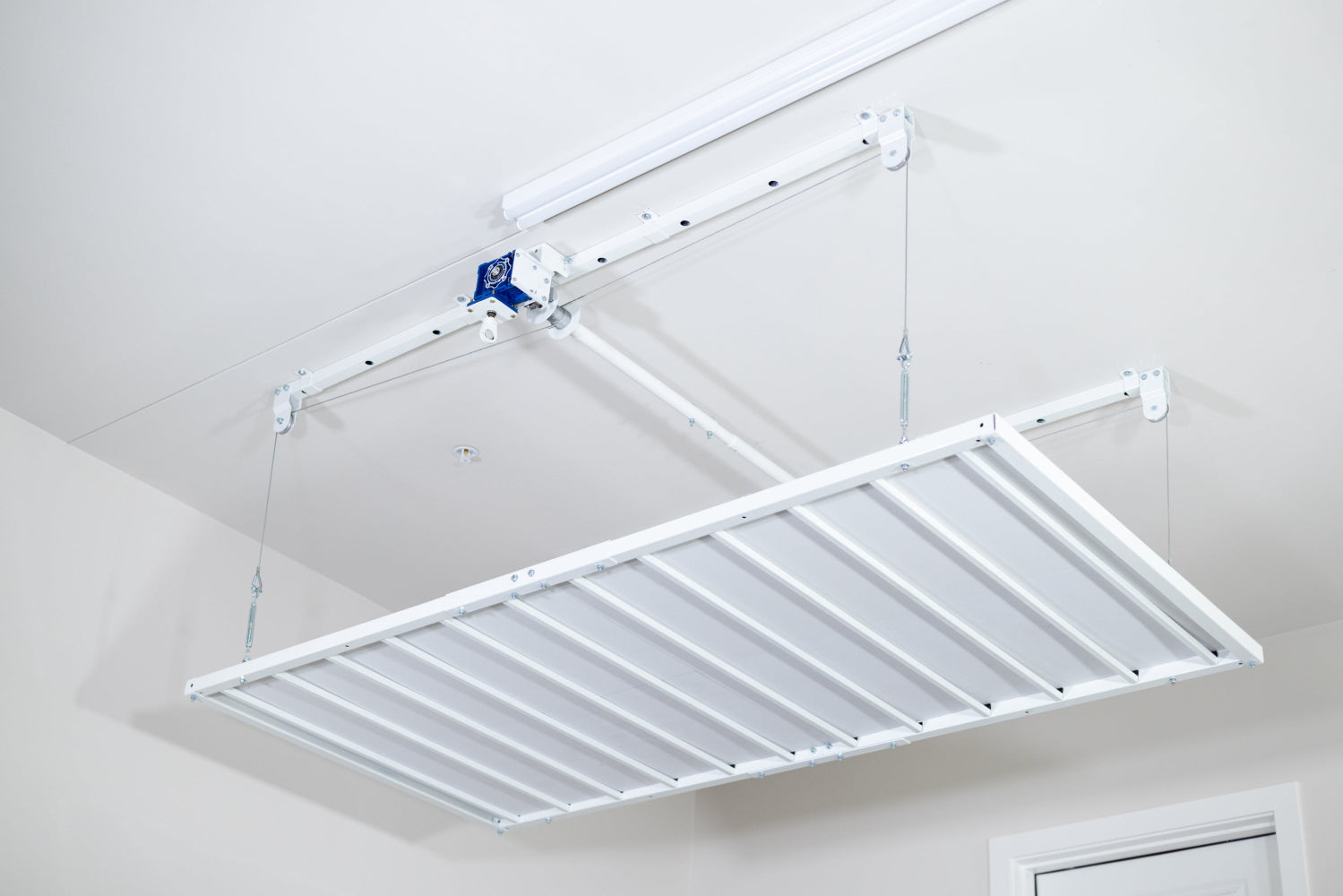

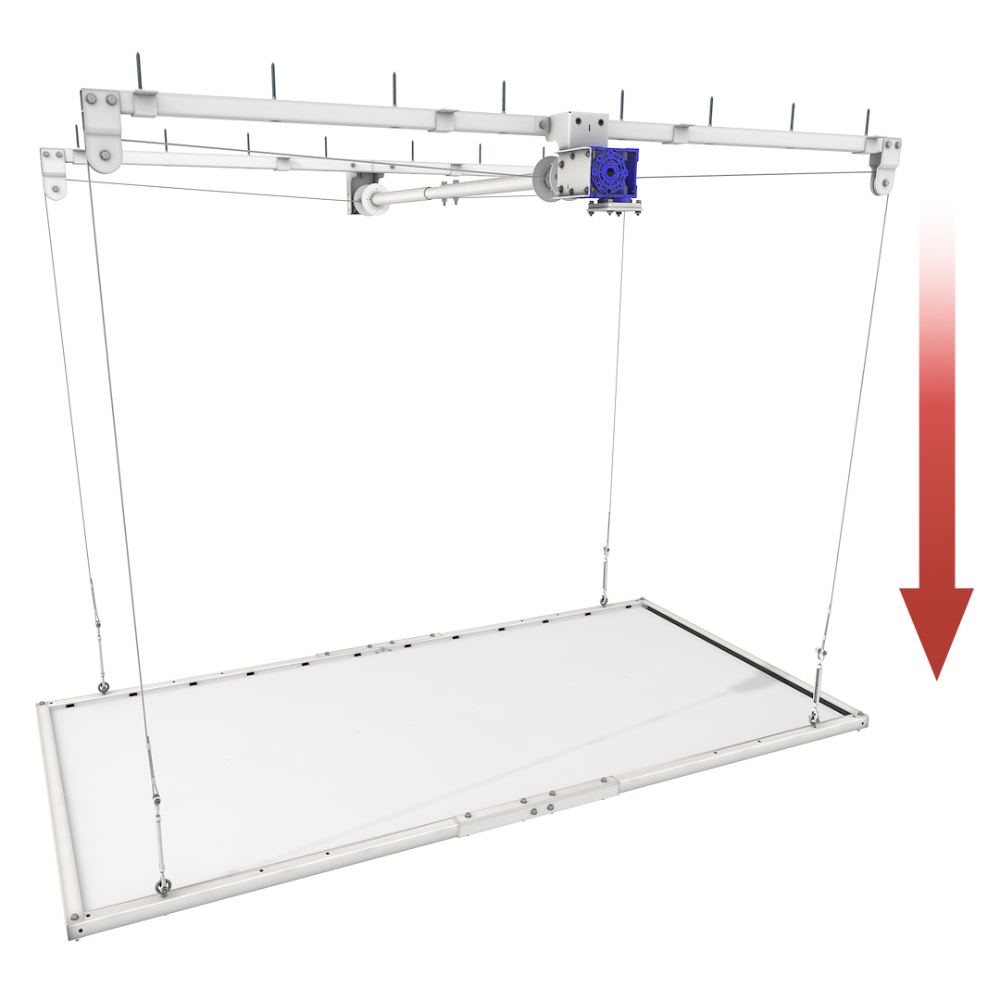

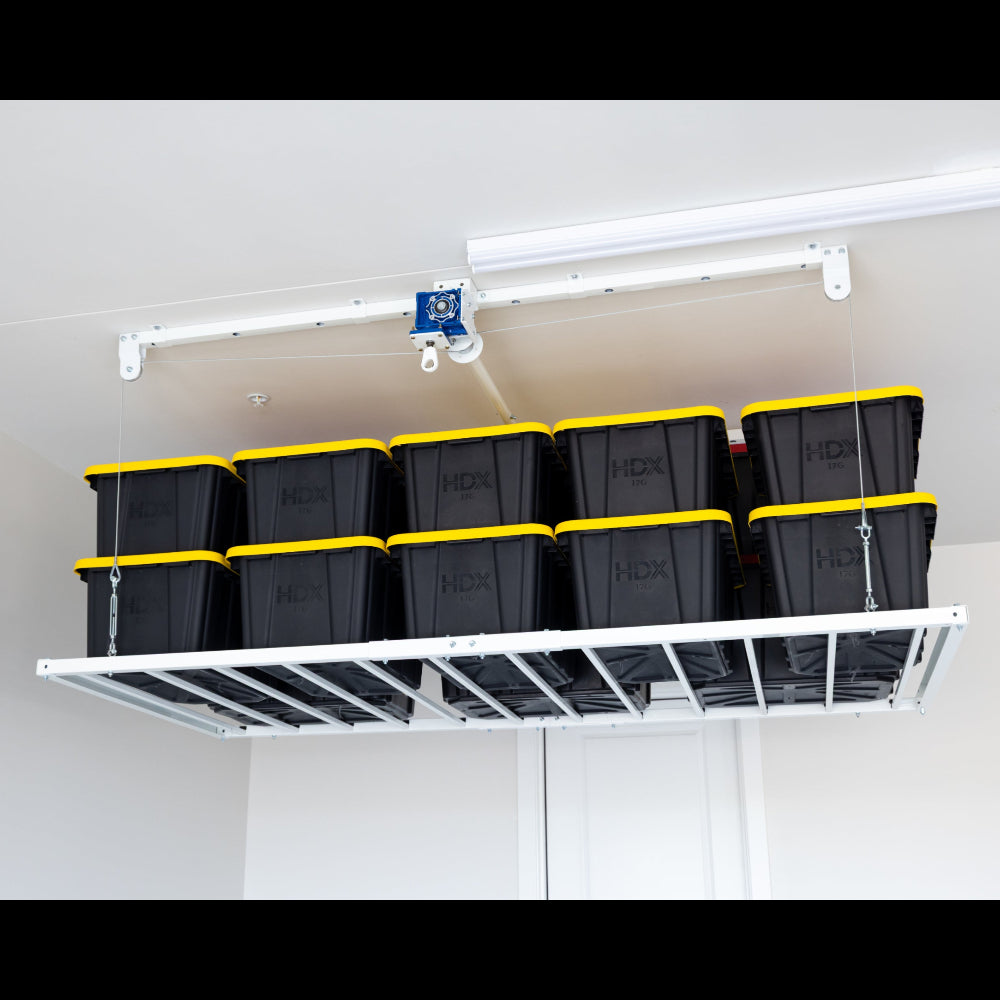

The 4'×8' Storage Elevator PRO is built for garages, workshops, and RV storage facilities where the standard 400 lb platform isn't enough and ceiling heights vary beyond the typical residential range. At 700 lbs distributed capacity across a 32 sq ft platform, it handles full sets of seasonal equipment, heavy tool loads, and oversized gear that would exceed the limits of a standard storage elevator. Three drop height configurations — 8', 11', and 17' — cover everything from standard 8-foot residential ceilings to the tall bays of RV storage facilities and commercial workshops. A standard drill lowers the platform in seconds — no ladder, no manual lifting, no dedicated electrical circuit. When the job is done, it raises flush to the ceiling and locks, returning the full floor to vehicles, equipment, and active use. Backed by a Limited Lifetime Warranty.
See it in action:
Platform, Load & Operation Specifications

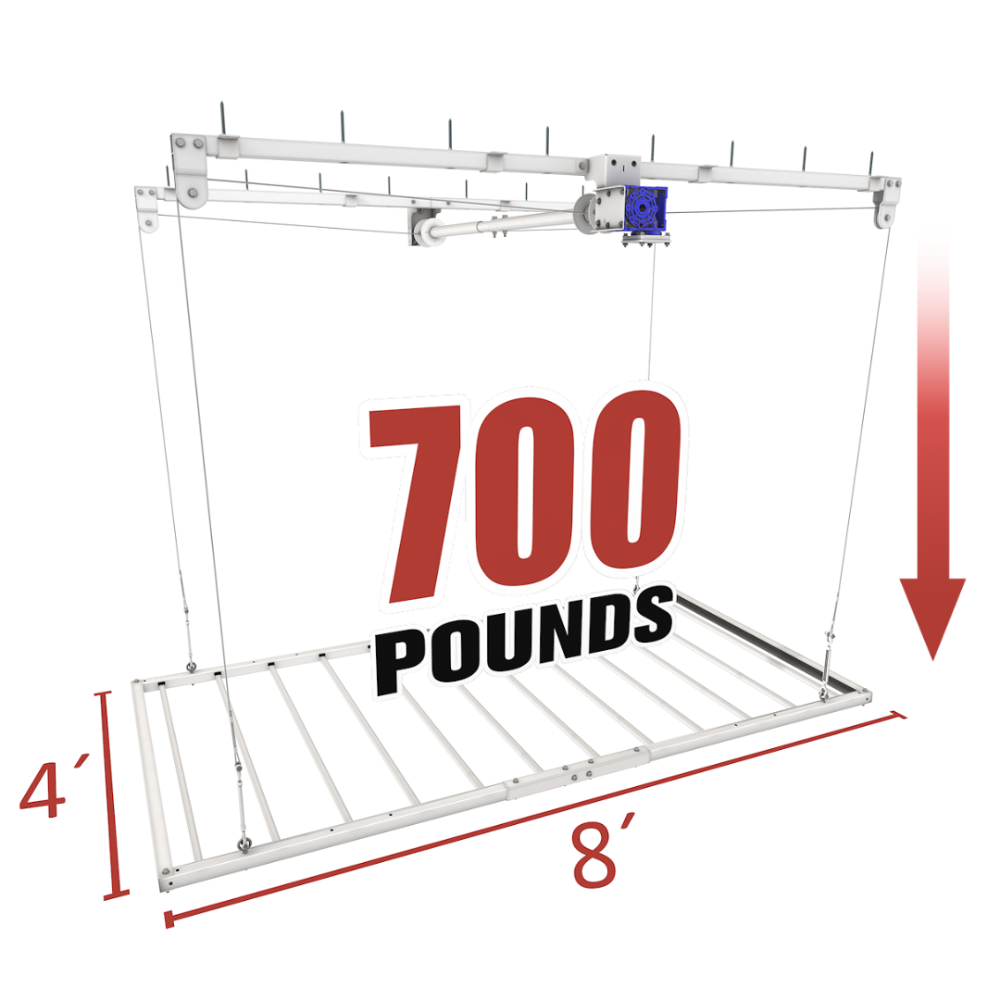

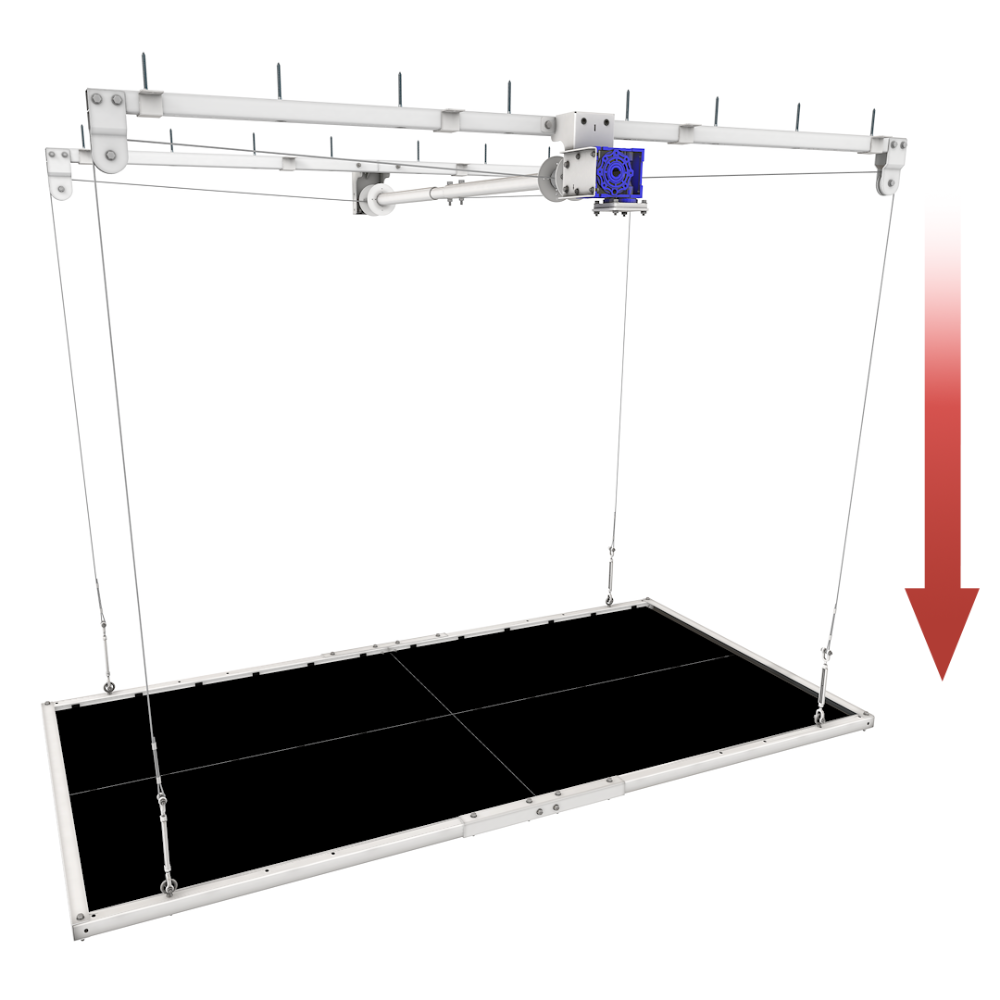

- Platform Dimensions: 4' × 8' (32 sq ft)
- Load Capacity: 700 lbs distributed — weight must be distributed across the platform surface, not concentrated at a single point
- Drop Length: 8' (8'–11' variant) / 11' (11.5'–14' variant) / 17' (14'–17' RV variant)
- Ceiling Height Range: 8'–11' (SKU R4X8P) / 11.5'–14' (SKU R4X8PM) / 14'–17' (SKU R4X8PRV)

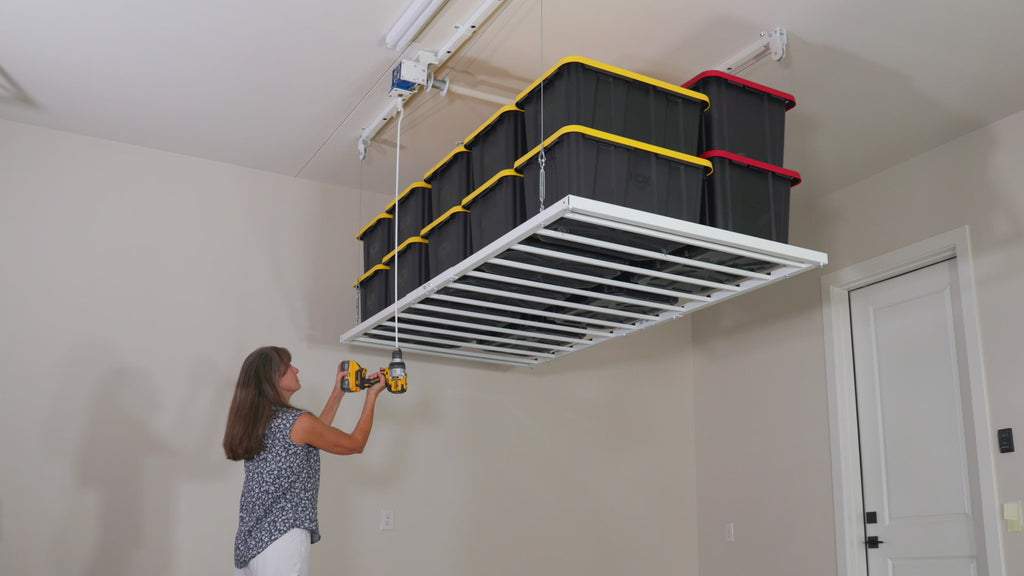

- Power Source: Drill-powered — operates with any standard corded or cordless drill; no electrical wiring or dedicated circuit required
- Installation: DIY install — detailed step-by-step instructions included; designed for standard ceiling joist mounting
- Warranty: Limited Lifetime Warranty
- Origin: Made in the USA
- Vendor: Ceiling Sam
Variants:

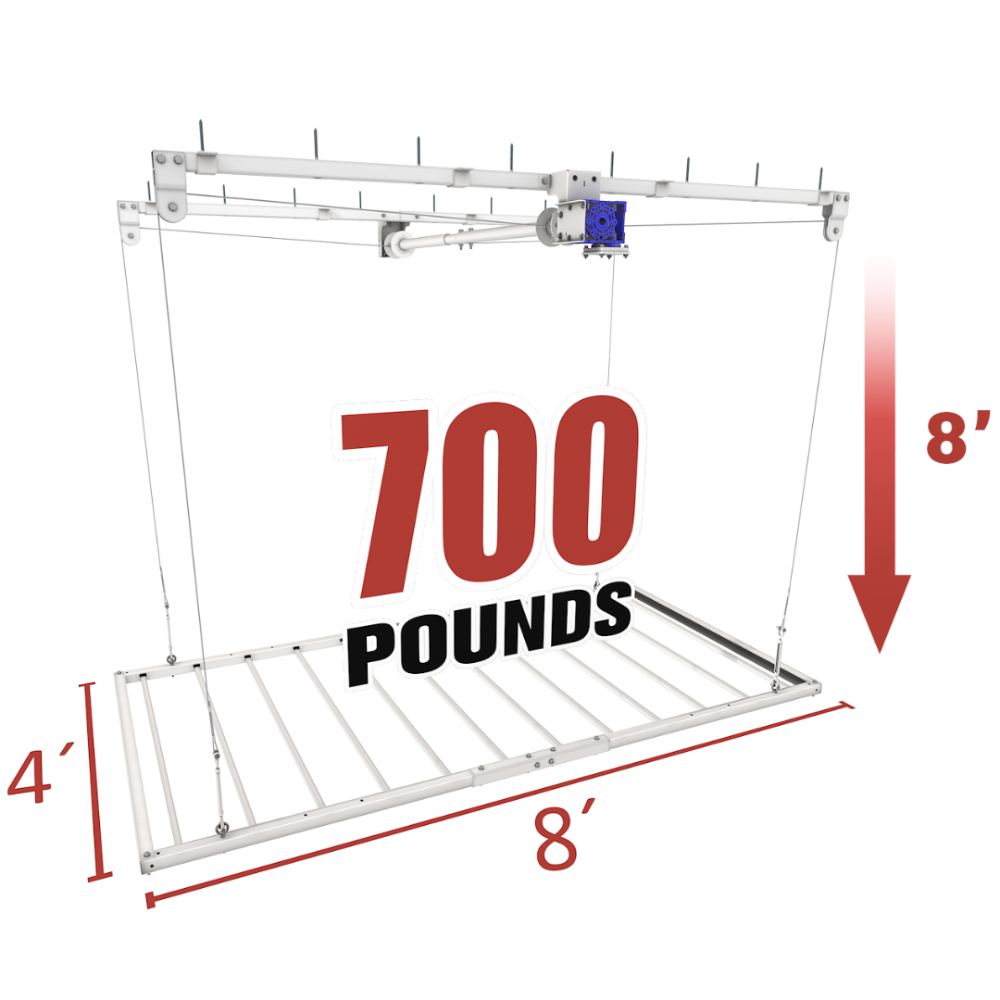

- 8'–11' Ceiling Height — $1,799 (SKU R4X8P): 8' drop length — for standard residential garage ceilings
- 11.5'–14' Ceiling Height — $1,899 (SKU R4X8PM): 11' drop length — for taller garage, workshop, or commercial ceilings

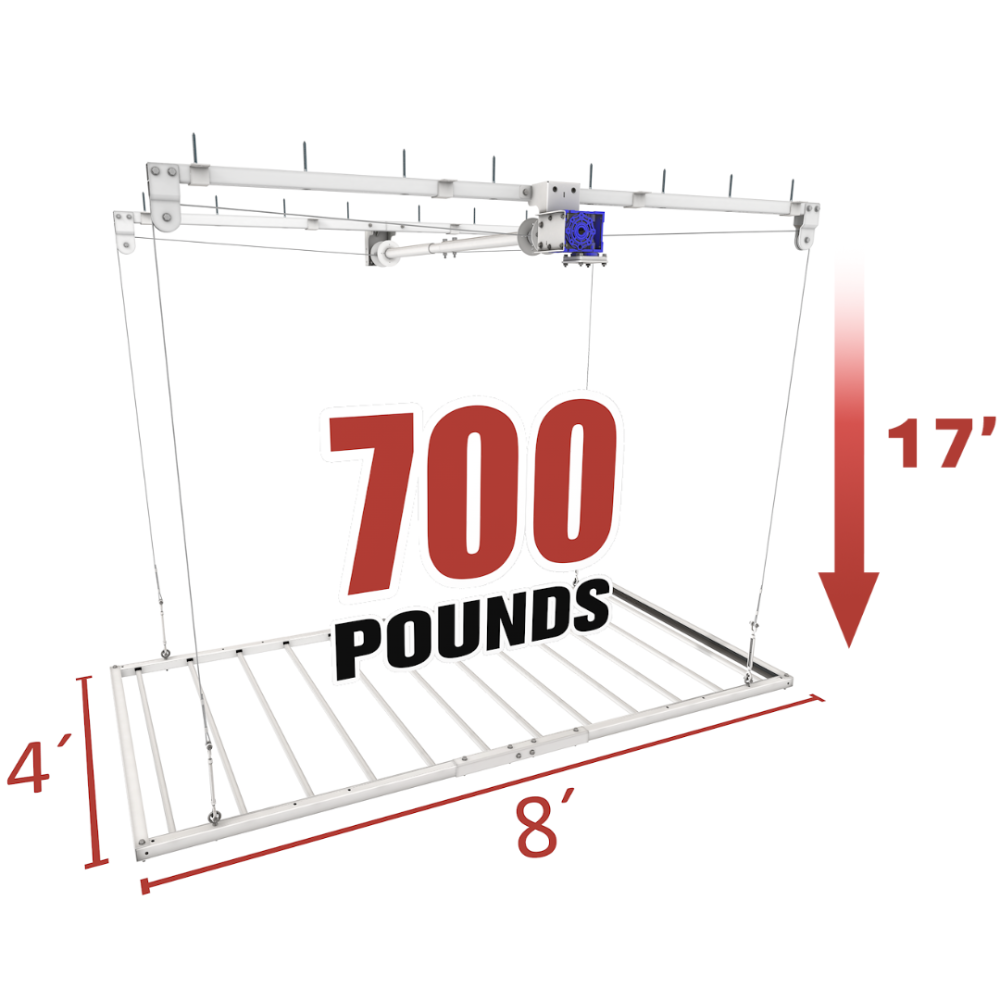

- 14'–17' Ceiling Height — $1,999 (SKU R4X8PRV): 17' drop length — for RV storage facilities, commercial bays, and tall workshop ceilings
Ceiling Height Selection, Installation Requirements & Platform Sizing
Watch the full installation walkthrough before you begin:
- Ceiling Height Selection — Critical: Your ceiling height must exceed the drop length of the selected variant. For the 8' drop, ceiling must exceed 8'. For the 11' drop, ceiling must exceed 11'. For the 17' drop (RV), ceiling must exceed 17'. Measure before selecting — wrong variant selection requires a return and exchange
- Ceiling Height Measurement: Measure from finished floor to the underside of the ceiling joists (not drywall) at the intended installation location — joist depth adds to usable clearance
- RV Storage Variant (14'–17'): The 17' drop configuration is designed for RV storage bays, commercial workshops, and tall agricultural buildings — verify structural capacity of the ceiling/roof framing at the installation point; commercial or agricultural structures may require a licensed engineer to assess joist load capacity before installation
- Joist Mounting: The 4'×8' platform spans the largest joist footprint in the Ceiling Sam lineup; verify joist spacing, direction, and structural capacity across the full 8' dimension before ordering; the 700 lb load rating places greater demand on joist connections than the standard 400 lb models — consult a structural engineer if joists are non-standard or if the installation is above a living space
- Platform Footprint: 4' × 8' — plan installation location to avoid conflicts with garage door tracks, light fixtures, HVAC runs, and vehicle or RV roof clearance when the platform is in the lowered position
- Vehicle & RV Clearance: When lowered, the platform descends to within the drop length of the ceiling — verify clearance above the roof of any vehicle or RV parked beneath; at 8' long, the platform may span the full length of a vehicle roof or the width of an RV bay
- Distributed Load: 700 lb capacity is a distributed load rating — spread weight evenly across the full 4'×8' surface; do not concentrate load at the center or at either end of the platform
- PRO vs. Standard 4'×8': Choose the PRO for loads between 400–700 lbs, ceilings above 14', or RV storage applications; choose the standard 4'×8' Storage Elevator for loads under 400 lbs in 8'–14' ceiling heights at a lower price point ($1,499–$1,599)
- Not sure which platform size or model is right for your ceiling? Ceiling Sam also offers the 4'×4' and 4'×6' Storage Elevators for smaller footprints. Contact us and we'll help you size the right platform for your space
The GarageForm Difference: Technical Authority, Not Just a Catalog
Technical Screening: We don't list overhead storage products without vetting them. The Ceiling Sam 4'×8' Storage Elevator PRO has been verified for 700 lb load capacity, three-variant ceiling height configuration, joist load requirements at the PRO weight rating, and drill-powered operation to ensure the performance data on this page reflects the actual system — not marketing copy.
Direct Expert Support: We serve as your technical interface. If you need assistance selecting the correct ceiling height variant, verifying joist structural capacity for the 700 lb PRO rating, or determining whether the PRO or standard model is right for your load and ceiling requirements, our experts provide pre-sale consulting at no charge.
Straightforward Purchasing: Free shipping on this system. If the 4'×8' PRO Storage Elevator doesn't meet your ceiling height or structural requirements after delivery, our return process is handled by our specialized team — not a generalist call center.
