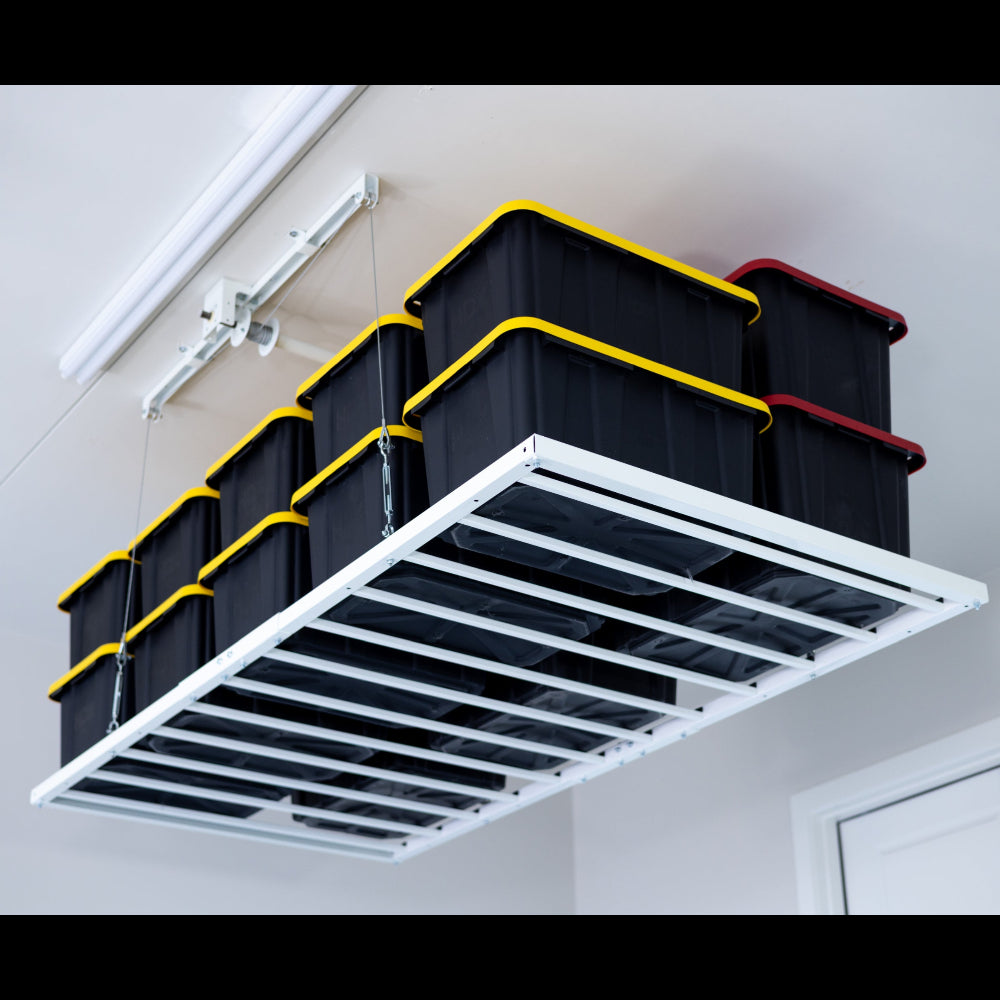

Ceiling Sam 4x8 Storage Elevator - Retractable Ceiling Storage Lift
The Ceiling Sam 4'×8' Storage Elevator is a retractable ceiling-mounted storage platform rated for 400 lbs of distributed load, with an 8' or 11' drop length, drill-powered operation, and a 4'×8' (32 sq ft) platform — available in two variants: 8'–11' ceiling height ($1,499) and 11.5'–14' ceiling height ($1,599). Made in the USA. Limited Lifetime Warranty.
Your Garage Ceiling Is the Most Underutilized Storage Space You Own

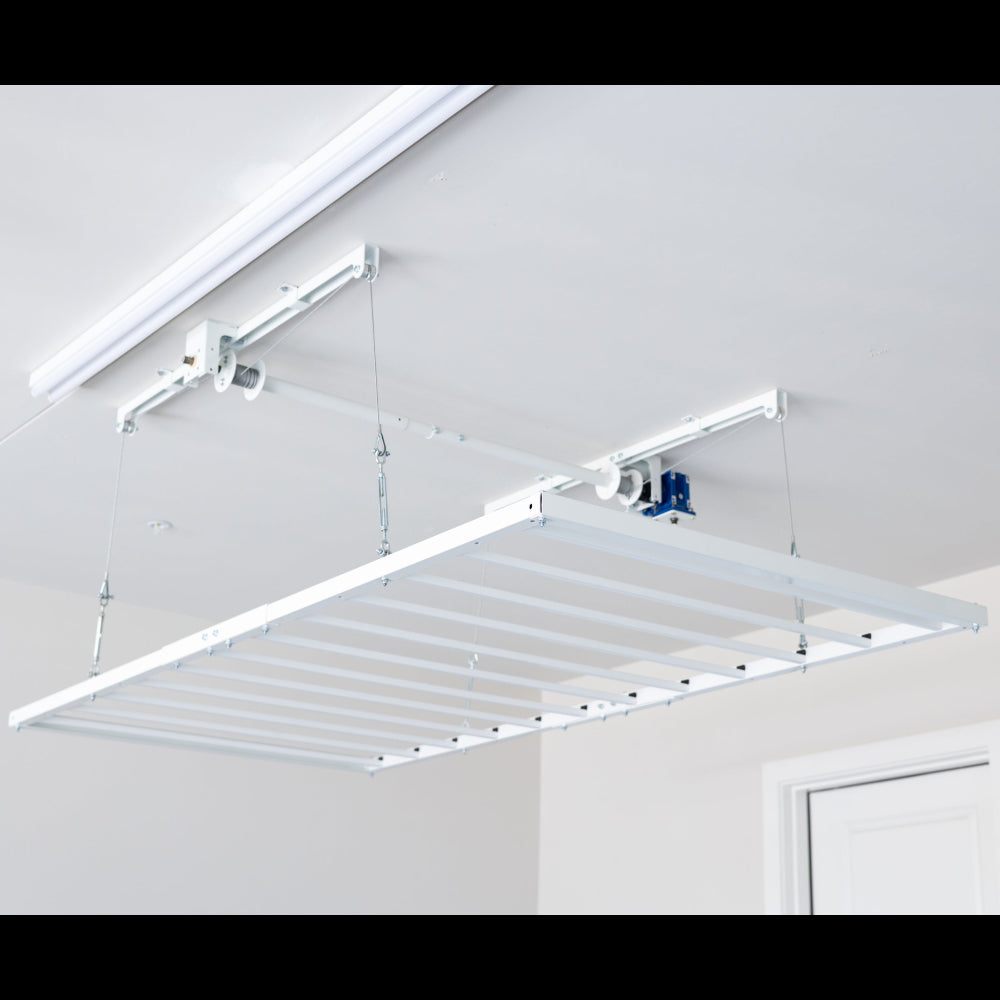

Most garages have 8 to 14 feet of vertical space above the floor — and most of it sits empty while seasonal totes, holiday decorations, camping gear, and equipment compete for floor space with vehicles and workbenches. The Ceiling Sam 4'×8' Storage Elevator puts that overhead space to work: a 32 sq ft platform mounts to your ceiling joists and raises flush when not in use, returning the full garage floor to the things that need to be there. When you need access, a standard drill lowers the platform in seconds — no ladder, no manual lifting, no reorganizing the garage to reach what's stored. At 400 lbs distributed capacity across the largest platform in the Ceiling Sam lineup, it handles a full season's worth of storage — or multiple categories of gear — in a single lift cycle, backed by a Limited Lifetime Warranty.

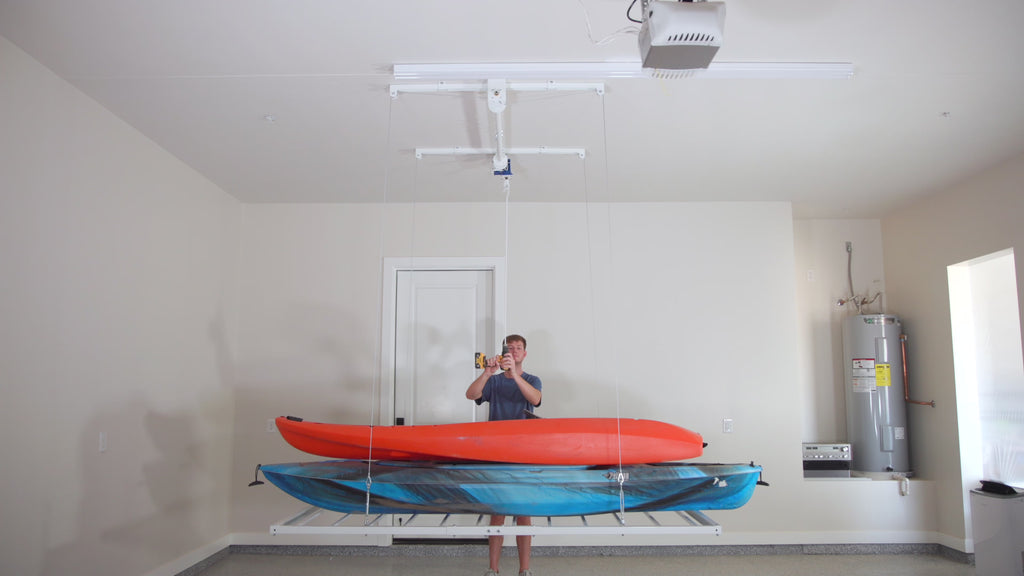

See it in action:
Platform, Load & Operation Specifications

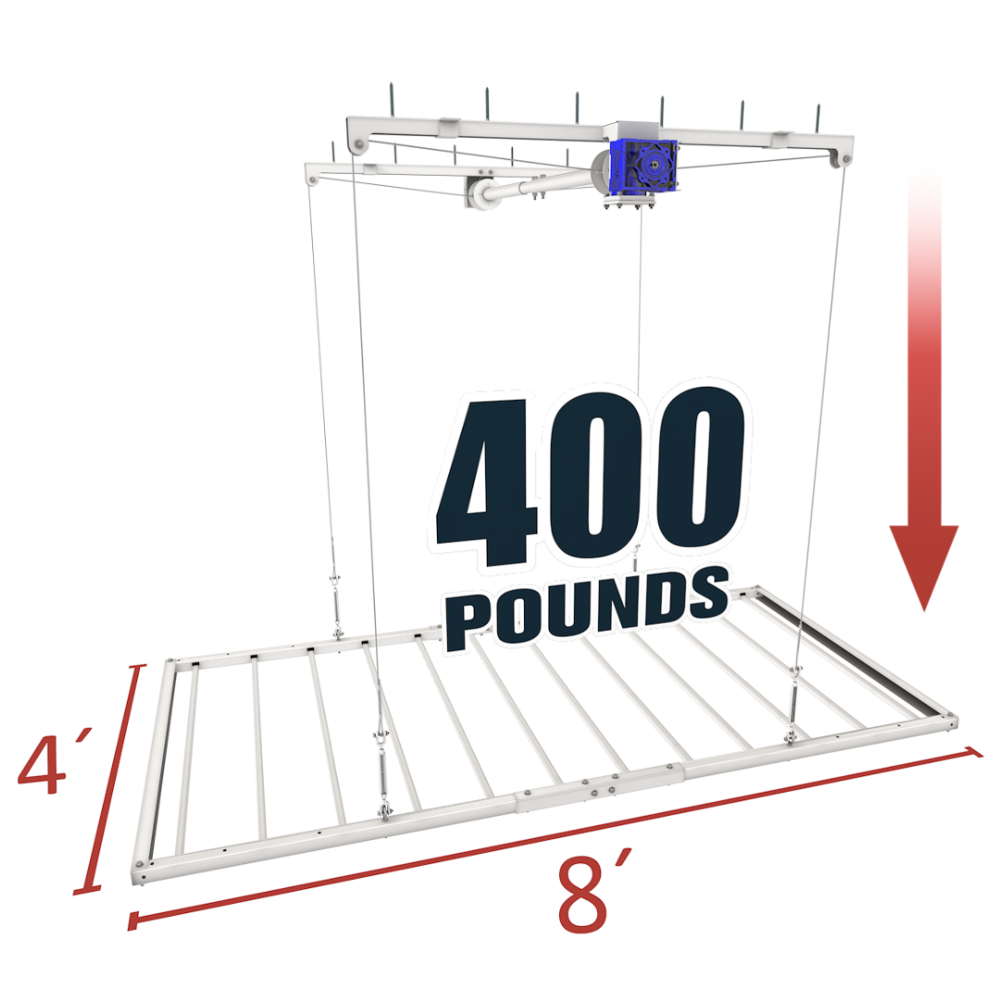

- Platform Dimensions: 4' × 8' (32 sq ft)
- Load Capacity: 400 lbs distributed — weight must be distributed across the platform surface, not concentrated at a single point
- Drop Length: 8' (8'–11' ceiling variant) or 11' (11.5'–14' ceiling variant)
- Ceiling Height Range: 8'–11' (SKU R4X8) or 11.5'–14' (SKU R4X8M)
- Power Source: Drill-powered — operates with any standard corded or cordless drill; no electrical wiring or dedicated circuit required
- Installation: DIY install — detailed step-by-step instructions included; designed for standard garage ceiling joist mounting
- Warranty: Limited Lifetime Warranty
- Origin: Made in the USA
- Vendor: Ceiling Sam
Variants:

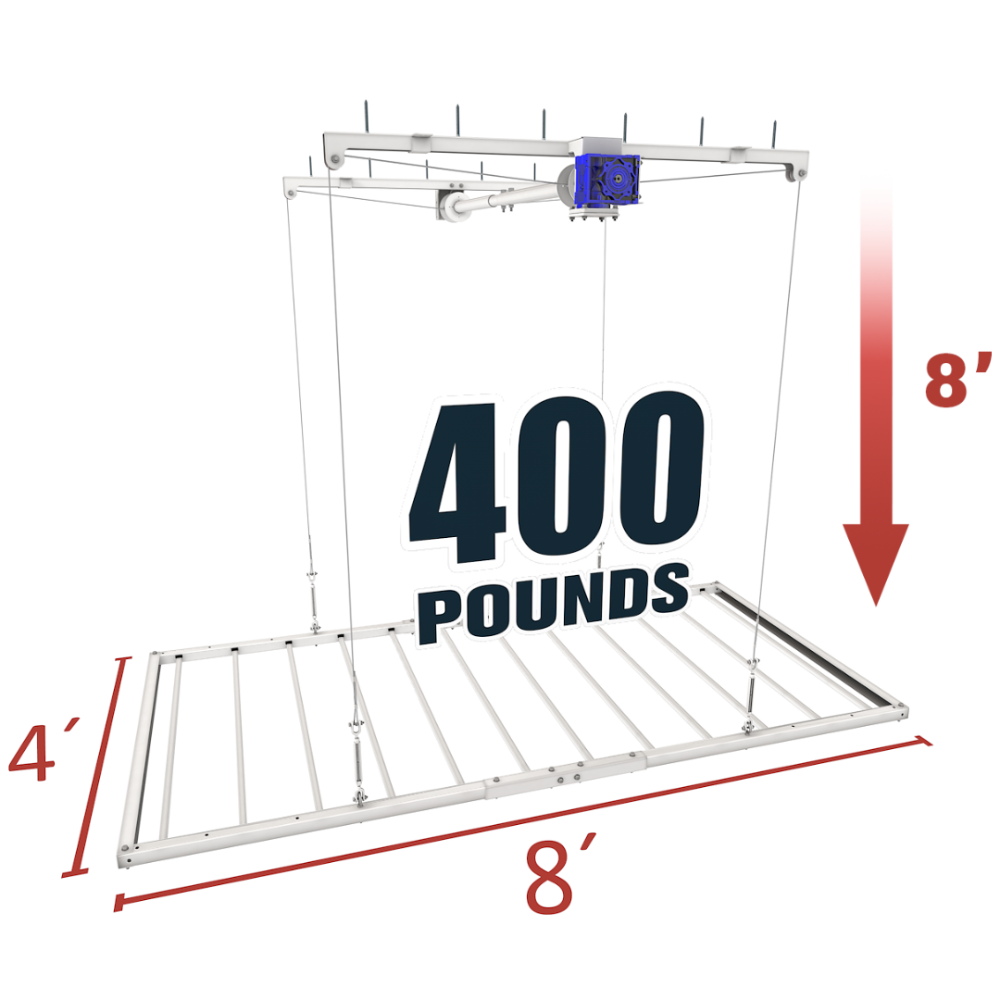

- 8'–11' Ceiling Height — $1,499 (SKU R4X8): 8' drop length — for standard residential garage ceilings

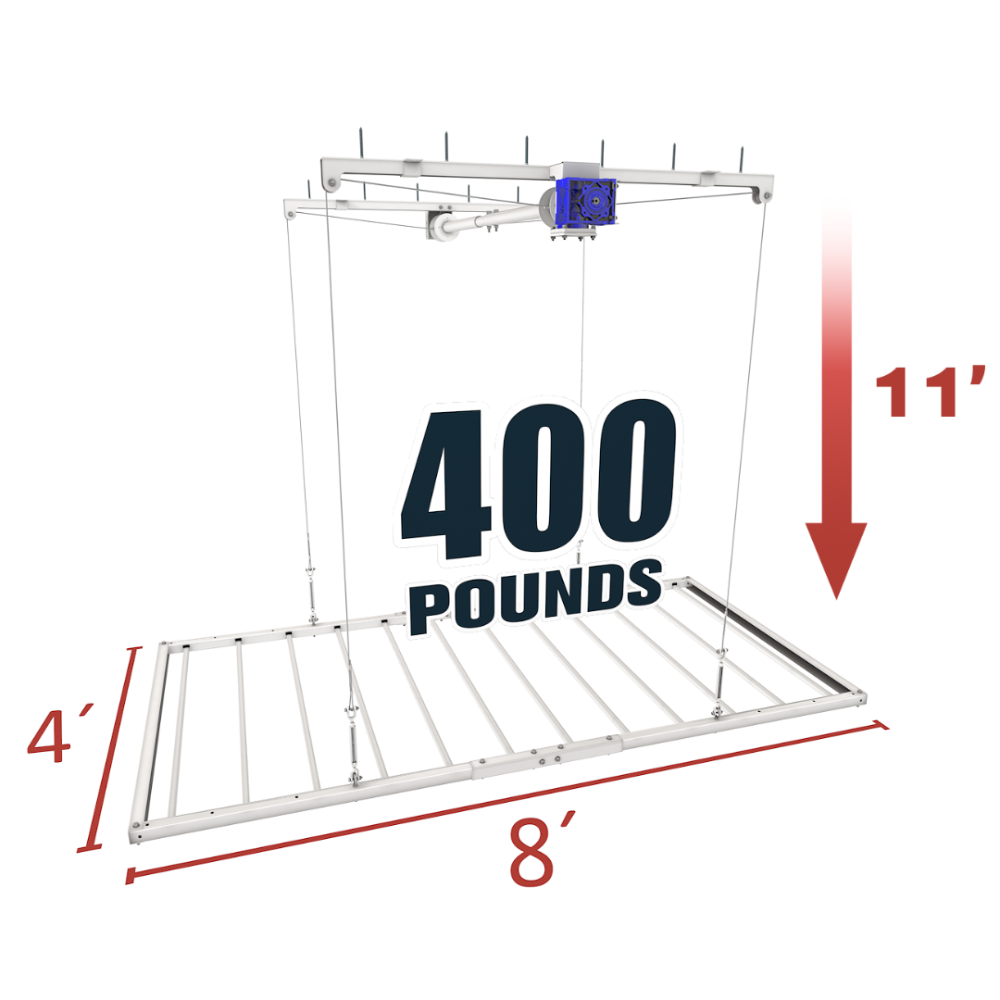

- 11.5'–14' Ceiling Height — $1,599 (SKU R4X8M): 11' drop length — for taller garage, workshop, or commercial ceilings
Ceiling Height Selection, Installation Requirements & Platform Sizing
Watch the full installation walkthrough before you begin:
- Ceiling Height Selection — Critical: Your ceiling height must exceed the drop length of the selected variant. For the 8' drop variant, ceiling height must be greater than 8'. For the 11' drop variant, ceiling height must be greater than 11'. Measure your ceiling height before selecting a variant — selecting the wrong variant requires a return and exchange
- Ceiling Height Measurement: Measure from finished floor to the underside of the ceiling joists (not drywall) at the intended installation location — joist depth adds to usable clearance
- Joist Mounting: The platform mounts to ceiling joists — the 4'×8' platform spans the largest joist footprint in the Ceiling Sam lineup; verify joist spacing, direction, and structural capacity across the full 8' dimension before ordering; consult a structural engineer if joists are non-standard, if span direction doesn't align with the 8' platform length, or if the installation location is above a living space
- Platform Footprint: 4' × 8' — plan installation location carefully to avoid conflicts with garage door tracks, light fixtures, HVAC runs, and vehicle roof clearance; the 8' dimension requires the most ceiling real estate of any Ceiling Sam platform and may span across multiple joist bays
- Vehicle Clearance: When lowered, the platform descends to within the drop length of the ceiling — verify that the lowered platform position clears the roof of any vehicle parked beneath it; at 8' long, the platform may span the full length of a vehicle roof
- Distributed Load: 400 lb capacity is a distributed load rating — spread weight evenly across the full 4'×8' surface; do not concentrate load at the center or at either end of the platform
- Drill Operation: Any standard corded or cordless drill operates the lift mechanism — no dedicated power source, wiring, or outlet required at the ceiling
- DIY Install: Detailed step-by-step instructions included — follow joist attachment and cable tensioning procedures carefully before loading the platform; the larger footprint requires precise alignment during installation
- Not sure which platform size is right for your ceiling? Ceiling Sam also offers the 4'×4' Storage Elevator and the 4'×6' Storage Elevator for smaller ceiling footprints and storage volumes. Contact us and we'll help you size the right platform for your garage layout
