Ceiling Sam 4x6 Storage Elevator - Retractable Ceiling Storage Lift

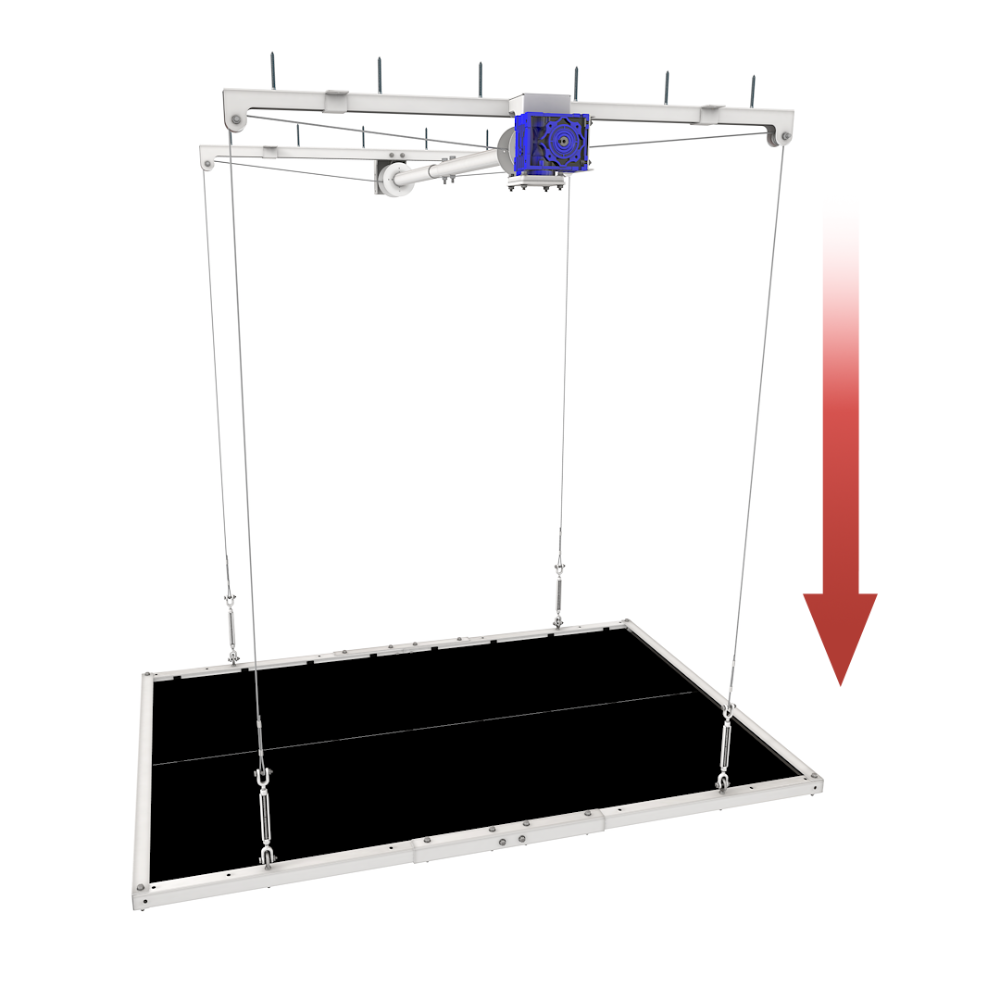

The Ceiling Sam 4'×6' Storage Elevator is a retractable ceiling-mounted storage platform rated for 400 lbs of distributed load, with an 8' or 11' drop length, drill-powered operation, and a 4'×6' (24 sq ft) platform — available in two variants: 8'–11' ceiling height ($1,299) and 11.5'–14' ceiling height ($1,399). Made in the USA. Limited Lifetime Warranty.
Your Garage Ceiling Is the Most Underutilized Storage Space You Own

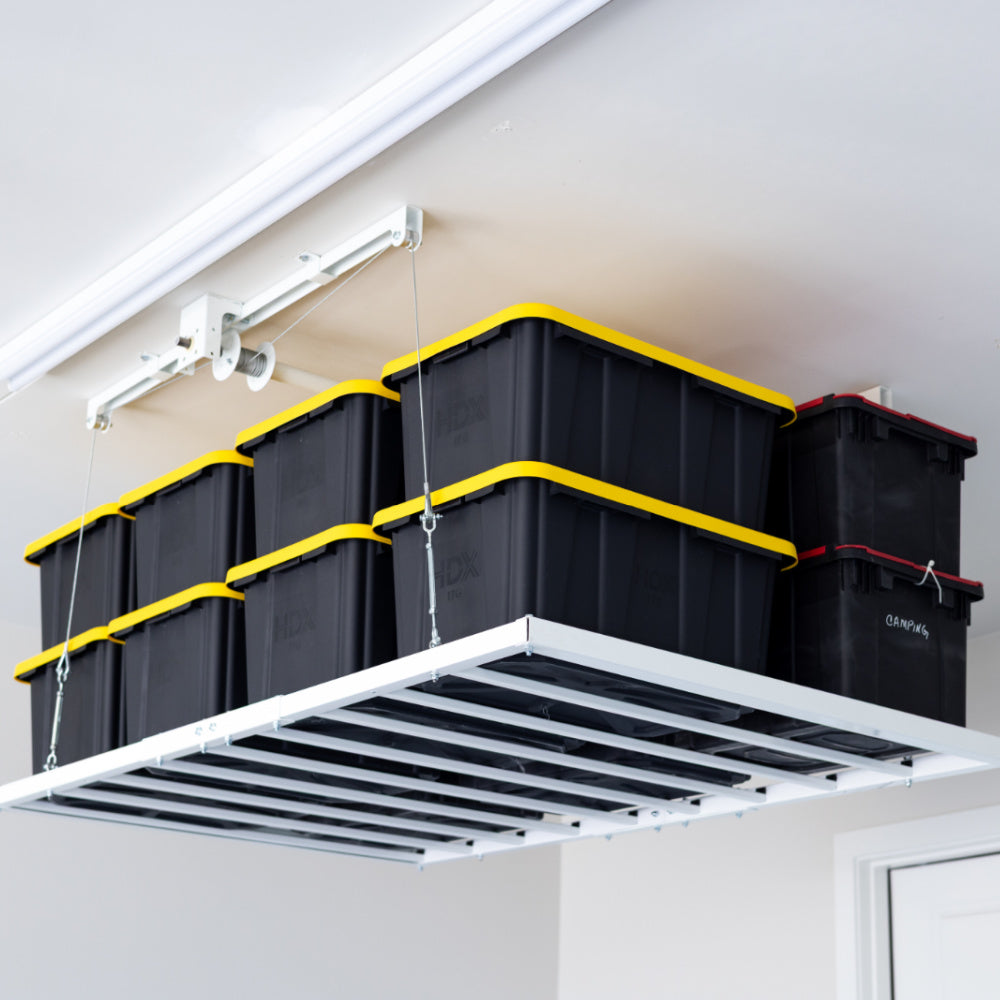

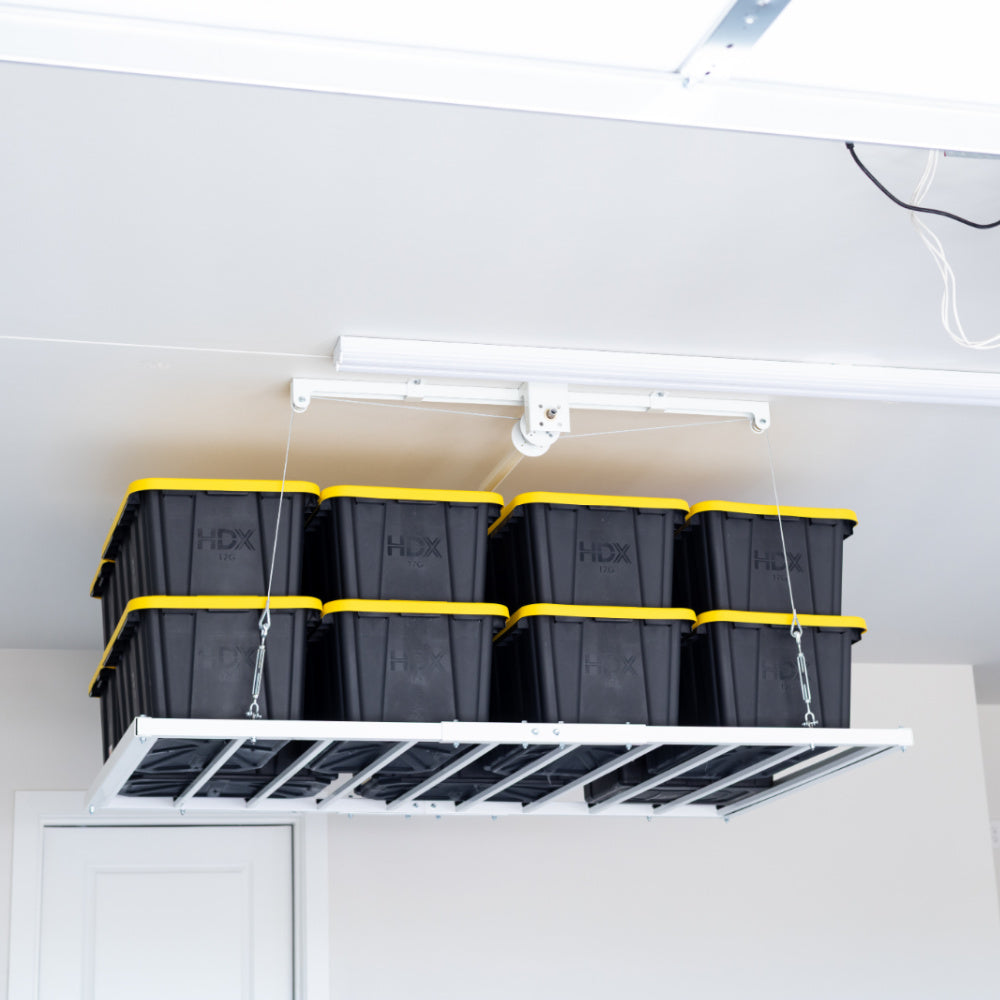

Most garages have 8 to 14 feet of vertical space above the floor — and most of it sits empty while seasonal totes, holiday decorations, camping gear, and equipment compete for floor space with vehicles and workbenches. The Ceiling Sam 4'×6' Storage Elevator puts that overhead space to work: a 24 sq ft platform mounts to your ceiling joists and raises flush when not in use, returning the full garage floor to the things that need to be there. When you need access, a standard drill lowers the platform in seconds — no ladder, no manual lifting, no reorganizing the garage to reach what's stored. At 400 lbs distributed capacity, it handles a full season's worth of storage in a single platform footprint, backed by a Limited Lifetime Warranty.

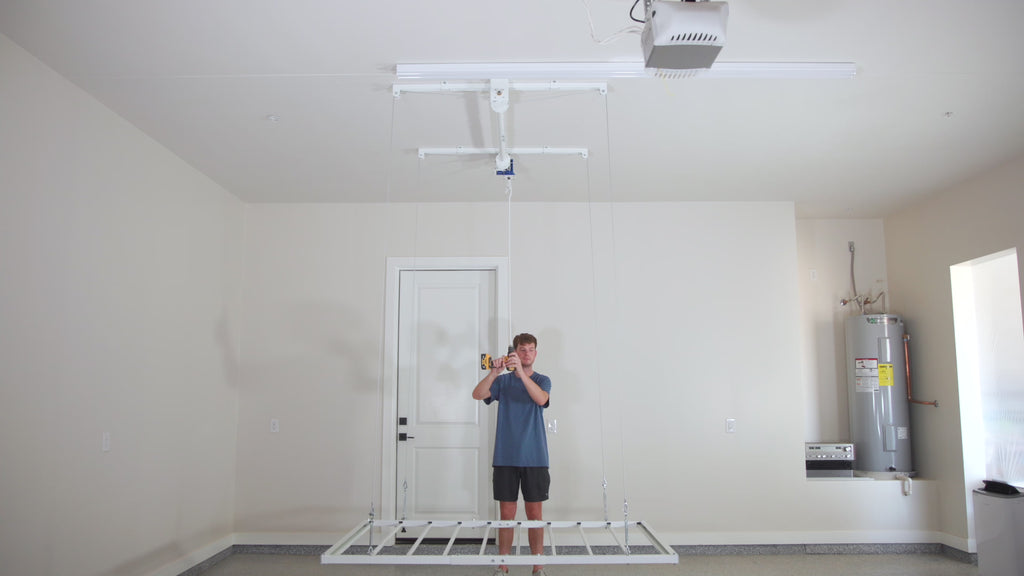

See it in action:
Platform, Load & Operation Specifications

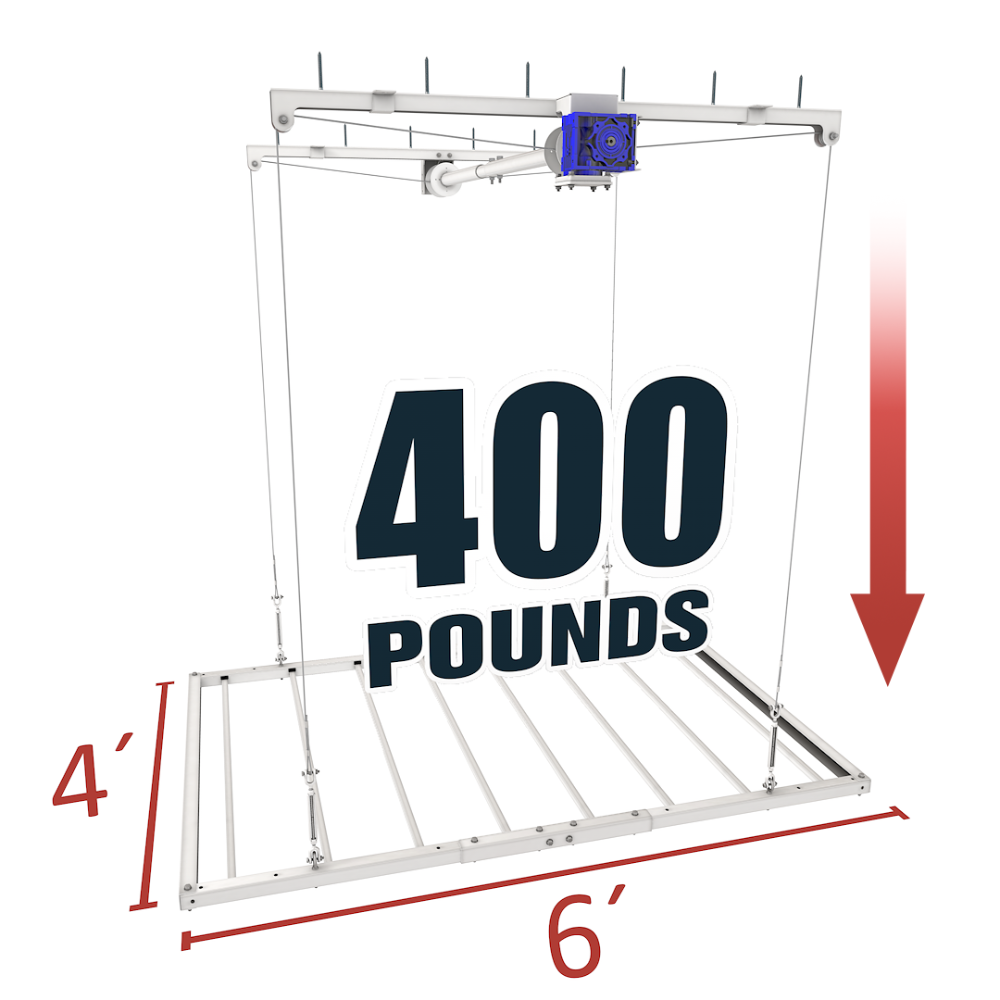

- Platform Dimensions: 4' × 6' (24 sq ft)
- Load Capacity: 400 lbs distributed — weight must be distributed across the platform surface, not concentrated at a single point
- Drop Length: 8' (8'–11' ceiling variant) or 11' (11.5'–14' ceiling variant)
- Ceiling Height Range: 8'–11' (SKU R4X6) or 11.5'–14' (SKU R4X6M)
- Power Source: Drill-powered — operates with any standard corded or cordless drill; no electrical wiring or dedicated circuit required
- Installation: DIY install — step-by-step instructions included; designed for standard garage ceiling joist mounting
- Warranty: Limited Lifetime Warranty
- Origin: Made in the USA
- Vendor: Ceiling Sam
Variants:

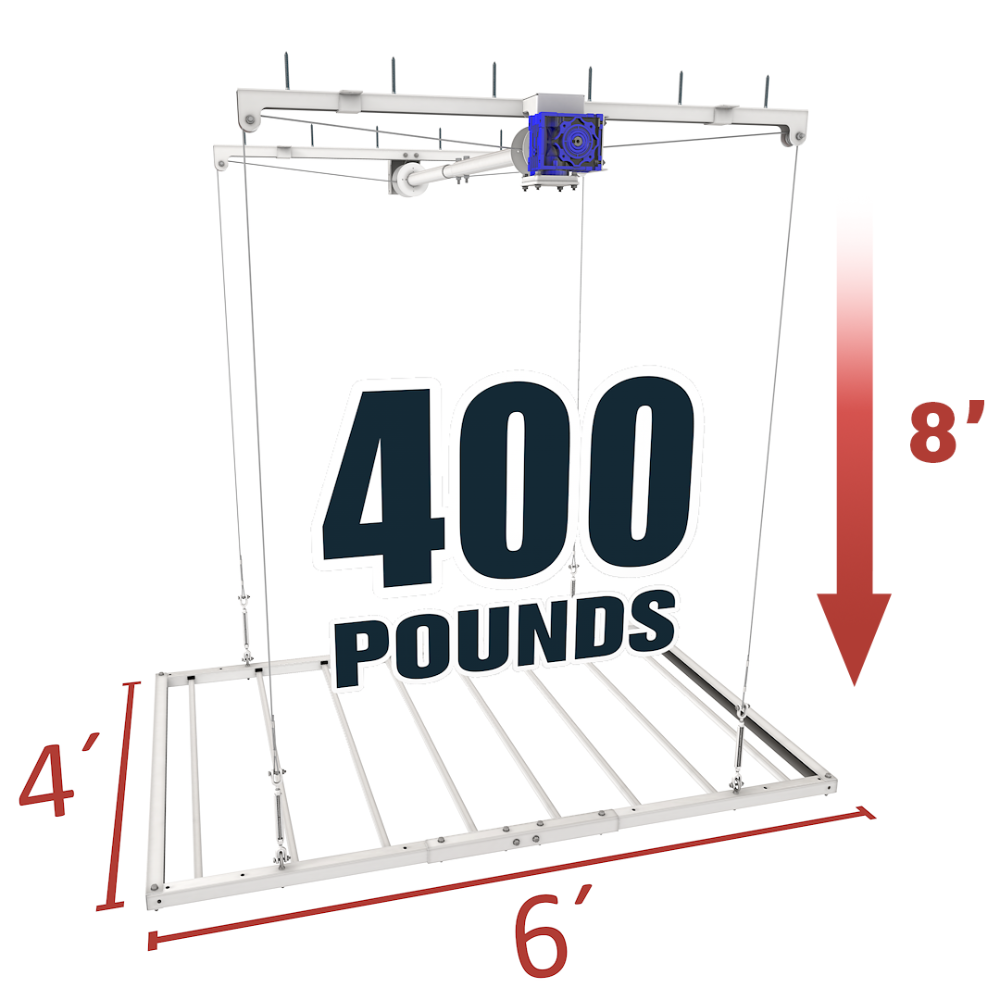

- 8'–11' Ceiling Height — $1,299 (SKU R4X6): 8' drop length — for standard residential garage ceilings

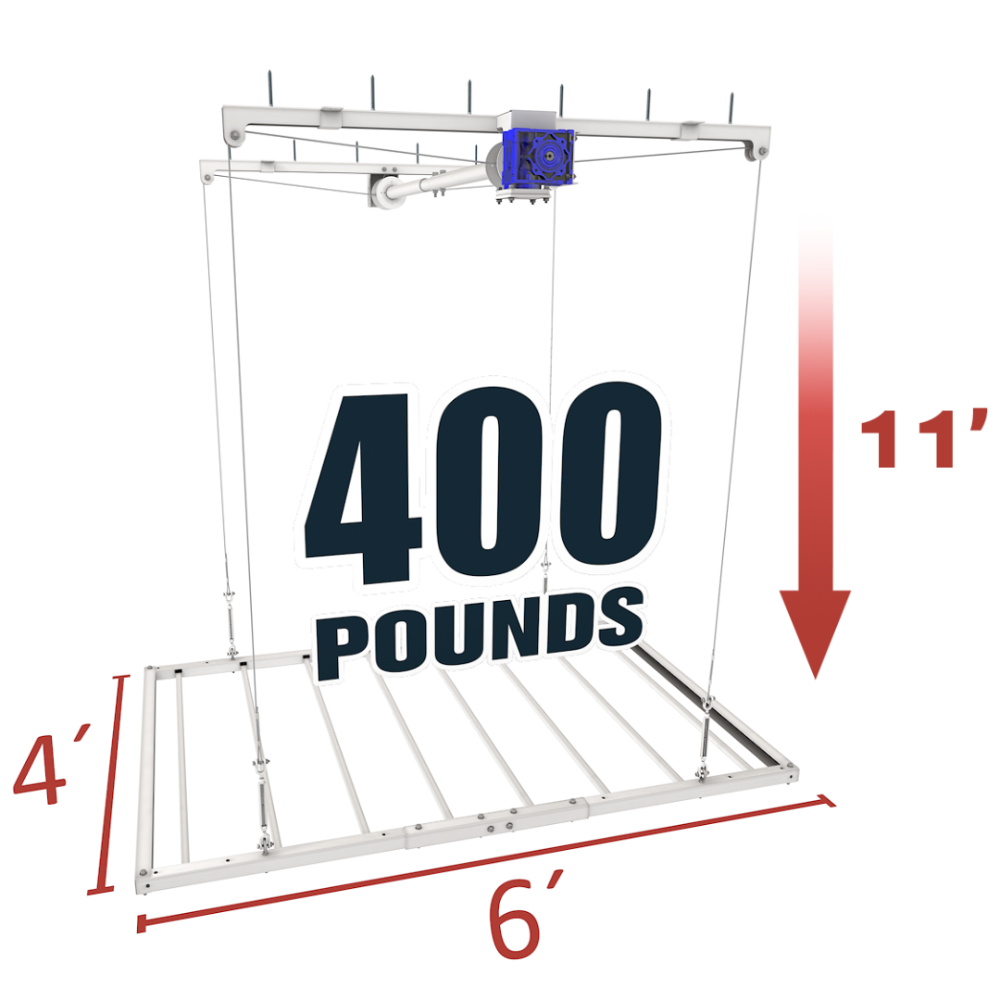

- 11.5'–14' Ceiling Height — $1,399 (SKU R4X6M): 11' drop length — for taller garage, workshop, or commercial ceilings
Ceiling Height Selection, Installation Requirements & Platform Sizing
Watch the full installation walkthrough before you begin:
- Ceiling Height Selection — Critical: Your ceiling height must exceed the drop length of the selected variant. For the 8' drop variant, ceiling height must be greater than 8'. For the 11' drop variant, ceiling height must be greater than 11'. Measure your ceiling height before selecting a variant — selecting the wrong variant requires a return and exchange
- Ceiling Height Measurement: Measure from finished floor to the underside of the ceiling joists (not drywall) at the intended installation location — joist depth adds to usable clearance
- Joist Mounting: The platform mounts to ceiling joists — verify joist spacing and structural capacity at the intended installation location before ordering; the 4'×6' platform spans a larger joist footprint than smaller variants — confirm your joist layout accommodates the 6' dimension before ordering; consult a structural engineer if joists are non-standard or if the installation location is above a living space
- Platform Footprint: 4' × 6' — plan installation location to avoid conflicts with garage door tracks, light fixtures, HVAC runs, and vehicle roof clearance when the platform is in the lowered position
- Vehicle Clearance: When lowered, the platform descends to within the drop length of the ceiling — verify that the lowered platform position clears the roof of any vehicle parked beneath it
- Distributed Load: 400 lb capacity is a distributed load rating — spread weight evenly across the 4'×6' surface; do not stack all weight at the center or at one end of the platform
- Drill Operation: Any standard corded or cordless drill operates the lift mechanism — no dedicated power source, wiring, or outlet required at the ceiling
- DIY Install: Step-by-step instructions included — follow joist attachment and cable tensioning procedures before loading the platform
- Not sure which platform size is right for your ceiling? Ceiling Sam also offers the 4'×4' Storage Elevator for tighter ceiling footprints and smaller storage volumes, and a 4'×8' option for maximum overhead coverage. Contact us and we'll help you size the right platform for your garage layout
The GarageForm Difference: Technical Authority, Not Just a Catalog
Technical Screening: We don't list overhead storage products without vetting them. The Ceiling Sam 4'×6' Storage Elevator has been verified for load capacity rating, ceiling height variant selection criteria, joist span requirements for the 6' platform dimension, and drill-powered operation to ensure the performance data on this page reflects the actual system — not marketing copy.
Direct Expert Support: We serve as your technical interface. If you need assistance selecting the correct ceiling height variant, verifying joist layout for the 4'×6' footprint, or sizing between the 4'×4', 4'×6', and 4'×8' platforms for your specific garage, our experts provide pre-sale consulting at no charge.
Straightforward Purchasing: Free shipping on this system. If the 4'×6' Storage Elevator doesn't meet your ceiling height or structural requirements after delivery, our return process is handled by our specialized team — not a generalist call center.
