storeWALL 8ft Heavy Duty Slatwall Panels - 40 Sq Ft, 7 Colors
The storeWALL 8ft Heavy Duty Slatwall case includes 4 panels covering 40 sq ft — solid core molded construction, patented profile, 300 lbs per sq ft holding capacity at the panel surface with HD InstallStrips, 0.70" panel thickness, 15" panel height with 5 slots, and a 10-year warranty. Available in 7 designer colors and wood grain finishes. Weight: 70 lbs per case. Dimensions: 97" × 16" × 4". HD InstallStrips and screws sold separately.
300 lbs Per Square Foot. Solid Core. Patented Profile — The Strongest Garage Slatwall for Demanding Applications.
Conventional slatwall is hollow-core extruded PVC — it flexes under load, cracks at the slots, and fades or warps in garage temperature swings. storeWALL Heavy Duty panels are solid core molded, meaning the color and finish run throughout the panel — no surface veneer to chip or peel. The patented profile accepts the exclusive HD InstallStrip system, which anchors each panel to the wall studs without visible fasteners and delivers 300 lbs of holding capacity per square foot at the panel surface. The solid core construction is waterproof, cleanable, and recyclable. Each panel carries a 10-year warranty.
Installation walkthrough
Panel & Case Specifications

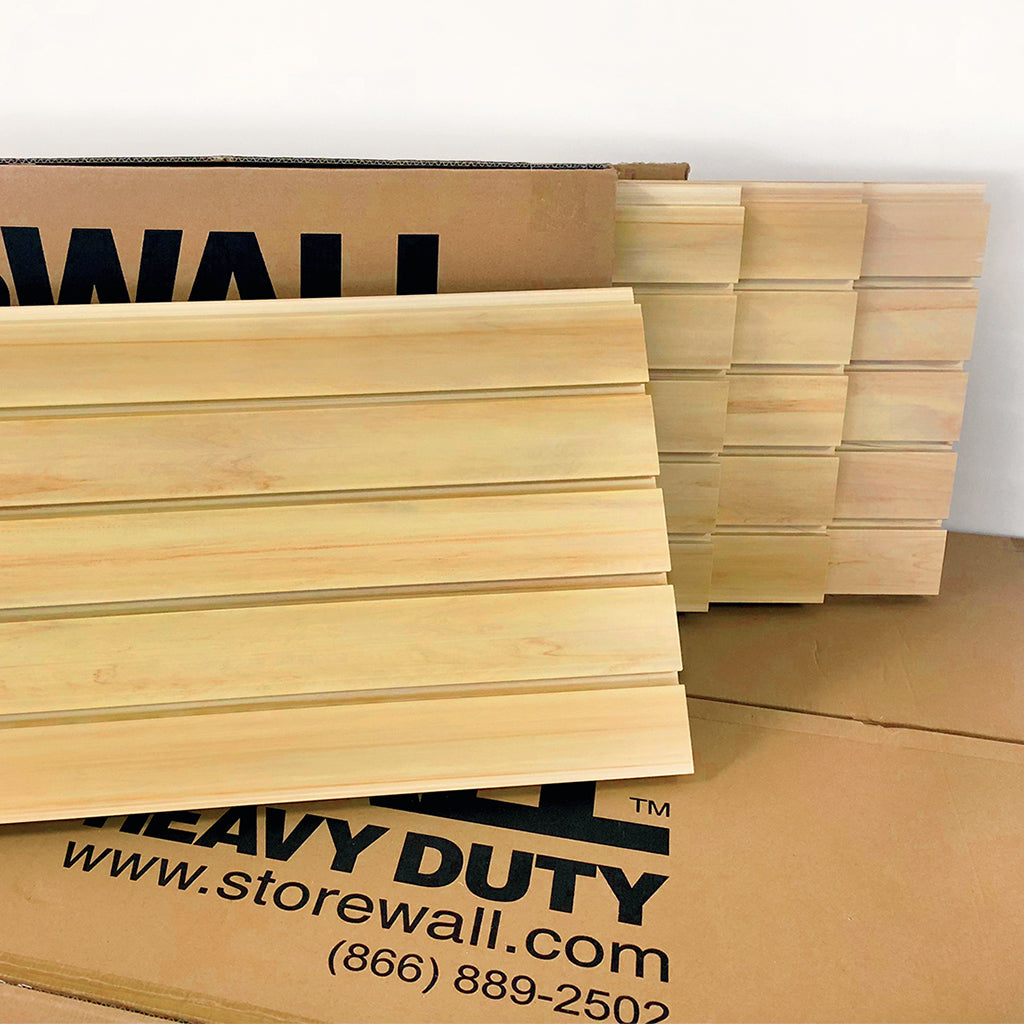

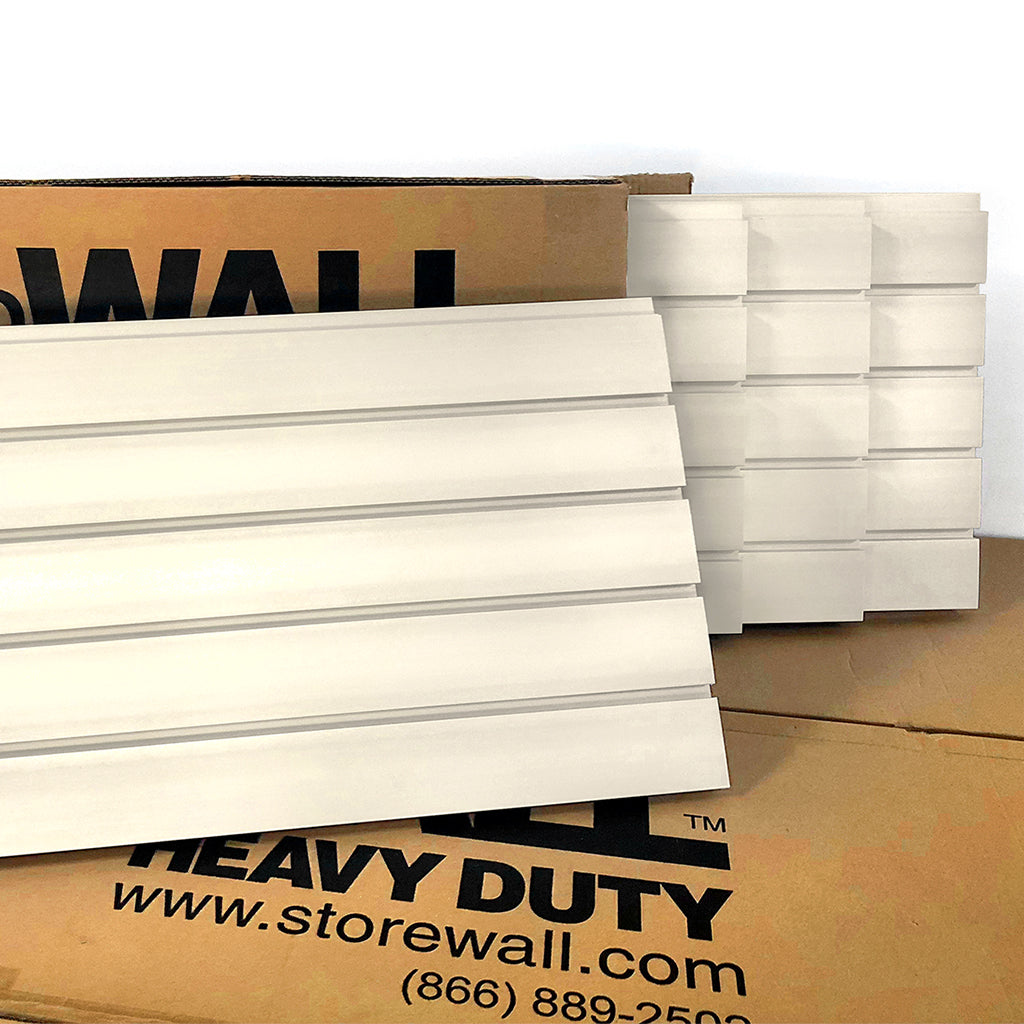

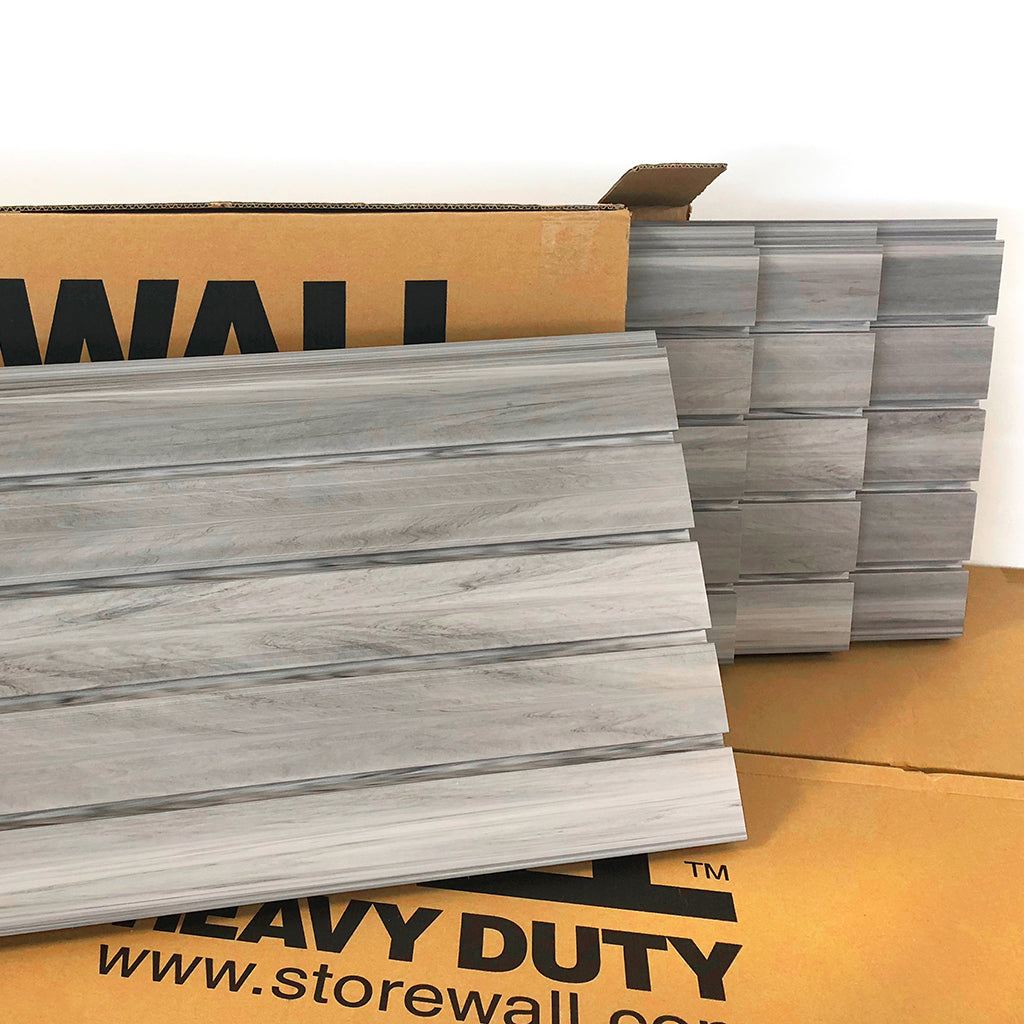

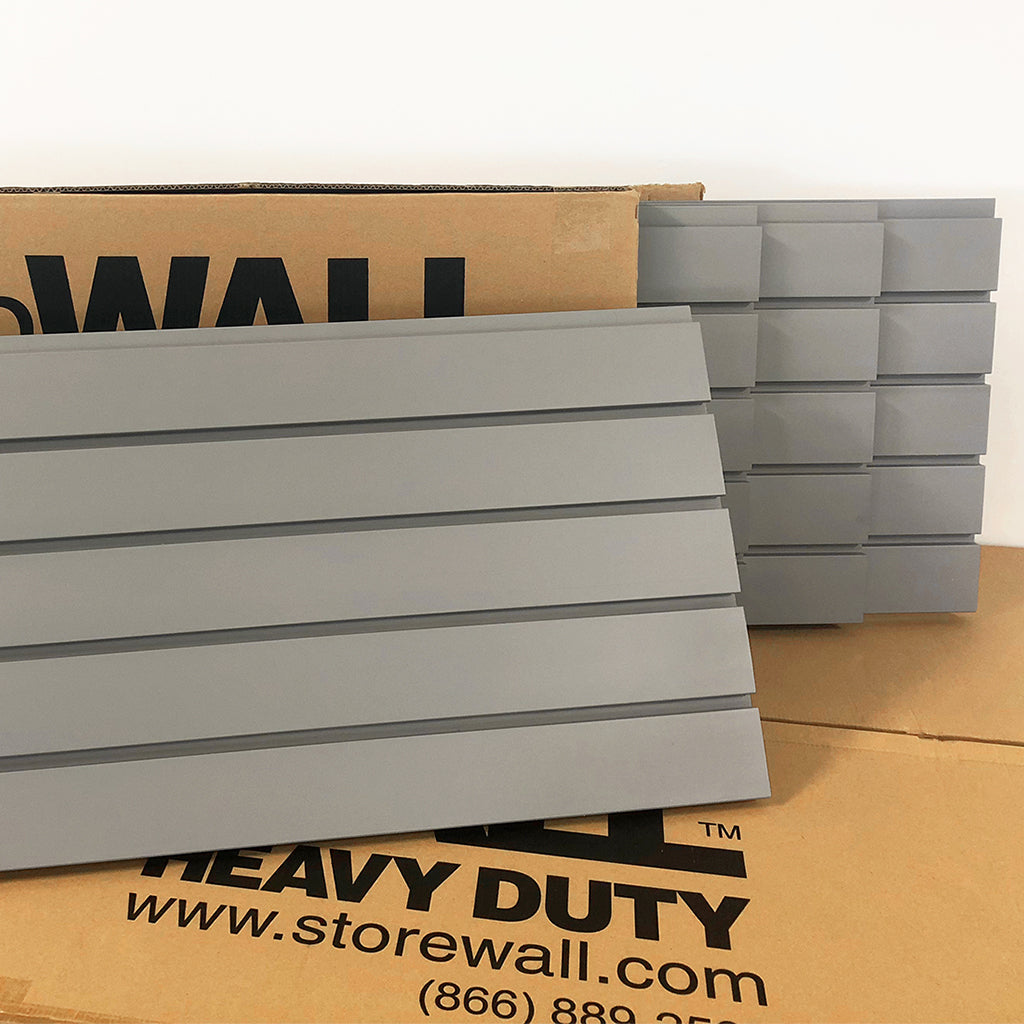

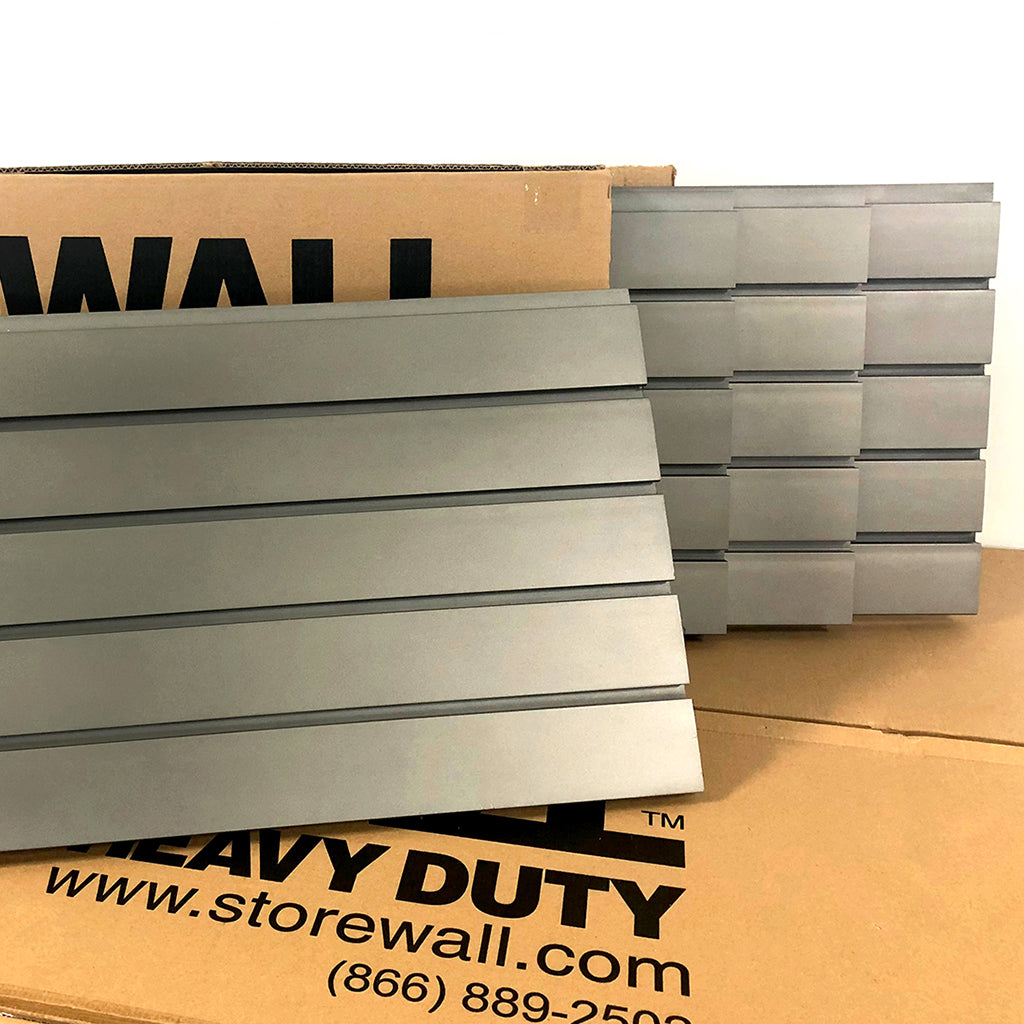

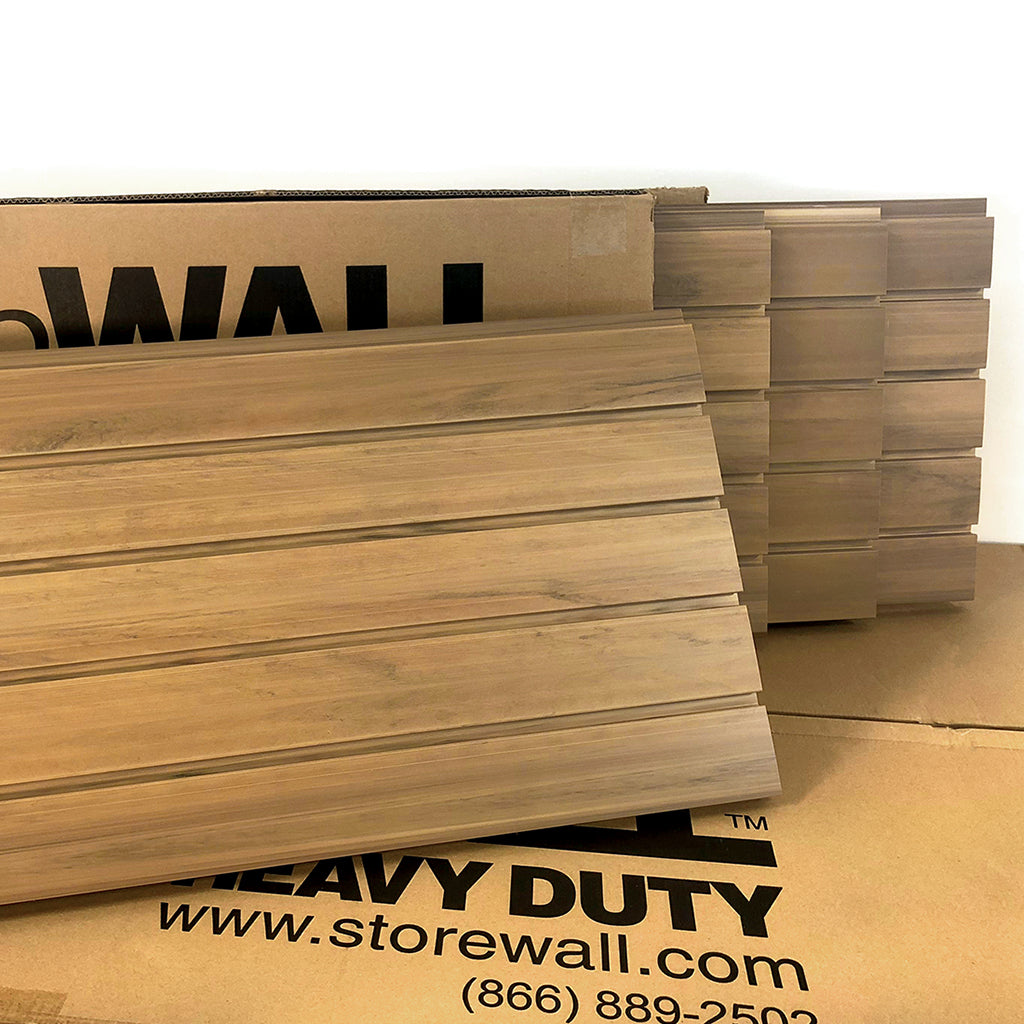

- Case Contents: 4 panels per case — covers 40 sq ft
- Panel Length: 8ft (96")
- Panel Height: 15" — 5 slots per panel
- Panel Thickness: 0.70"
- Construction: Solid core molded — color and finish throughout panel, no surface veneer
- Holding Capacity (with HD InstallStrips): 300 lbs per sq ft at panel surface / 165 lbs per sq ft at 4" from surface
- Profile: Patented — accepts exclusive HD InstallStrip system
- Properties: Waterproof, cleanable, recyclable
- Warranty: 10 years
- Case Weight: 70 lbs
- Case Dimensions: 97" × 16" × 4"

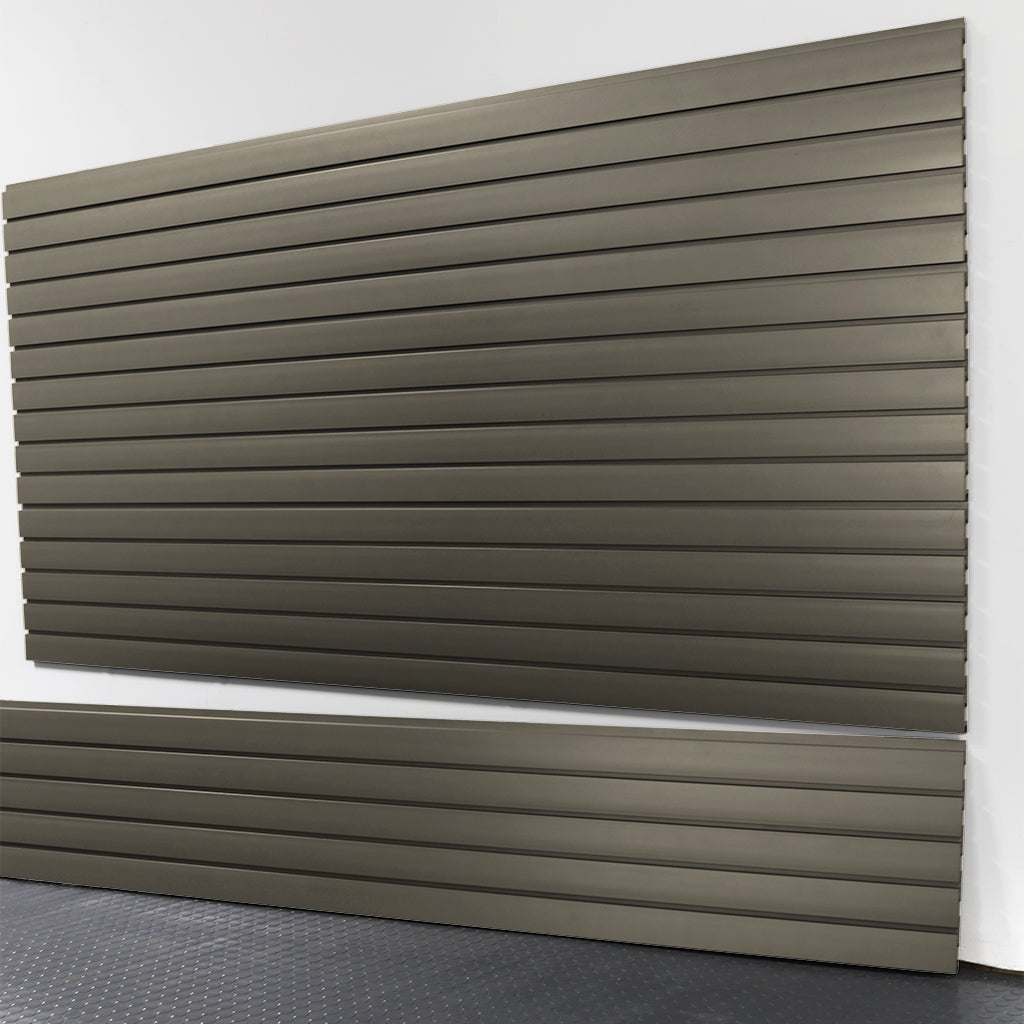

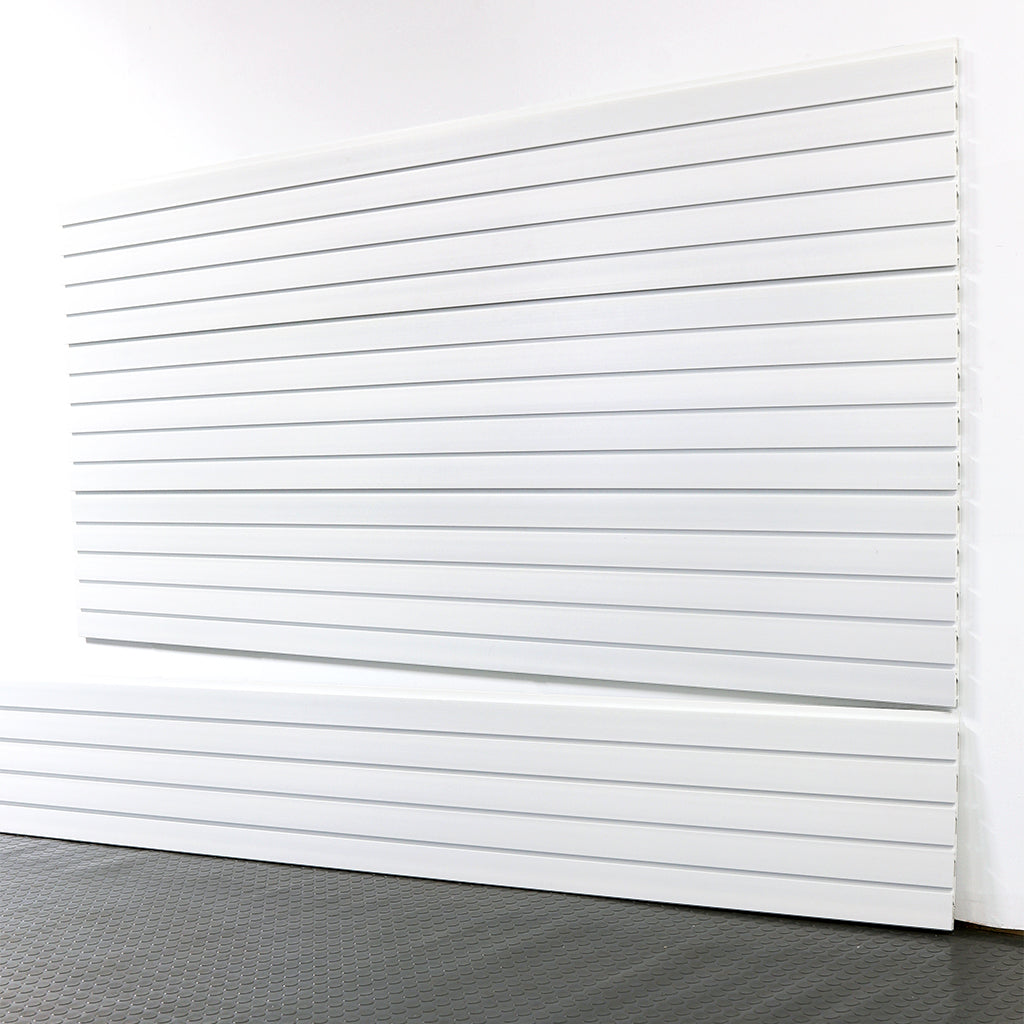

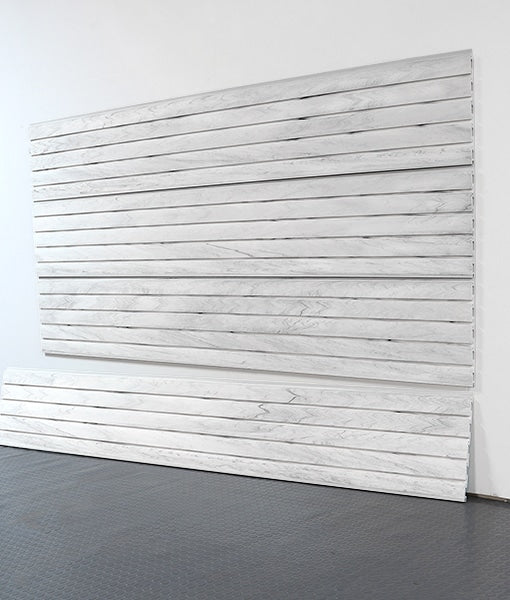

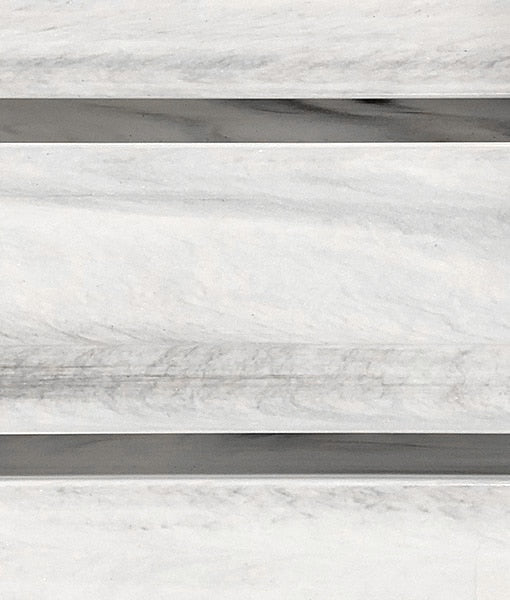

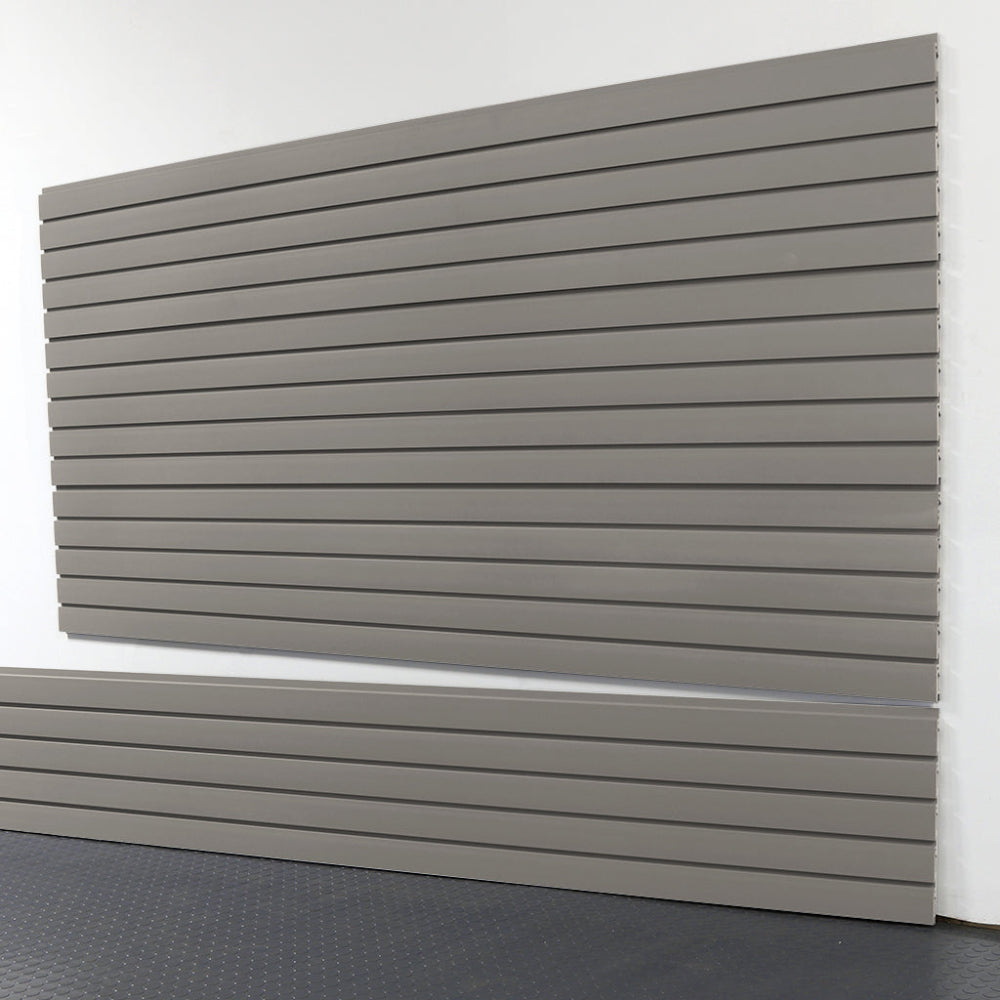

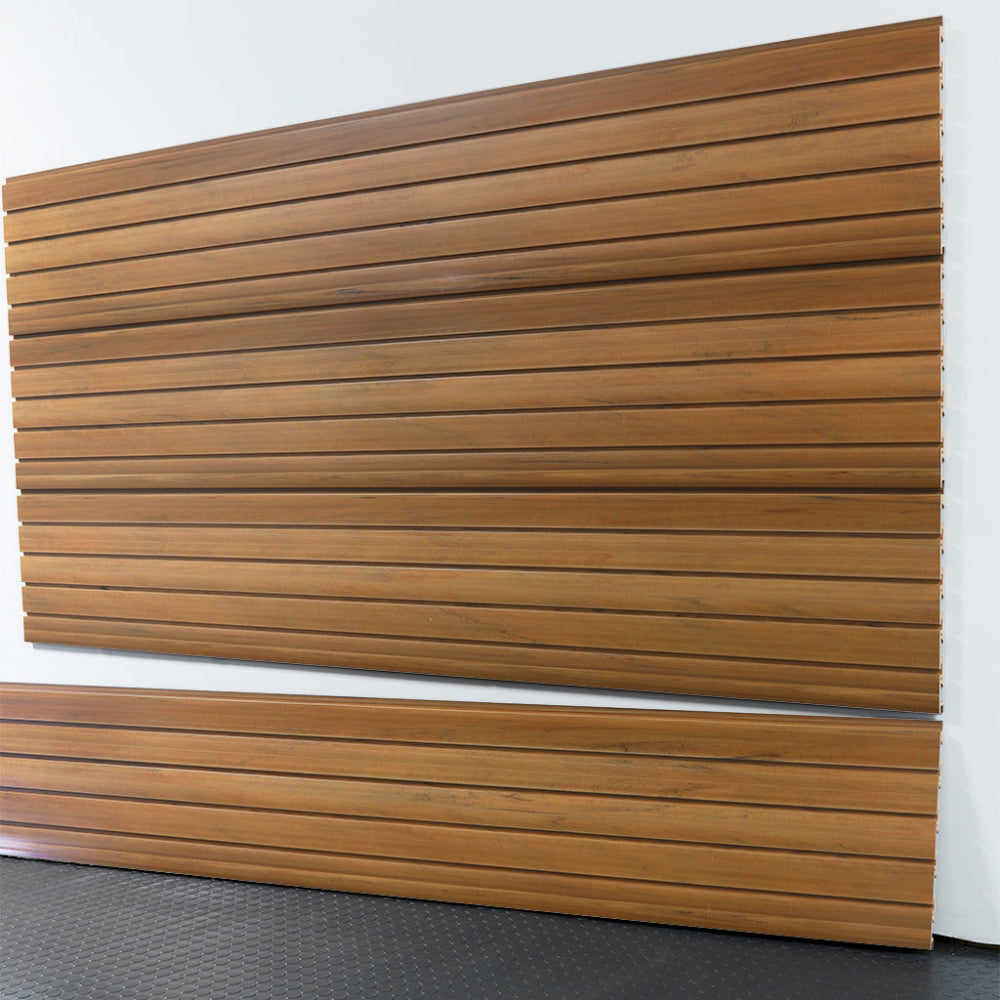

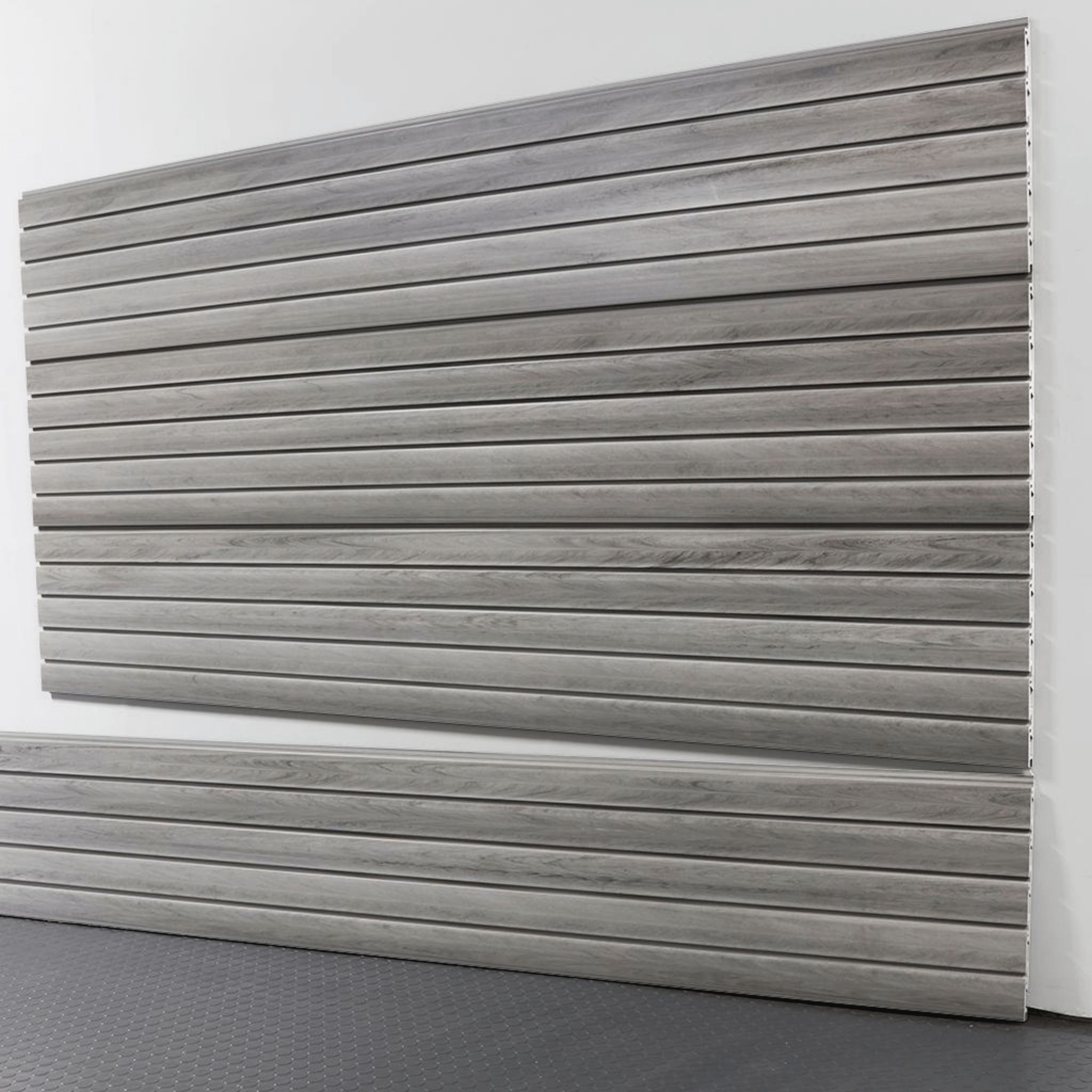

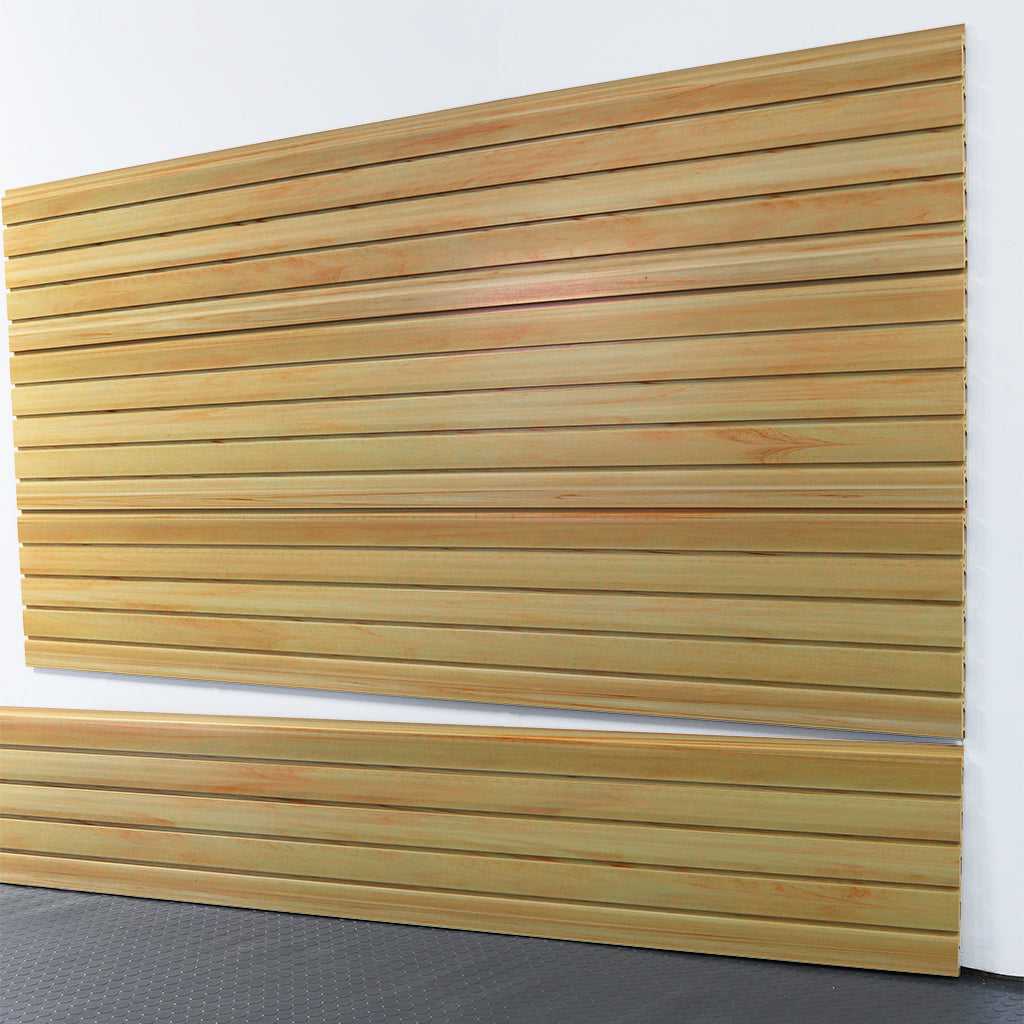

- Available Colors: Weathered Grey, Barnwood, Brite White, Whitewood, Rustic Cedar, Global Pine, Graphite Steel
- Brand: storeWALL
Installation Options
- HD InstallStrips (recommended): 2 HD InstallStrips per 8ft panel — 8 HD InstallStrips per case. Anchor panels to wall studs without visible fasteners. Delivers full 300 lbs/sq ft holding capacity. Sold separately — order HD InstallStrips specifically; standard InstallStrips are not rated for HD panels.
- Color-Matched Screws (alternative): Fasten panels from the front through the slatwall slots using storeWALL color-matched screws. Approximately 40 screws per 8ft panel. Screws sold separately. Visible fastener method — functional but less clean appearance than InstallStrip installation.
InstallStrip fastener: HD InstallStrips use #6 screws (not included). Ensure screws reach wall studs for rated holding capacity.
Planning, Layout & Accessory Compatibility
- Coverage planning: Each case covers 40 sq ft (4 panels × 8ft × 15"). Measure your wall area and round up to the nearest case — panels cannot be purchased individually in 8ft length
- Stud spacing: Standard 16" or 24" on-center stud spacing — HD InstallStrips span between studs; confirm stud layout before ordering to ensure InstallStrip count is correct
- InstallStrips to order: 2 HD InstallStrips per 8ft panel × number of panels — order HD InstallStrips, not standard; the patented HD profile requires the HD-specific strip
- Accessory compatibility: storeWALL HD panels accept all storeWALL hooks, bins, shelves, and accessories designed for the standard slatwall slot profile — confirm accessory compatibility with storeWALL if using third-party slatwall accessories
- Color selection: Solid core construction means color runs throughout — cuts and edges will match the panel face; no raw substrate exposed at cut edges
- Mixing colors: All 7 colors share the same panel dimensions and slot profile — colors can be mixed on the same wall installation
- What's in the Box: 4 × storeWALL 8ft HD slatwall panels in selected color. HD InstallStrips, screws, and accessories sold separately.
