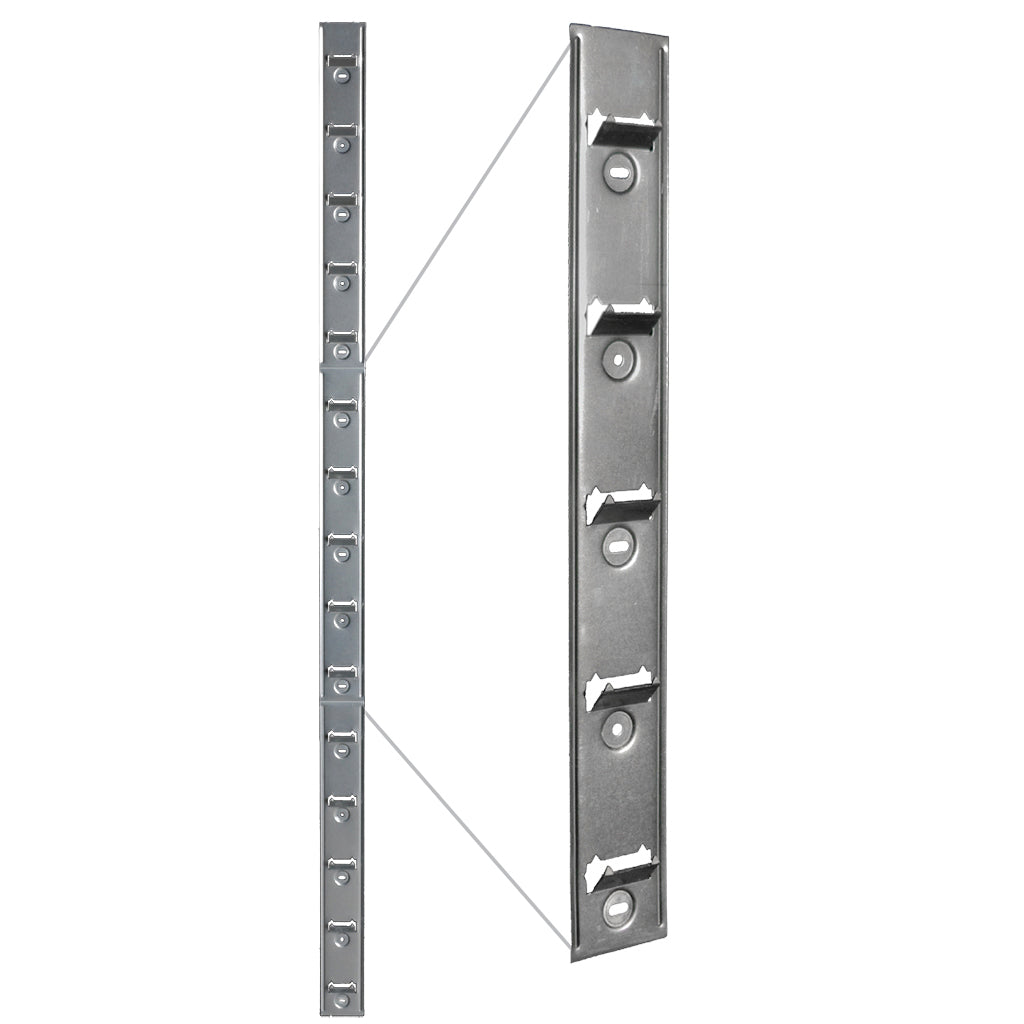

storeWALL HD InstallStrip - Steel Reinforced, Heavy Duty Panels Only
The storeWALL HD InstallStrip is a steel-reinforced mounting strip designed exclusively for storeWALL Heavy Duty slatwall panels — providing hidden fastener installation on wood, drywall, concrete, or concrete block. Each strip is 45" and separable into 30" or 15" sections. Sold as 1 strip. Weight: 1.4 lbs. Dimensions: 47" × 2" × 0.2". #6 screws not included.
Compatibility: HD panels only. This InstallStrip does not work with storeWALL Standard Duty panels.
No Visible Fasteners. Steel Reinforced. Attaches to Any Surface — Wood, Drywall, Concrete, or Concrete Block.
Standard slatwall installation requires screwing through the panel face — visible fasteners, limited repositionability, and reduced holding capacity at each screw point. The HD InstallStrip mounts horizontally to the wall substrate using #6 screws (sourced separately), then the HD panel clips directly onto the strip — no fasteners visible on the panel face. The steel reinforcement in the strip distributes load across the full strip length rather than concentrating it at individual screw points, delivering the 300 lbs/sq ft holding capacity at the panel surface that the HD panel system is rated for. Panels can be added, removed, or reconfigured at any time without re-drilling.
See the InstallStrip system in action
InstallStrip Specifications
- Material: Steel reinforced
- Length: 45" — separable into 30" or 15" sections for custom configurations
- Dimensions: 47" × 2" × 0.2"
- Weight: 1.4 lbs per strip
- Compatible surfaces: Wood stud, drywall, concrete, concrete block
- Fastener: #6 screws — not included; source from local hardware store or order separately. Length depends on substrate — screws must reach wall studs for rated holding capacity
- Sold as: 1 strip
- Compatible panels: storeWALL Heavy Duty panels only
- Not compatible with: storeWALL Standard Duty panels
- Brand: storeWALL
How Many InstallStrips to Order
- 8ft panel case (4 panels): 8 HD InstallStrips — 2 per 8ft panel. See the storeWALL 8ft HD Slatwall Panels (panels only).
- 4ft panel case (4 panels): 4 HD InstallStrips — 1 per 4ft panel
- Note: These are general recommendations. Actual quantity may vary depending on your panel configuration, wall layout, and load requirements. When in doubt, order one extra strip per case.
Installation Notes
- Orientation: Mount strips horizontally on the wall — 2 strips per 8ft panel, positioned to align with the panel’s clip points
- Stud requirement: Screws must reach wall studs for rated 300 lbs/sq ft holding capacity — confirm stud spacing (16" or 24" on-center) before installation
- Screw length: Select #6 screw length based on substrate — through drywall into stud typically requires 2"–2.5" screws; concrete requires appropriate masonry anchors
- Separation: Each 45" strip can be separated into 30" or 15" sections — useful for partial-wall installations, corners, or custom layouts

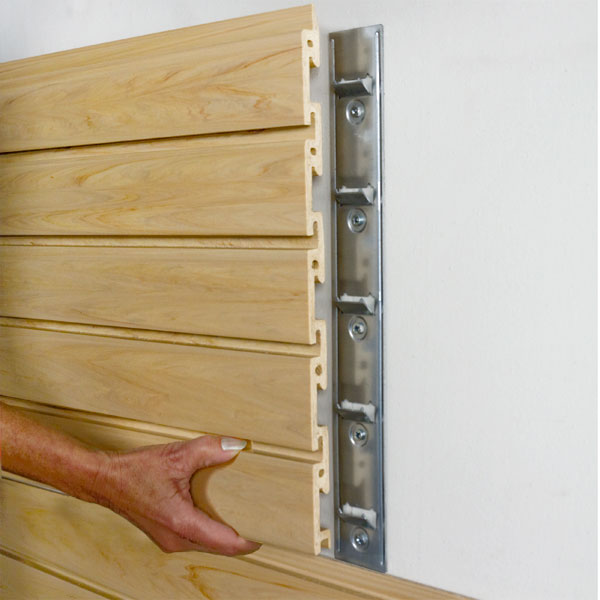

- Panel repositioning: Panels clip and unclip from InstallStrips without tools — reconfigure your layout at any time without re-drilling
- What's in the Box: 1 × storeWALL HD InstallStrip (45"). #6 screws not included.
