Swisstrax Diamondtrax Motorcycle Parking Mat Kit (4.5' x 8.5')
The Swisstrax Diamondtrax Motorcycle Mat Kit covers 38.25 sq ft of garage floor with UV-stabilized copolymer polypropylene tiles rated for hot tires, kickstand point loads, chemical exposure, and rolling loads — in a complete 4' 6" W × 8' 6" L kit including field tiles, tapered edge pieces, and corner pieces.

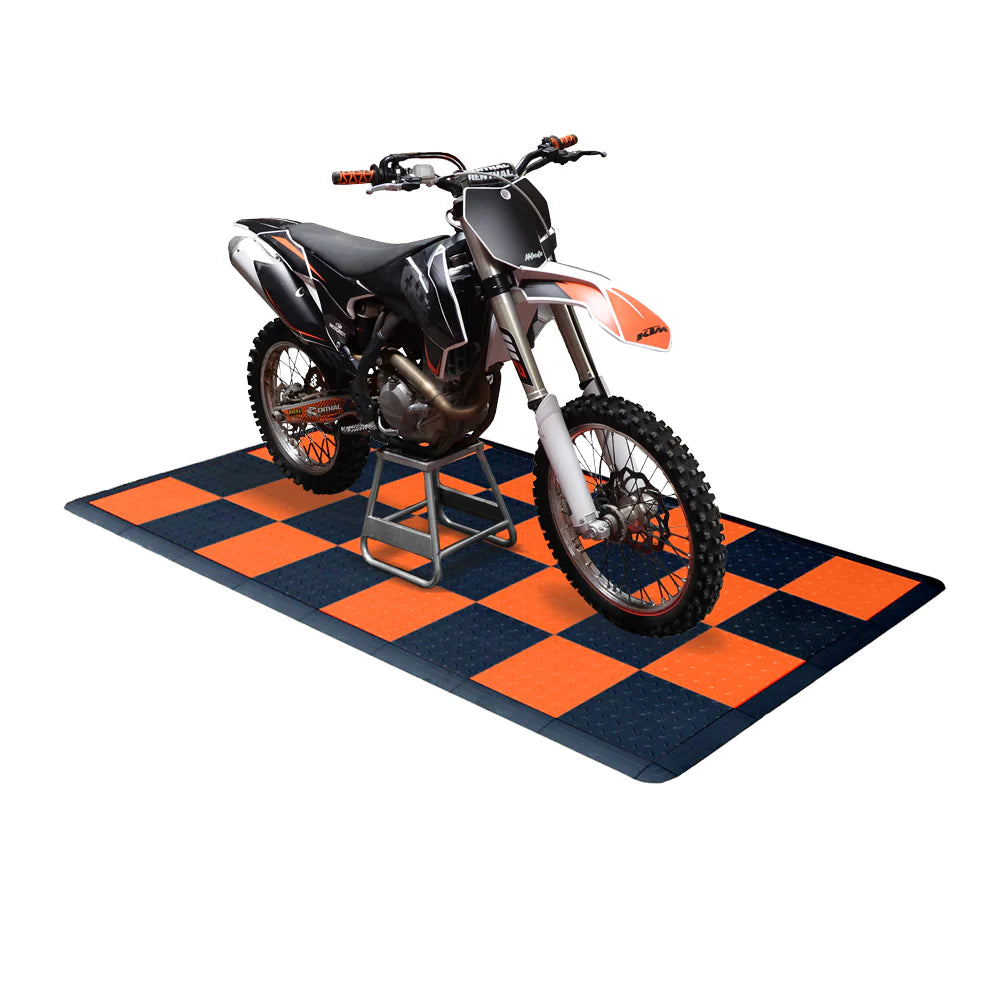

Image is for illustrative purposes only. Garage dimensions, motorcycle sizes, and tile layout proportions are not to scale. See kit specifications for exact coverage: 4' 6" × 8' 6" (38.25 sq ft).
Why Bare Concrete Fails the Motorcycle Parking Bay
Bare concrete absorbs oil and fluid drips, degrades under hot tire contact, and provides no defined parking zone — leaving kickstand contact points unprotected against surface gouging and slab staining. The Diamondtrax motorcycle kit addresses each failure mode: the interlocking tile surface distributes kickstand point loads across the tile structure, resists hydrocarbon absorption, and defines a precise parking footprint without adhesive, professional installation, or permanent slab modification.
Material & Load Specifications: What the Polypropylene Construction Delivers
- Material: UV-stabilized copolymer polypropylene — resists UV degradation, thermal cycling, and hydrocarbon exposure (oil, brake fluid, gasoline)
- Tile Dimensions: 12" × 12" × 0.5" thick per tile
- Kit Coverage: 4' 6" W × 8' 6" L = 38.25 sq ft — sized for a standard motorcycle parking footprint
- Surface Texture: Diamond-plate pattern — provides traction wet or dry, conceals surface staining and concrete imperfections
- Kickstand Load: Tile structure distributes kickstand point loads — protects slab surface from gouging and indentation
- Hot Tire Rating: Withstands repeated hot tire contact without deformation or adhesion failure
- Chemical Resistance: Rated against common garage chemicals including motor oil, brake fluid, and cleaning solvents
- Warranty: 20-year manufacturer warranty
- Includes: Field tiles, tapered edge pieces, and corner pieces for a complete perimeter finish

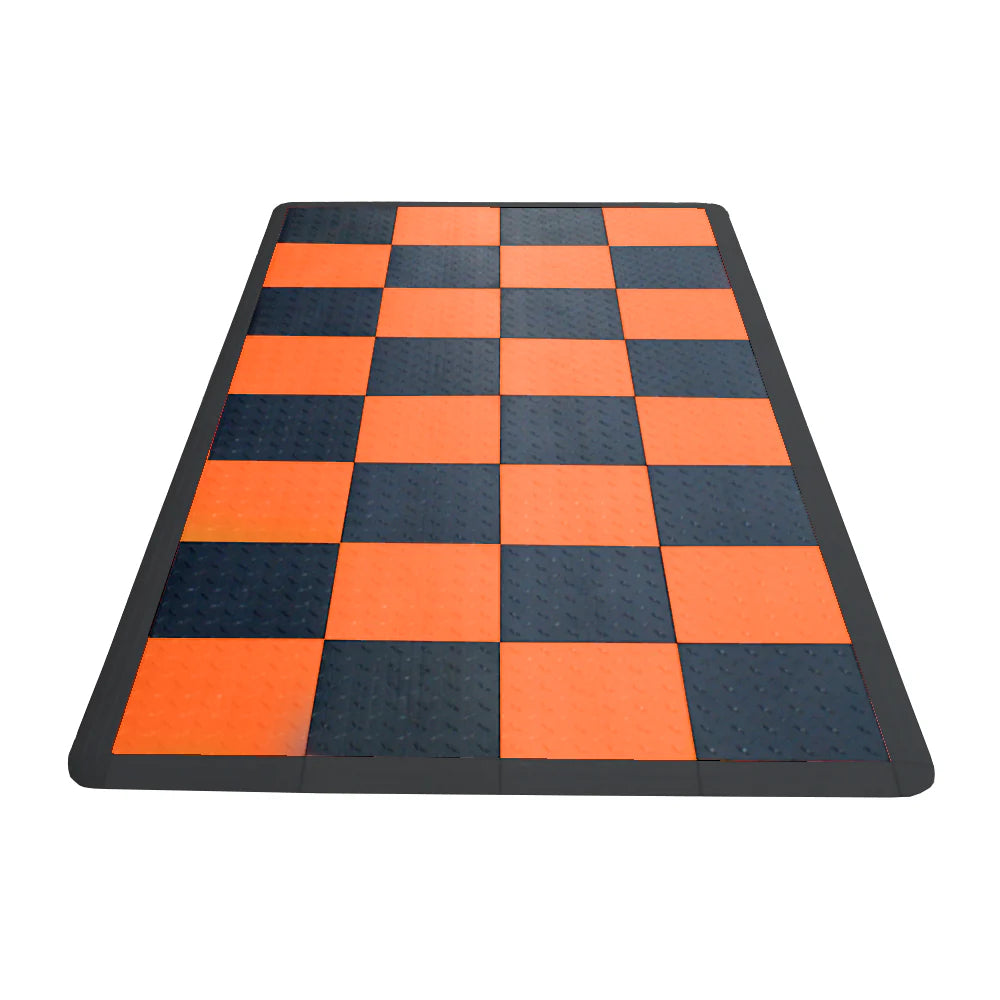

- Pattern Options: Checkered (Jet Black/Arctic White, Jet Black/Racing Red, Jet Black/Slate Grey, Jet Black/Tropical Orange) or Runner (Jet Black/Racing Red, Jet Black/Slate Grey, Jet Black/Tropical Orange)
Installation Parameters: Substrate, Clearance & Pattern Selection
- Substrate Requirement: Clean, level concrete slab — no adhesive or fasteners required
- Installation Method: Patented snap-together interlocking tab system — no tools required
- Estimated Install Time: Under 30 minutes for single-person installation of full kit
- Edge Transition Height: 0.5" tapered edge pieces provide a trip-free perimeter transition — allows rolling the motorcycle on and off without ramp assistance
- Reversibility: Fully removable and reconfigurable — tiles disassemble without damage to the substrate

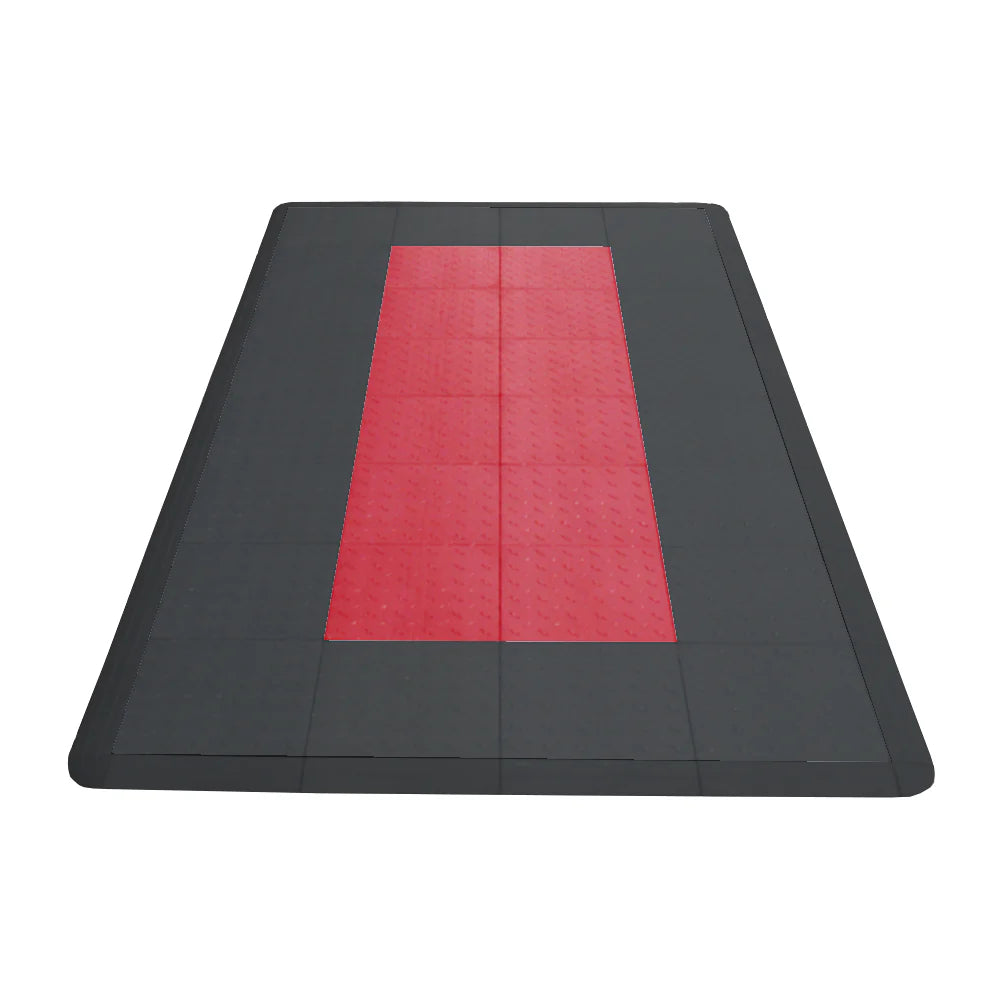

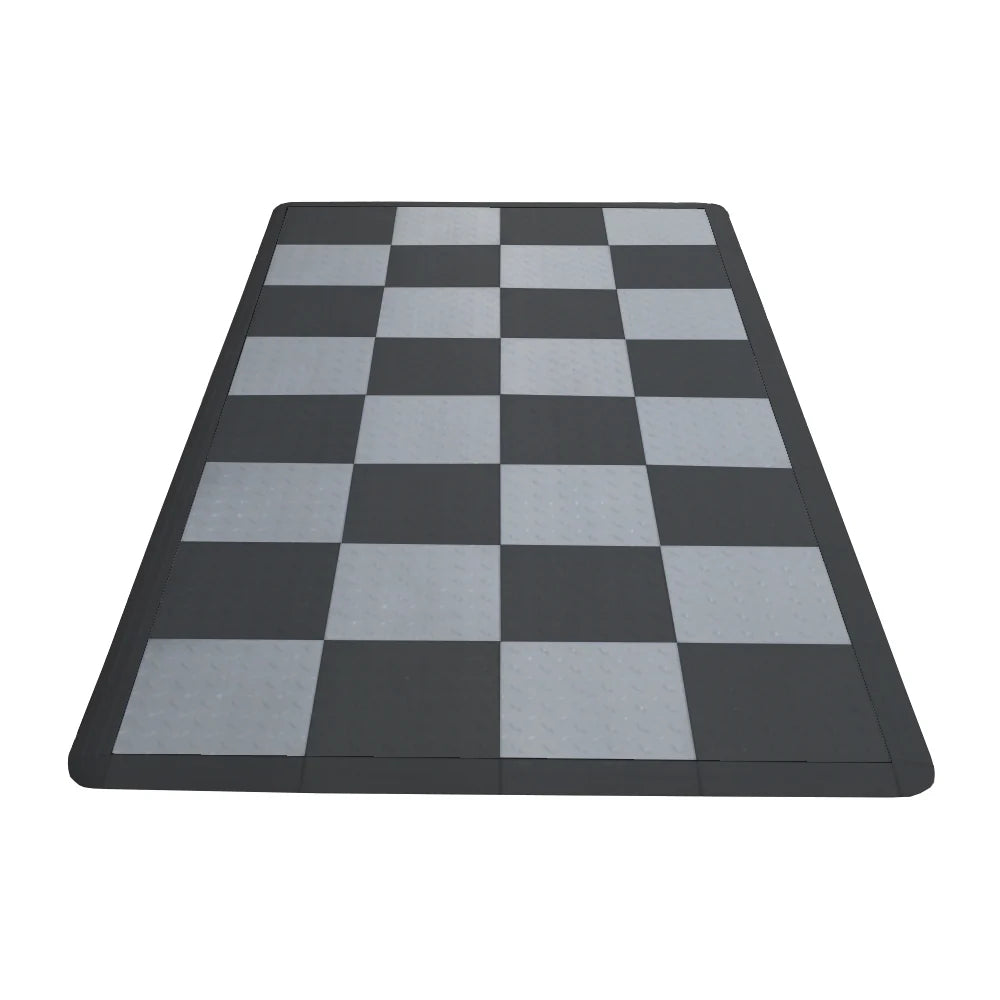

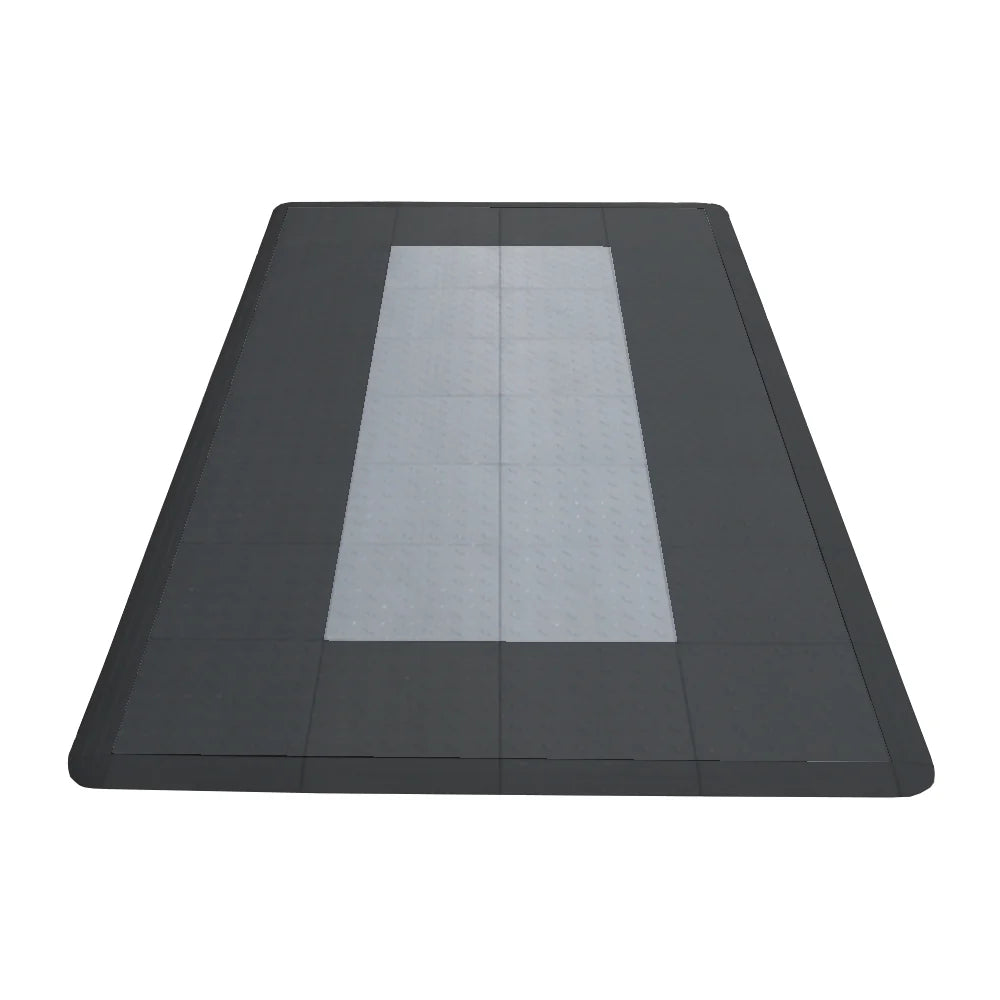

- Checkered vs. Runner Pattern: Checkered uses alternating color tiles across the full field; Runner uses a contrasting color center strip with a Jet Black border — both use the same tile and edge system

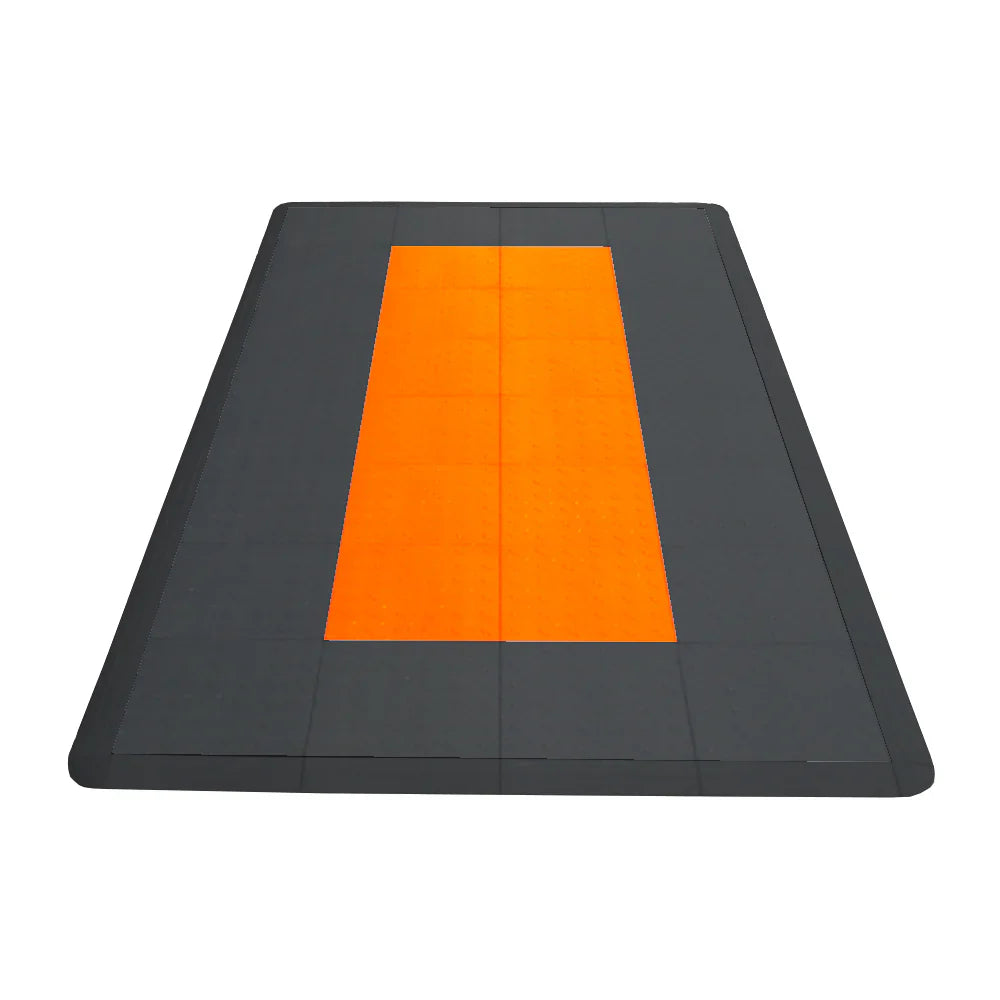

- Tropical Orange availability: Exclusive to the motorcycle kit — not available in the one-car or two-car configurations
- Scaling up: For single-car bay coverage (148.75 sq ft), see the Diamondtrax One-Car Mat Kit (8.5' × 17.5'); for two-car coverage (306.25 sq ft), see the Diamondtrax Two-Car Mat Kit (17.5' × 17.5')
