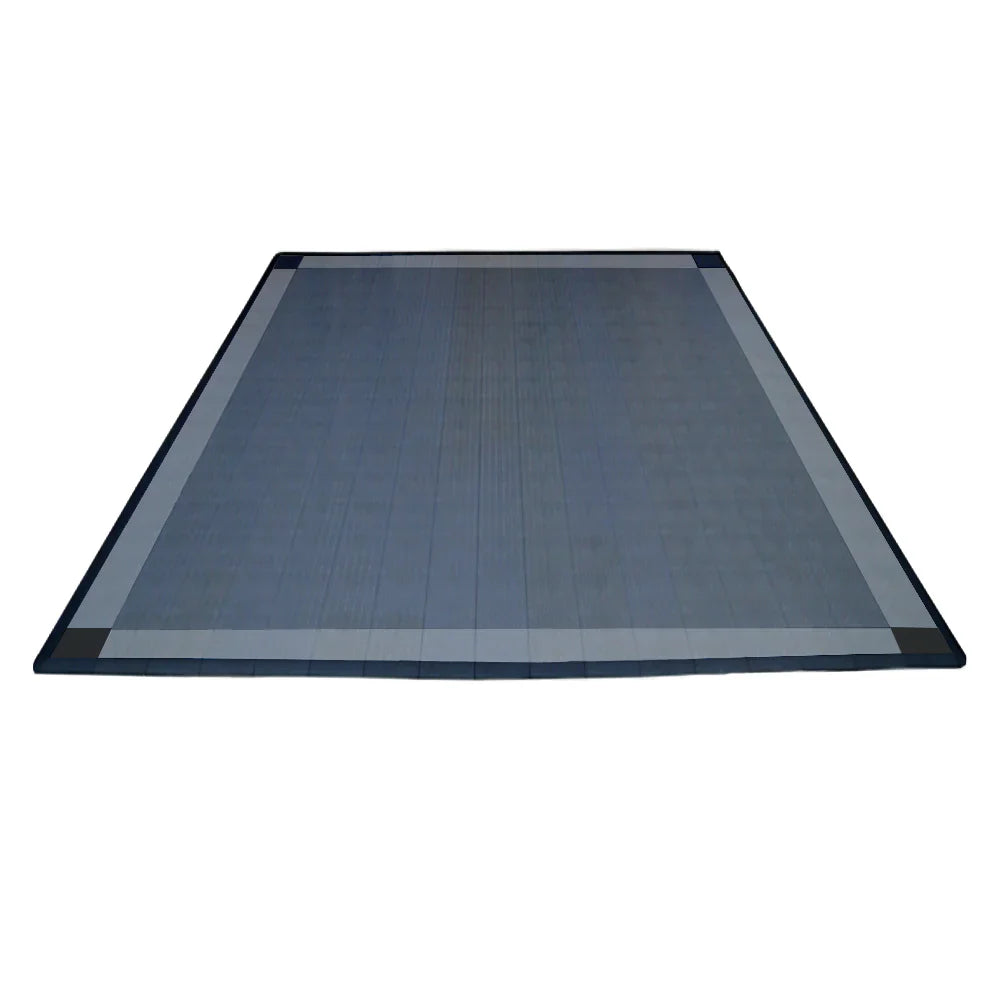

Swisstrax Diamondtrax Two-Car Garage Floor Mat Kit (17.5' x 17.5')
The Swisstrax Diamondtrax Two-Car Mat Kit covers 306 sq ft of garage floor with UV-stabilized copolymer polypropylene tiles rated for hot tires, chemical exposure, and rolling loads up to jack-stand capacity.
Image is for illustrative purposes only. Garage dimensions, vehicle sizes, and tile layout proportions are not to scale. See kit specifications for exact coverage: 17' 6" × 17' 6" (306 sq ft).
Why Concrete Alone Fails the Working Garage
Bare concrete absorbs oil, degrades under hot tire contact, and provides no traction differentiation between wet and dry conditions. The Diamondtrax system addresses each failure mode with a structurally interlocking tile format that requires no adhesive, no professional installation, and no permanent modification to your slab.
Material & Load Specifications: What the Polypropylene Construction Delivers
- Material: UV-stabilized copolymer polypropylene — resists UV degradation, thermal cycling, and hydrocarbon exposure (oil, brake fluid, gasoline)
- Tile Dimensions: 12" × 12" × 0.5" thick per tile
- Kit Coverage: 17' 6" W × 17' 6" L = 306.25 sq ft — sized for a standard two-car bay
- Surface Texture: Diamond-plate pattern — provides traction wet or dry, conceals surface staining and concrete imperfections
- Hot Tire Rating: Withstands repeated hot tire contact without deformation or adhesion failure
- Chemical Resistance: Rated against common garage chemicals including motor oil, brake fluid, and cleaning solvents
- Rolling Load Capacity: Supports floor jacks, tool chests, and vehicle lifts within residential load parameters
- Warranty: 20-year manufacturer warranty
- Includes: Field tiles, tapered edge pieces, and corner pieces for a complete perimeter finish
Installation Parameters: Substrate, Clearance & Edge Transition
- Substrate Requirement: Clean, level concrete slab — no adhesive or fasteners required
- Installation Method: Patented snap-together interlocking tab system — no tools required
- Estimated Install Time: 2–4 hours for two-person installation of full kit
- Edge Transition Height: 0.5" tapered edge pieces provide a trip-free perimeter transition from concrete to tile surface
- Reversibility: Fully removable and reconfigurable — tiles disassemble without damage to the substrate

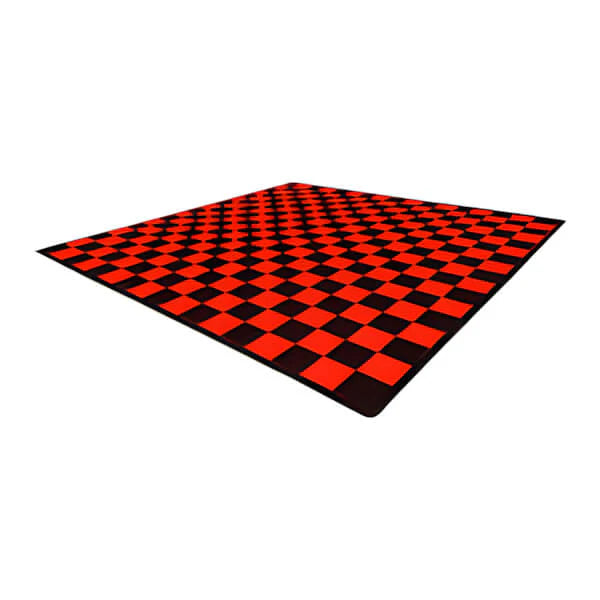

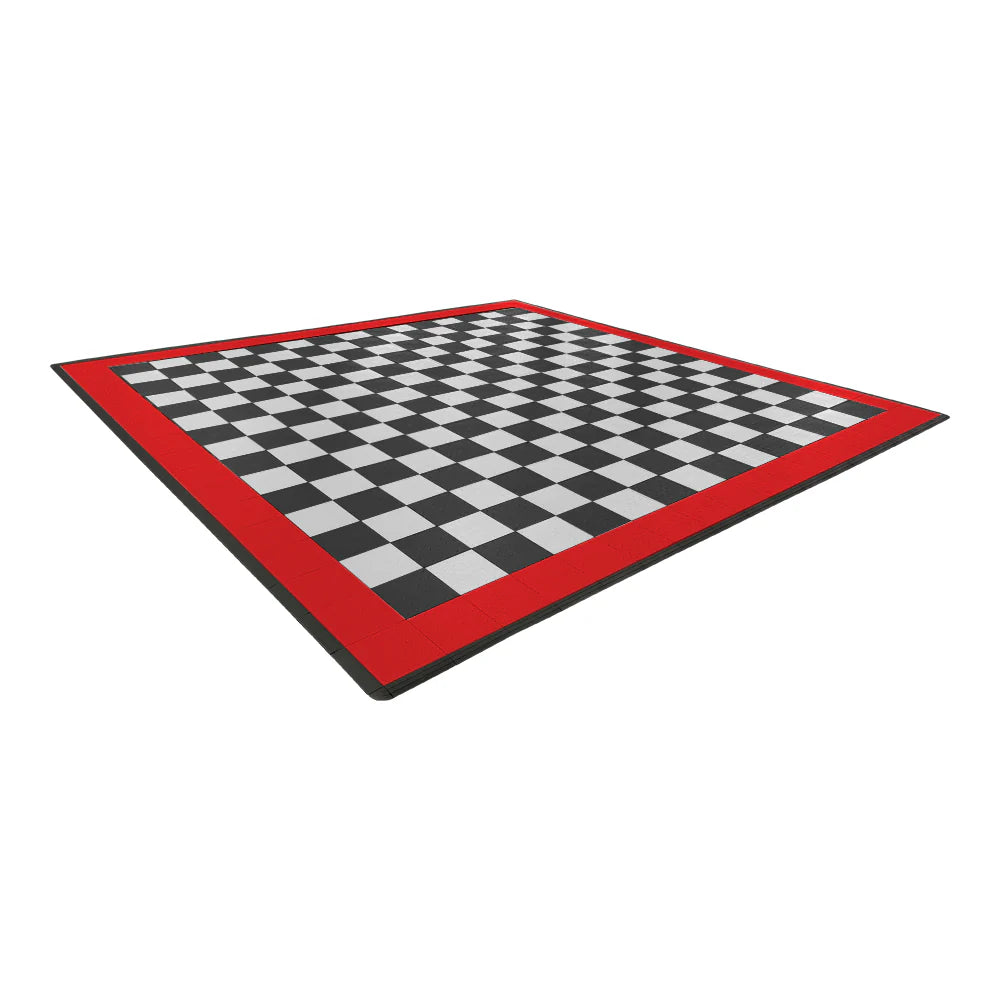

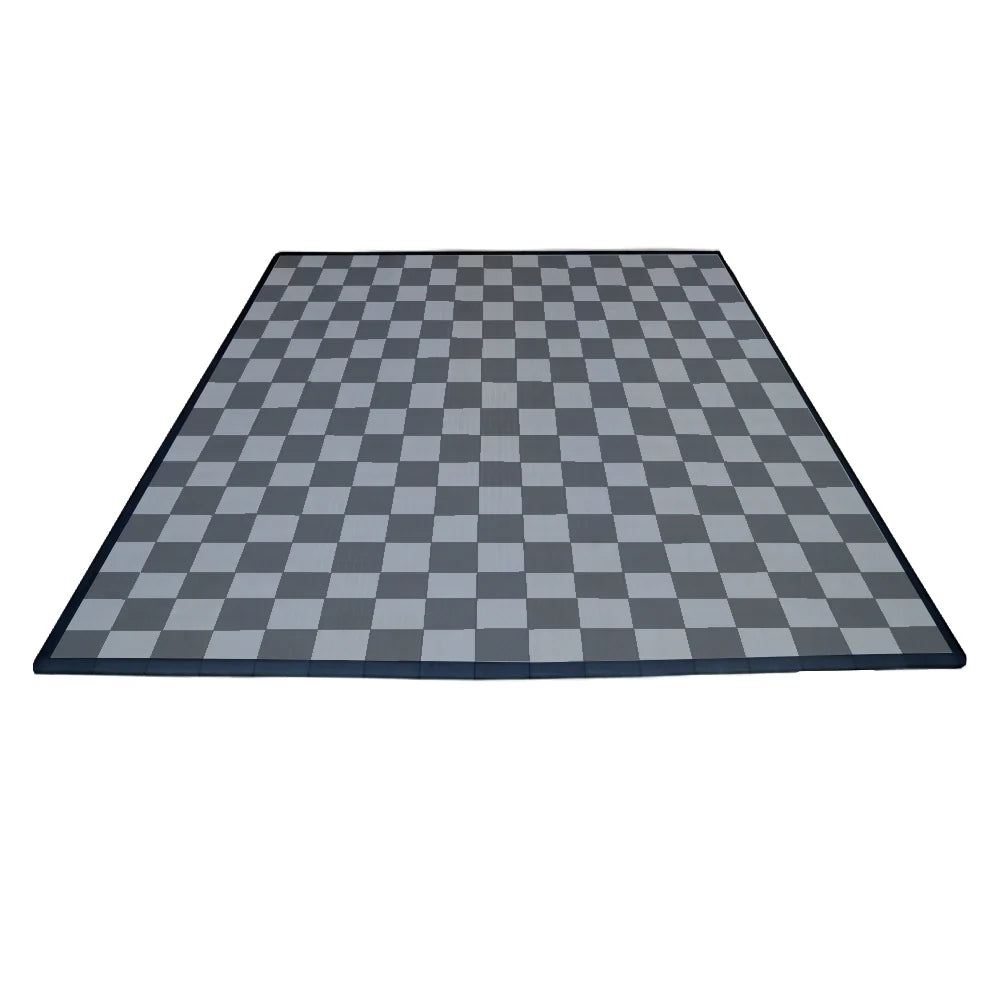

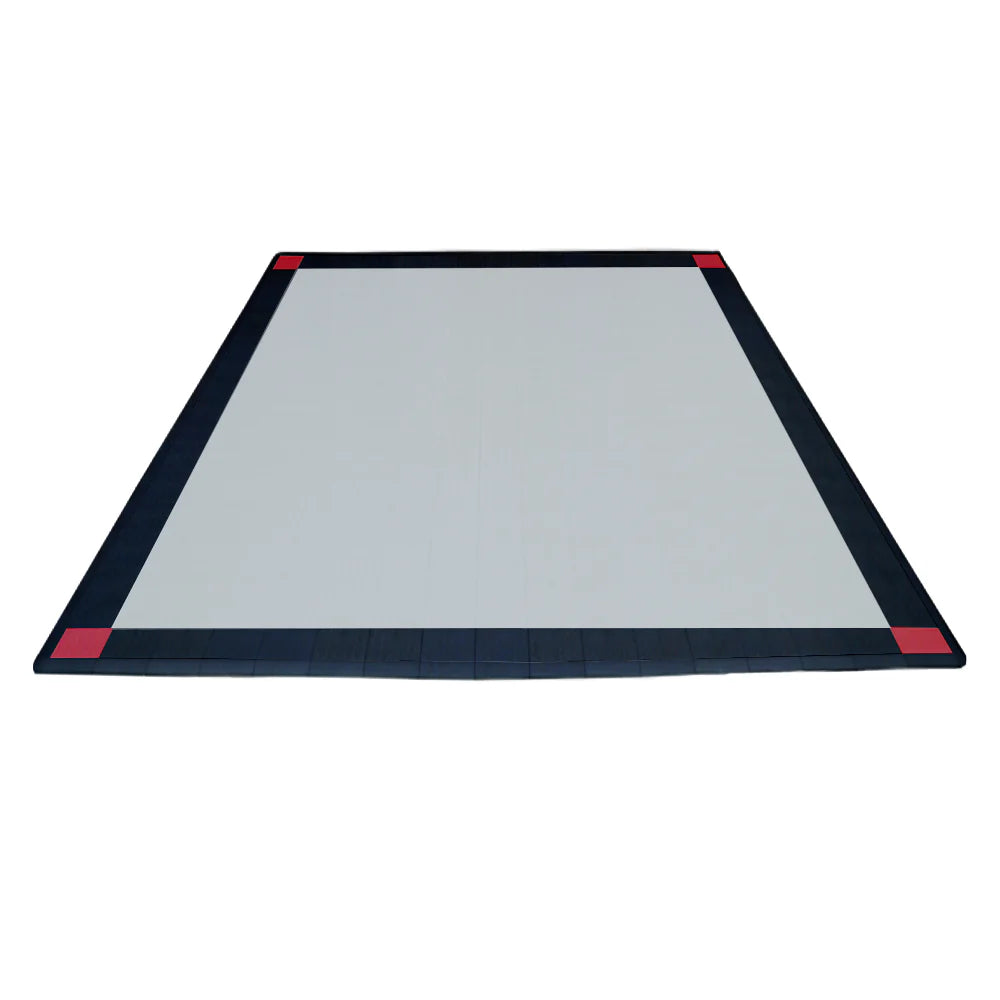

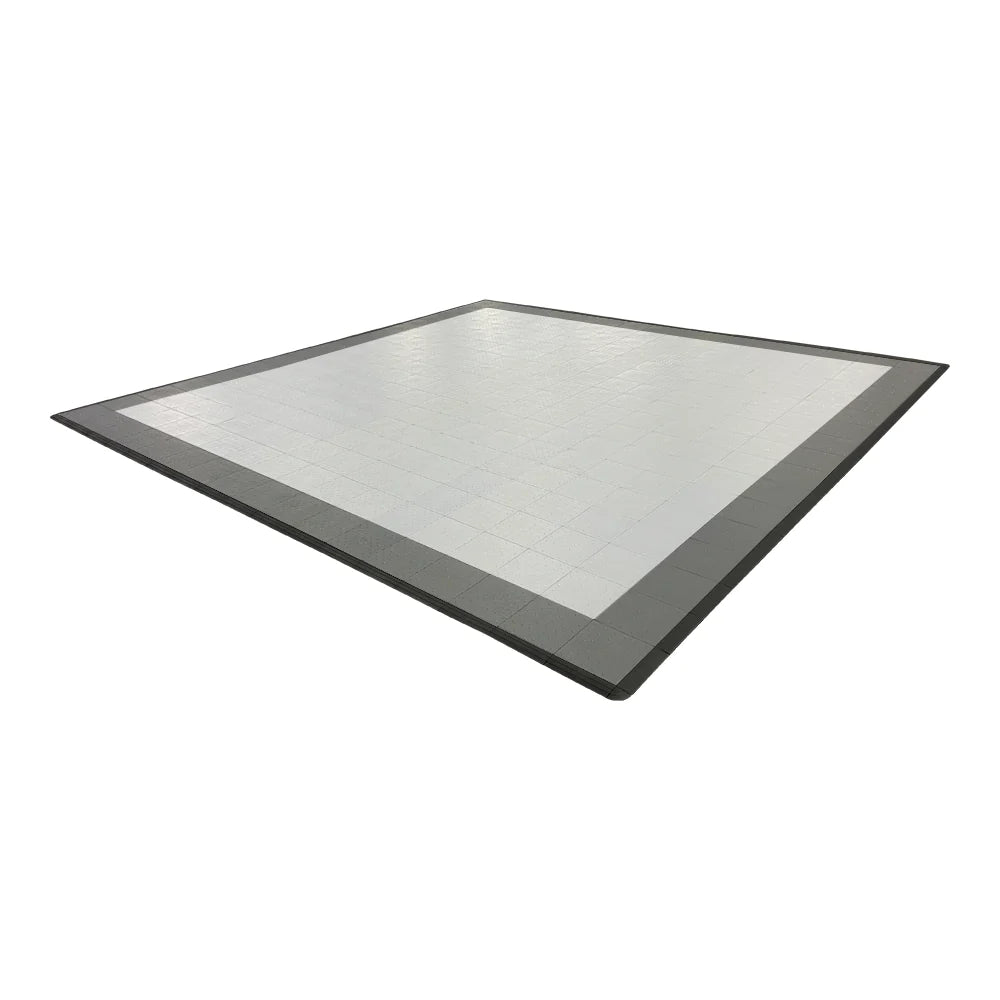

- Color Options: Available in Border, Checkered, and Four Corners patterns across Jet Black, Arctic White, Racing Red, Slate Grey, and Pearl Silver colorways
Technical Resources
- Installation Instructions (PDF)
- Swisstrax Diamondtrax 12-Series Spec Sheet (PDF)
- Frequently Asked Questions (PDF)
Need a Precision Layout? Let Our Experts Do the Math.
The 17.5' × 17.5' kit fits most standard two-car bays, but garage dimensions vary. If your bay is non-standard — wider, deeper, L-shaped, or wall-to-wall — our team will calculate exact tile counts, edge requirements, and pattern alignment for your specific footprint at no charge. We provide custom layout drawings and compatibility checks before you order.
- Email: support@garage-form.com with your bay dimensions
- Chat: Use the site chat for real-time layout consultation
The GarageForm Difference: Technical Authority, Not Just a Catalog
Technical Screening: We don't list flooring products without vetting them. This Swisstrax Diamondtrax kit has been verified for UV stability, hot-tire resistance, and chemical compatibility ratings to ensure the performance data on this page reflects real-world garage conditions — not marketing copy.
Direct Expert Support: We serve as your technical interface. If you need assistance calculating wall-to-wall tile counts, verifying load compatibility for a lift installation, or designing a multi-zone pattern layout, our experts provide pre-sale consulting at no charge.
Straightforward Purchasing: Free shipping on this kit. If the tile system doesn't meet your substrate or dimensional requirements after delivery, our return process is handled by our specialized team — not a generalist call center.
