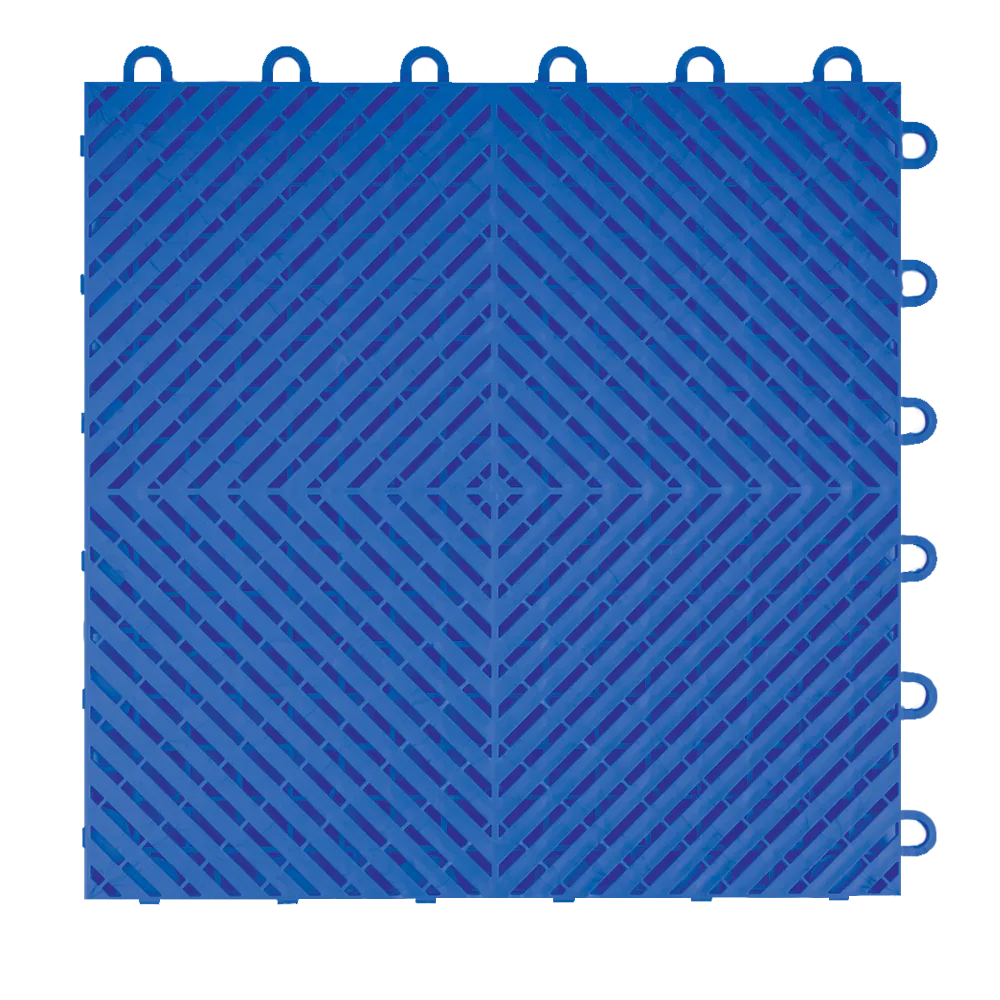

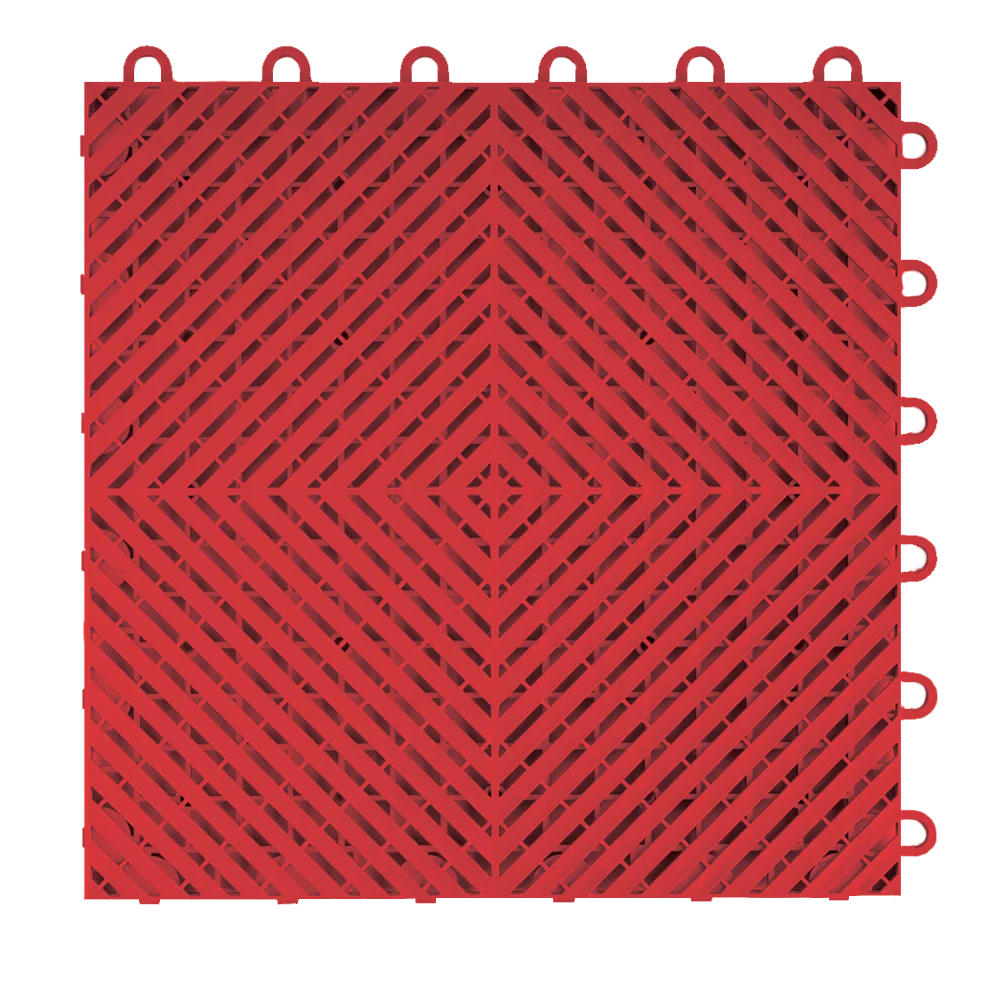

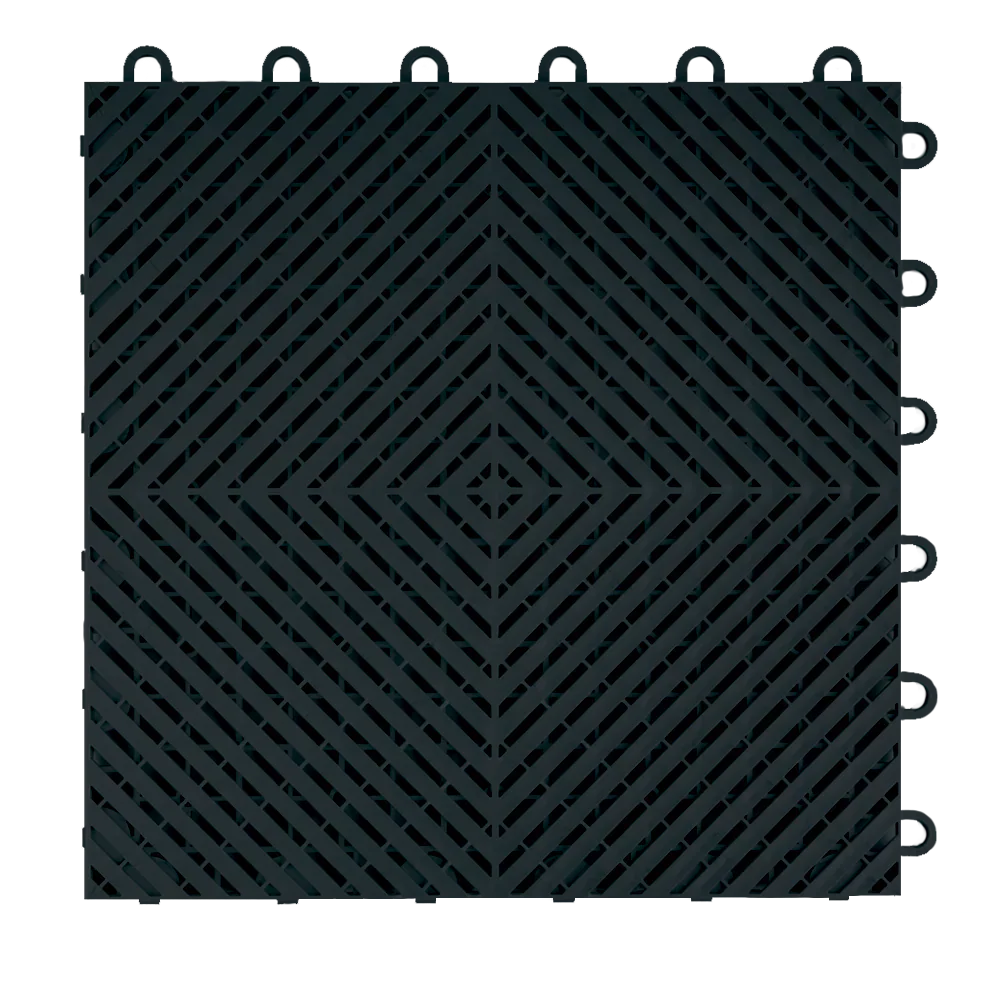

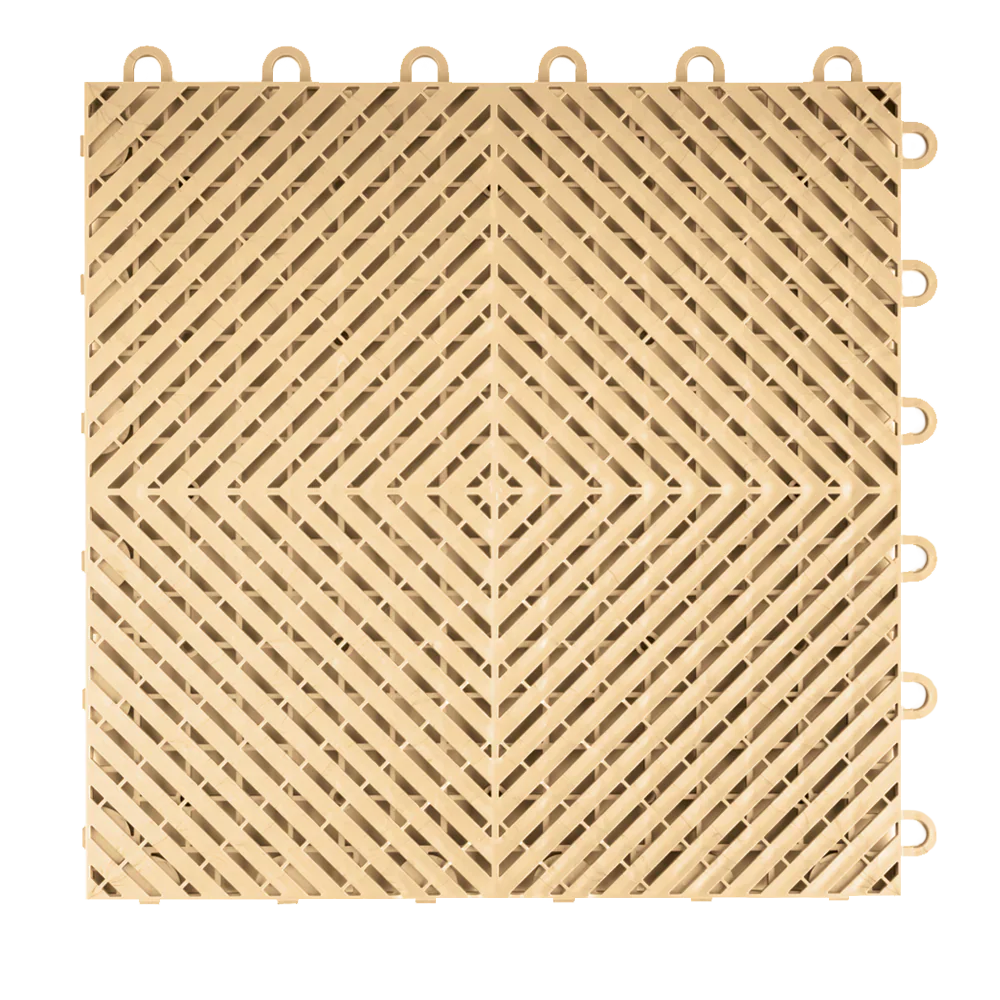

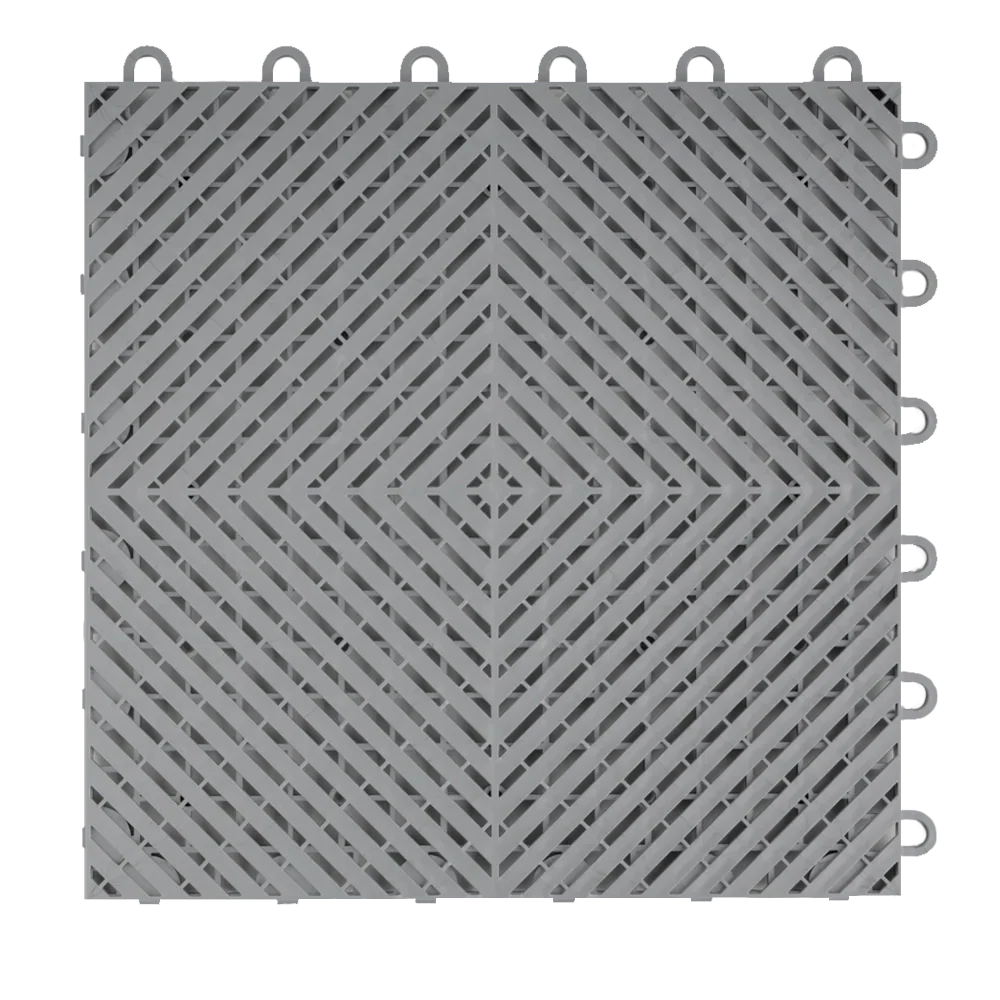

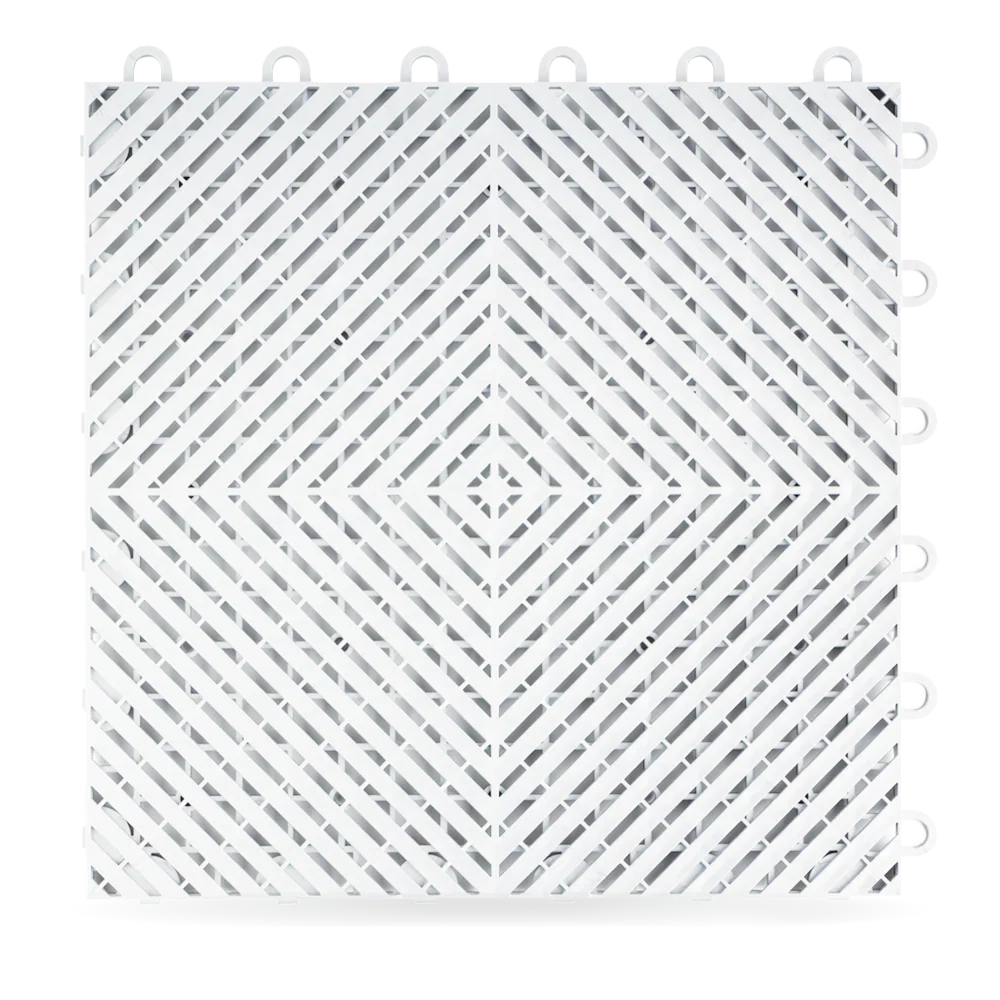

Swisstrax Ribtrax Smooth 12-Series Garage Floor Tile (10 Pack)
The Swisstrax Ribtrax Smooth is a 12" × 12" × 0.5" open-profile interlocking garage floor tile manufactured from UV-stabilized polypropylene in the USA, rated for 60,000 lb rolling loads, with a smooth flat top surface and a vented open-channel understructure that allows liquids, debris, and snow melt to drain through to the substrate. Sold in 10-tile packs covering approximately 10 sq ft.
Why Open-Profile Tile Outperforms Solid-Surface Flooring in Active Garages
Solid-surface garage tiles trap water, snow melt, and debris between the tile and the concrete slab — creating standing moisture that promotes mold, mildew, and slab degradation beneath the floor. The Ribtrax Smooth's open-channel understructure allows all liquids and particulate to drain through to the substrate and evaporate, keeping the walking surface dry and the slab surface ventilated. The smooth flat top eliminates the ribbed texture of standard Ribtrax tiles, providing a comfortable walking surface and a cleaner aesthetic for mixed-use garage and workshop environments.
Ribtrax 101 — what it is, how it works, and why the open-profile design matters:
Material, Load & Structural Specifications
- Material: UV-stabilized polypropylene — resists UV degradation, thermal cycling, and hydrocarbon exposure
- Origin: Made in the USA
- Tile Dimensions: 12" × 12" × 0.5" thick
- Pack Coverage: 10 tiles = approximately 10 sq ft
- Surface Profile: Smooth flat top — comfortable barefoot, easy to wipe clean, no ribbed texture
- Understructure: Open-channel vented profile — liquids, debris, and snow melt drain through to substrate
- Rolling Load Rating: 60,000 lbs — rated for vehicle traffic, floor jacks, tool chests, and heavy rolling equipment
- Interlocking System: 24-point interlocking connection — tiles lock on all four sides for a stable, gap-resistant field
- Chemical Resistance: Rated against oil, gasoline, acid, and solvents
- Warranty: 20-year manufacturer warranty
- Available Colors: Racing Red, Royal Blue, Tropical Orange, Citrus Yellow, Slate Grey, Pearl Silver, Arctic White, Jet Black, Mocha Java, Chocolate Brown
See how Swisstrax tiles install:
12-Series Compatibility, Coverage Planning & Pack Sizing
- 12-Series Compatibility: Connects directly with all Swisstrax 12-Series tiles — including Diamondtrax and Vinyltrax — allowing mixed-surface designs within a single floor installation
- Edge & Corner Pieces: Requires separate Swisstrax 12-Series tapered edge and corner pieces for a finished perimeter — not included in this tile pack
- Coverage Calculation: 1 tile = 1 sq ft; multiply your floor length (ft) × width (ft) to determine tile count, then add 10–15% for cuts and perimeter adjustments
- 10-Pack Use Cases: Color sampling before a full floor order; accent zones or color-blocking within a larger Ribtrax or Diamondtrax installation; small landing pads or workstation zones
- Ribtrax Smooth vs. Ribtrax (standard): Both use the same open-profile vented understructure and 60,000 lb load rating; the Smooth variant has a flat top surface vs. the ribbed texture of standard Ribtrax — choose Smooth for comfort and aesthetics, standard Ribtrax for maximum traction in wet conditions
- Ribtrax Smooth vs. Diamondtrax: Ribtrax Smooth is open-profile (drains through); Diamondtrax is solid-profile (does not drain through) — choose Ribtrax Smooth for active wet environments; choose Diamondtrax for a solid surface with diamond-plate aesthetics
