storeWALL 8ft Heavy Duty Slatwall Panels with InstallStrips - 40 Sq Ft, 7 Colors
The storeWALL 8ft Heavy Duty Slatwall with InstallStrips case includes 4 panels covering 40 sq ft — plus 8 HD InstallStrips and screws included in the box. Solid core molded construction, patented profile, 300 lbs per sq ft holding capacity at the panel surface, 0.70" panel thickness, 15" panel height with 5 slots, and a 10-year warranty. Available in 7 designer colors and wood grain finishes. Weight: 70 lbs per case. Dimensions: 97" × 16" × 4".
300 lbs Per Square Foot. Solid Core. 8 HD InstallStrips Included — Everything You Need to Install in One Box.
Conventional slatwall is hollow-core extruded PVC — it flexes under load, cracks at the slots, and fades or warps in garage temperature swings. storeWALL Heavy Duty panels are solid core molded, meaning the color and finish run throughout the panel — no surface veneer to chip or peel. This bundle includes the 8 HD InstallStrips required for a full 4-panel case installation, plus screws — so you can go from box to wall without a separate accessories order. The HD InstallStrip system anchors each panel to the wall studs without visible fasteners and delivers 300 lbs of holding capacity per square foot at the panel surface. The solid core construction is waterproof, cleanable, and recyclable. Each panel carries a 10-year warranty.
Installation walkthrough
Panel & Case Specifications
- Case Contents: 4 panels per case — covers 40 sq ft
- Panel Length: 8ft (96")
- Panel Height: 15" — 5 slots per panel
- Panel Thickness: 0.70"
- Construction: Solid core molded — color and finish throughout panel, no surface veneer
- Holding Capacity (with HD InstallStrips): 300 lbs per sq ft at panel surface / 165 lbs per sq ft at 4" from surface
- Profile: Patented — accepts exclusive HD InstallStrip system
- Properties: Waterproof, cleanable, recyclable
- Warranty: 10 years
- Case Weight: 70 lbs
- Case Dimensions: 97" × 16" × 4"
- Available Colors: Weathered Grey, Barnwood, Brite White, Whitewood, Rustic Cedar, Global Pine, Graphite Steel
- Brand: storeWALL
What’s Included — Ready to Install

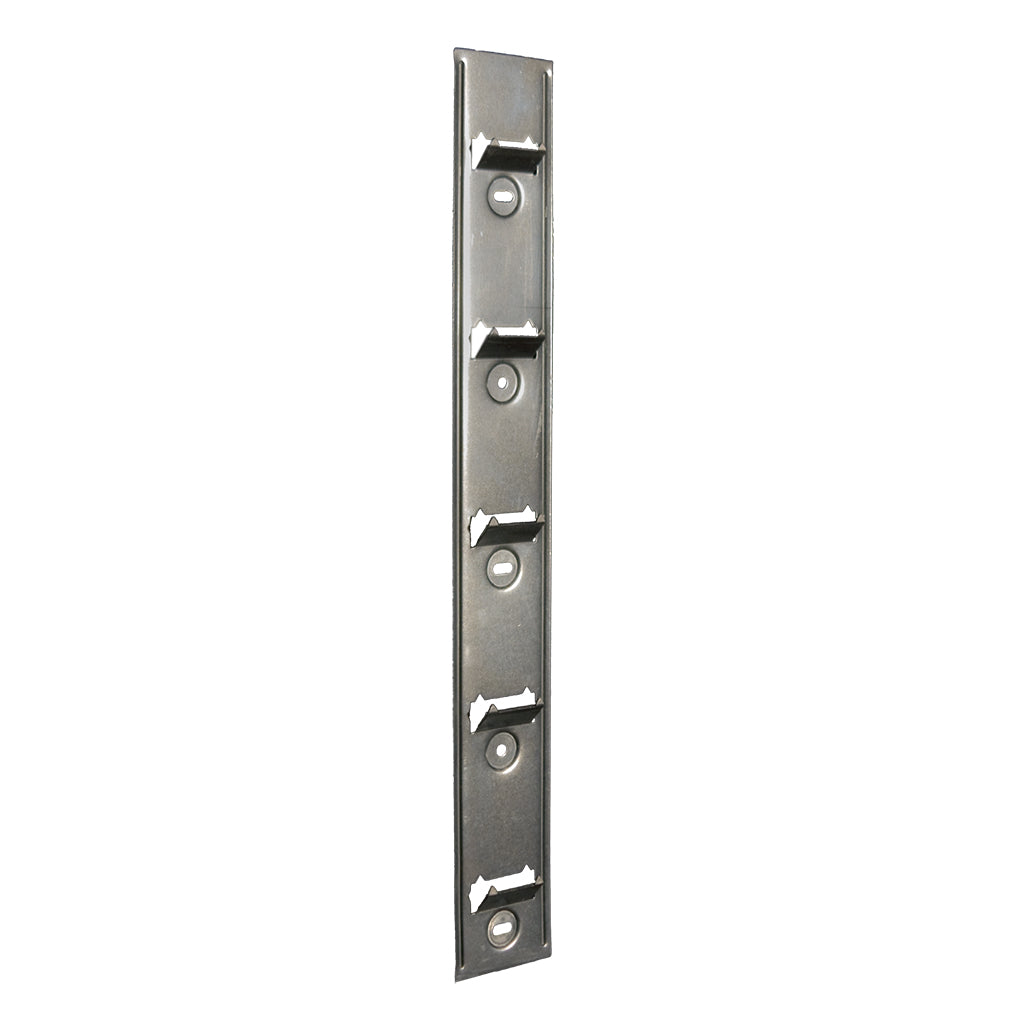

- 8 × HD InstallStrips — 2 per 8ft panel, correct quantity for a full 4-panel case installation
- Screws included — #6 screws for HD InstallStrip attachment to wall studs
- 4 × storeWALL 8ft HD slatwall panels in selected color
Note: storeWALL color-matched decorative screws (for face-fastening method) are not included — only the InstallStrip mounting screws are included. Additional storeWALL accessories (hooks, bins, shelves) sold separately.

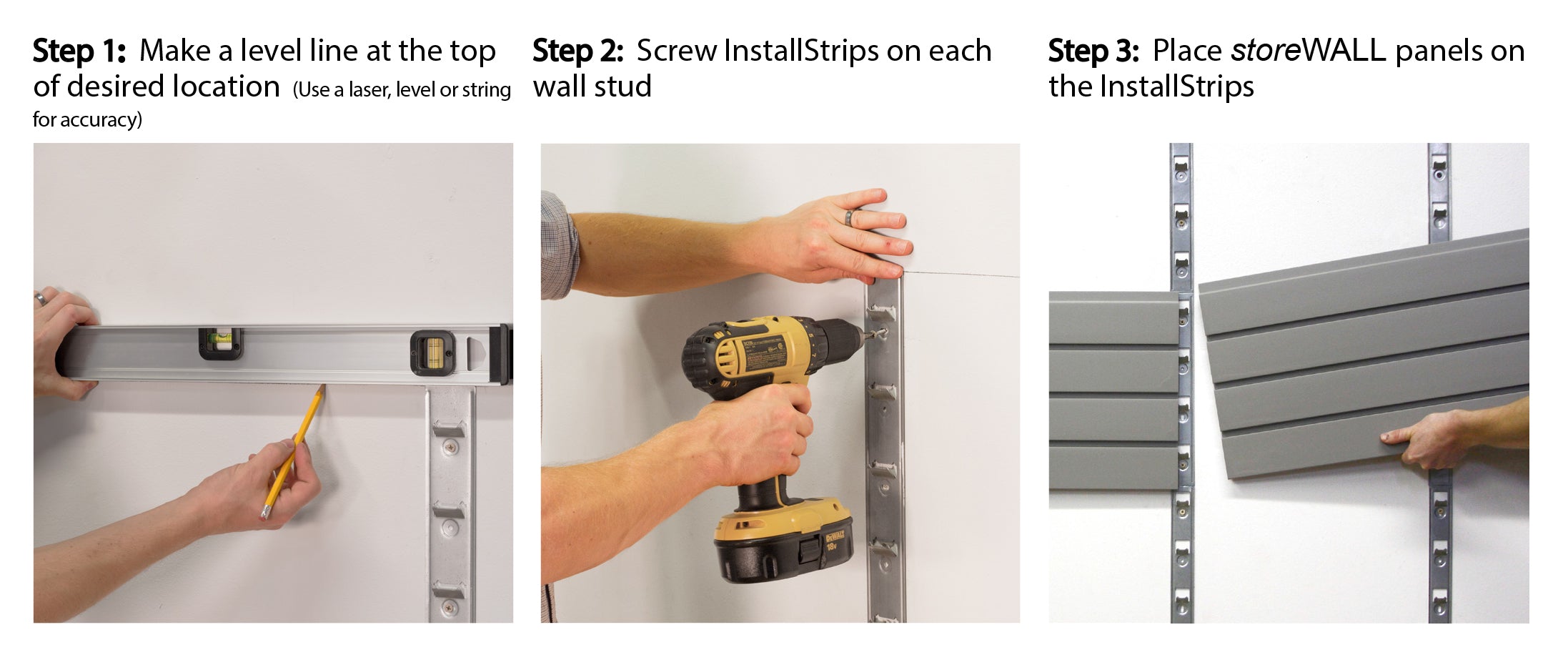

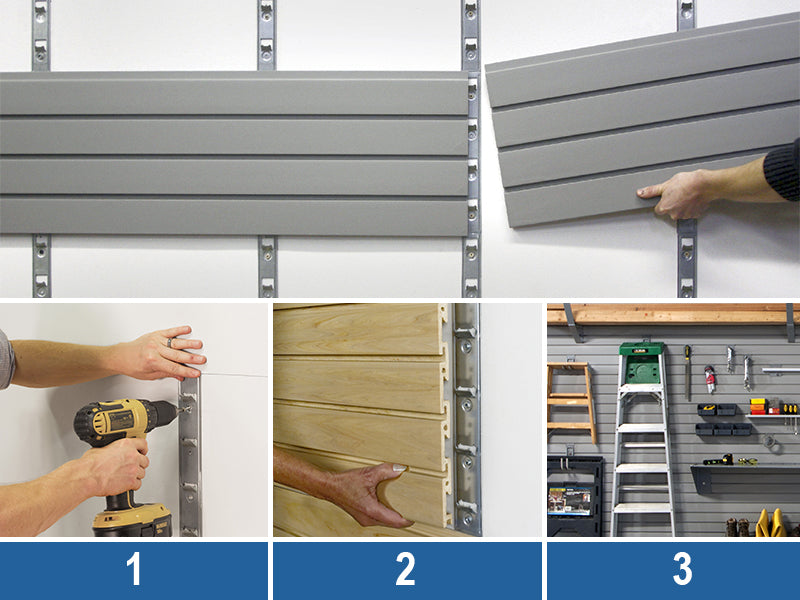

Installation Method
This bundle uses the HD InstallStrip method — the recommended installation for maximum holding capacity and a clean, fastener-free appearance:
- Mount 2 HD InstallStrips per 8ft panel horizontally to wall studs using included #6 screws

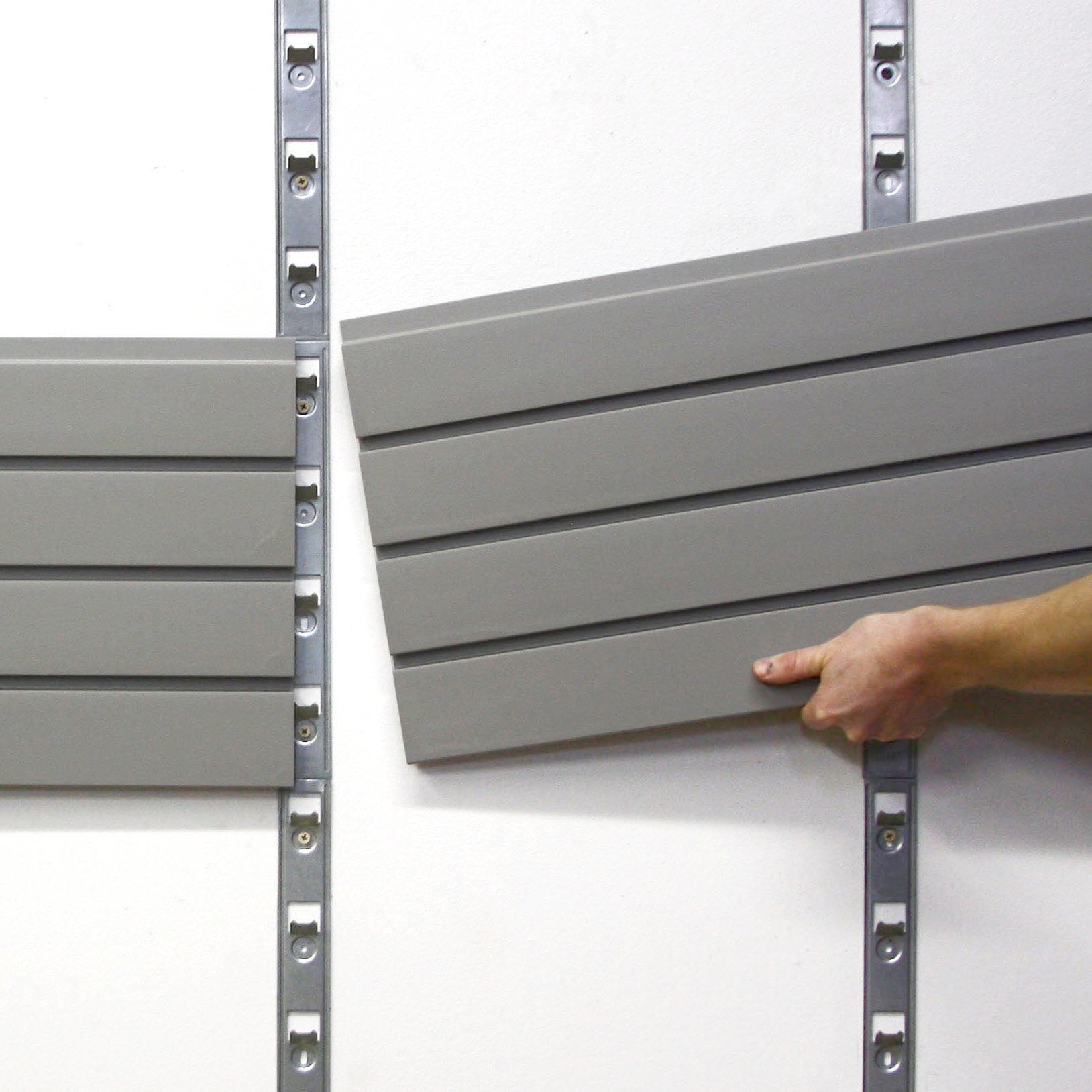

- Clip panels onto InstallStrips — no visible fasteners on the panel face
- Delivers full 300 lbs/sq ft holding capacity at the panel surface
- Standard 16" or 24" on-center stud spacing — confirm stud layout before installation
Planning, Layout & Accessory Compatibility
- Coverage planning: Each case covers 40 sq ft (4 panels × 8ft × 15"). Measure your wall area and round up to the nearest case
- InstallStrips: 8 HD InstallStrips included — correct quantity for this 4-panel case. If ordering additional panel cases, order additional HD InstallStrips separately (2 per 8ft panel)
- Accessory compatibility: storeWALL HD panels accept all storeWALL hooks, bins, shelves, and accessories designed for the standard slatwall slot profile — confirm accessory compatibility with storeWALL if using third-party slatwall accessories
- Color selection: Solid core construction means color runs throughout — cuts and edges will match the panel face; no raw substrate exposed at cut edges
- Mixing colors: All 7 colors share the same panel dimensions and slot profile — colors can be mixed on the same wall installation
- vs. panels-only listing: If you already have HD InstallStrips from a previous installation, the panels-only case is available separately
