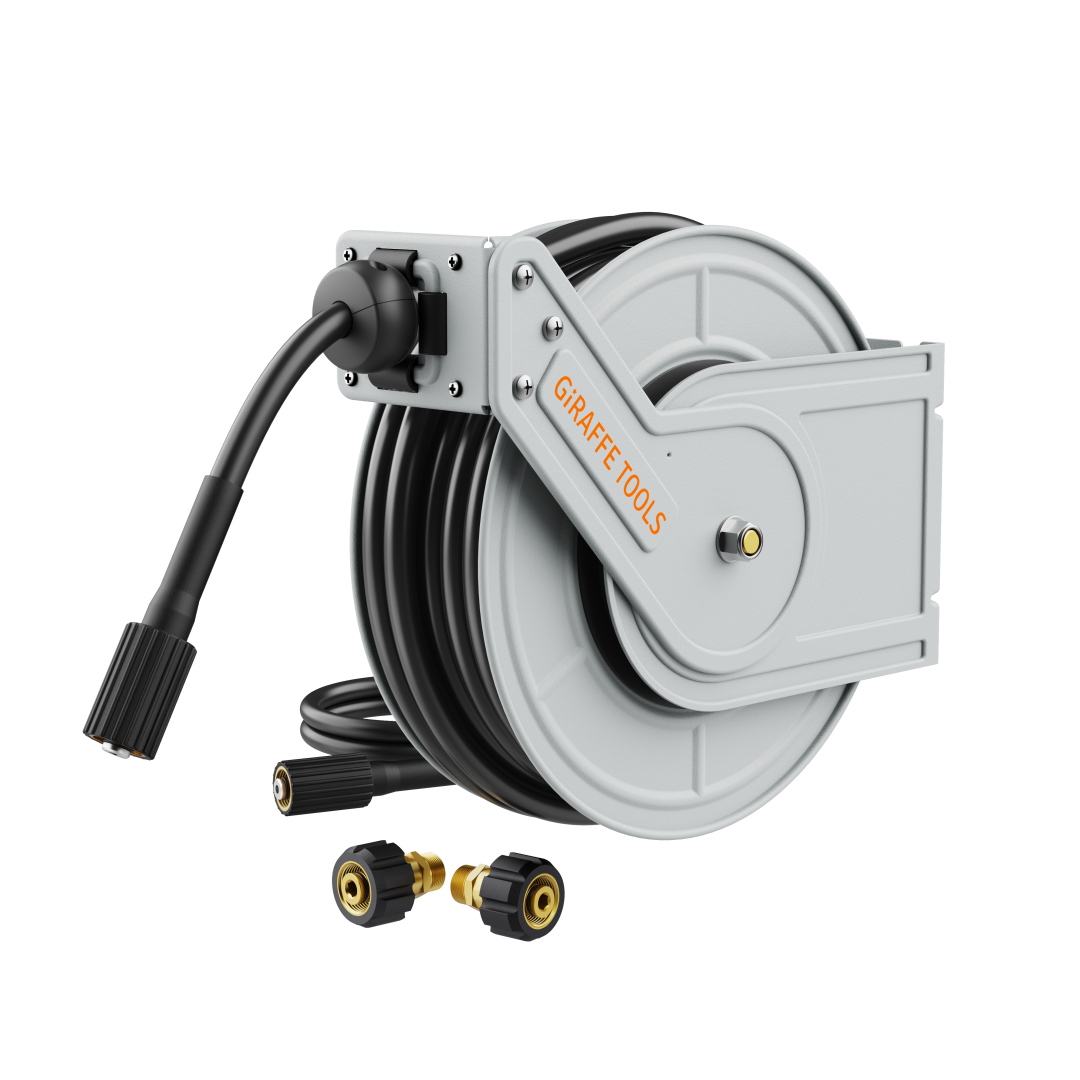

Giraffe Tools Retractable Pressure Washer Hose Reel - Steel Auto Rewind
The Giraffe Tools Retractable Pressure Washer Hose Reel is an alloy steel auto-rewind reel for pressure washer hoses — featuring stop-anywhere lock, 4 non-snag rollers, M22-15mm quick connector, and wall/ceiling/floor mounting. Available in 3200 PSI/65ft or 4000 PSI/60ft, with fixed or detachable hose. Hose temperature range: -40°F to 150°F. Dimensions: 13.78" W × 12.6" D × 4.97" H. Weight: 17 lbs (8.4 kg).
Steel Auto-Rewind Reel for Pressure Washer Hose — Wall, Ceiling, or Floor Mount. Stop-Anywhere Lock. M22-15mm Connector.
A pressure washer hose left on the floor between uses kinks, cracks at the fittings, and creates a trip hazard. This reel mounts to the wall, ceiling, or floor — whichever position gives the cleanest hose path from your pressure washer to the work area. The alloy steel drum and bracket handle the higher pressures and hose stiffness of pressure washer hose that would deform a polymer reel. The stop-anywhere lock holds the hose at any extension length without tension. Four non-snag rollers guide the hose in and out without binding at the drum entry point. The M22-15mm quick connector is the standard fitting for most residential and light commercial pressure washers. The hybrid hose maintains flexibility from -40°F to 150°F and resists oil and abrasion.
See it in action
Reel, Hose & Connector Specifications
Classic Model (3200 PSI / 65ft):
- SKUs: GWLR1V004 (Fixed Hose) / WWA6512US (Detachable Hose)
- Maximum Working Pressure: 3200 PSI
- Hose Length: 65ft
- Best for: Residential driveways, vehicles, patios, and standard home pressure washing

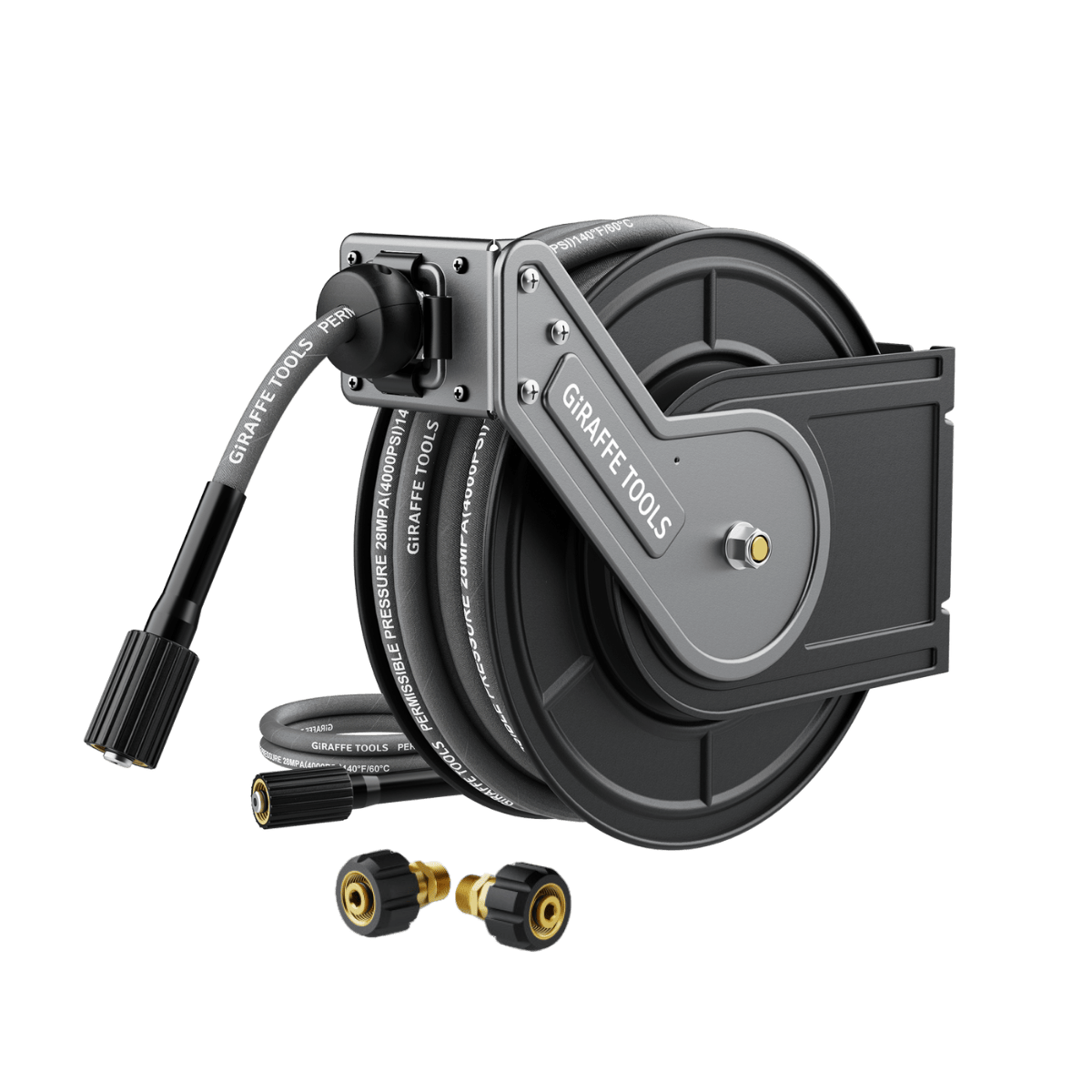

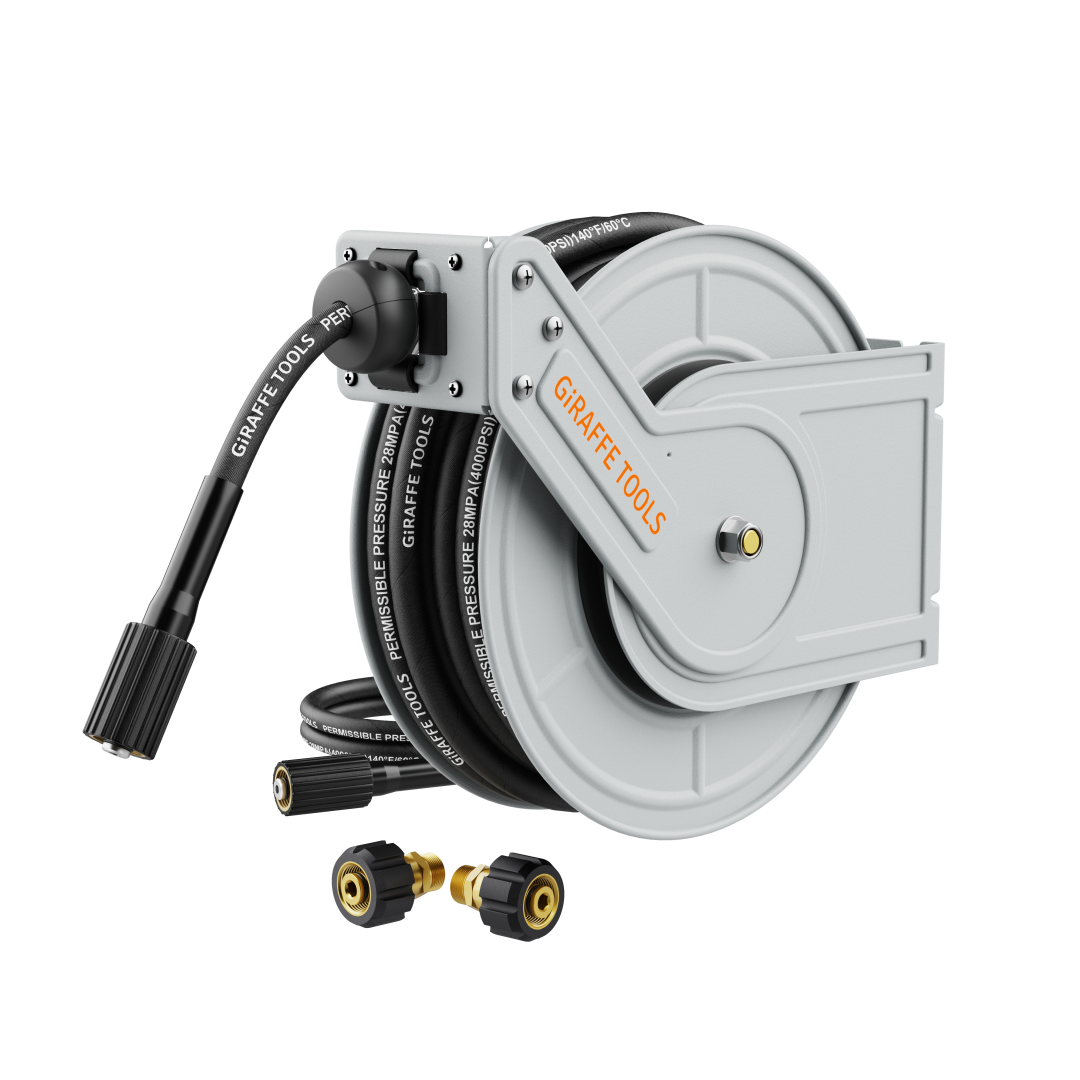

Pro Model (4000 PSI / 60ft):
- SKUs: TA15B-G20PRO (Fixed Hose) / WWA6012US (Detachable Hose)
- Maximum Working Pressure: 4000 PSI
- Hose Length: 60ft
- Best for: Heavy-duty cleaning, commercial applications, high-output pressure washers
Common Specifications (All Variants):
- Frame Material: Alloy steel with corrosion-resistant finish
- Hose Inner Diameter: 1/4in
- Connector: M22-15mm quick connector — compatible with most residential and commercial pressure washers

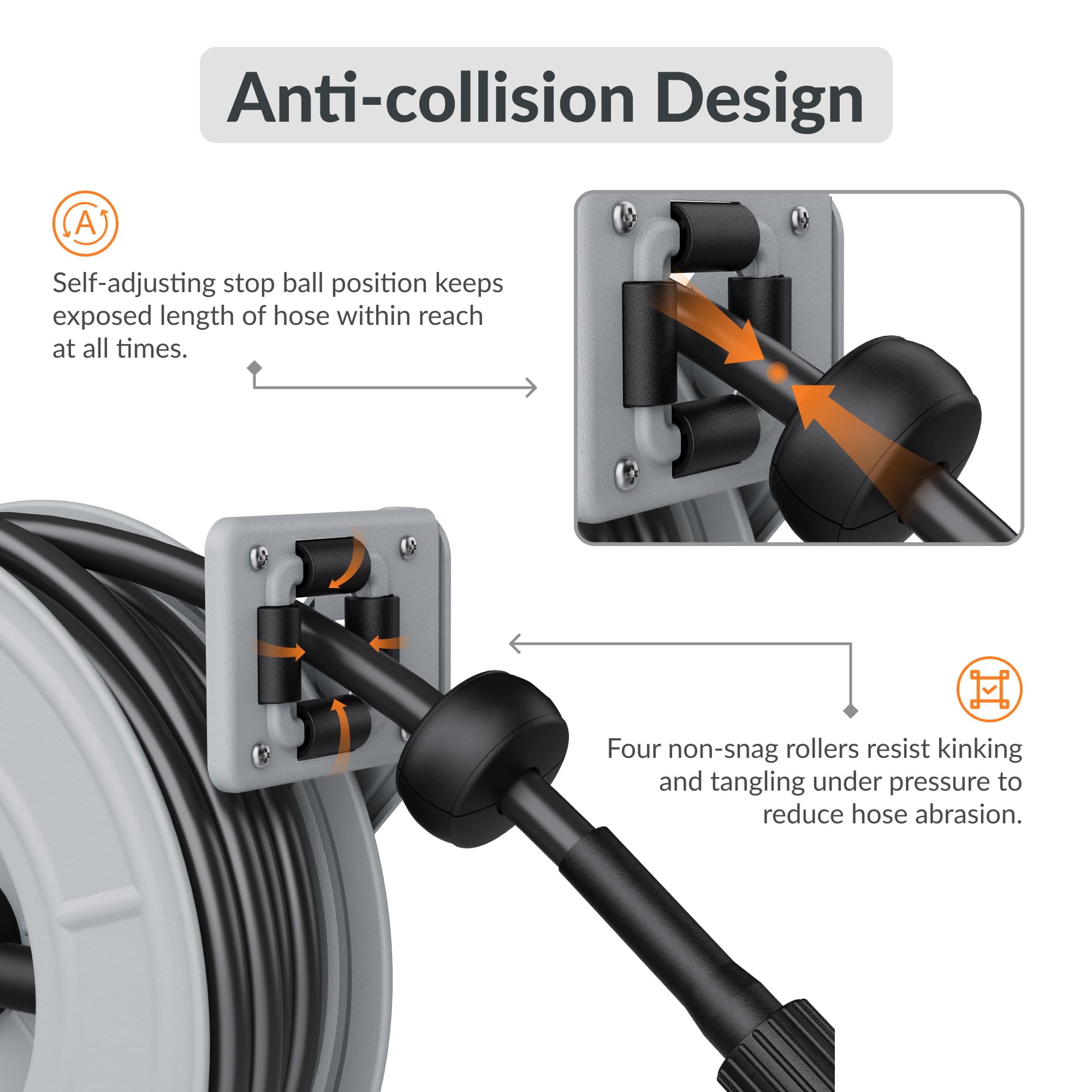

- Non-Snag Rollers: 4 — smooth hose deployment and retraction without binding
- Retraction: Auto-rewind with stop-anywhere lock
- Mount Type: Wall, ceiling, or floor — hardware included
- Hose Temperature Range: -40°F to 150°F
- Hose Features: Oil-resistant, abrasion-resistant, all-weather flexibility

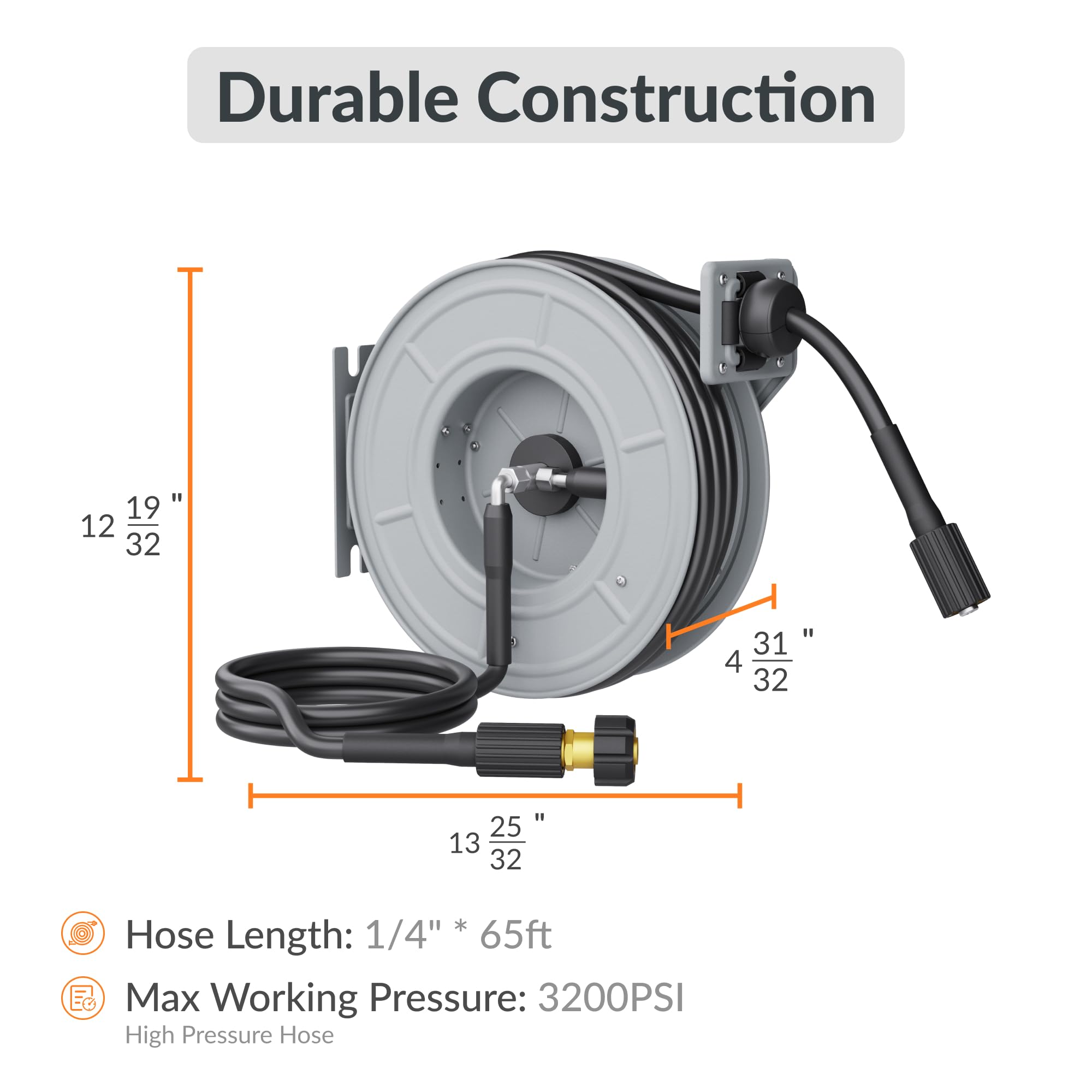

- Dimensions: 13.78" W × 12.6" D × 4.97" H
- Weight: 17 lbs (8.4 kg)
- Brand: Giraffe Tools
Choosing Your Variant
PSI rating — 3200 vs. 4000:
- 3200 PSI / 65ft: Covers the rated output of most residential electric and gas pressure washers. Extra 5ft of reach vs. the Pro model. In stock.
- 4000 PSI / 60ft: Required if your pressure washer is rated above 3200 PSI — using an under-rated hose at higher pressure risks hose failure. In stock (Fixed Hose); very limited stock on Detachable Hose — confirm availability before ordering.
Hose type — Fixed vs. Detachable:

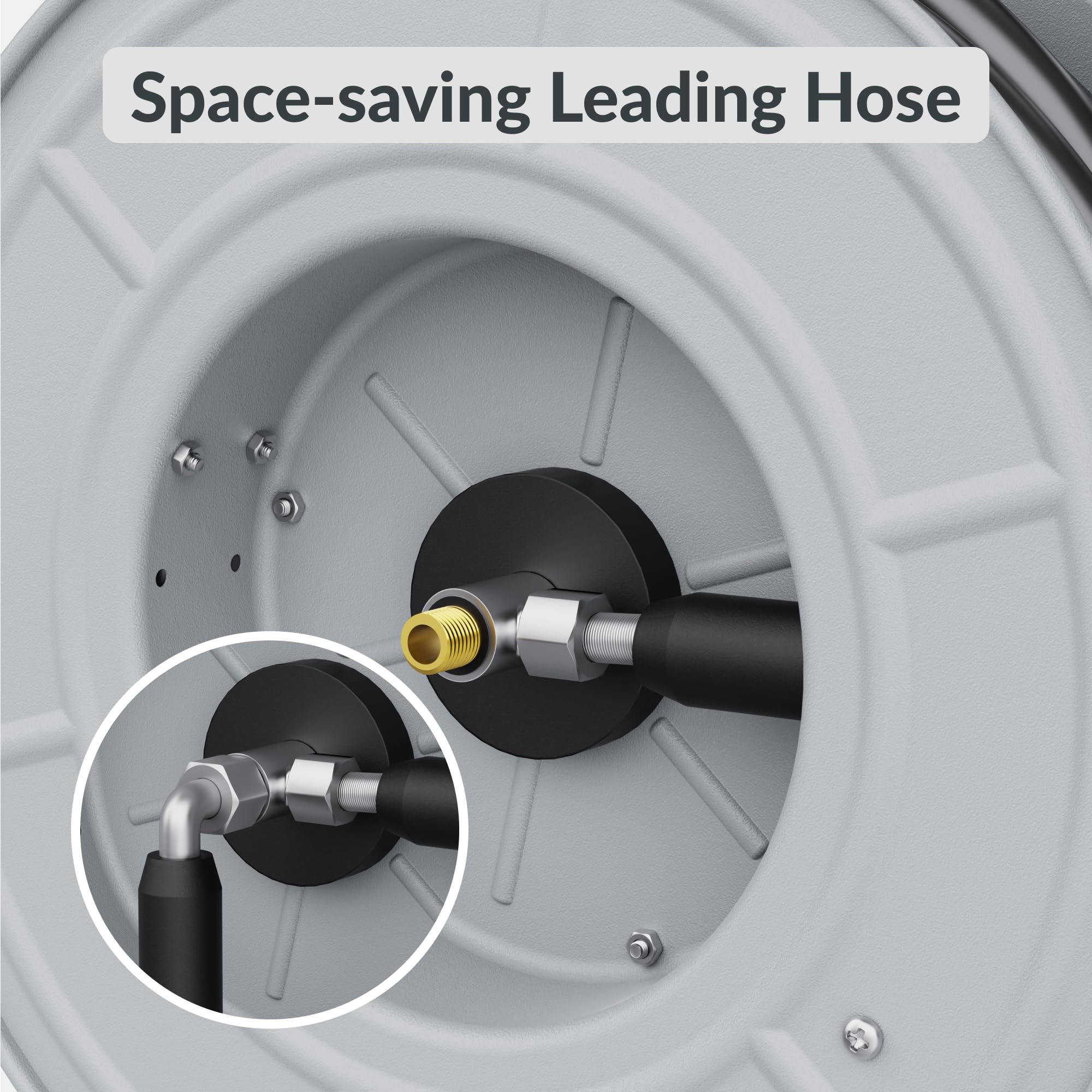

- Fixed Hose: Permanently attached to the reel drum — simpler setup, no connection point to leak or fail at the drum. Choose if you don’t need to swap hoses.
- Detachable Hose: Hose disconnects from the reel drum — allows hose replacement without replacing the reel, or use of the reel with a different hose. Choose if hose replacement or flexibility matters.
Installation, Mounting & Use Case Considerations

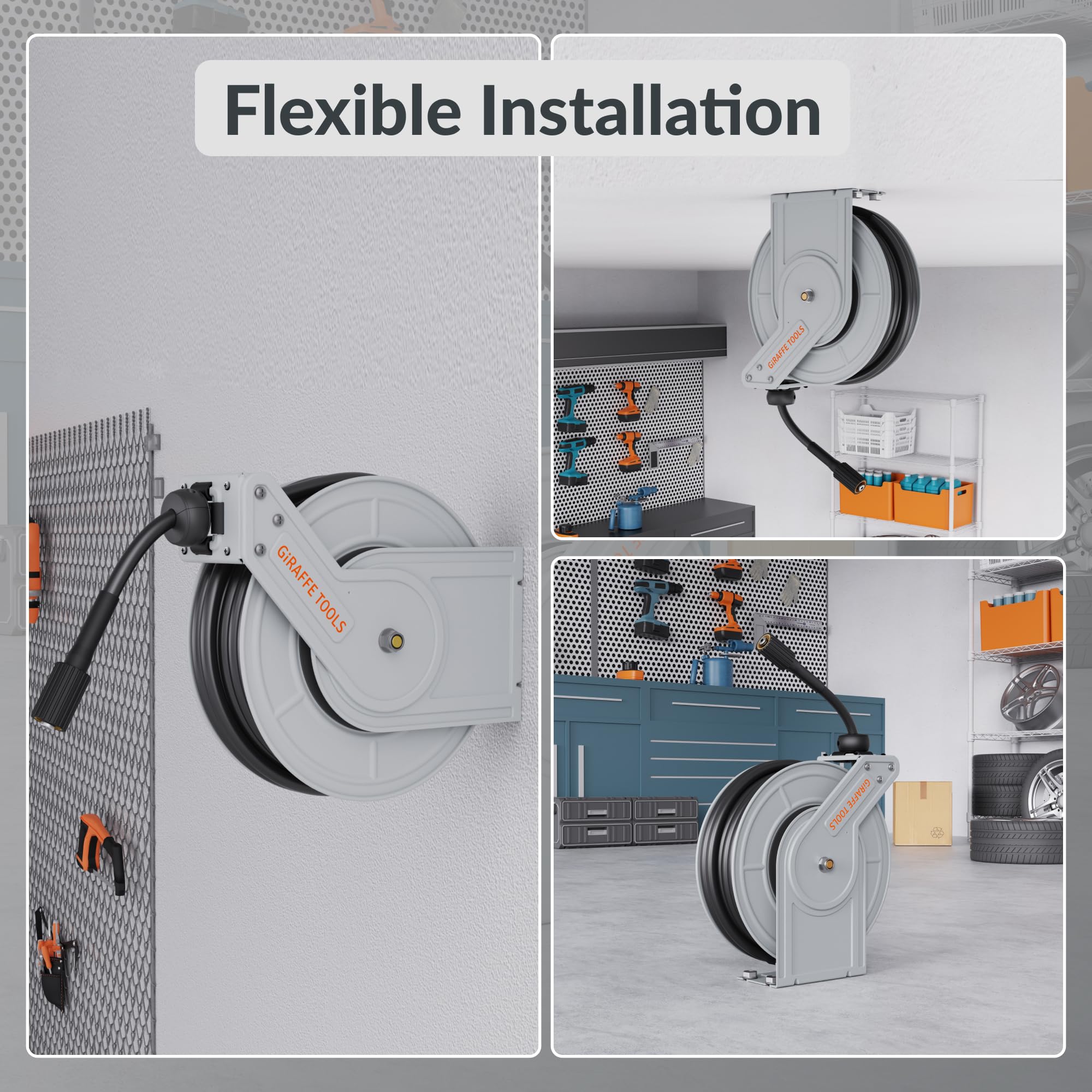

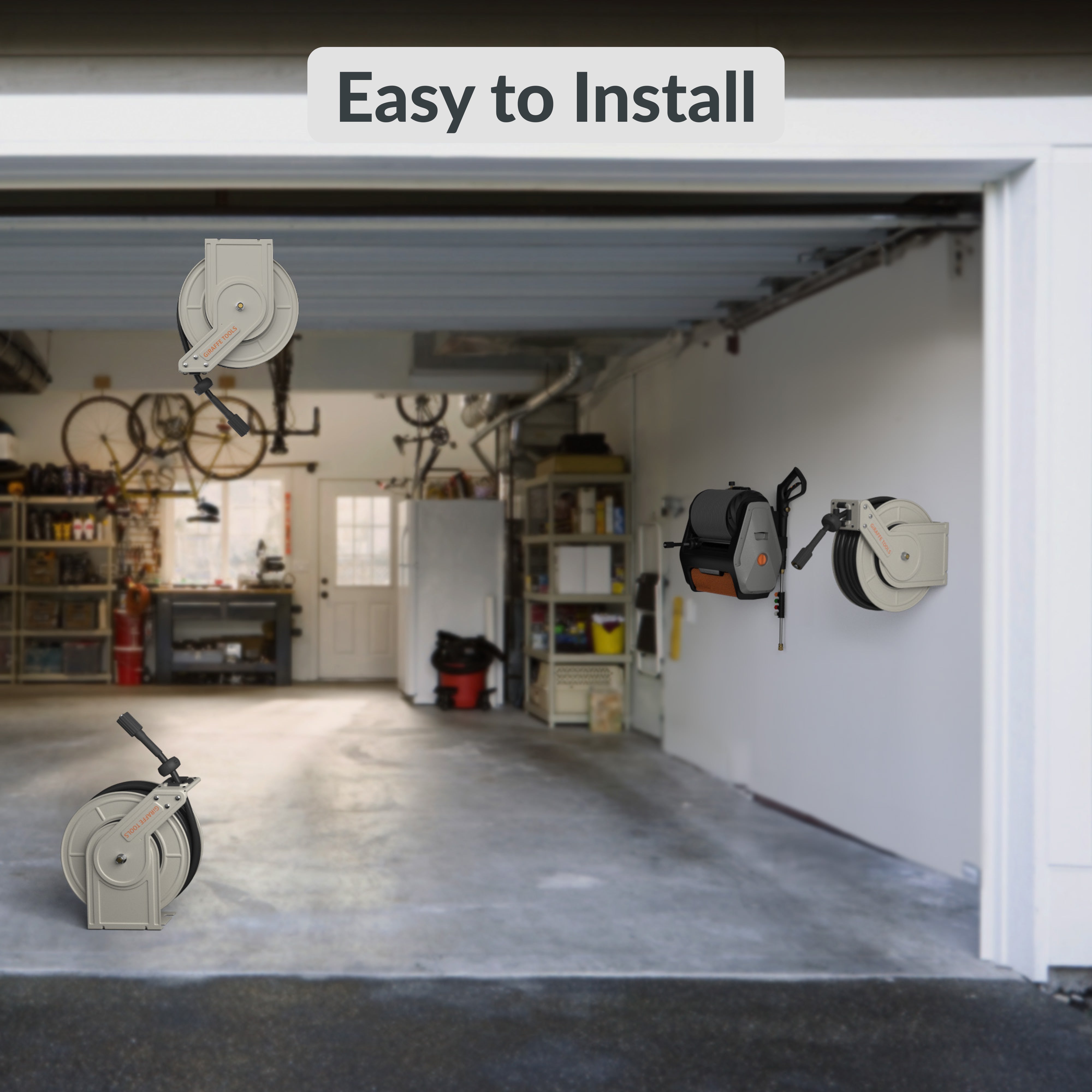

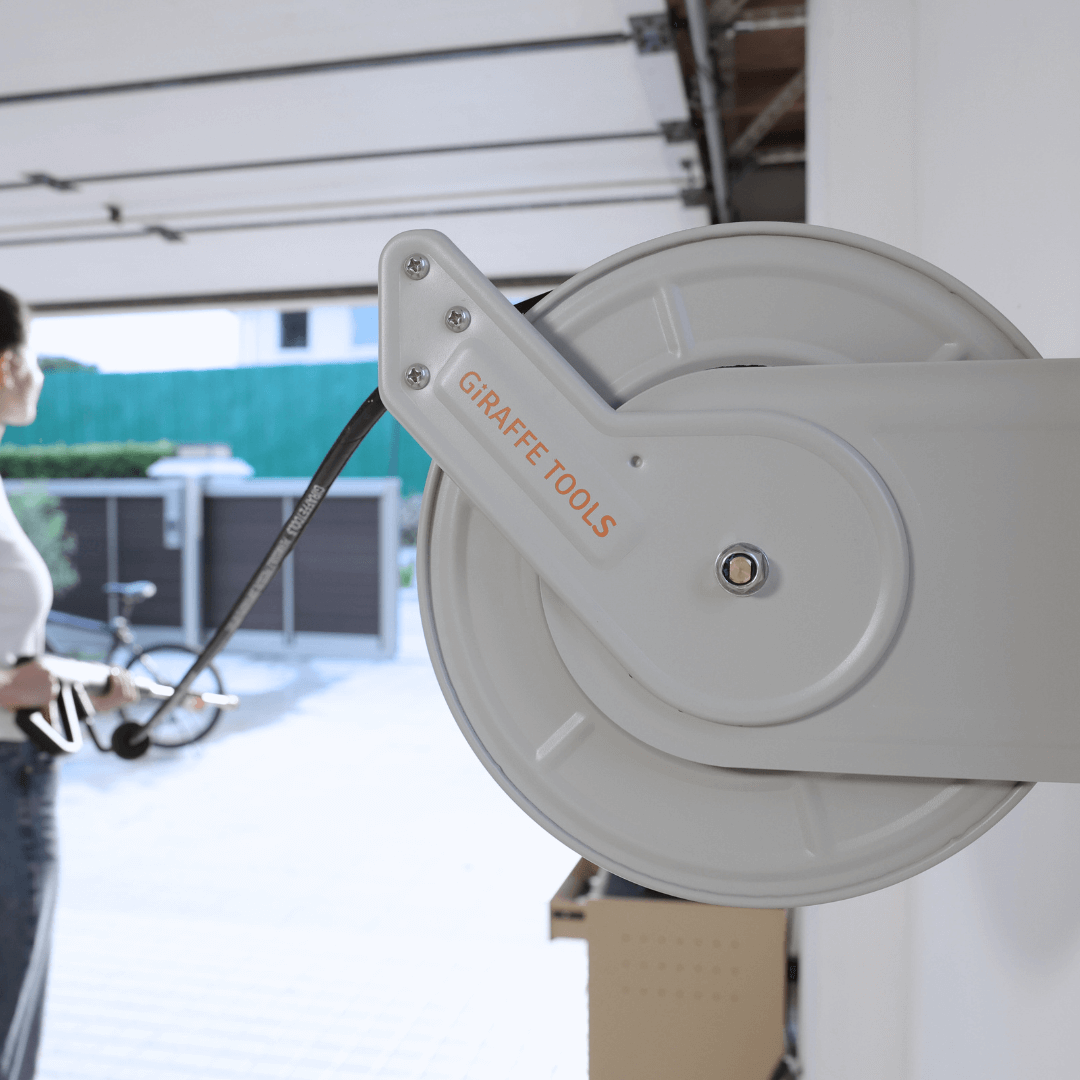

- Mount Position: Wall mount keeps hose path horizontal and minimizes kinking at the drum entry; ceiling mount works for low-clearance garages; floor mount suits portable setups or concrete slabs without suitable wall space
- Pressure Washer Compatibility: Confirm your pressure washer uses M22-15mm fittings before ordering — M22-14mm is a different (incompatible) thread pitch used on some brands
- PSI Matching: Never use a hose rated below your pressure washer’s output PSI — select 4000 PSI variant if your machine exceeds 3200 PSI
- Hose Loading: Feed hose through all 4 rollers before connecting to drum — bypassing rollers causes binding and premature hose wear at the entry point

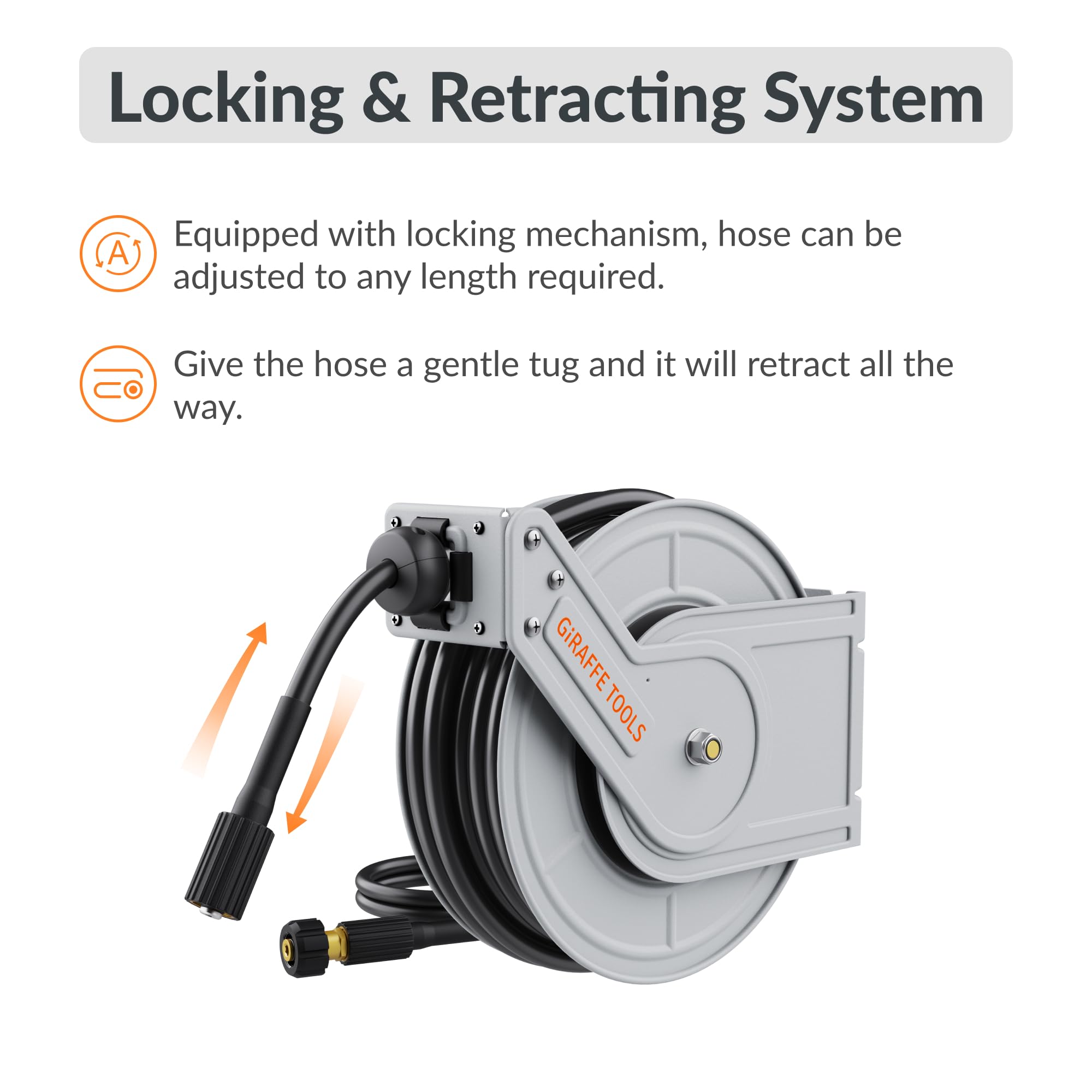

- Stop-Anywhere Lock: Pull hose to desired length, give a short tug to engage lock — hose holds position without tension on the reel spring
- Temperature: Hose rated to -40°F — suitable for year-round outdoor use; drain hose after use in freezing conditions to prevent water expansion damage inside the hose
- What's in the Box: Retractable pressure washer hose reel with hose (fixed or detachable per variant), mounting hardware, product manual. Confirm full fastener kit contents with product manual.
The GarageForm Difference: Technical Authority, Not Just a Catalog
Technical Screening: We don’t list garage tools without vetting them. This reel has been evaluated for alloy steel frame integrity, M22-15mm connector fit and seal quality, auto-rewind mechanism durability, and hose pressure rating accuracy to ensure the performance data on this page reflects the actual product.
Direct Expert Support: If you need assistance confirming M22 fitting compatibility with your pressure washer, selecting the correct PSI rating, or choosing between fixed and detachable hose for your setup, our experts provide pre-sale consulting at no charge.
Straightforward Purchasing: Free shipping on this reel. If it doesn’t meet your pressure rating or installation requirements after delivery, our return process is handled by our specialized team — not a generalist call center.
