Giraffe Tools Retractable Extension Cord Reel - Auto Rewind with 3 Outlets

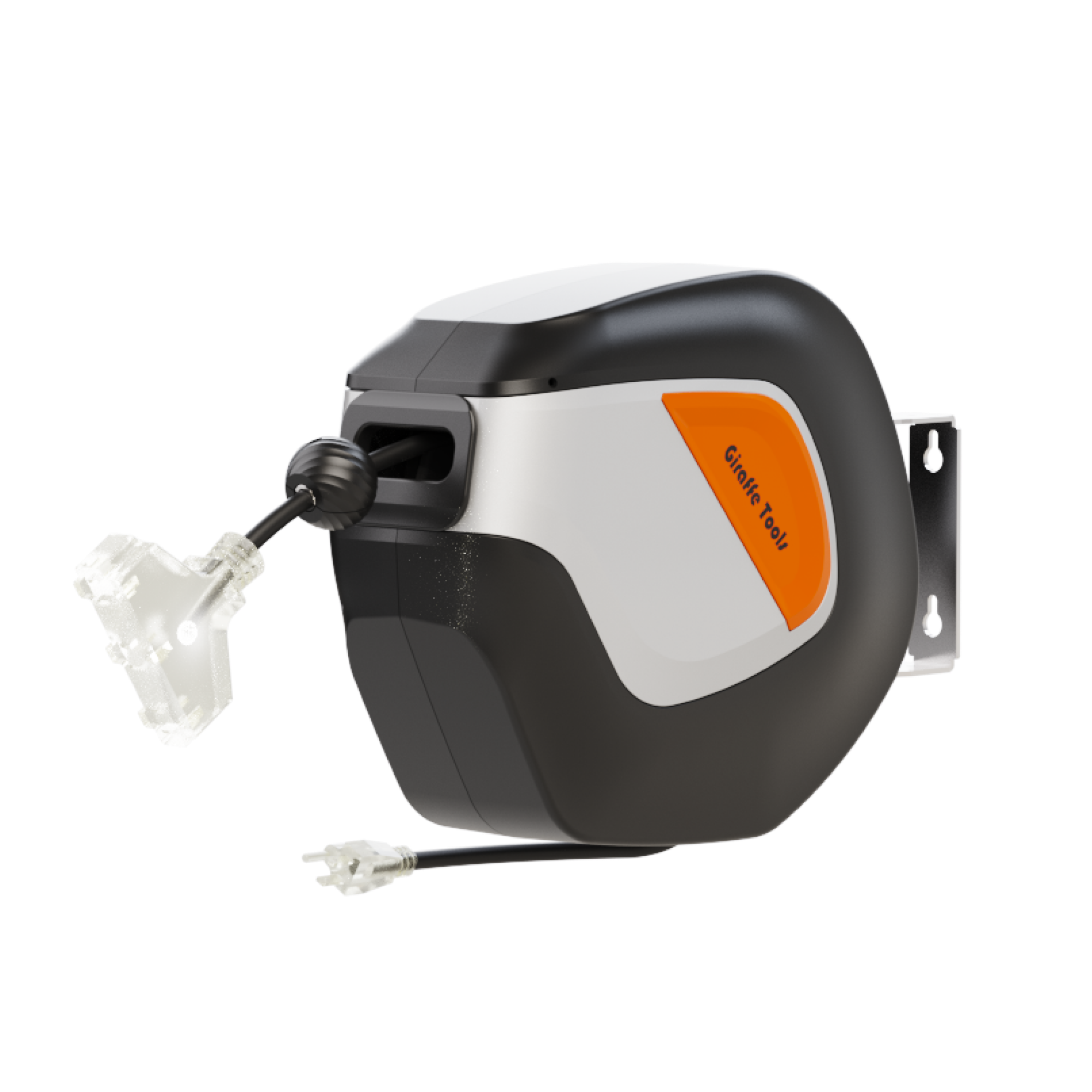

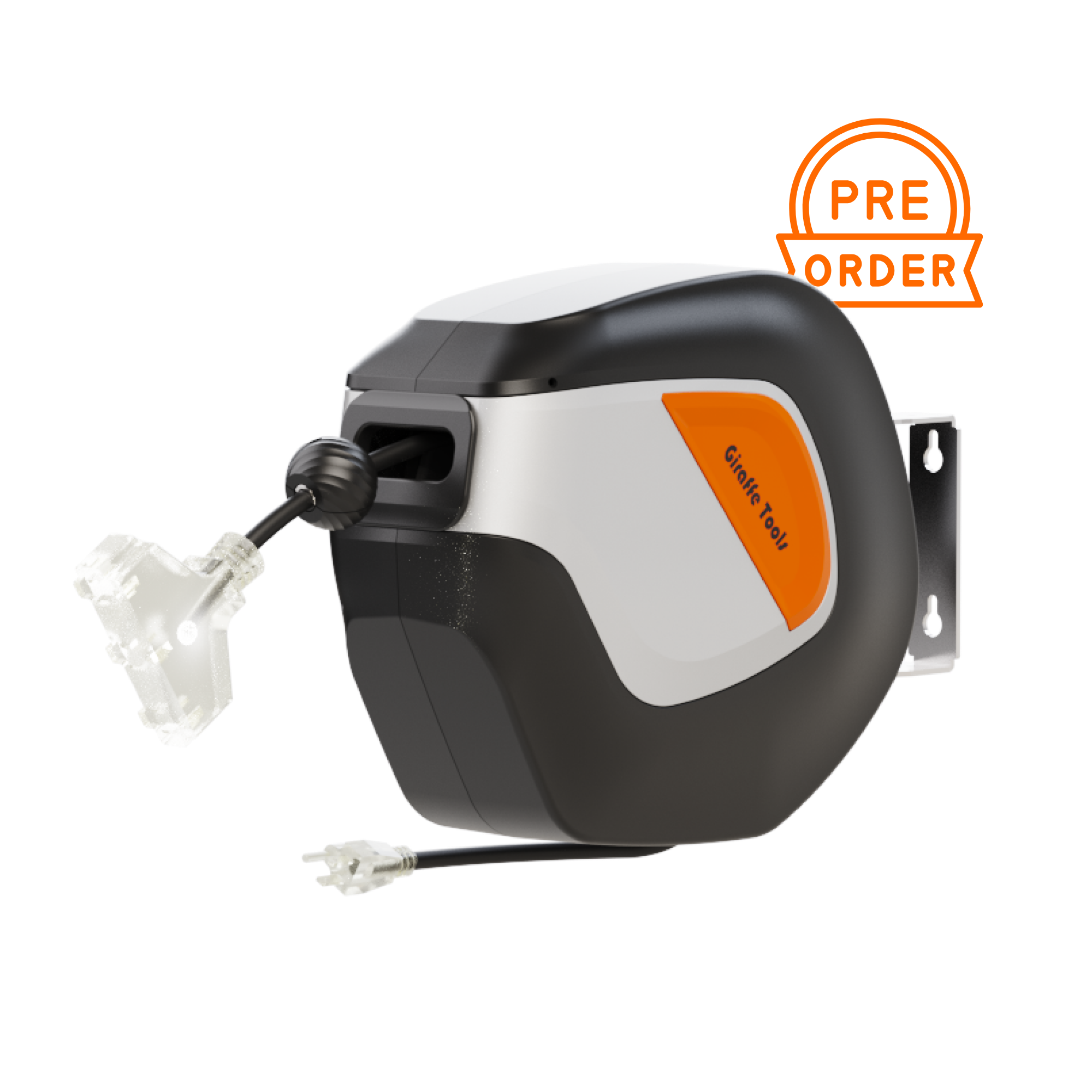

The Giraffe Tools Retractable Extension Cord Reel is a spring-driven auto-rewind cord reel with 180° swivel mount, 3 LED-lit power outlets, built-in circuit breaker, and slow-retraction auto-guide system — constructed from impact-resistant polypropylene with a metal bracket. Rated to 125VAC / 1500W max. Dry indoor use only. Available in 40ft/16AWG (8A), 50ft/14AWG (13A), and 50ft/12AWG (15A). Lead-in cord: 4.5ft.
Auto-Rewind Extension Cord Reel. 180° Swivel. 3 LED Outlets. Circuit Breaker — Wall, Ceiling, or Floor Mount.

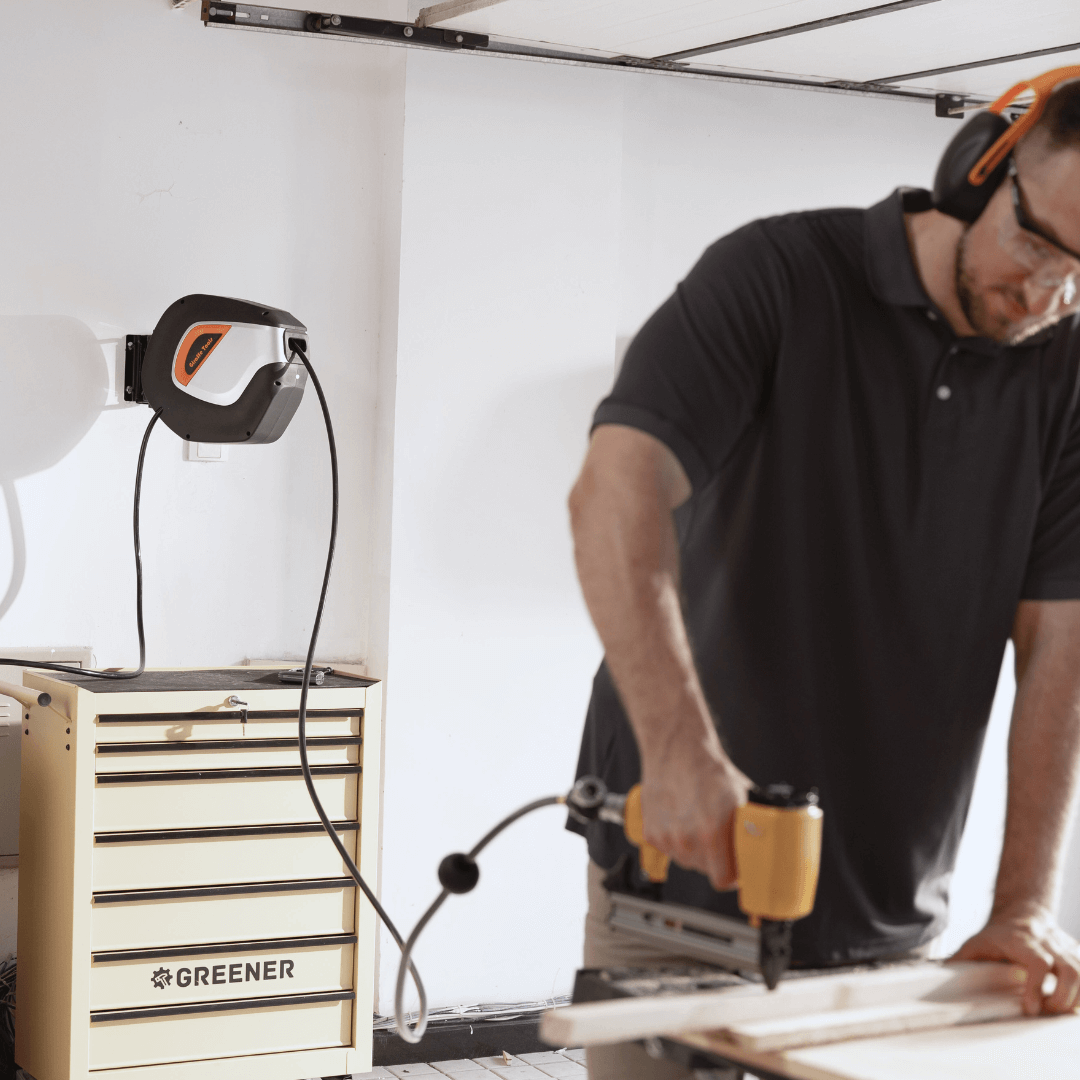

A loose extension cord on the shop floor creates a trip hazard, tangles around equipment, and degrades at the plug end from repeated coiling. This reel mounts to the wall, ceiling, or floor and auto-rewinds the cord with a slow-retraction system that prevents the cord from snapping back and damaging the plug or outlets. The 180° swivel bracket rotates to direct the cord toward the work area without binding at the reel entry. Three LED-lit outlets make connections visible in low-light shop conditions. The built-in circuit breaker protects against overload up to 1500W — trips before the cord overheats. The auto-guide system lays the cord onto the drum in even layers to prevent tangling on the next pull. Dry indoor use only — not rated for outdoor or wet environments.
See it in action

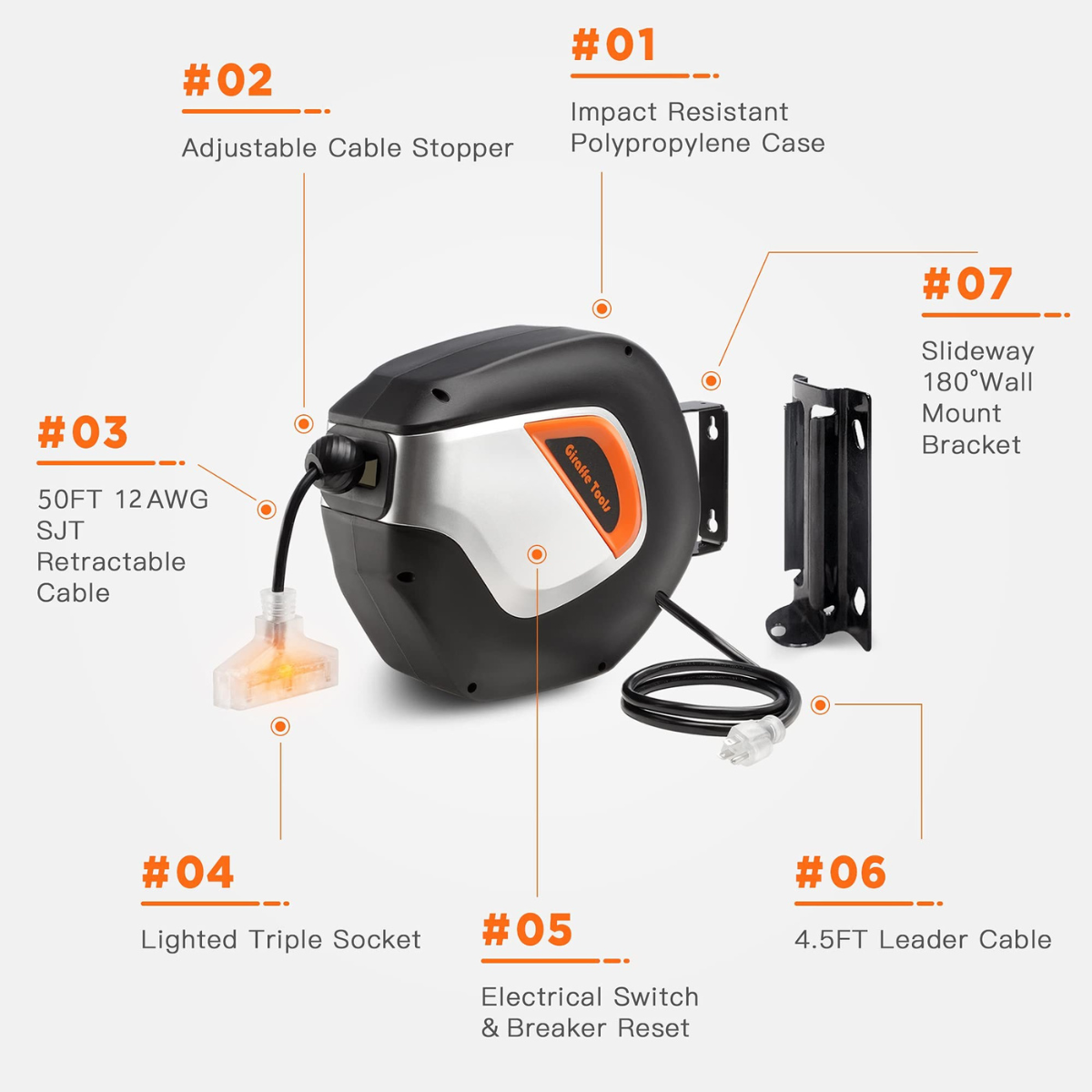

Reel, Cord & Electrical Specifications
Common specifications (all variants):

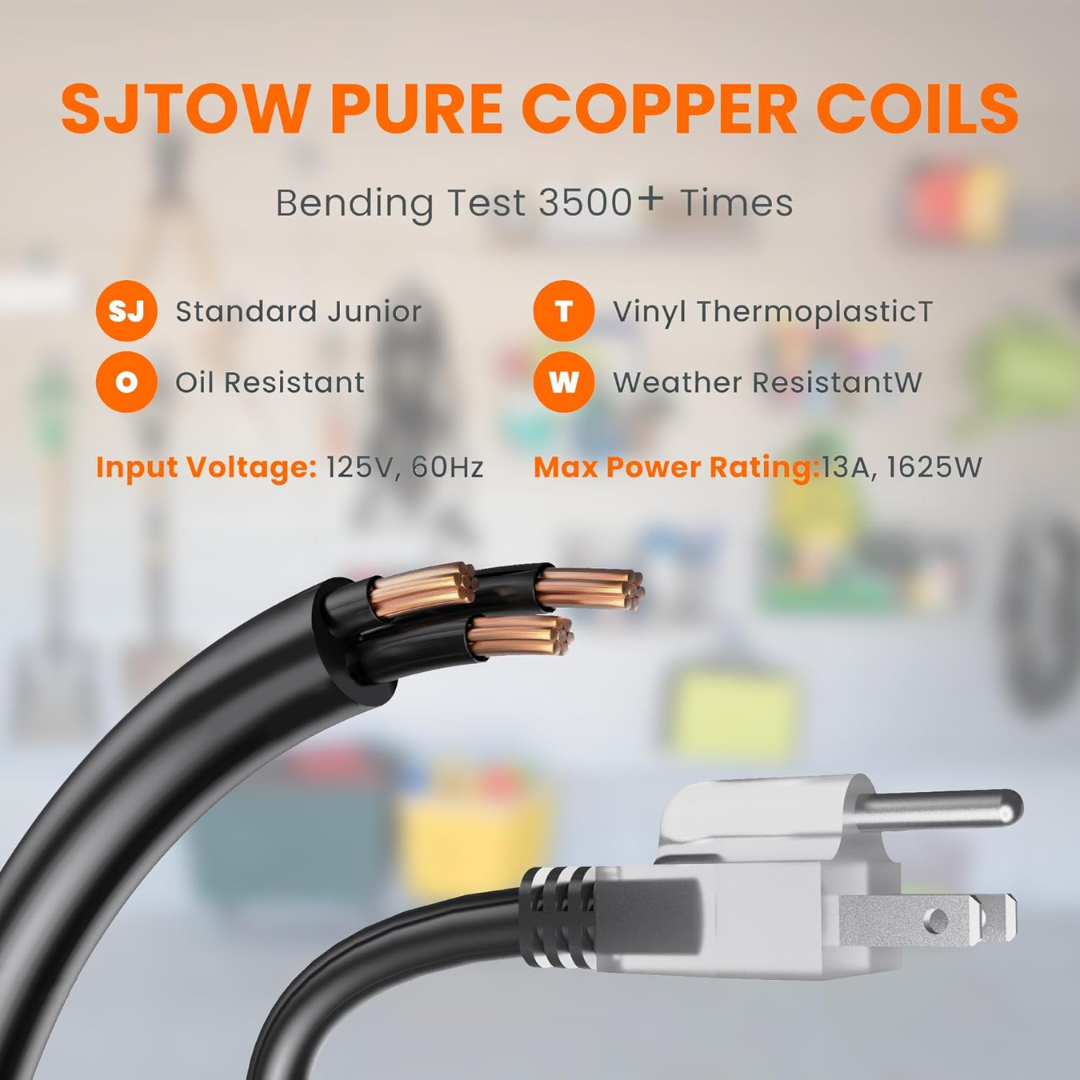

- Cord Type: SJT 3-conductor — flexible, durable, rated for workshop use
- Lead-in Cord: 4.5ft

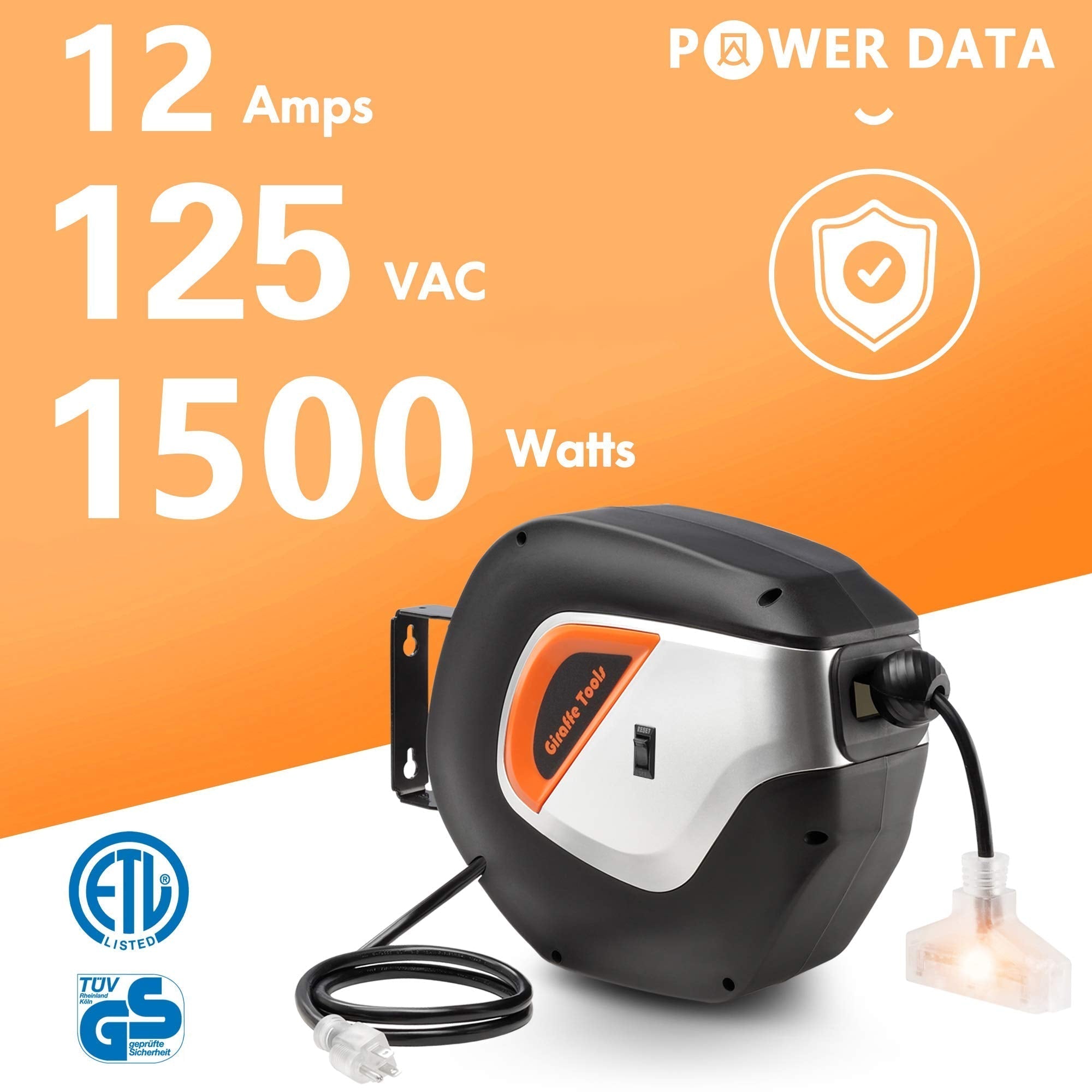

- Maximum Voltage: 125VAC
- Maximum Wattage: 1500W

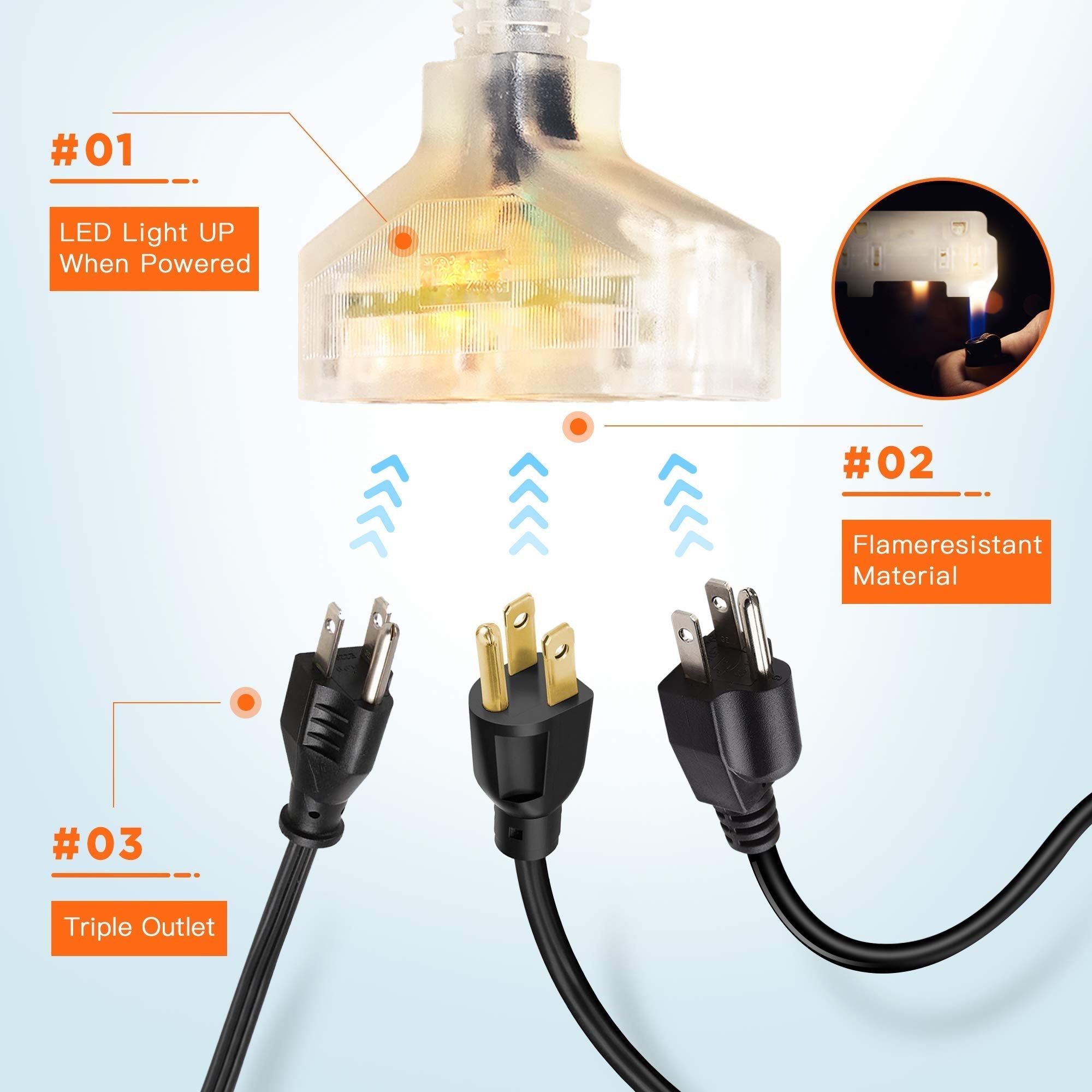

- Outlets: 3 × LED-lit power outlets

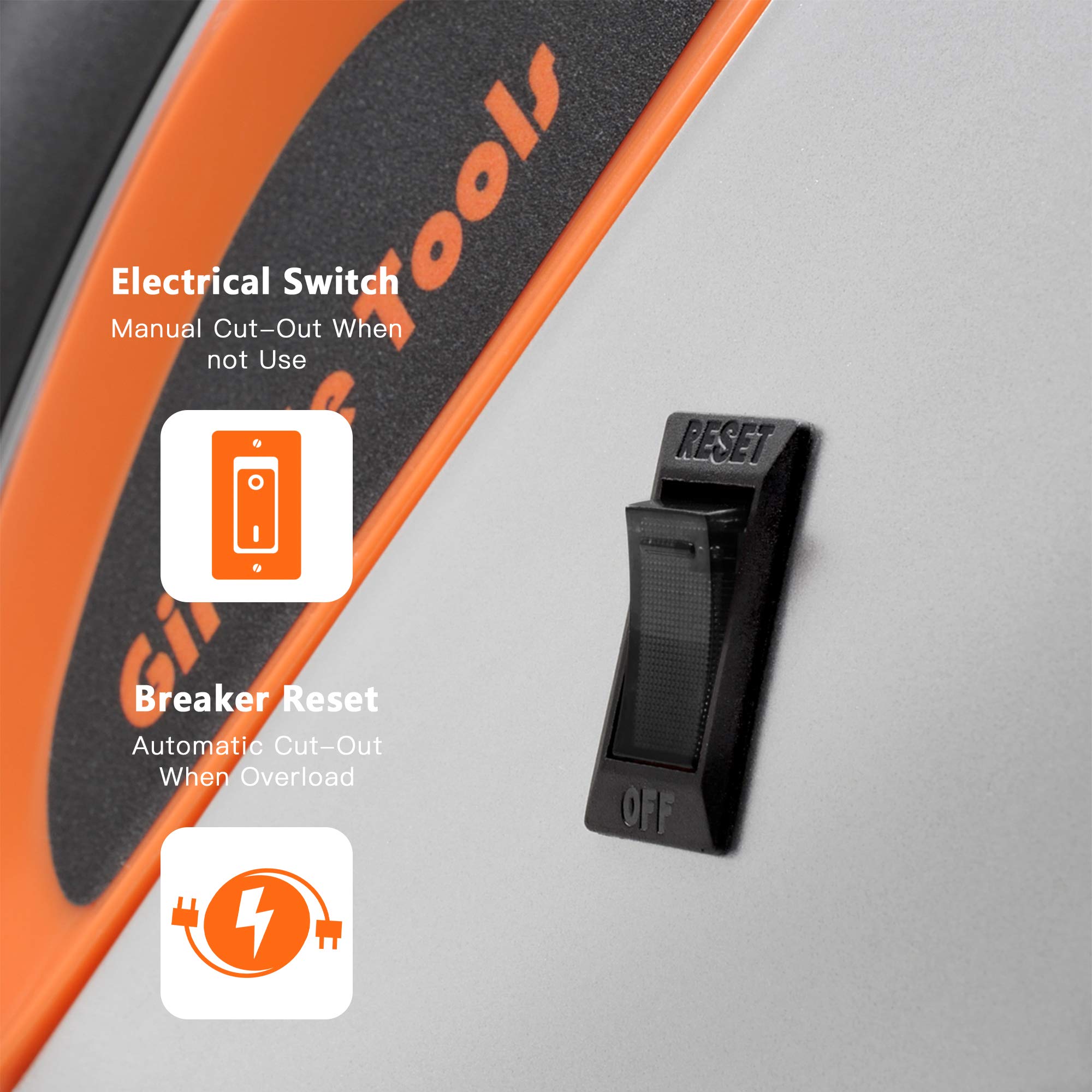

- Overload Protection: Built-in circuit breaker — manual reset
- Retraction: Spring-driven auto-rewind with slow retraction and auto-guide system

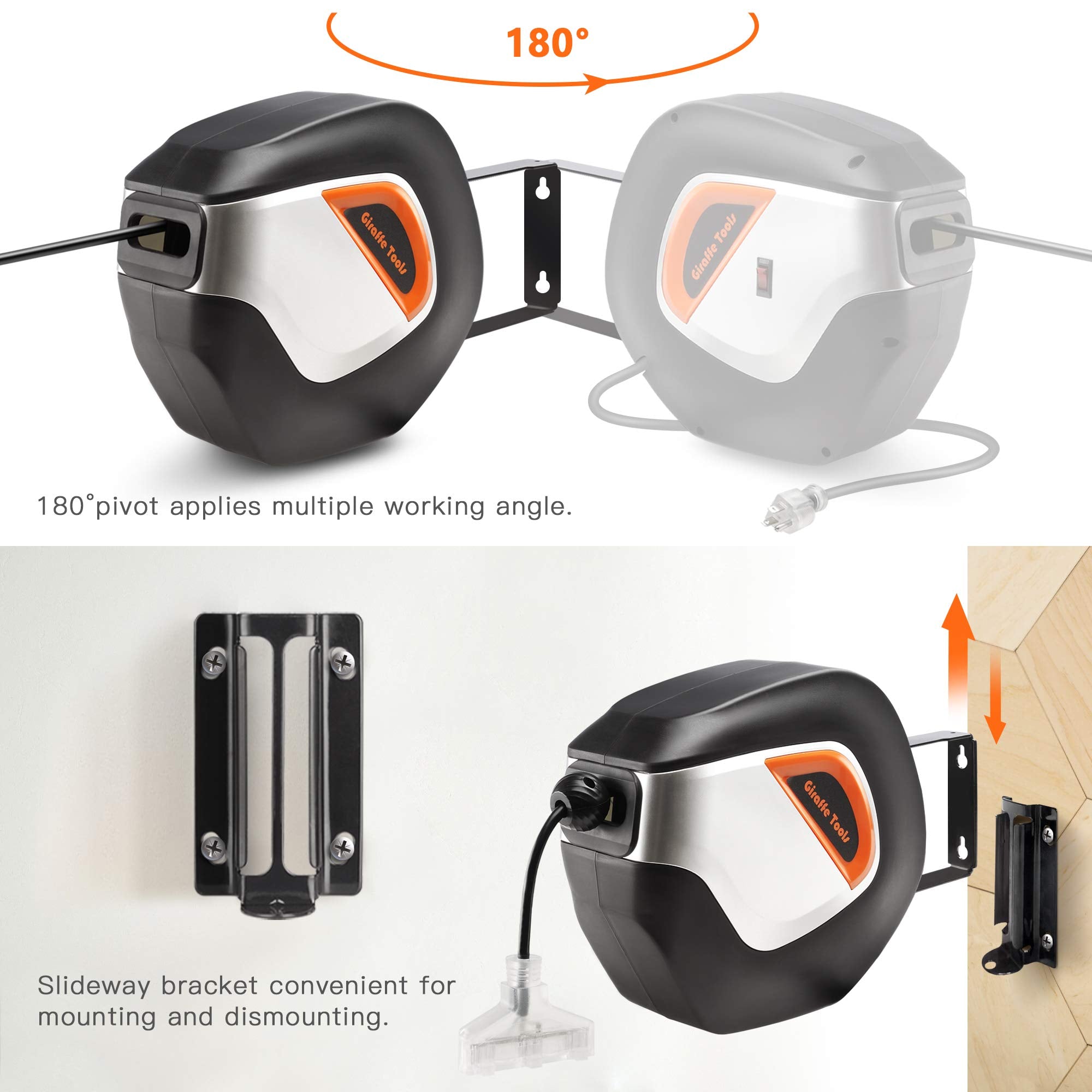

- Swivel: 180° bracket rotation — wall, ceiling, or floor mount
- Housing: Impact-resistant polypropylene reel, metal bracket
- Bracket Dimensions: 3.31" × 5.48" × 1.37"
- Use Environment: Dry indoors only — not rated for outdoor or wet use
- Brand: Giraffe Tools
Variant-specific specifications:
- 40ft / 16AWG (SKU: DE1016AWGUS): 8A max — 11.2 lbs (5.1 kg) — 12.79" × 5.75" × 10.95". Low stock.
- 50ft / 14AWG (SKU: GERA1V002): 13A max — 12.9 lbs (5.85 kg) — 12.79" × 5.75" × 10.95".
- 50ft / 12AWG (SKU: GERA2V003): 15A max — 17 lbs (7.75 kg) — 13.81" × 6.17" × 11.78".
Choosing Your AWG — Matching Wire Gauge to Your Tools
AWG (American Wire Gauge) determines how much current the cord can safely carry. Lower AWG = thicker wire = higher amperage capacity. Exceeding the amperage rating causes the cord to overheat — the circuit breaker will trip, but repeated overloading degrades the cord over time.
- 16AWG / 8A — 40ft: Light-duty tools — drills, sanders, small grinders, shop lights, battery chargers. Not suitable for table saws, air compressors, or other high-draw equipment.
- 14AWG / 13A — 50ft: Medium-duty tools — circular saws, jigsaws, routers, most shop vacuums. Covers the majority of common workshop power tools.
- 12AWG / 15A — 50ft: Heavy-duty tools — table saws, miter saws, air compressors, dust collectors, and any tool drawing close to 15A. Maximum amperage for a standard 15A household circuit.
Note: 1500W watt limit applies to all variants regardless of AWG — at 125VAC, 1500W = 12A. The 12AWG variant’s 15A wire capacity exceeds the outlet’s 1500W limit; the circuit breaker protects at the outlet level.
Installation, Mounting & Safety Considerations

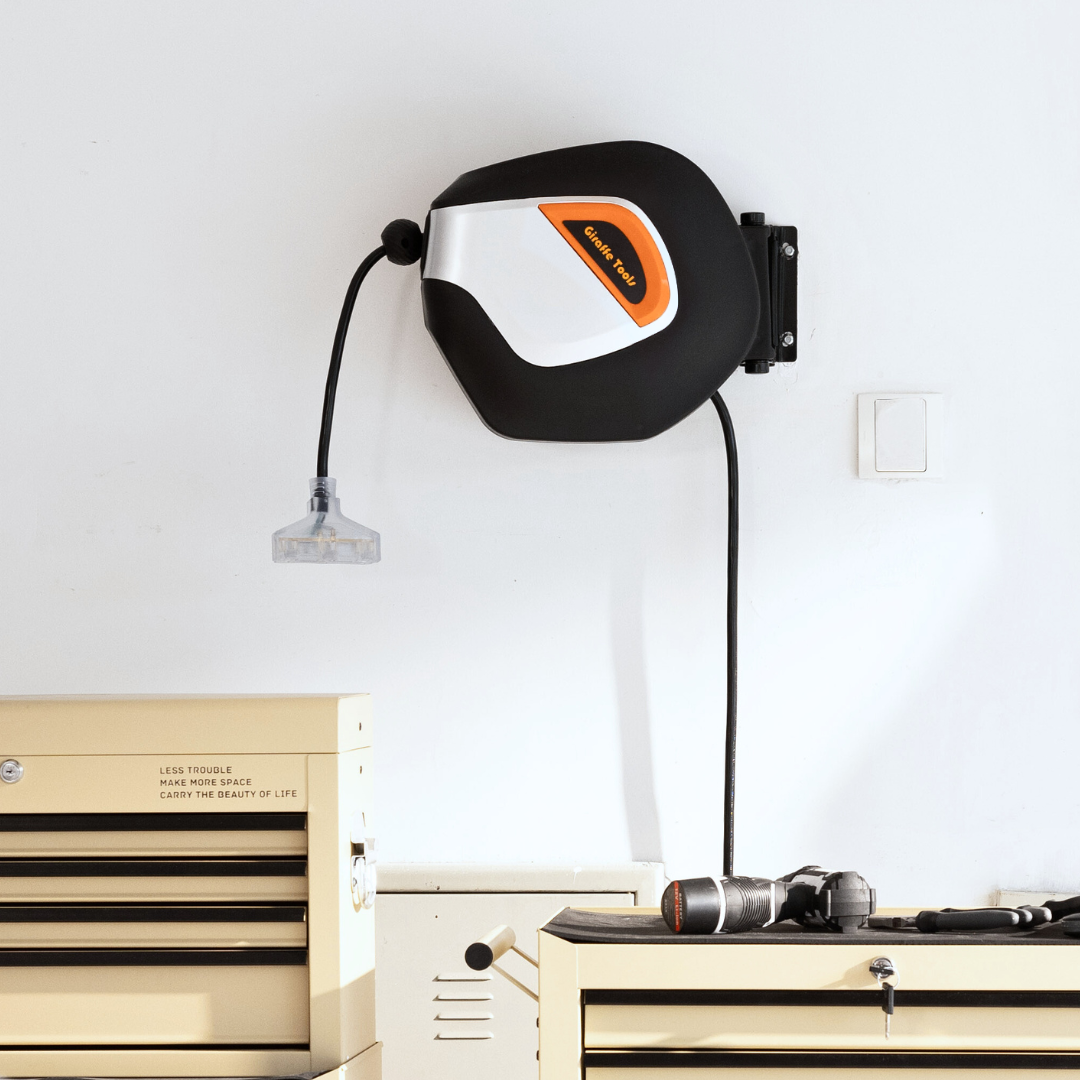

- Wall Substrate: Expansion anchors (Ø8mm × 35mm) for masonry; self-tapping screws (Ø6mm × 50mm) for wood stud — verify substrate before installation
- Outlet Proximity: 4.5ft lead-in cord — mount within 4.5ft of a grounded 125VAC outlet; do not use an extension cord to reach the outlet
- Circuit Load: Do not exceed 1500W total across all 3 outlets simultaneously — circuit breaker will trip if overloaded; reset manually after removing load
- Indoor Dry Use Only: Not rated for outdoor, wet, or damp environments — do not use in garages with open doors during rain or in areas with water exposure
- Slow Retraction: Auto-guide system lays cord in even layers on retraction — do not force-retract by pulling the cord back manually; allow the spring to retract at its own speed

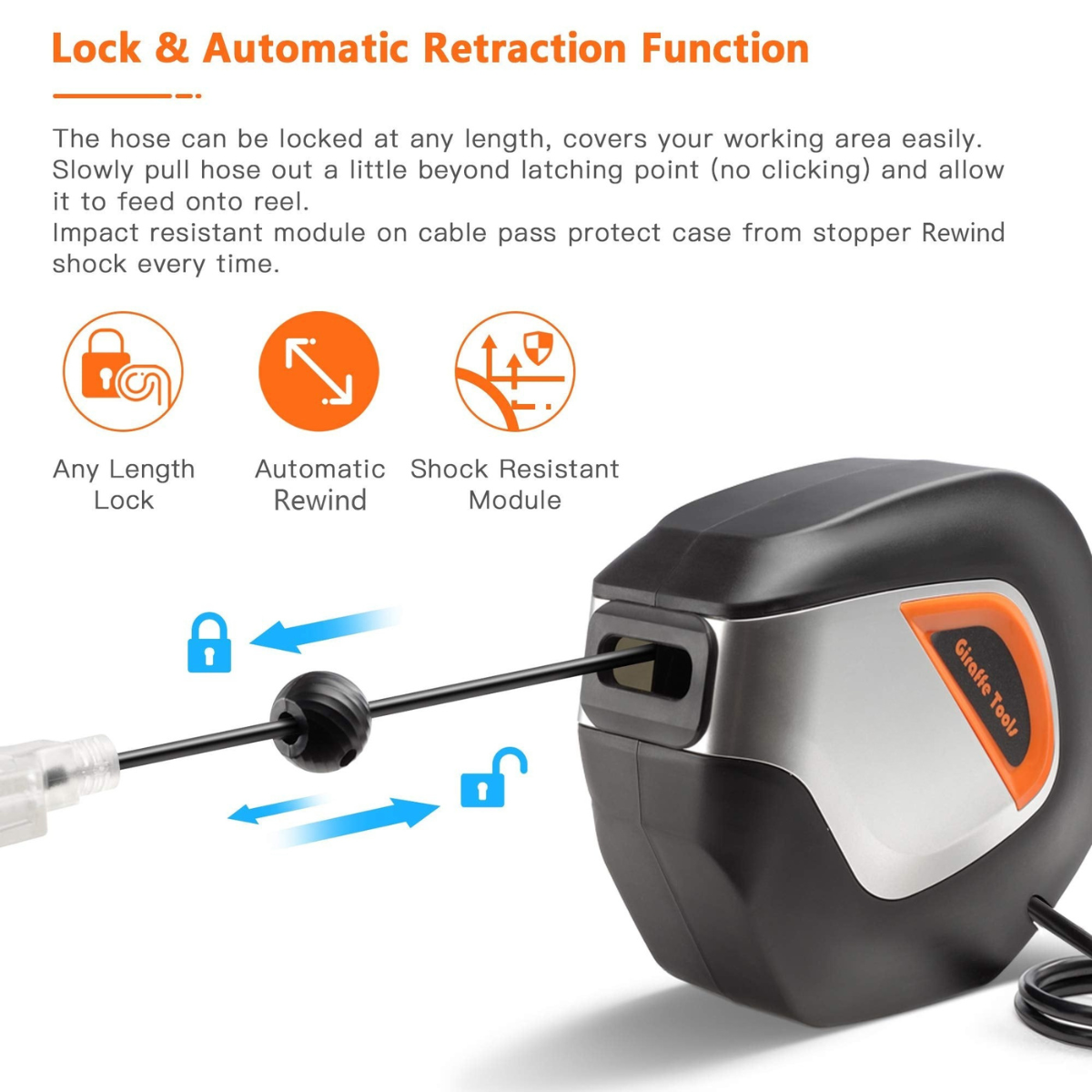

- Stop-Anywhere Lock: Pull cord to desired length, give a short tug to engage lock — cord holds position without tension on the reel spring
- What's in the Box: Extension cord reel with bracket, bracket base, 4× self-tapping screws (Ø6mm × 50mm), 4× expansion anchors (×8mm × 35mm), 1× small screw, product manual
