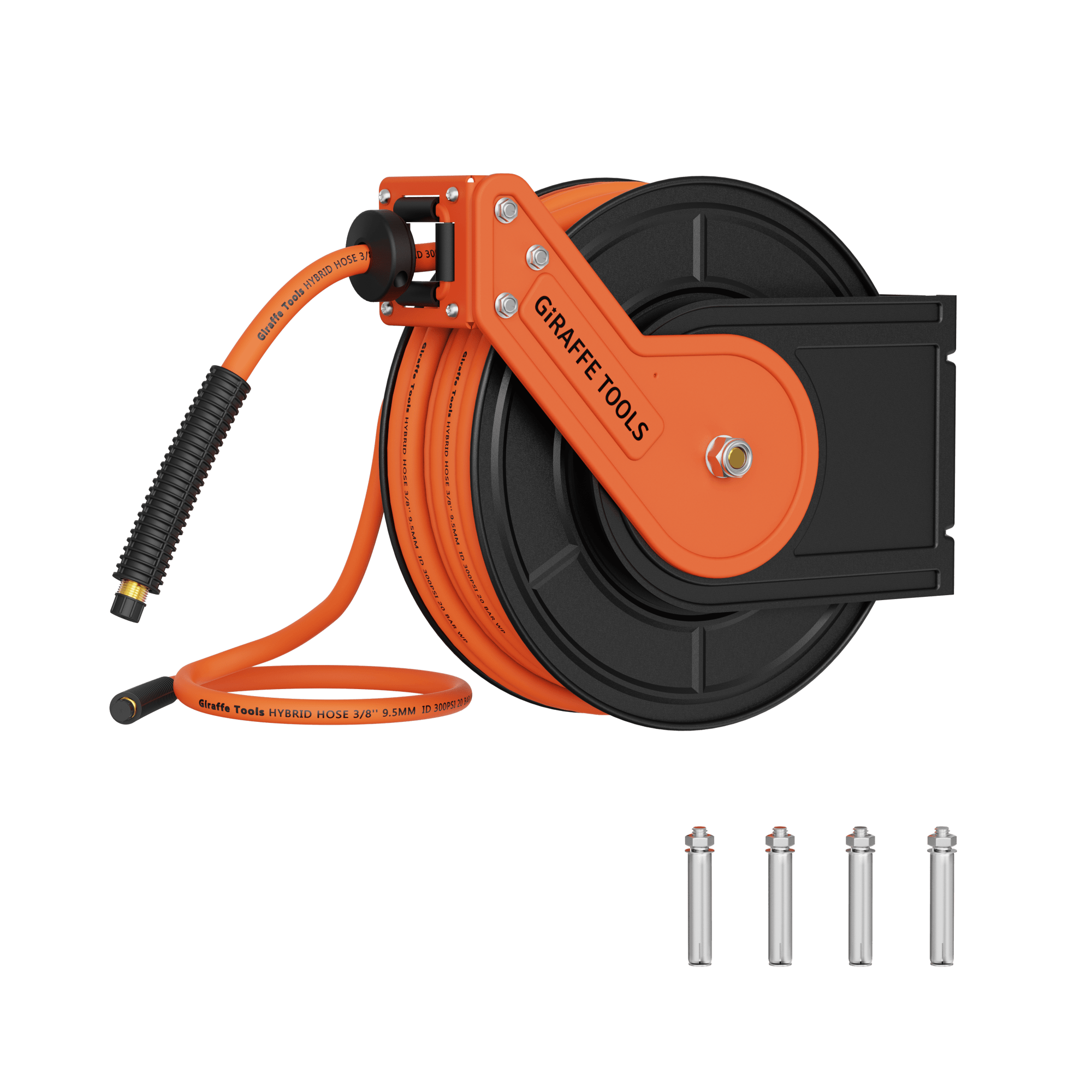

Giraffe Tools Retractable Air Hose Reel - Steel Construction Auto Rewind
The Giraffe Tools Retractable Air Hose Reel is an all-steel auto-rewind reel for pneumatic air hose — featuring powder coat finish, 135° guide arm, stop-anywhere lock, 1/4" NPT fitting, and wall/ceiling/floor mounting. Hose: 3/8in × 50ft hybrid with 3.5ft leader hose. Maximum pressure: 300 PSI. Reel dimensions: 12.52" W × 11.02" D × 4.72" H. Weight: 14–20 lbs depending on bracket option. Available without bracket or with Classic or Pro bracket.
All-Steel Auto-Rewind Air Hose Reel — 300 PSI, 135° Guide Arm, Wall/Ceiling/Floor Mount. Stop-Anywhere Lock.
An air hose left on the shop floor creates a trip hazard, kinks at the fittings, and tangles around equipment. This reel mounts to the wall, ceiling, or floor — whichever position gives the cleanest hose path from your compressor to the work area. The all-steel drum and bracket handle the stiffness and pressure of 3/8in air hose that would deform a polymer reel under sustained shop use. The 135° guide arm rotates to direct the hose toward the work area without binding at the drum entry. The stop-anywhere lock holds the hose at any extension length without tension. The 1/4" NPT fitting is the standard for most air compressors and pneumatic tools.
See it in action
Reel & Hose Specifications
- Models: TA15BUS (Without Bracket) / TA15US (With Bracket Pro) / TA15BPLUS (With Bracket Classic)
- Hose: 3/8in × 50ft hybrid — all-weather flexibility, maintains performance in hot and cold conditions
- Hose Diameter: Inner 0.36in / Outer 0.6in
- Leader Hose: 3.5ft included
- Maximum Pressure: 300 PSI
- Fitting: 1/4" NPT — standard for most air compressors and pneumatic tools
- Frame Material: All-steel with corrosion-resistant powder coat finish

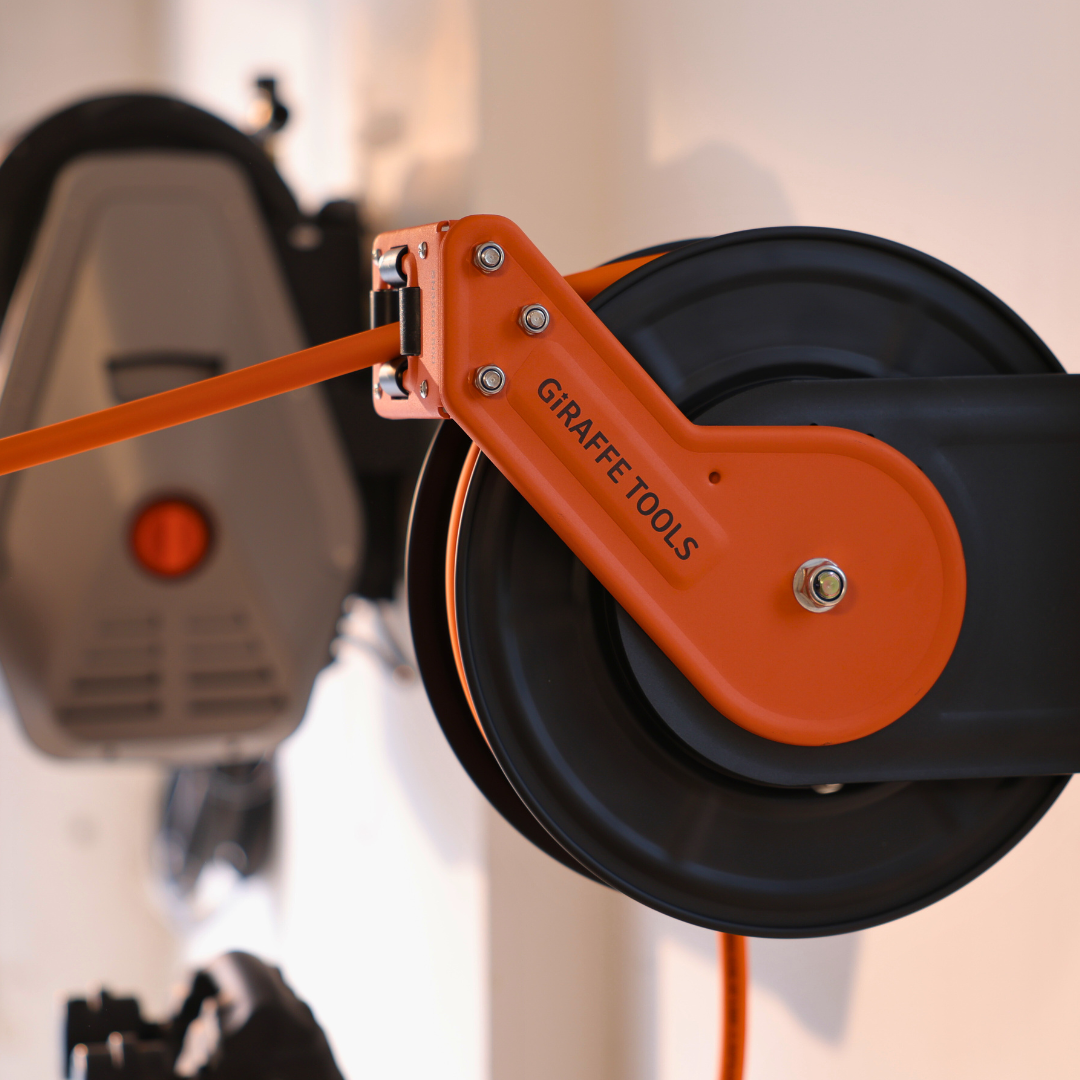

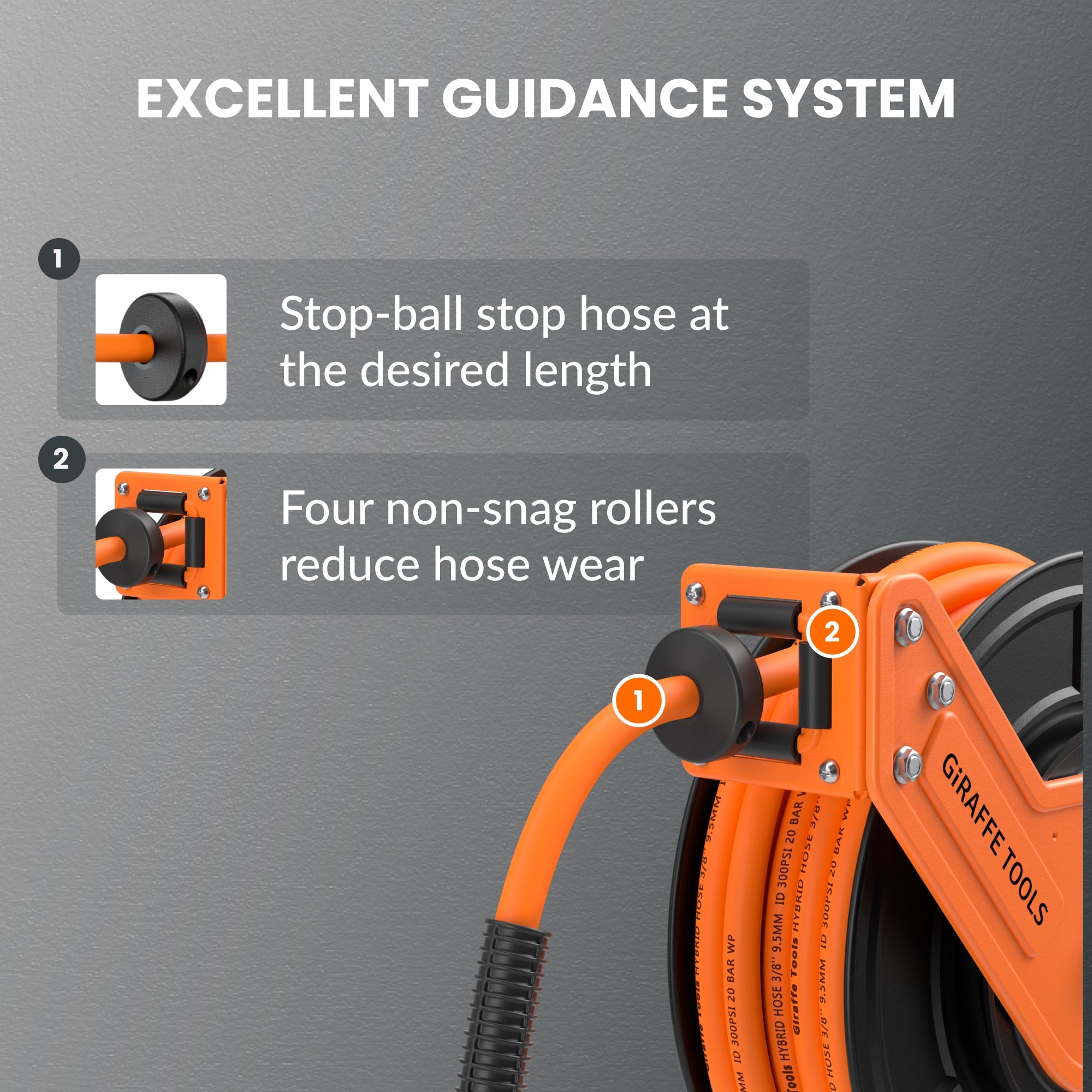

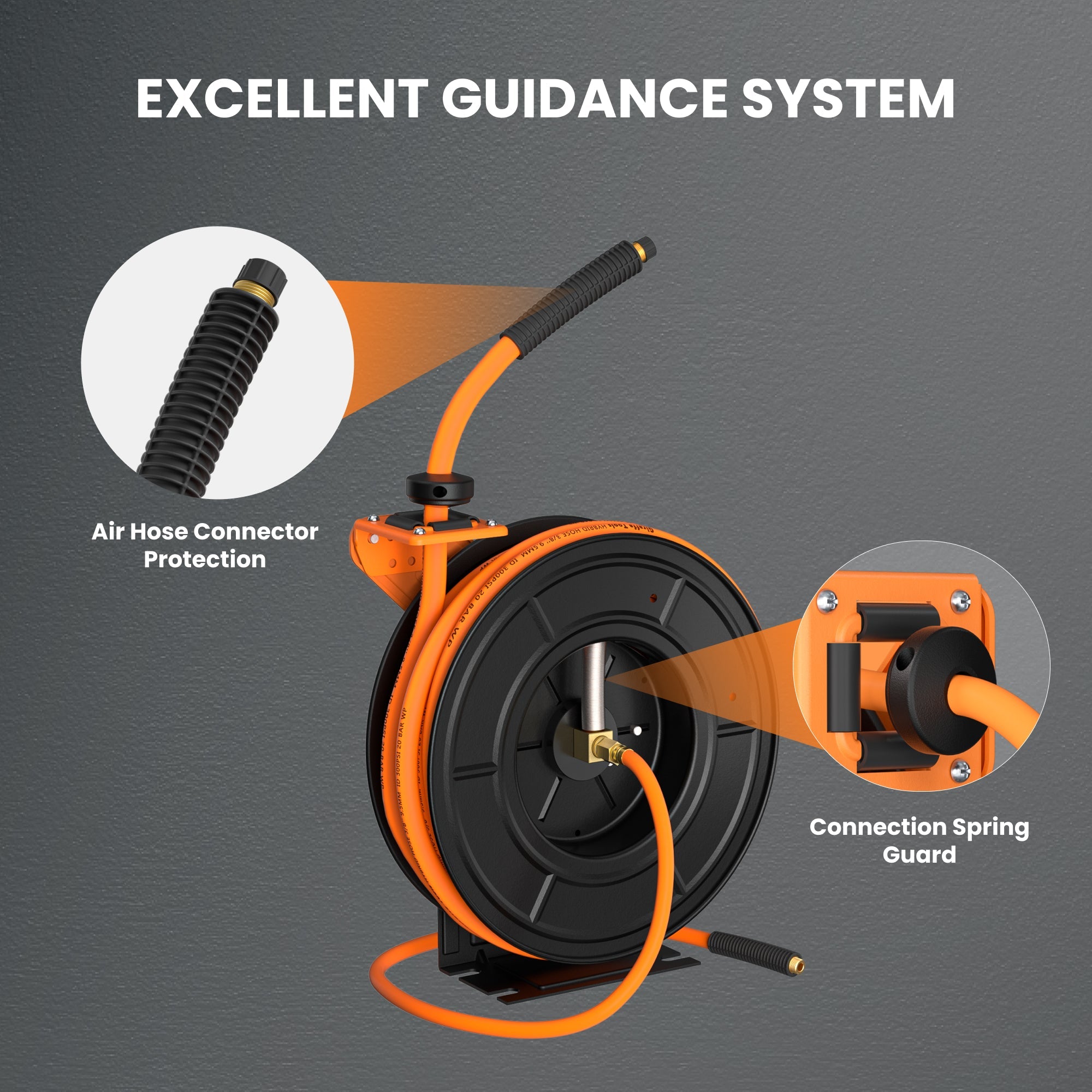

- Guide Arm: 135° rotation — directs hose toward work area without binding at drum entry
- Retraction: Auto-rewind with stop-anywhere lock
- Mount Type: Wall, ceiling, or floor
- Reel Dimensions: 12.52" W × 11.02" D × 4.72" H
- Shipping Box: 15" × 13" × 6"
- Weight: 14 lbs (6.35 kg) without bracket / 20 lbs (9.1 kg) with bracket
- Brand: Giraffe Tools

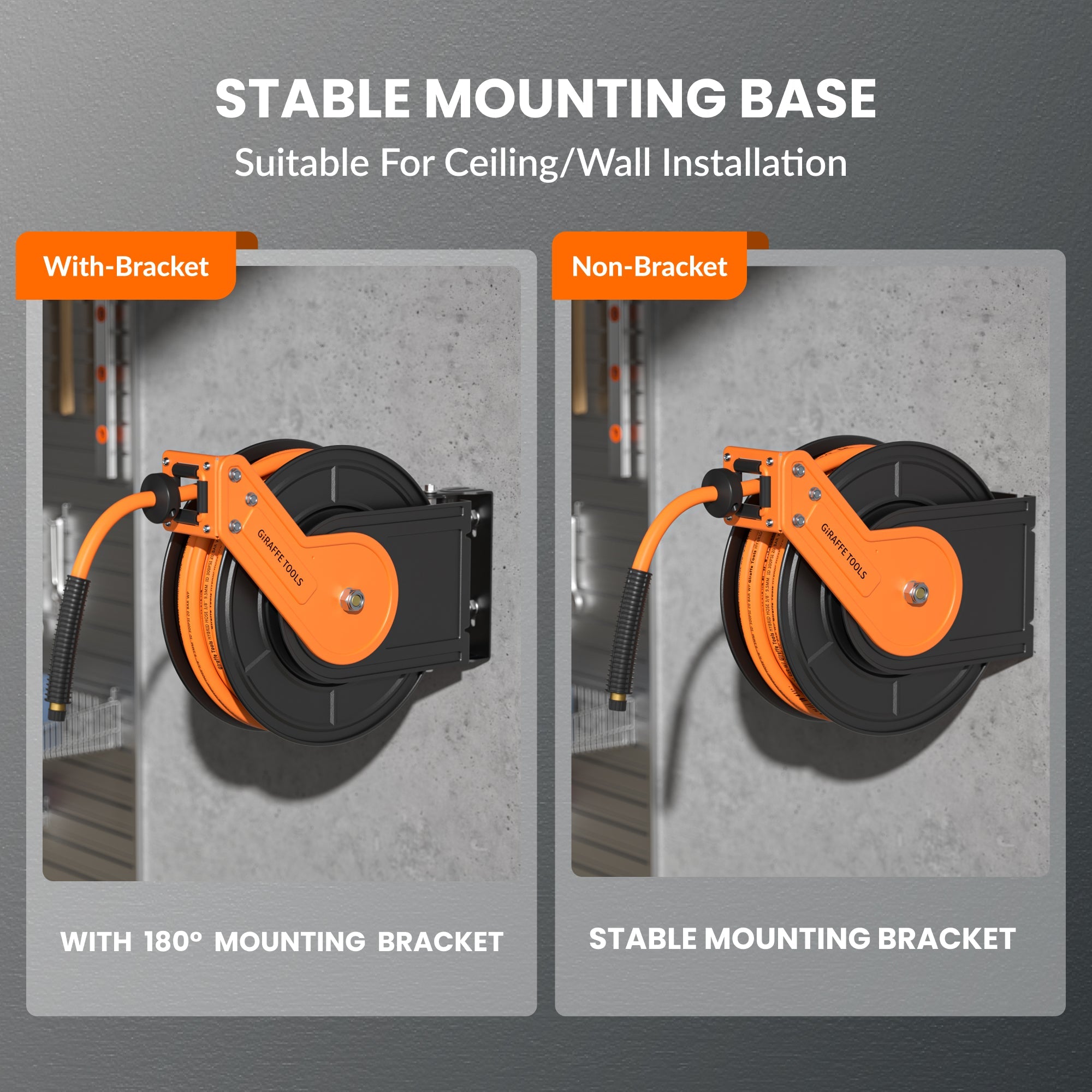

Choosing Your Variant
Bracket option:
- Without Bracket: Reel only — for custom mounting solutions, replacement units, or installations where you already have a compatible bracket. 14 lbs.

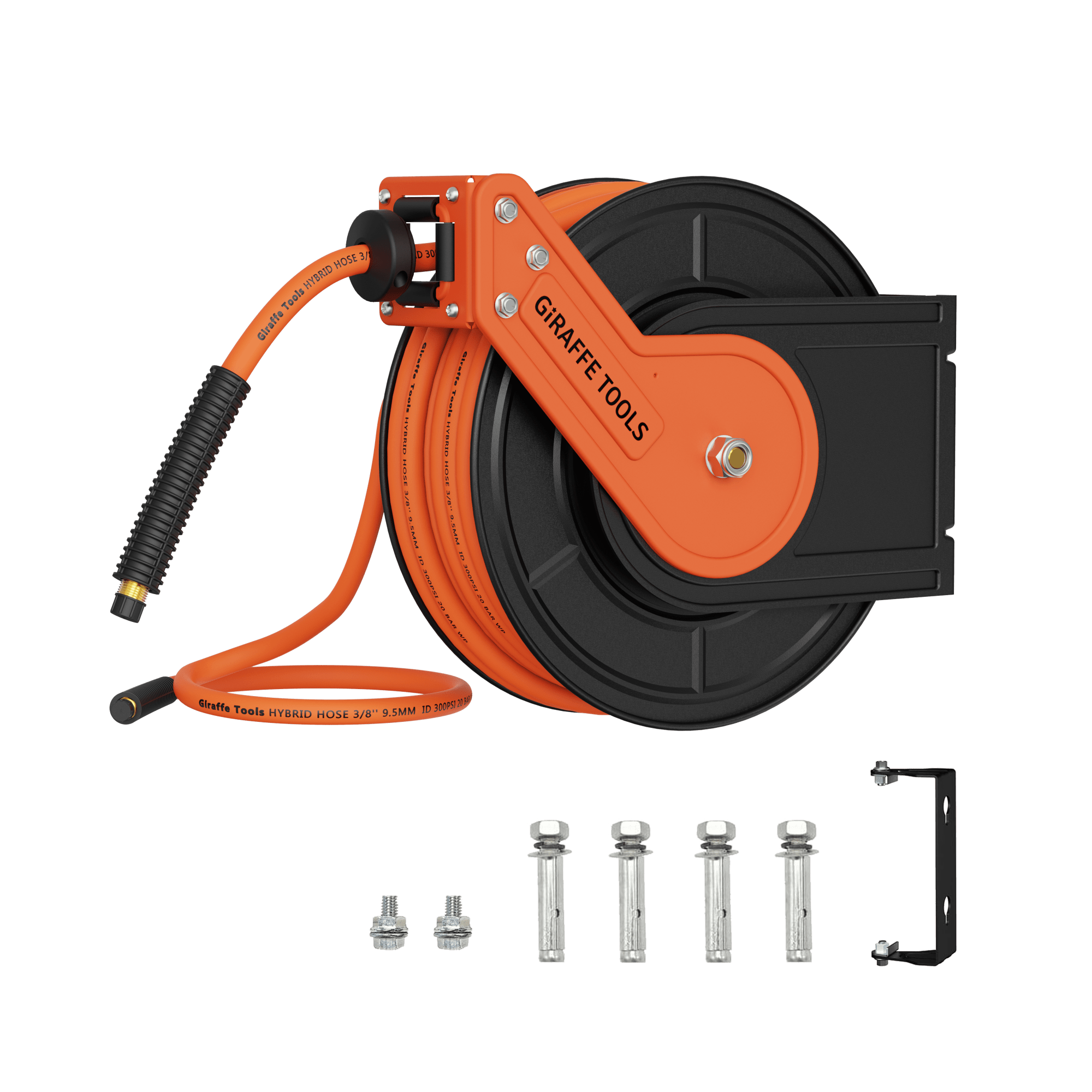

- With Bracket (Classic): Includes standard mounting bracket for wall, ceiling, or floor installation. 20 lbs.

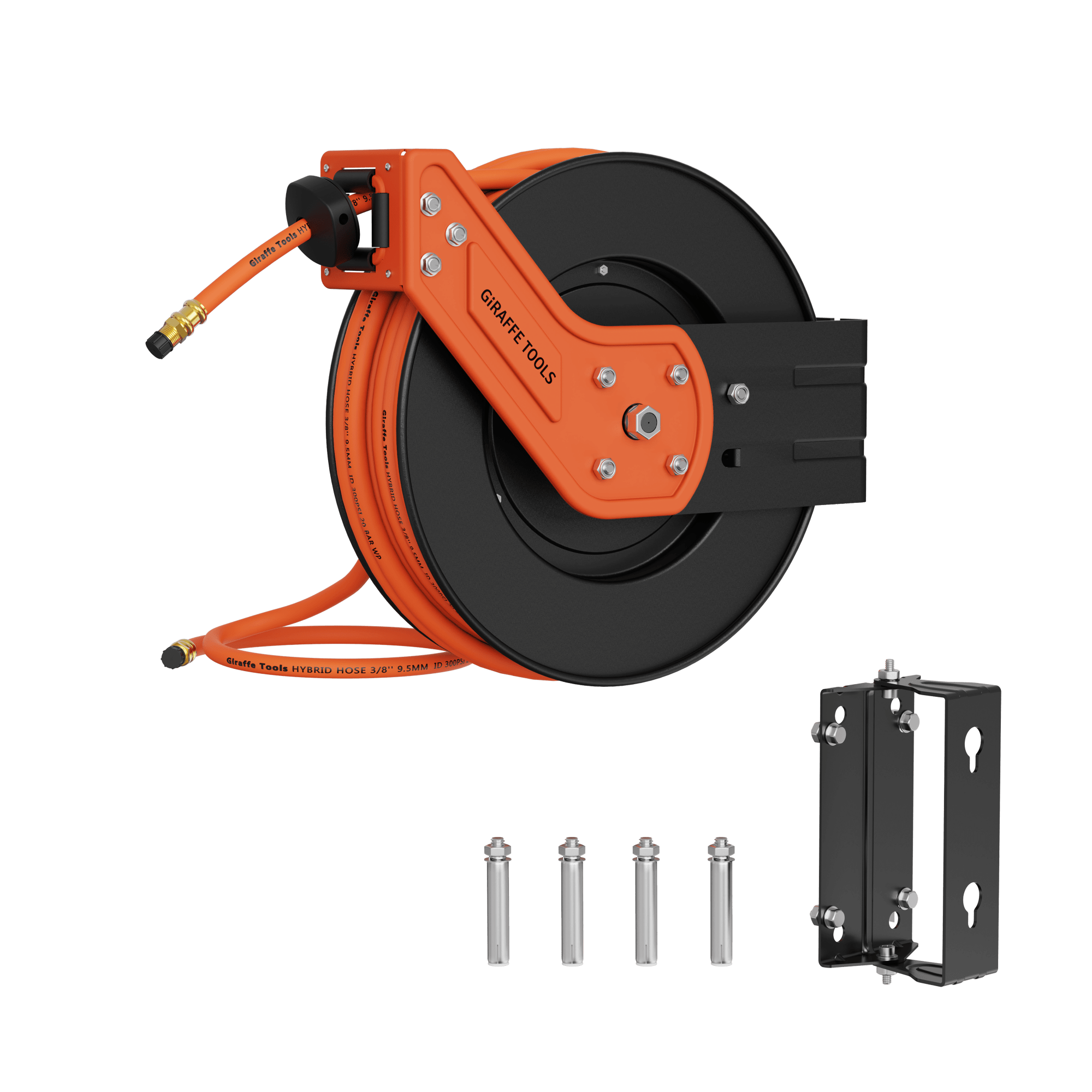

- With Bracket (Pro): Includes professional-grade mounting bracket with enhanced stability — recommended for high-cycle shop environments or ceiling mount where bracket rigidity under repeated hose tension matters. 20 lbs.
Installation, Mounting & Use Case Considerations

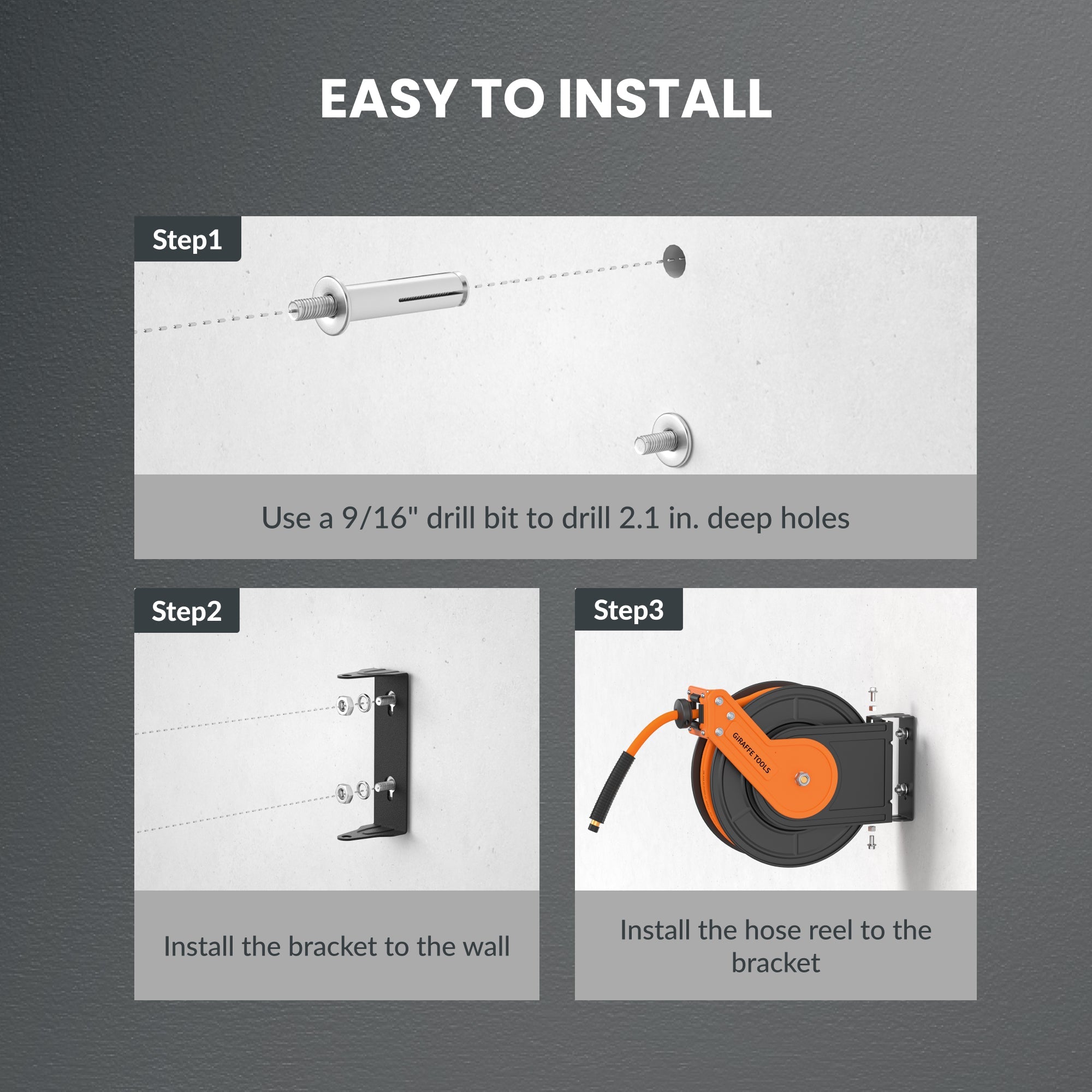

Installation walkthrough
- Mount Position: Wall mount keeps hose path horizontal and minimizes kinking at the drum entry; ceiling mount maximizes floor clearance in tight shops; floor mount suits portable compressor setups or concrete slabs without suitable wall space
- Compressor Compatibility: 1/4" NPT fitting — verify your compressor outlet uses 1/4" NPT; use a thread adapter if your compressor uses a different fitting size
- Pressure: Rated to 300 PSI — suitable for most shop air compressors; verify your compressor’s maximum output does not exceed 300 PSI
- Guide Arm: Rotate guide arm to direct hose toward primary work area before securing — 135° range allows positioning for wall, ceiling, or floor mount orientations

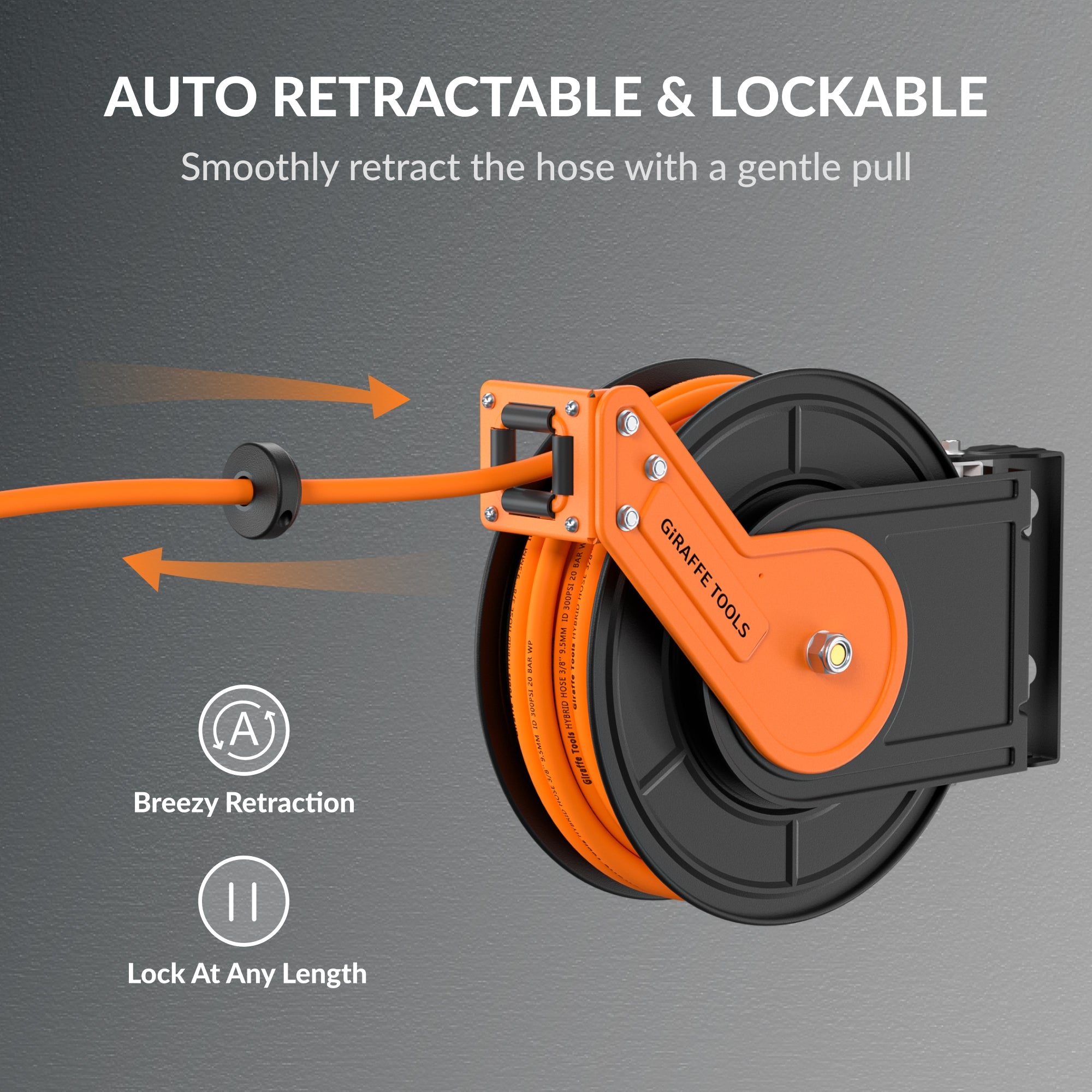

- Stop-Anywhere Lock: Pull hose to desired length, give a short tug to engage lock — hose holds position without tension on the reel spring
- Leader Hose: 3.5ft leader hose connects reel to compressor outlet — factor this into mount placement relative to your compressor location
- Winterization: Drain moisture from hose and leader hose after use in cold environments — water in the hose can freeze and damage fittings
- What's in the Box: Retractable air hose reel with 50ft hose and 3.5ft leader hose, mounting bracket (Classic or Pro per variant, or none), mounting hardware, product manual
