Beta Tools CP51 Heavy-Duty 2-Shelf Industrial Transport Cart (1,650 lb Load)
The Beta Tools CP51 is a 35.4" L × 19.7" W × 34.3" H heavy-duty two-shelf industrial transport cart combining a reinforced powder-coated steel frame rated for 1,650 lbs (750 kg) static load, two rubber-lined shelves with anti-fall edges, and four 5" (125mm) rubber casters (2 fixed, 2 swivel with brake) — available in Orange, Grey, and Red. Made in Italy. SKU: 51000501 (Orange) / 51000502 (Grey) / 51000503 (Red).
1,650 lb Static Load. Two Rubber-Lined Shelves. Built for Engine Blocks, Transmissions, and Equipment That Destroys Standard Carts.
Standard shop carts are rated for tool loads — not engine blocks, transmissions, or heavy machinery. The CP51 is built for the other category: a reinforced steel frame rated to 1,650 lbs (750 kg) static load, two expansive shelves lined with oil-resistant ribbed rubber mats that grip heavy items and protect the shelf surface, and anti-fall edges on both shelves that contain parts and equipment during movement over uneven shop floors. Four 5" rubber casters — 2 fixed, 2 swivel with brake — move the loaded cart with controlled directional stability. The integrated powder-coated steel handle provides the leverage needed to push or pull heavy loads precisely. Powder-coat finish resists rust, chemical spills, and workshop wear. Made in Italy.
Frame, Shelf, Caster & Load Specifications
Overall Unit:

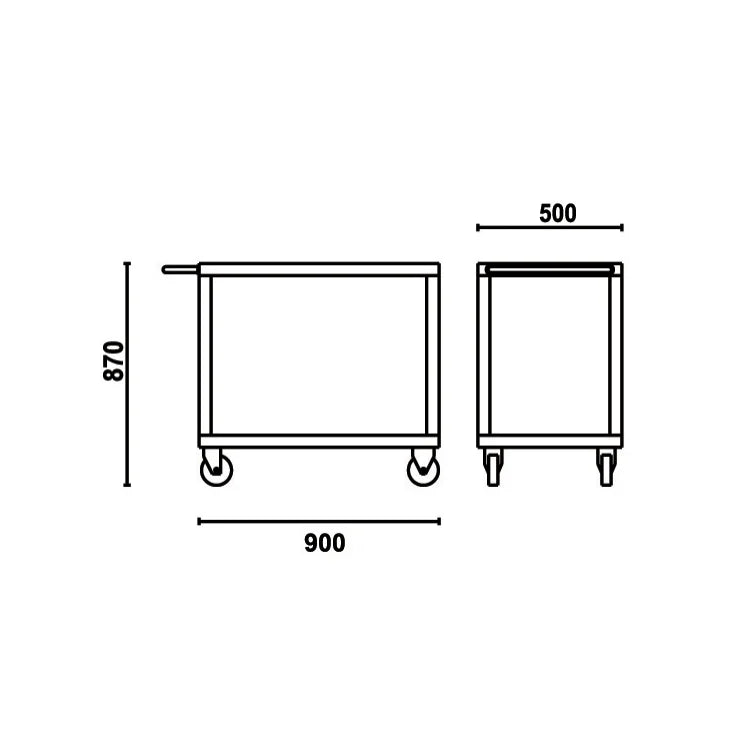

- Overall Dimensions: 35.4" L × 19.7" W × 34.3" H
- Frame Material: Heavy-duty powder-coated steel
- Static Load Capacity: 1,650 lbs (750 kg)
- Available Colors: Orange, Grey, Red
- Origin: Made in Italy
Shelves:
- Shelf Count: 2 reinforced shelves
- Shelf Liners: 2 × fitted ribbed rubber mats — oil-resistant, grip heavy items, protect shelf surface
- Anti-Fall Edges: Raised edges on both shelves — contain parts and equipment during transport over uneven floors
Mobility System:
- Casters: Four 5" (125mm) heavy-duty rubber casters — 2 fixed, 2 swivel with brake
- Handle: Integrated powder-coated steel handle for push/pull control under heavy load
- Caster Load Note: Engage swivel caster brake before loading to static capacity — unbraked casters under full load on smooth epoxy floors will drift
Placement, Load Distribution & Use Case Considerations
- Floor Load: Verify concrete slab or subfloor rating before positioning a fully loaded cart — 1,650 lb capacity concentrated on four caster contact points creates significant point load on the floor surface
- Footprint: 35.4" L × 19.7" W — verify aisle width and bay clearance before ordering; the cart requires maneuvering room proportional to its load when fully loaded
- Load Distribution: Distribute load evenly across both shelves where possible — avoid concentrating the full 1,650 lb capacity on the upper shelf only, which raises the center of gravity and increases tip risk on uneven surfaces
- Rubber Mat Use: The ribbed rubber mats grip heavy items but are not a substitute for securing loads — use straps or chains for engine blocks and transmissions during transport across longer distances or ramps
- Caster Brake: The brake locks one swivel caster — engage before loading and before any stationary work performed on or around the cart
- CP51 vs. Standard Shop Carts: The CP51 is an industrial transport cart, not a tool storage cart — it has no drawers, no locking system, and no tool organization features; choose it for moving heavy equipment and parts, not for tool storage
- Shipping: Ships via standard ground carrier — free to the lower 48 states
