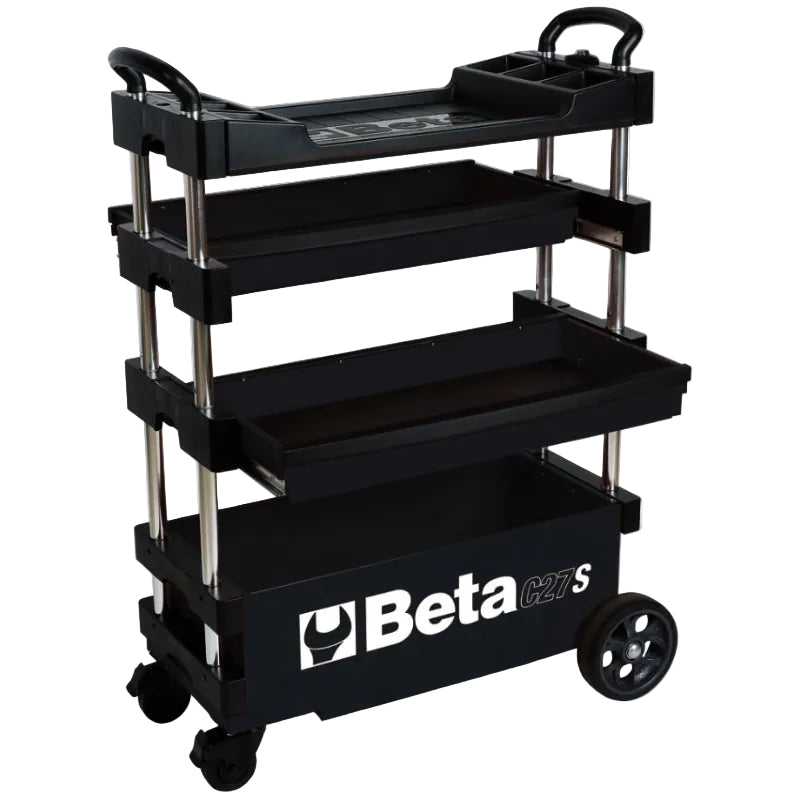

Beta Tools C27S Collapsible Mobile Tool Trolley & Cart
The Beta Tools C27S is a patented collapsible tool trolley that transitions from a 39.1" H × 27" L × 12" W working configuration to a 20" H × 27" L × 12" W transport configuration, with two dual-access 2.75" drawers on ball-bearing slides, one 8.6" deep lower compartment, a thermoplastic worktop with 6 molded parts trays, a centralized keyed lock with folding key, and a mixed caster system — two 6" fixed wheels and two 4" swivel casters with brakes — rated for 200 lbs combined load. Weight: 46 lbs.
Why Standard Rolling Cabinets Fail the Mobile Technician

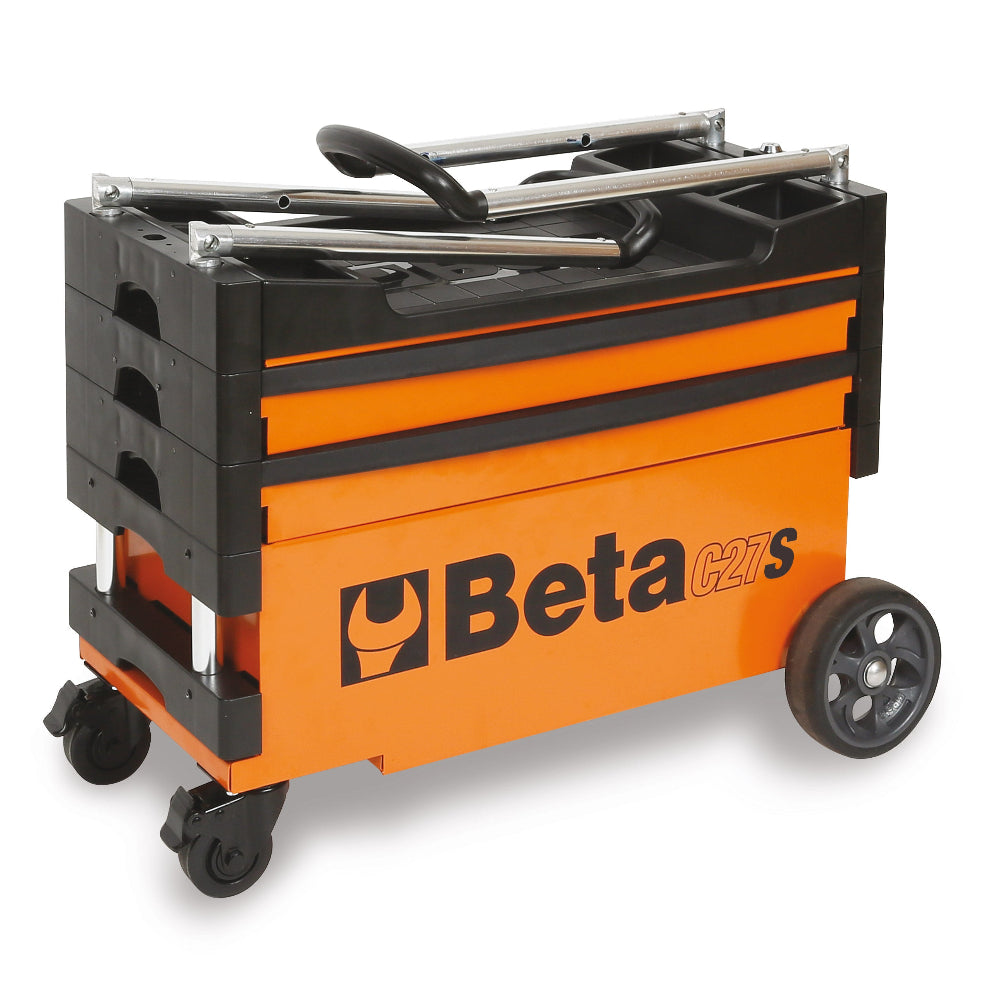

A fixed-height rolling cabinet cannot fit in a truck bed, van cargo area, or trailer without disassembly. The C27S resolves this directly: the patented collapsible frame reduces the working height from 39.1" to 20" in seconds — without removing tools or emptying drawers — allowing the cart to load flat into any standard vehicle. At the destination, it deploys to full working height and locks into position. The keyed centralized lock secures all drawers and the lower compartment in both open and collapsed configurations, eliminating the need to transfer tools to a separate transport case.
Frame, Drawer, Caster & Storage Specifications
Dimensions (Open/Working): 39.1" H (with handle) × 27" L × 12" W
Dimensions (Collapsed/Transport): 20" H × 27" L × 12" W
Weight: 46 lbs
Combined Load Capacity: 200 lbs
Frame Construction: Sheet metal with water-repellent surfaces — rated for indoor and outdoor use
Drawer & Storage Configuration:
- 2 × Dual-Access Drawers: 23.1" × 10.9" × 2.75" each — ball-bearing slides, open from both sides simultaneously; compatible with high-density foam tool organizers for tool protection and movement prevention during transport
- 1 × Lower Compartment: 23.1" × 10.9" × 8.6" deep — accommodates cordless tool bodies, extension cords, and bulky equipment
- Worktop: Thermoplastic surface with 6 molded compartments for small parts, fasteners, and precision instruments
- Locking System: Centralized keyed lock with folding key — secures all drawers and lower compartment in both open and collapsed positions; folding key collapses flush against the lock body to prevent key snapping during transport
Caster System:
- 2 × 6" fixed wheels (rear) — primary rolling axis for directional stability on uneven surfaces
- 2 × 4" swivel casters with brakes (front) — for tight-space maneuverability and stationary locking; brake system locks the swivel mechanism entirely, not just the wheel
Available Colors: Orange, Grey, Red, Black
SKUs: 27000201 (Orange) / 27000202 (Grey) / 27000203 (Red) / 27000205 (Black)
Origin: Beta Tools (Italy)
Transport Fit, Load Distribution & Use Case Considerations
- Transport Height: 20" collapsed — fits flat in standard truck beds, van cargo floors, and enclosed trailers without requiring a ramp or lift gate
- Footprint: 27" L × 12" W — verify cargo area width before ordering for van or trailer installations with fixed shelving
- Movement Note: Always pull the C27S using the handle — do not push — when moving in the expanded position. The folding handle is engineered to collapse inward when pushed (the mechanism that enables folding); pulling keeps the frame locked open and stable during movement
- Load Note: 200 lb combined capacity across all storage zones — distribute load evenly between drawers and lower compartment; avoid concentrating full capacity in the lower bin on uneven terrain
- Caster Load Note: Engage front swivel caster brakes before loading to capacity on smooth floors — the brake locks the swivel mechanism entirely, providing a rock-solid stationary base when used as a workbench
- Dual-Access Drawer Use Case: Both drawers open from either side — position the cart between two work zones (e.g., vehicle and workbench) for tool access without repositioning the cart
- Foam Insert Compatibility: The 2.75" drawer depth is sized for standard high-density foam tool organizers — foam inserts prevent tool movement and damage during transport and keep inventory organized between deployments
- Lower Compartment: At 8.6" deep, accommodates cordless tool bodies, extension bars, and equipment cases that don't fit in the 2.75" drawers
- C27S vs. RSC24 Rolling Cabinets: Choose the C27S for mobile deployment (track days, job sites, multi-location work); choose the RSC24 series for fixed garage or workshop installations requiring higher load capacity and drawer count
- Water-Repellent Construction: Rated for outdoor use — suitable for trackside, construction sites, and covered outdoor work areas; not rated for submersion or prolonged rain exposure
