Auxx-Lift Motorized Garage Ceiling Storage Lift - 400 or 600 lb Capacity

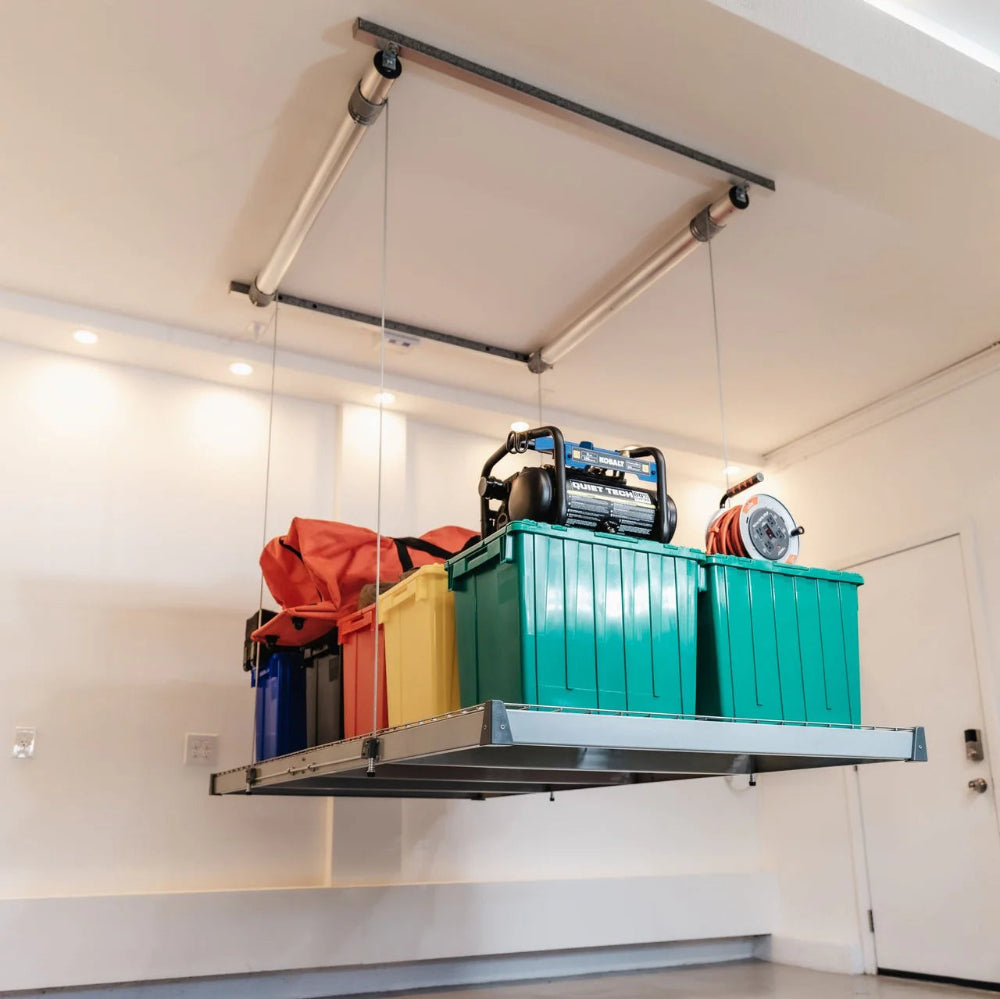

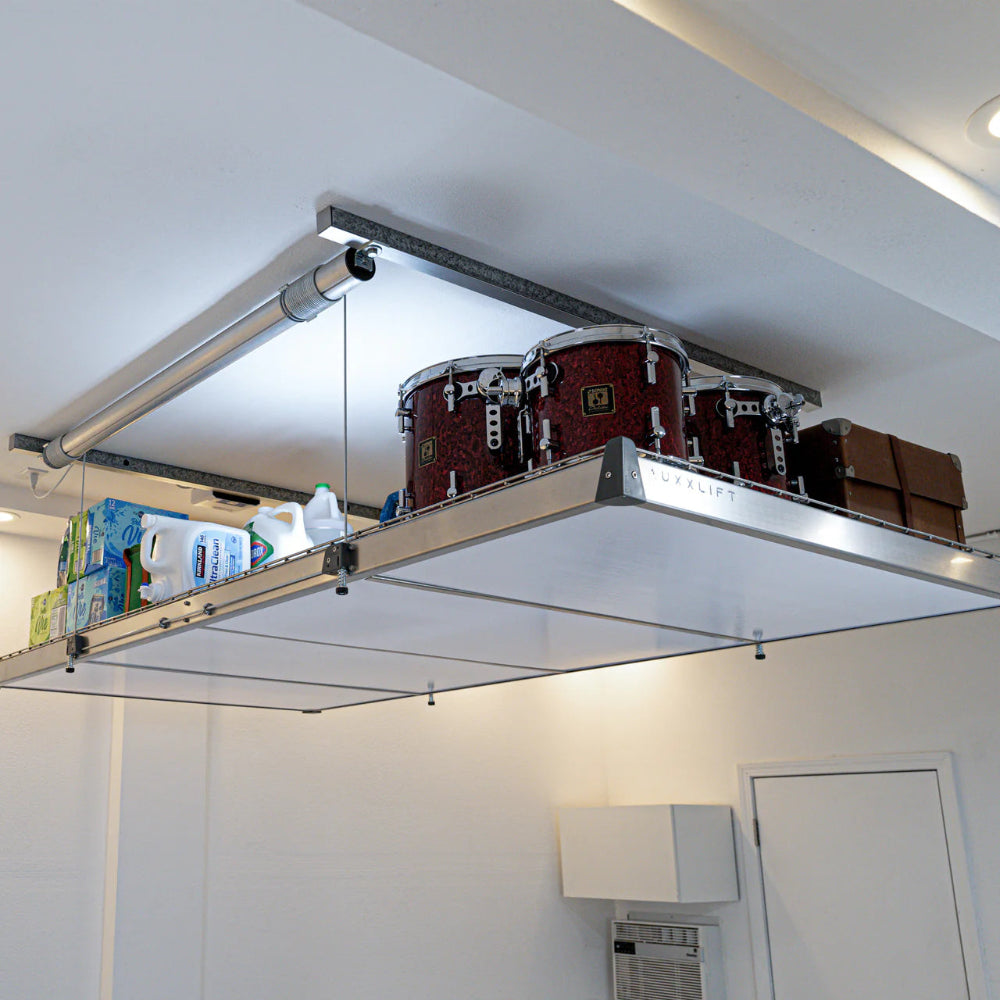

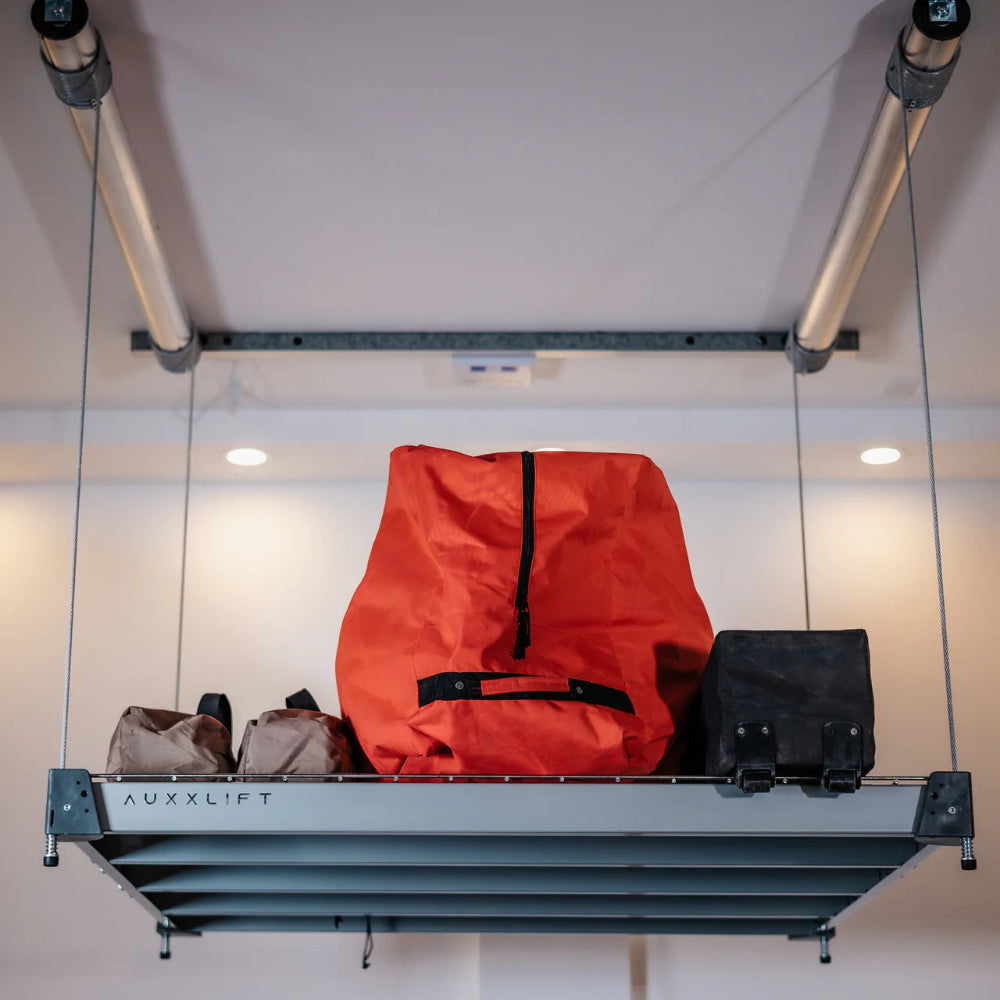

The Auxx-Lift is a UL-tested motorized garage ceiling storage lift rated at 400 or 600 lbs, suspended on 1/8" vinyl-coated 7×19 steel aircraft cables with 2,000 lb tensile strength, ceiling-mounted via 1-5/8" × 60" strut channels and SPAX® 5/16" × 4" lag bolts, and operated via 433.92 MHz wireless remote — available in four platform sizes (3×6, 3×8, 4×6, 4×8) and four finishes (Silver Gray, Pearl White, Stainless Steel, Onyx Black). Over 11,000 lifts sold. Made in the USA.

Why Fixed Overhead Shelving Fails the Working Garage

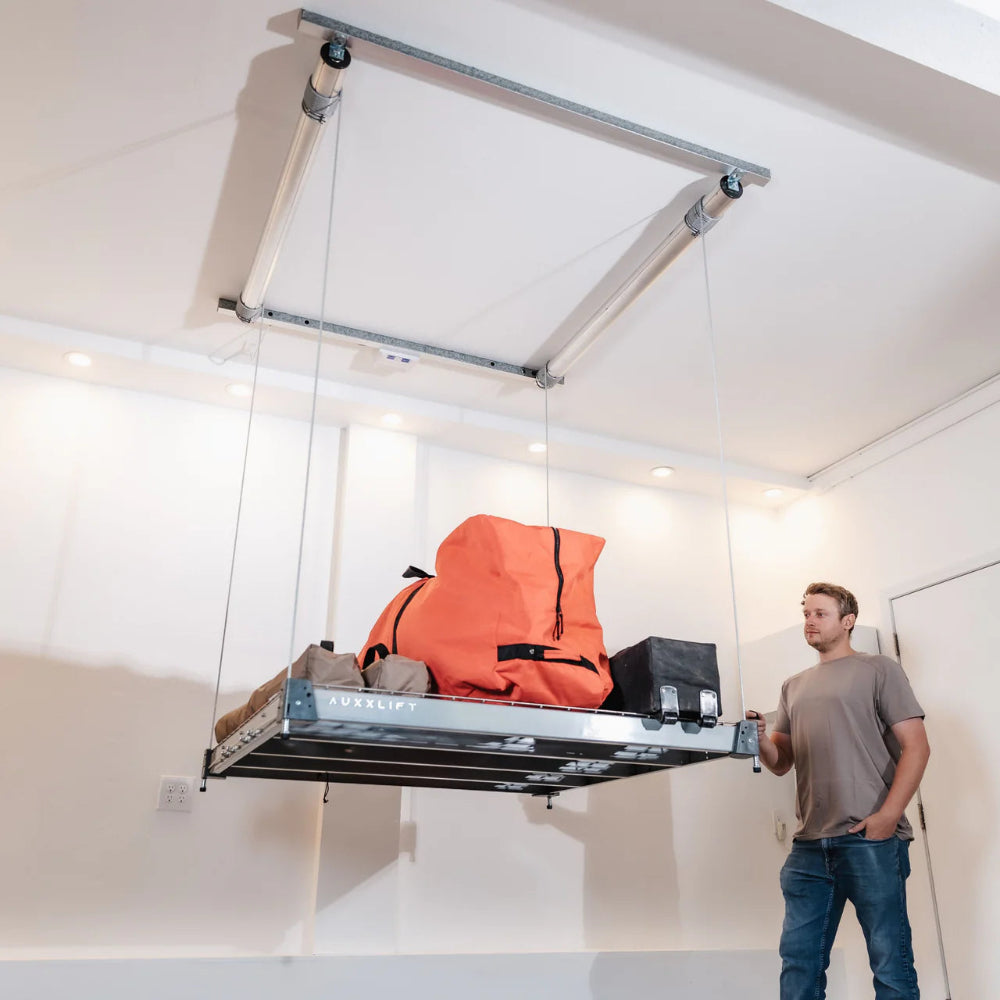

Fixed ceiling storage requires a ladder for every access cycle, creates a static obstruction at head height, and cannot be repositioned once installed. The Auxx-Lift eliminates all three constraints: the platform descends to floor level on demand via wireless remote, stores at ceiling height when not in use, and programmable stop points prevent contact with the ceiling or floor regardless of operator input. The Auto-Stop safety feature activates if the remote loses connection or battery power is interrupted — the platform does not move without continuous Active-Press control input.

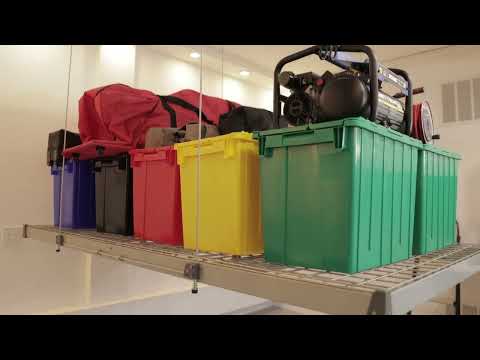

See it in action:

Motor, Cable, Platform & Electrical Specifications

Motor (per unit — 2 motors per lift):

• Type: IP44-rated T-Motor
• Power: 235W | 2.2A | 13 rpm
• Input: 100–120V AC single phase
• Duty Cycle at Max Capacity: 3 min on / 15 min off

Cable:

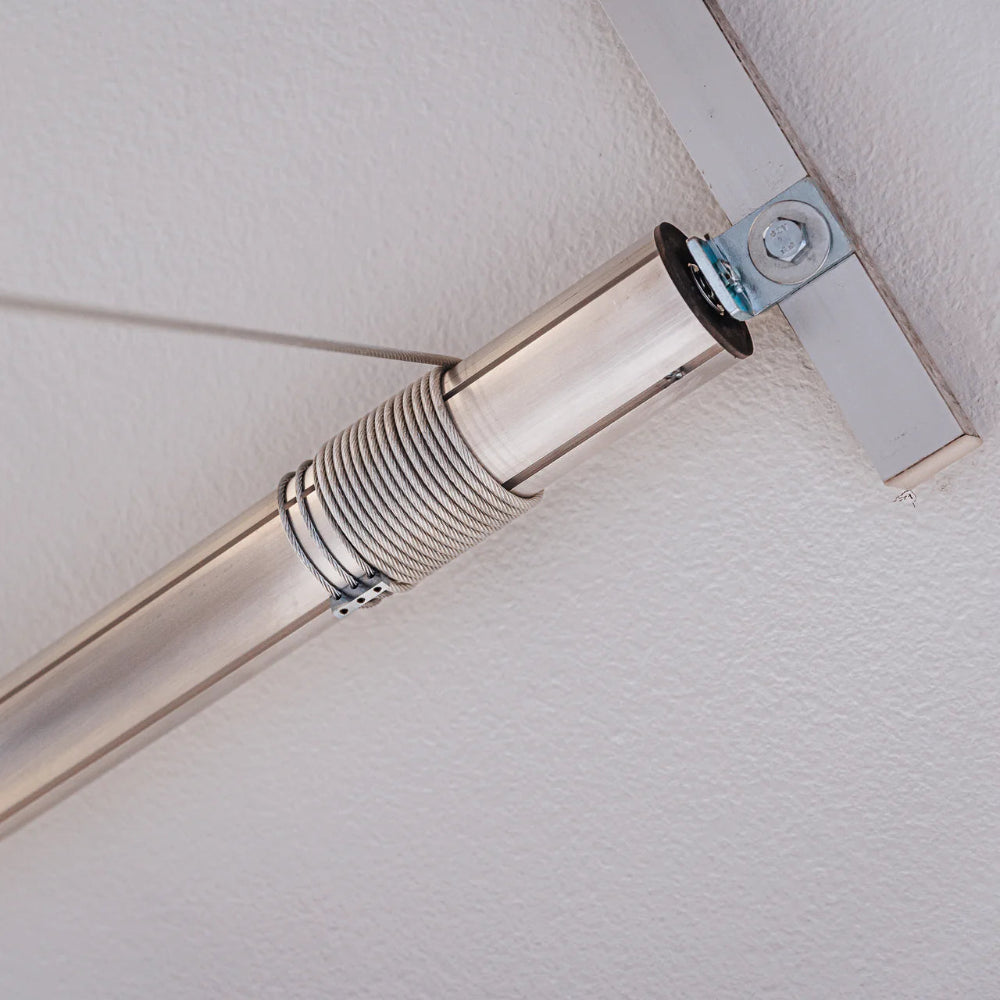

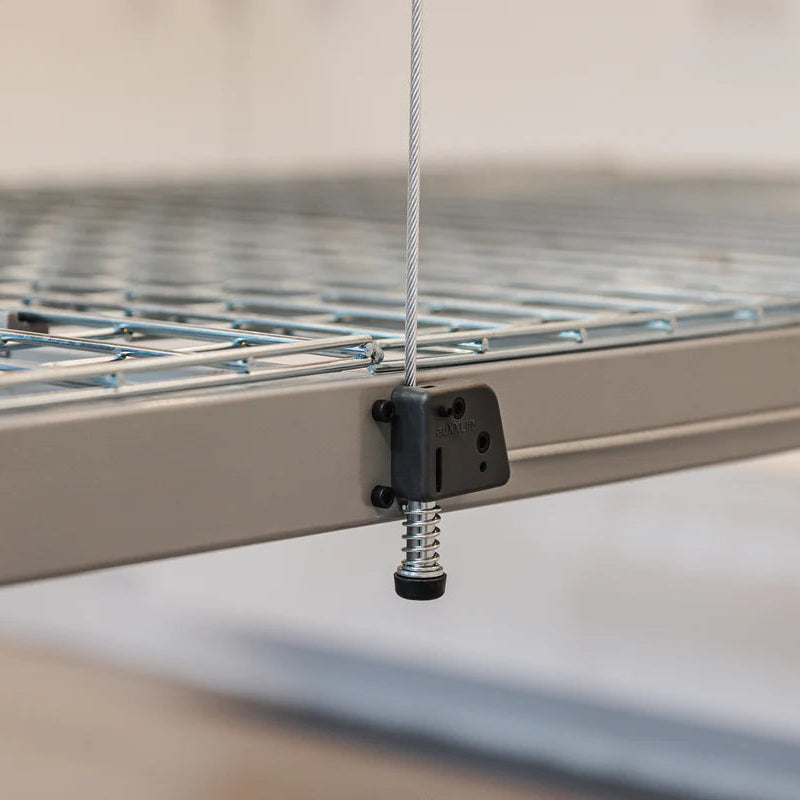

• Spec: 1/8" vinyl-coated 7×19 steel aircraft cable
• Tensile Strength: 2,000 lbs per cable

Platform:

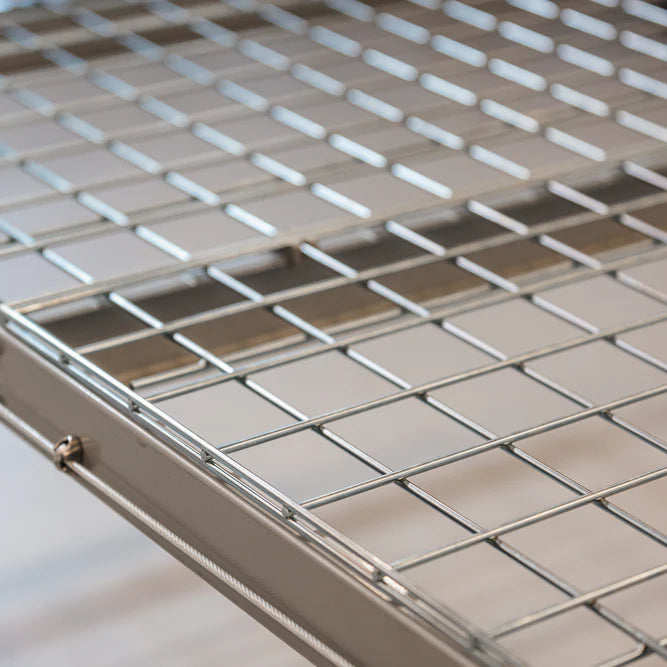

• Surface: Galvanized 4-gauge wire mesh

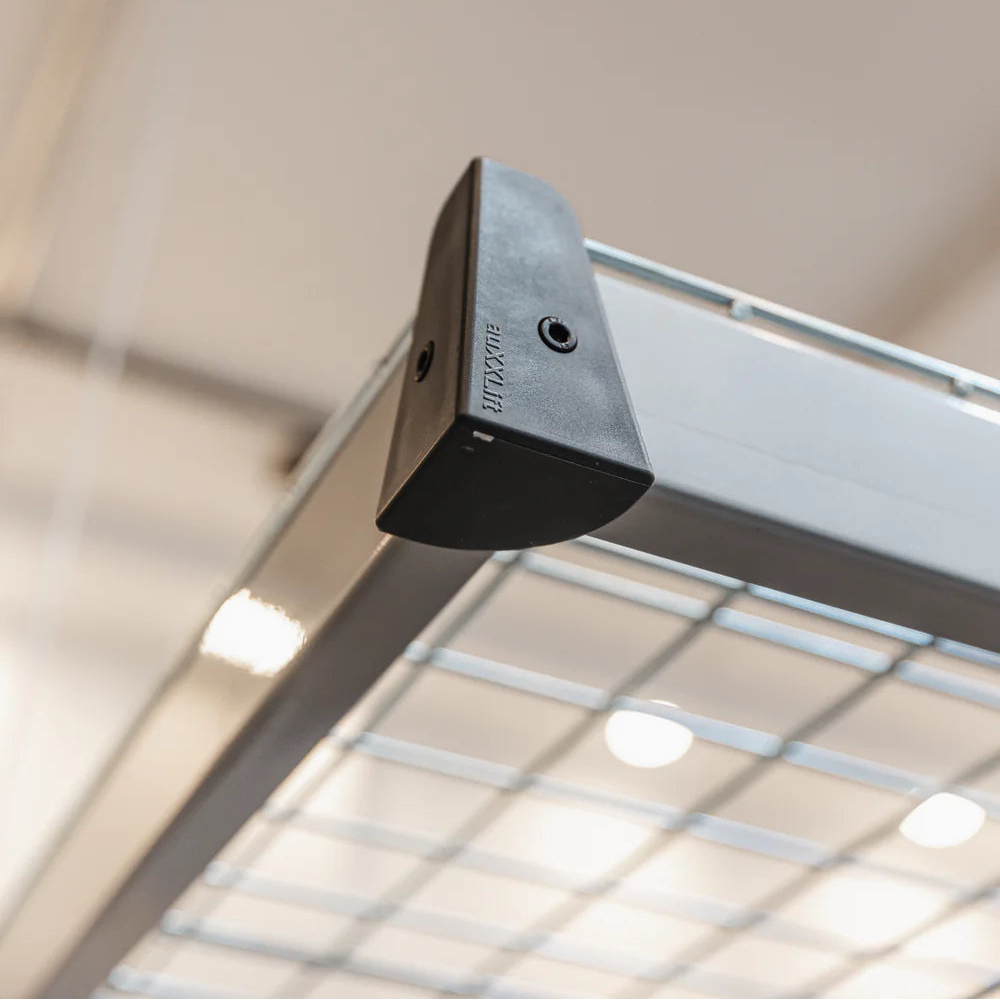

• Frame: 15-gauge C-channel support
• Thickness: 2.5"
• Weight: 128 lbs
• Min. Stored Height (ceiling to platform bottom): 8"
• Available Sizes: 3×6 ft | 3×8 ft | 4×6 ft | 4×8 ft

Lifting Capacity by Model:

• Auxx-Lift 1400 (400 lb): Max travel 13'6" — extendable to 18' with optional extension kit
• Auxx-Lift 1600 (600 lb): Max travel 13'6"

Electrical:

• Circuit: 110V/120V | 15 amp minimum
• Cord: 10 ft with NEMA 5-15 plug — no special wiring required
• Remote Frequency: 433.92 MHz wireless
• Avg. Travel Time: ~30 seconds for 9 ft ceiling

Available Finishes: Silver Gray | Pearl White | Stainless Steel | Onyx Black

Manufacturer: Made in the USA using SPAX® fasteners

Structural Requirements: Ceiling, Joist, Circuit & Clearance

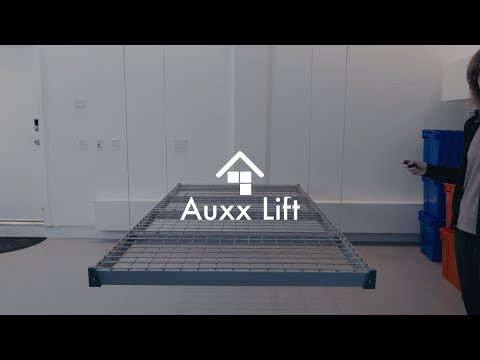

Watch the full installation walkthrough before you begin:

• Mounting Area Required: 5 ft × 5 ft minimum over 3 joists or rafters — verify joist spacing before ordering
• Joist Requirement: Must span 3 structural joists or rafters — not rated for single-joist or drywall-only mounting
• Lag Bolt Spec: (8) SPAX® 5/16" × 4" lag bolts included — minimum 2.5" embedment into structural lumber required

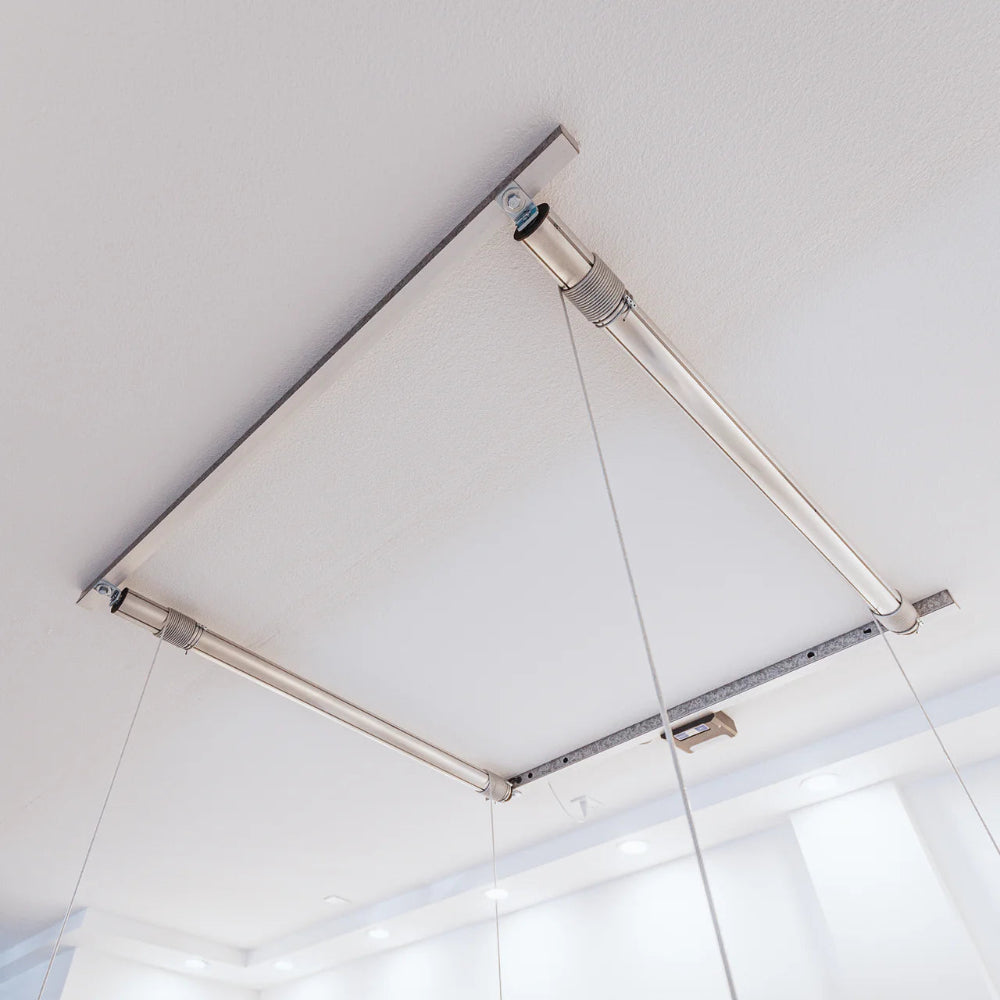

• Strut Channels: (2) 1-5/8" × 60" channels span across joists — confirm joist direction relative to desired platform orientation before installation
• Ceiling Height Minimum: 8" clearance required above platform at stored position — account for platform thickness (2.5") plus load height when calculating ceiling clearance
• Circuit Requirement: Dedicated 15 amp, 110V/120V circuit within 10 ft of mounting location — extension cords are not rated for continuous motor load
• Platform Size Selection: Choose based on the largest item you intend to store — the platform cannot be resized after installation
• Motor Selection: Choose 400 lb (1400) for seasonal gear and bins; choose 600 lb (1600) for heavy equipment, tool cases, or vehicle parts
• Extension Kit Compatibility: Travel extension to 18' is available for the Auxx-Lift 1400 only — not compatible with the 1600 model

What's in the Box

• 2 × IP44 T-Motors (235W each)
• 1 × Controller
• 1 × Wireless Remote Control (433.92 MHz)
• 2 × 1-5/8" × 60" C-Strut Channels
• 1 × Platform (galvanized 4-gauge wire mesh, 15-gauge C-channel frame)
• 1 × Mounting Hardware Kit (SPAX® 5/16" × 4" lag bolts included)

The GarageForm Difference: Technical Authority, Not Just a Catalog

Technical Screening: We don't list overhead storage products without vetting them. The Auxx-Lift has been verified for UL test compliance, motor IP rating, cable tensile strength specification, and structural mounting requirements to ensure the performance data on this page reflects the actual product — not marketing copy.

Direct Expert Support: We serve as your technical interface. If you need assistance calculating ceiling clearance for your specific load height, verifying joist spacing compatibility, selecting between the 400 lb and 600 lb motor configurations, or confirming circuit requirements for your garage electrical layout, our experts provide pre-sale consulting at no charge.

Straightforward Purchasing: Free shipping on this lift. If the Auxx-Lift doesn't meet your structural or dimensional requirements after delivery, our return process is handled by our specialized team — not a generalist call center.
