Beta Tools RSC24 Heavy-Duty 5-Drawer Rolling Tool Cabinet
The Beta Tools RSC24 5-Drawer is a 29.1" × 17.5" × 38.1" Italian-manufactured rolling tool cabinet configured for deep storage — two 2.76" shallow drawers, two 5.5" medium drawers, and one 11" extra-deep bottom drawer — on a 20-gauge steel structure rated for a 1,760 lb static load and four 5" casters (2 fixed, 2 swivel with brake).
When Standard Drawer Depths Can't Accommodate Your Equipment
Circular saws, welding helmets, large impact cases, and cordless tool bodies exceed the depth capacity of standard 2.76" and 5.5" drawers. The RSC24 5-Drawer's 11" extra-deep bottom drawer resolves this directly — providing a single dedicated storage zone for oversized equipment that would otherwise occupy floor space, shelf space, or the cabinet worktop. The two shallow and two medium drawers above handle hand tools and mid-size accessories in single-layer visibility.
See it in action:
Introduction from Beta Tools HQ:
20-Gauge Italian Steel Construction: Load, Drawer, Caster & Accessory Specifications
- Cabinet Dimensions: 29.1" L × 17.5" W × 38.1" H
- Steel Gauge: 20-gauge structural steel body with reinforced worktop
- Static Load Rating: 1,760 lbs
- Cabinet Weight: 132 lbs
- Drawer Configuration: 2 × 2.76" shallow + 2 × 5.5" medium + 1 × 11" extra-deep = 5 total
- Drawer Slides: Ball-bearing slides on all 5 drawers for smooth, full-extension operation
- Drawer Liners: Foam rubber mats standard on all drawers
- Work Surface: Multi-purpose top with anti-fall edges for parts staging
- Locking System: Centralized front safety lock secures all drawers simultaneously
- Casters: Four 5" casters — 2 fixed, 2 swivel with brake — for controlled mobility when fully loaded
- Integrated Accessory: Side-mounted bottle/spray can holder included as standard
- Included: Cabinet, foam drawer liners (all 5 drawers), side bottle/spray can holder, 2 keys — tools not included
- Origin: Manufactured in Italy
- Available Colors: Orange, Red, Blue, Grey, Black
- SKUs: 24004651 (Orange) / 24004653 (Red) / 24004656 (Blue) / 24004657 (Grey) / 24004659 (Black)
Inside the RSC24
CUSTOMIZABLE DRAWERS
Up to 4 EVA foam trays or ABS thermoformed trays can be inserted in each drawer.
FRONT CENTRALIZED LOCK
A single keyed front lock secures all drawers simultaneously — one key, full cabinet security.
ANTI-FALL EDGES
Raised edges on the worktop surface keep small parts, fasteners, and tools contained during active use — nothing rolls off the staging surface.
MAXIMUM MOBILITY AND STABILITY
Four 125mm (5") rubber casters — 2 fixed for directional stability, 2 swivel for maneuverability, with brake — rated to move the cabinet fully loaded.

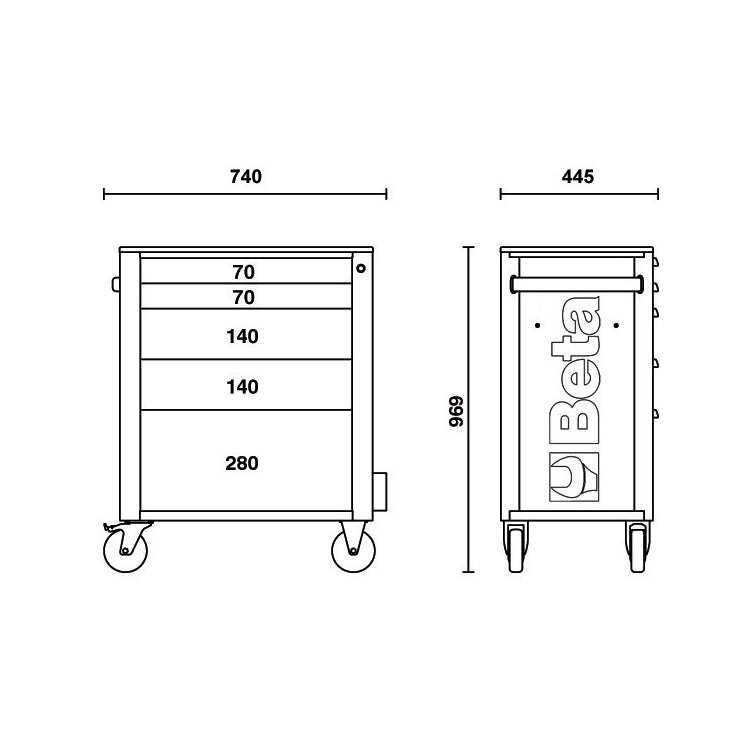

CABINET DIMENSIONS
29.1" L × 17.5" W × 38.1" H — drawer depth breakdown: 2 × 2.76" shallow, 2 × 5.5" medium, 1 × 11" extra-deep.
Configuration Selection: RSC24 5-Drawer vs. 7-Drawer vs. 8-Drawer
- Choose the 5-Drawer if: Your collection includes circular saws, welding helmets, large impact cases, or cordless tool bodies that exceed 5.5" depth — the 11" bottom drawer is the only RSC24 configuration that accommodates these without stacking or external storage
- Choose the 7-Drawer if: You carry a balanced mix of hand tools and mid-size accessories and need one deep drawer (8.27") alongside shallow storage
- Choose the 8-Drawer if: Your collection is predominantly small hand tools (sockets, pliers, precision instruments) requiring maximum shallow-drawer density
- Footprint: 29.1" × 17.5" — identical across all RSC24 configurations; confirm bay clearance once, applies to all three models
- Caster Load Note: Engage swivel caster brakes before loading to static capacity on smooth epoxy or tiled floors
- Pairing Compatibility: Designed to pair with Beta Tools top chests and hutch units in the RSC series for vertical expansion
Choosing between Beta and Snap-on?
Discover why the RSC24 is the preferred choice for technicians who prioritize high-density foam organization and Italian-engineered mobility over traditional mass.
Not sure which RSC24 configuration is right for your tool inventory? Read our full RSC24 configuration comparison guide →
