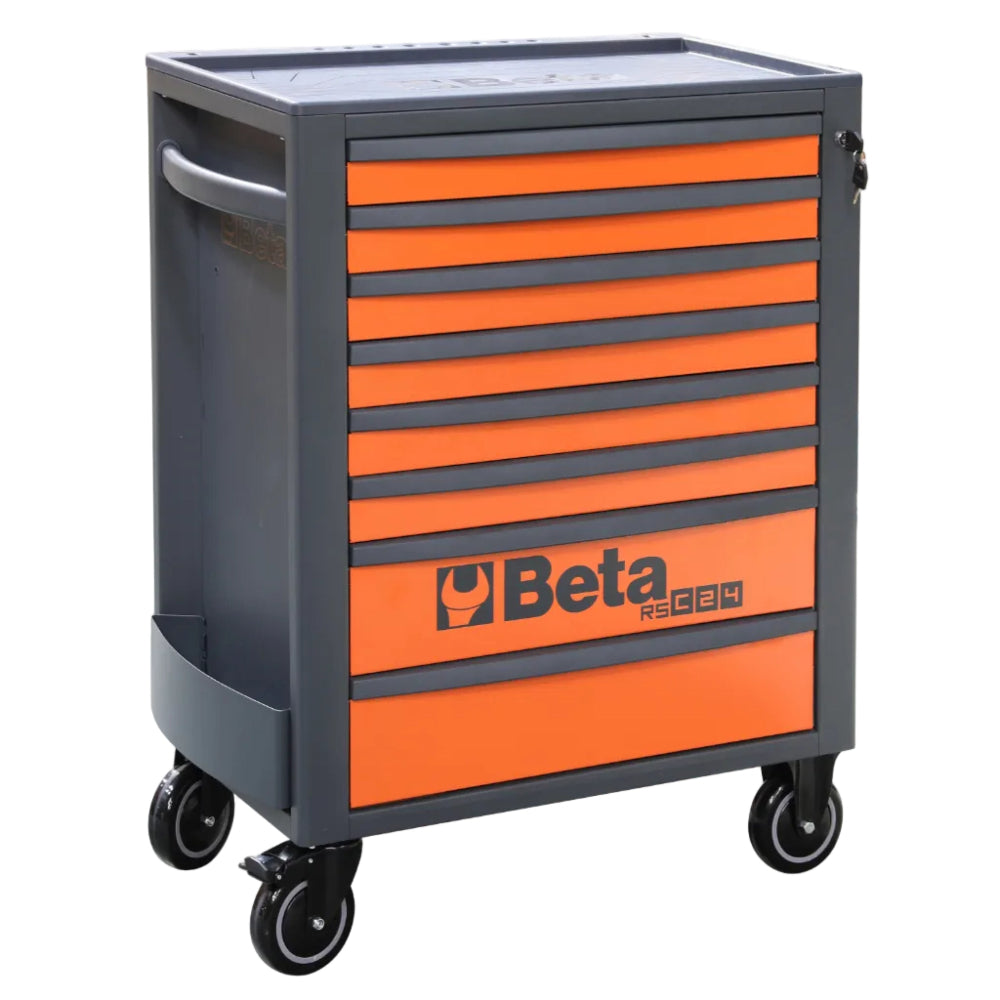

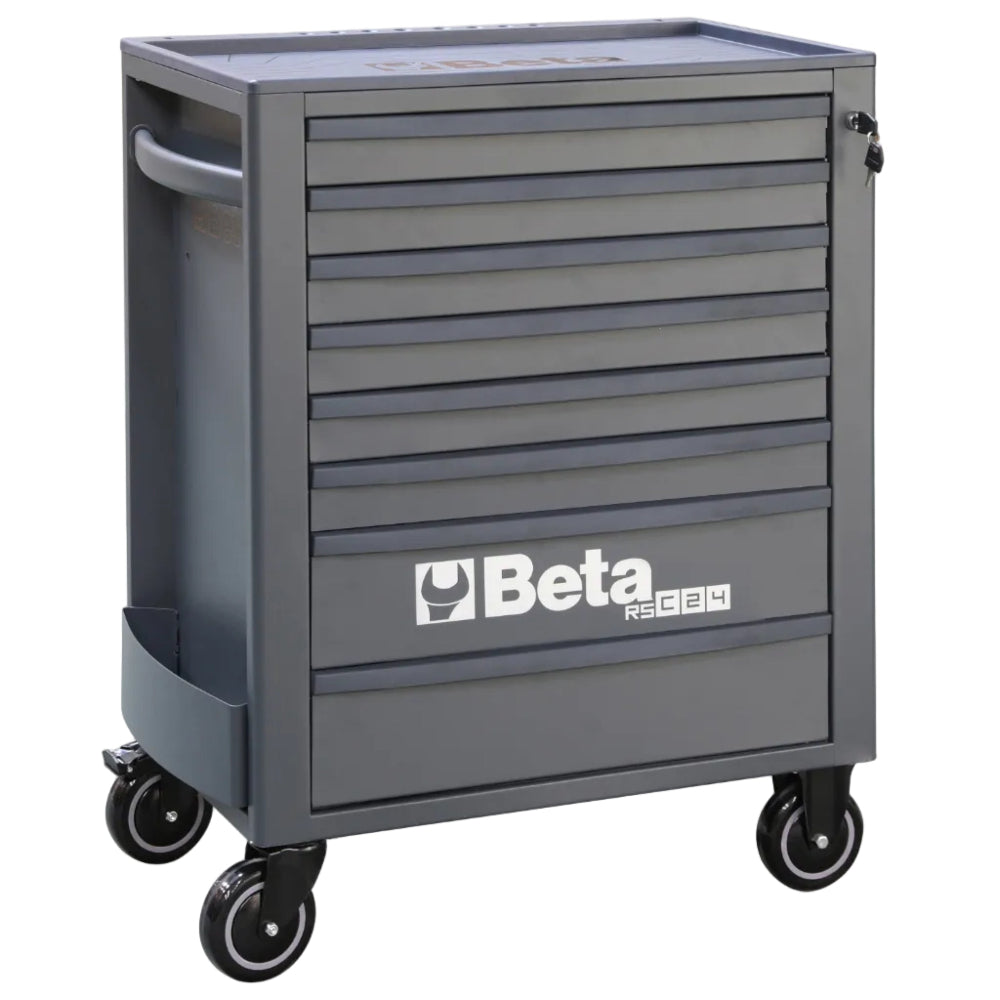

Beta Tools RSC24 Heavy-Duty 8-Drawer Rolling Tool Cabinet
⚠️ Limited Color Availability: The Blue and Orange variants are currently out of stock and expected to be back in stock by end of June 2026. The Red, Grey, and Black variants are available and ship immediately. Contact us to be notified when Blue and Orange return.

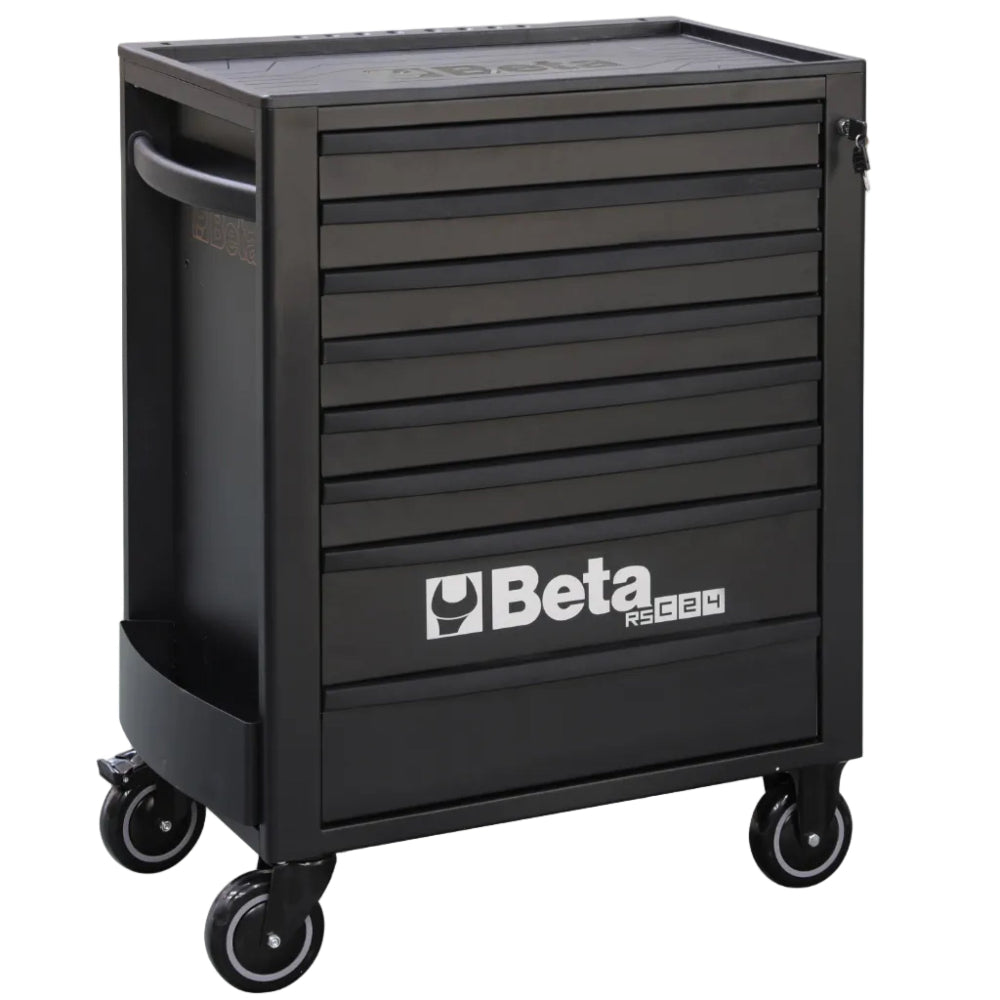

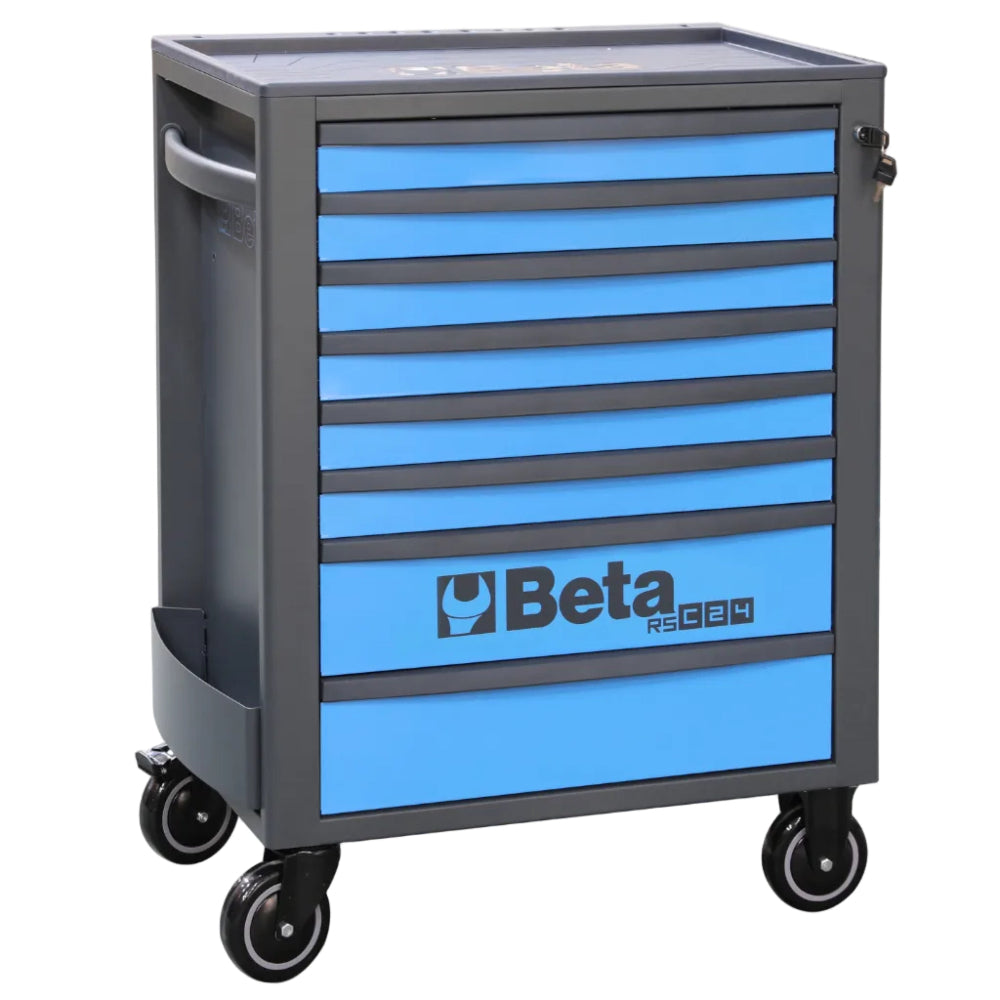

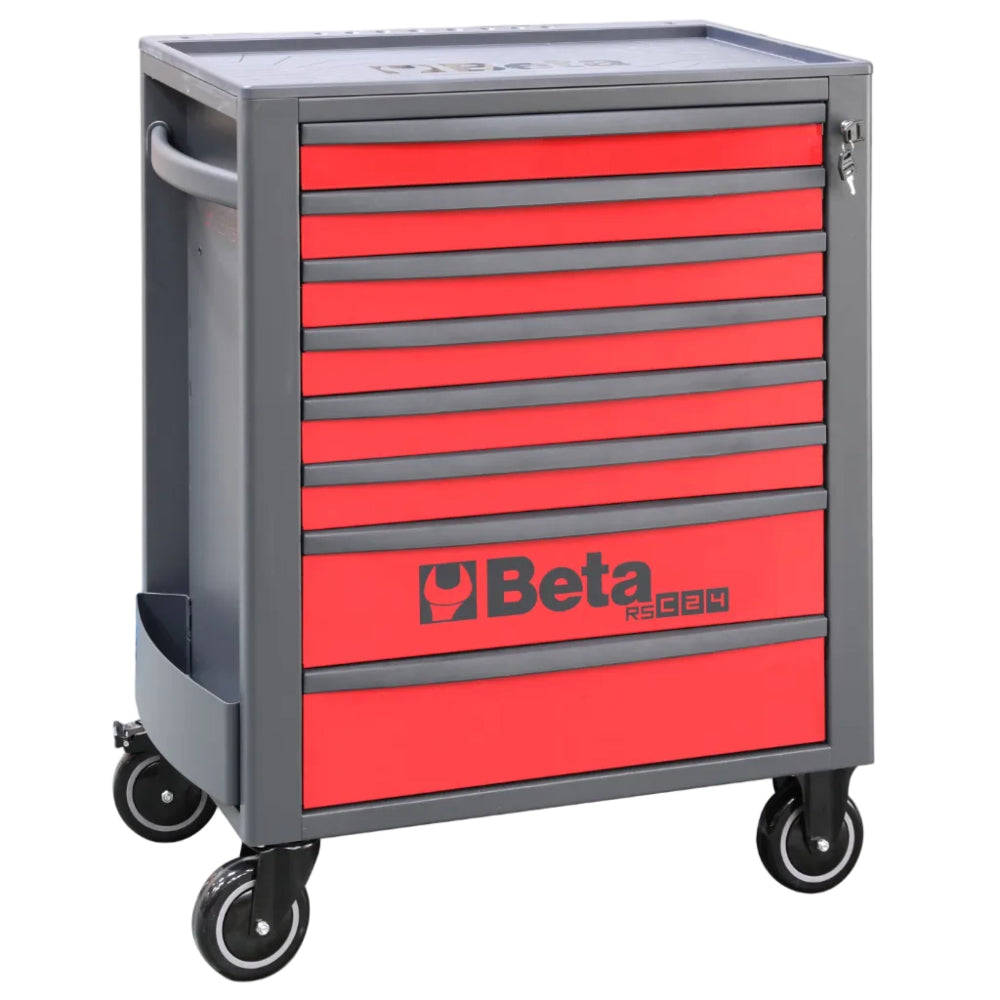

The Beta Tools RSC24 8-Drawer is a 29.1" × 17.5" × 38.1" Italian-manufactured rolling tool cabinet with 8 drawers — 6 shallow at 2.76" and 2 medium at 5.5" — built on a 20-gauge steel structure rated for a 1,760 lb static load and four 5" casters (2 fixed, 2 swivel with brake).
Why High-Density Shallow Storage Outperforms Deep-Drawer Configurations
Deep drawers force tool stacking, which eliminates visual inventory at a glance and increases retrieval time during a repair sequence. The RSC24's 6-shallow-drawer configuration keeps every socket set, pliers set, and precision instrument in a single layer — visible and accessible without lifting or shifting adjacent tools.
See it in action:

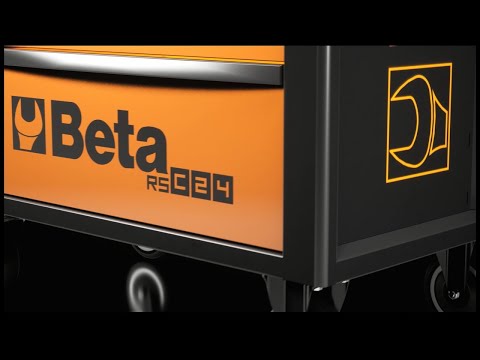

Introduction from Beta Tools HQ:
20-Gauge Italian Steel Construction: Load, Slide, Caster & Surface Specifications
- Cabinet Dimensions: 29.1" L × 17.5" W × 38.1" H
- Steel Gauge: 20-gauge structural steel body with reinforced worktop
- Static Load Rating: 1,760 lbs
- Cabinet Weight: 146 lbs
- Drawer Configuration: 6 × 2.76" shallow + 2 × 5.5" medium = 8 total
- Drawer Slides: Ball-bearing slides on all 8 drawers for smooth, full-extension operation
- Drawer Liners: Foam rubber mats standard on all drawers

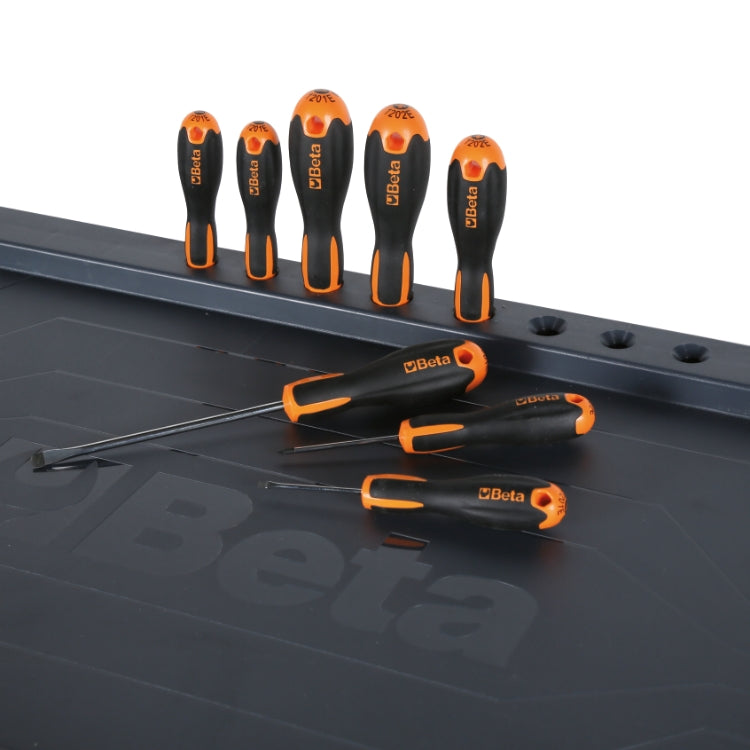

- Work Surface: Multi-purpose top with anti-fall edges for parts staging
- Locking System: Centralized front safety lock secures all drawers simultaneously
- Casters: Four 5" casters — 2 fixed, 2 swivel with brake — for controlled mobility when fully loaded
- Integrated Accessory: Side-mounted bottle/spray can holder included as standard
- Included: Cabinet, foam drawer liners (all 8 drawers), side bottle/spray can holder, 2 keys — tools not included
- Origin: Manufactured in Italy
- Available Colors: Red, Orange, Blue, Grey, Black
- SKUs: 24004683 (Red) / 24004681 (Orange) / 24004686 (Blue) / 24004687 (Grey) / 24004689 (Black)
Inside the RSC24

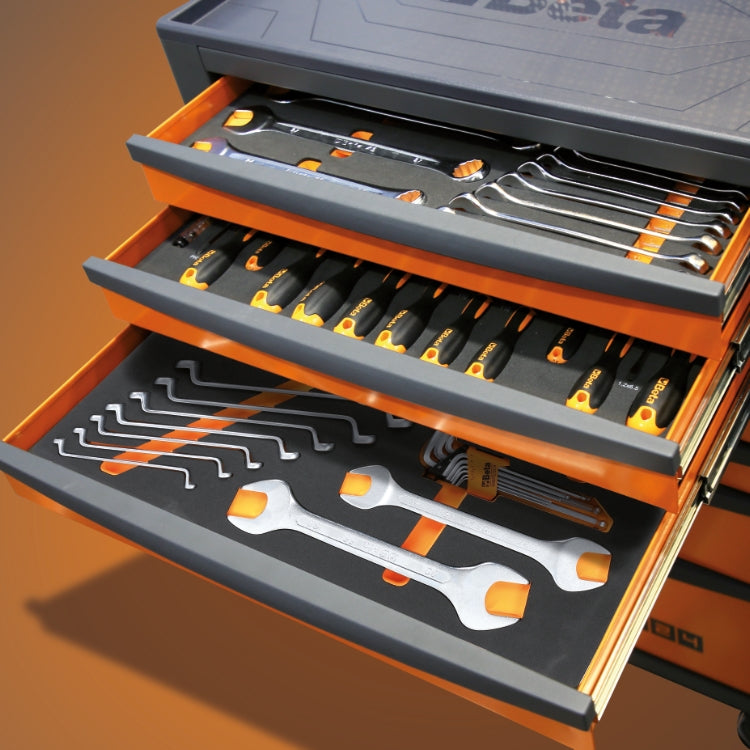

CUSTOMIZABLE DRAWERS
Up to 4 EVA foam trays or ABS thermoformed trays can be inserted in each drawer.

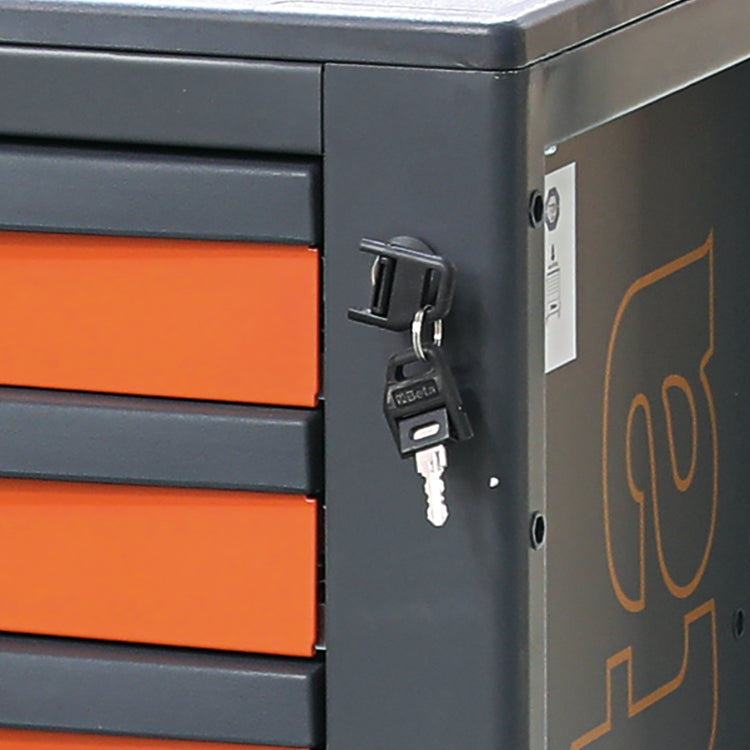

FRONT CENTRALIZED LOCK
A single keyed front lock secures all drawers simultaneously — one key, full cabinet security.

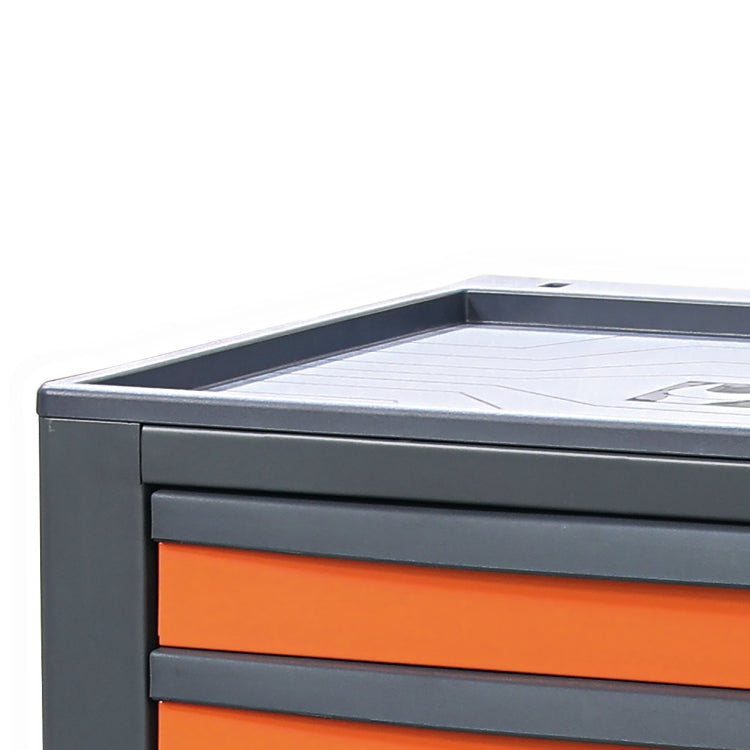

ANTI-FALL EDGES
Raised edges on the worktop surface keep small parts, fasteners, and tools contained during active use — nothing rolls off the staging surface.

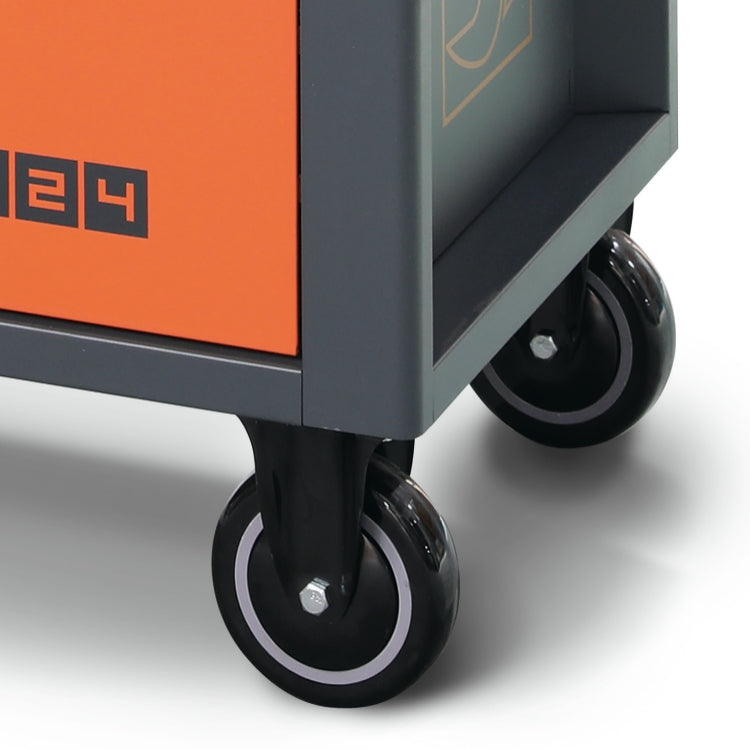

MAXIMUM MOBILITY AND STABILITY
Four 125mm (5") rubber casters — 2 fixed for directional stability, 2 swivel for maneuverability, with brake — rated to move the cabinet fully loaded.

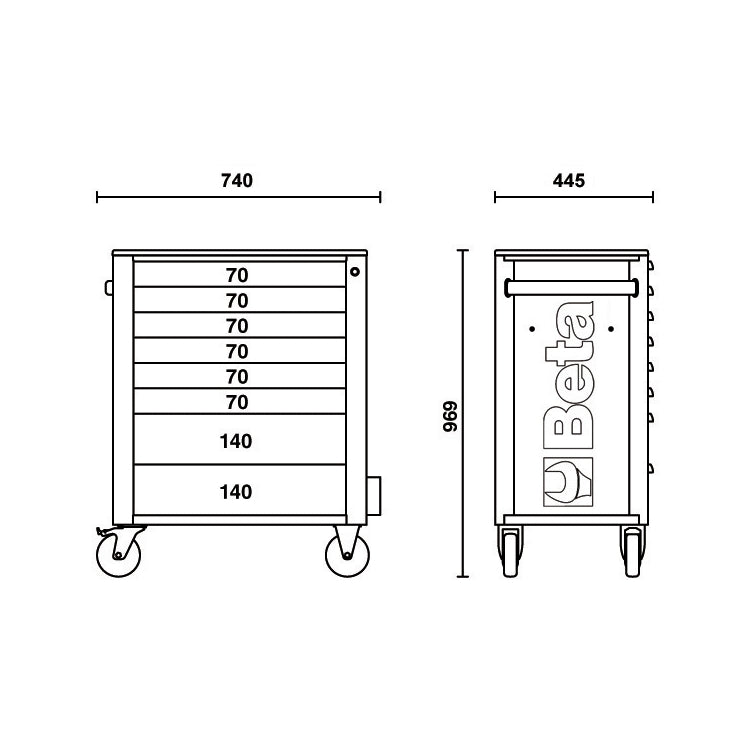

CABINET DIMENSIONS
29.1" L × 17.5" W × 38.1" H — drawer depth breakdown: 6 × 2.76" shallow, 2 × 5.5" medium.
Mobility, Footprint & Drawer Selection Considerations
- Caster Load Note: Engage swivel caster brakes before loading to static capacity — unbraked casters under full load on smooth epoxy floors will drift
- Footprint: 29.1" × 17.5" — identical to the RSC24 7-drawer; confirm bay clearance before ordering
- Worktop Height: 38.1" — ergonomically positioned for standing work without bending
- RSC24 8 vs. RSC24 7: Choose the 8-drawer if your collection is predominantly small hand tools requiring maximum shallow-drawer density; choose the 7-drawer if you carry a mix of hand tools and larger accessories requiring the 8.27" deep bottom drawer
- Pairing Compatibility: Designed to pair with Beta Tools top chests and hutch units in the RSC series for vertical expansion
