Beta Tools RSC24 Heavy-Duty 7-Drawer Rolling Tool Cabinet
⚠️ Limited Color Availability: The Orange, Red, and Black variants are currently out of stock and expected to be back in stock by end of June 2026. The Blue and Grey variants are available and ship immediately. Contact us to be notified when your preferred color returns.
The Beta Tools RSC24 7-Drawer is a 29.1" × 17.5" × 38.1" Italian-manufactured rolling tool cabinet combining five 2.76" shallow drawers, one 5.5" medium drawer, and one 8.27" deep drawer — on a 20-gauge steel structure rated for a 1,760 lb static load and four 5" casters (2 fixed, 2 swivel with brake).
Why Mixed-Depth Drawer Configurations Outperform Single-Depth Layouts
A uniform shallow-drawer cabinet forces large tools into undersized spaces or onto the worktop. A uniform deep-drawer cabinet wastes vertical space on small tools and eliminates single-layer visibility. The RSC24 7-drawer resolves both failure modes with a tiered configuration: five shallow drawers for hand tools at single-layer visibility, one medium drawer for mid-size items, and one 8.27" deep bottom drawer for power tool accessories, extension bars, and bulkier equipment.
See it in action:
Introduction from Beta Tools HQ:
20-Gauge Italian Steel Construction: Load, Slide, Caster & Surface Specifications
- Cabinet Dimensions: 29.1" L × 17.5" W × 38.1" H
- Steel Gauge: 20-gauge structural steel body with reinforced worktop
- Static Load Rating: 1,760 lbs
- Cabinet Weight: 139 lbs
- Drawer Configuration: 5 × 2.76" shallow + 1 × 5.5" medium + 1 × 8.27" deep = 7 total
- Drawer Slides: Ball-bearing slides on all 7 drawers for smooth, full-extension operation
- Drawer Liners: Foam rubber mats standard on all drawers
- Work Surface: Multi-purpose top with anti-fall edges for parts staging
- Locking System: Centralized front safety lock secures all drawers simultaneously
- Casters: Four 5" casters — 2 fixed, 2 swivel with brake — for controlled mobility when fully loaded
- Integrated Accessory: Side-mounted bottle/spray can holder included as standard
- Included: Cabinet, foam drawer liners (all 7 drawers), side bottle/spray can holder, 2 keys — tools not included
- Origin: Manufactured in Italy
- Available Colors: Blue, Orange, Red, Grey, Black
- SKUs: 24004676 (Blue) / 24004671 (Orange) / 24004673 (Red) / 24004677 (Grey) / 24004679 (Black)
Inside the RSC24
CUSTOMIZABLE DRAWERS
Up to 4 EVA foam trays or ABS thermoformed trays can be inserted in each drawer.
FRONT CENTRALIZED LOCK
A single keyed front lock secures all drawers simultaneously — one key, full cabinet security.
ANTI-FALL EDGES
Raised edges on the worktop surface keep small parts, fasteners, and tools contained during active use — nothing rolls off the staging surface.
MAXIMUM MOBILITY AND STABILITY
Four 125mm (5") rubber casters — 2 fixed for directional stability, 2 swivel for maneuverability, with brake — rated to move the cabinet fully loaded.

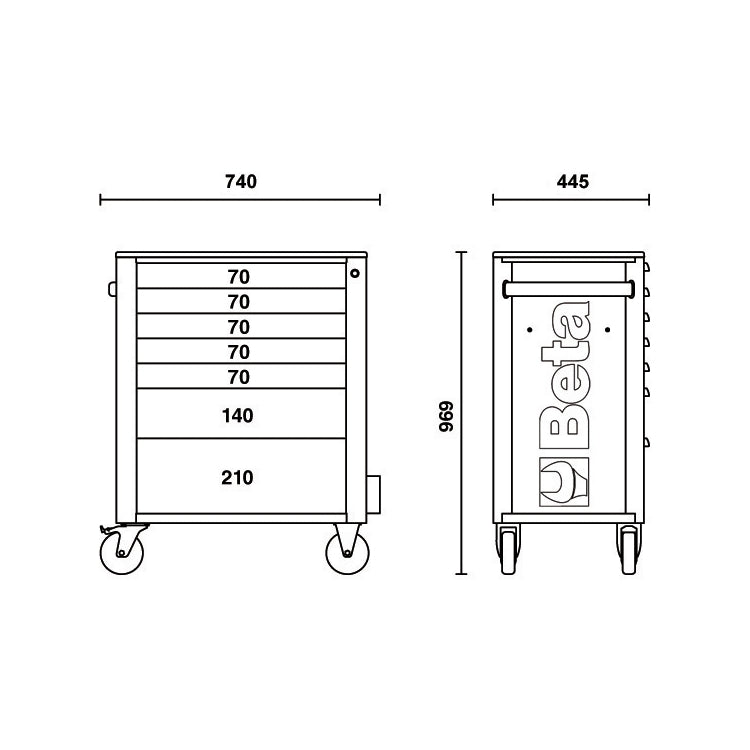

CABINET DIMENSIONS
29.1" L × 17.5" W × 38.1" H — drawer depth breakdown: 5 × 2.76" shallow, 1 × 5.5" medium, 1 × 8.27" deep.
Mobility, Footprint & Drawer Selection Considerations
- Caster Load Note: Engage swivel caster brakes before loading to static capacity — unbraked casters under full load on smooth epoxy floors will drift
- Footprint: 29.1" × 17.5" — identical to the RSC24 8-drawer; confirm bay clearance before ordering
- Deep Drawer Use Case: The 8.27" bottom drawer accommodates 1/2" drive extension sets, impact sockets on rails, and cordless tool bodies — items that don't fit in shallow configurations without stacking
- RSC24 7 vs. RSC24 8: Choose the 7-drawer if you carry a mix of hand tools and larger accessories; choose the 8-drawer if your collection is predominantly small hand tools requiring maximum shallow-drawer density
- Pairing Compatibility: Designed to pair with Beta Tools top chests and hutch units in the RSC series for vertical expansion
Choosing between Beta and Snap-on?
Discover why the RSC24 is the preferred choice for technicians who prioritize high-density foam organization and Italian-engineered mobility over traditional mass.
Not sure which RSC24 configuration is right for your tool inventory? Read our full RSC24 configuration comparison guide →
