Beta Tools C30M MaxiTank Mobile Tool Workbench (5-Drawer)

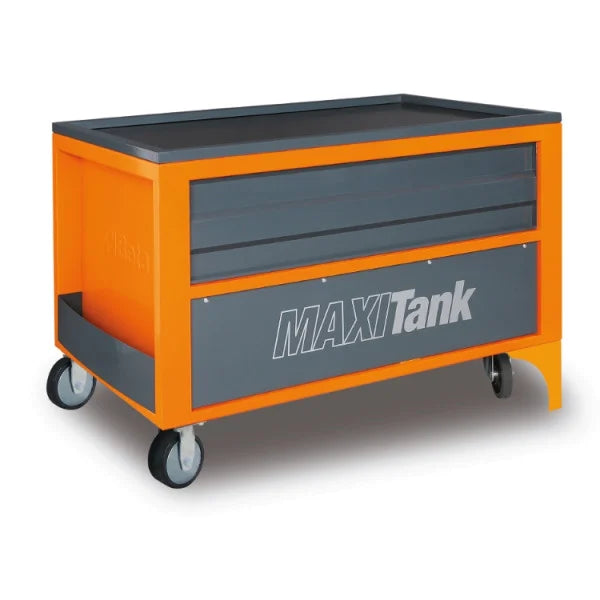

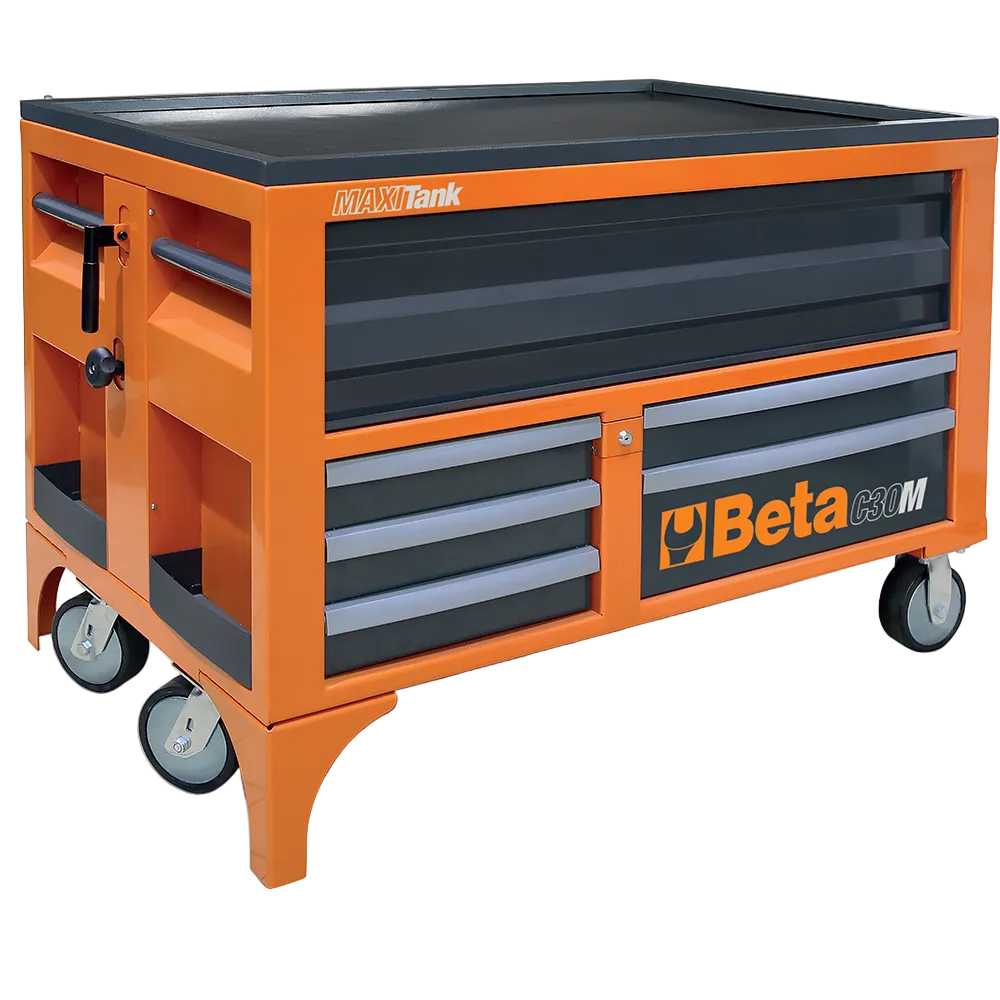

The Beta Tools C30M MaxiTank is a heavy-duty mobile tool workbench with an oil-proof rubber-coated worktop (1300×800mm / 51.2"× 31.5") with integrated drain hole and fluid collection tank, five front drawers on ball-bearing slides, a tall storage compartment with PVC-coated worktop and front sliding panels, a hydraulic jack for front-section lift during transport, centralized drawer and panel lock, 3 built-in side bottle holders, a paper roll holder, and a mixed caster system rated for a 3,968 lb (1,800 kg) static load. SKU: 30000300.

Why a Fixed Workbench Fails the Active Shop Floor

A fixed workbench anchors your work surface to one wall — every job that happens away from that wall requires carrying tools back and forth, staging parts on the floor, or working without a proper surface. The C30M MaxiTank eliminates this constraint: the 51.2"× 31.5" oil-proof rubber-coated worktop rolls directly to the vehicle, the lift, or the assembly area on 170mm rear fixed casters rated for 3,968 lbs static load. The integrated drain hole and fluid collection tank handle oil and coolant spills directly on the work surface — a feature no standard rolling cabinet provides. When the job is done, the hydraulic jack lifts the front section for easy repositioning, and the centralized lock secures all drawers and sliding panels simultaneously.

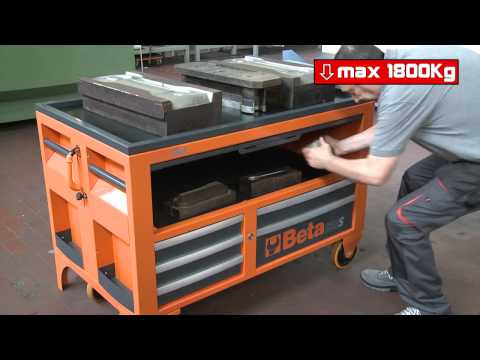

See it in action:

Worktop, Drawer, Storage & Caster Specifications

Worktop:

• Surface: Oil-proof rubber-coated — 1300×800mm (51.2"× 31.5") — resistant to oils, solvents, and workshop fluids
• Drain System: Integrated drain hole with fluid collection tank — channels spills off the work surface without floor contamination
• Drawer Fronts: Aluminum quick-opening system

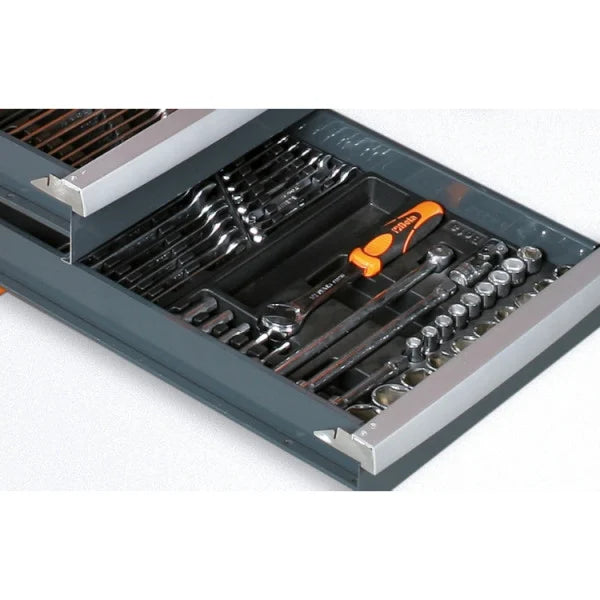

• Drawer Liners: Foamed rubber mats on all drawer bases — protects tools and prevents sliding
• Thermoformed Tray Compatibility: Drawers can accommodate optional thermoformed tool trays

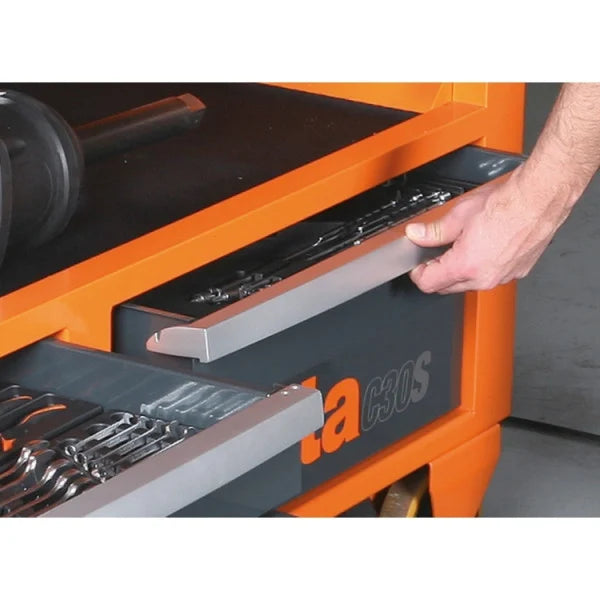

Drawer Configuration (5 front drawers, ball-bearing slides):

• 3 × Narrow Drawers: 367×610mm (~14.4"× 24") × 90mm (3.5") deep
• 1 × Wide Standard Drawer: 588×610mm (~23.1"× 24") × 90mm (3.5") deep
• 1 × Wide Deep Drawer: 588×610mm (~23.1"× 24") × 180mm (7.1") deep
• Locking: Centralized lock secures all drawers and sliding panels simultaneously

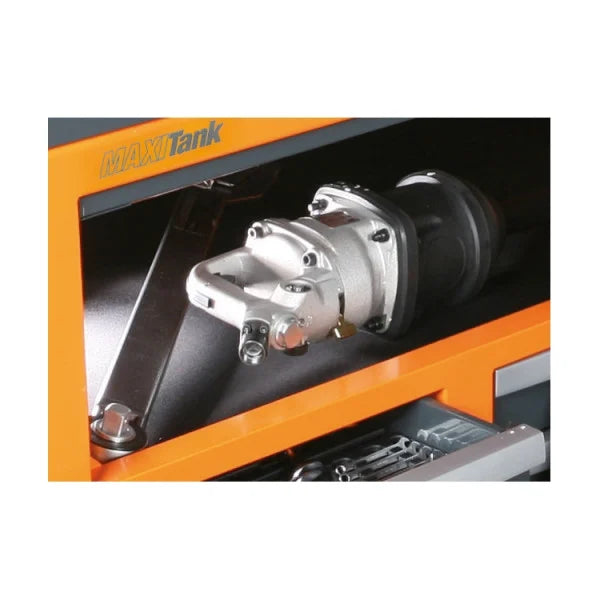

Storage Compartment:

• Dimensions: 720×250×1300mm — tall vertical storage section
• Worktop: PVC-coated surface
• Access: Front sliding panels — secured by centralized lock

Integrated Accessories:

• 3 × built-in side bottle holders — for lubricants, fluids, and spray cans
• Built-in paper roll holder

Transport & Mobility:

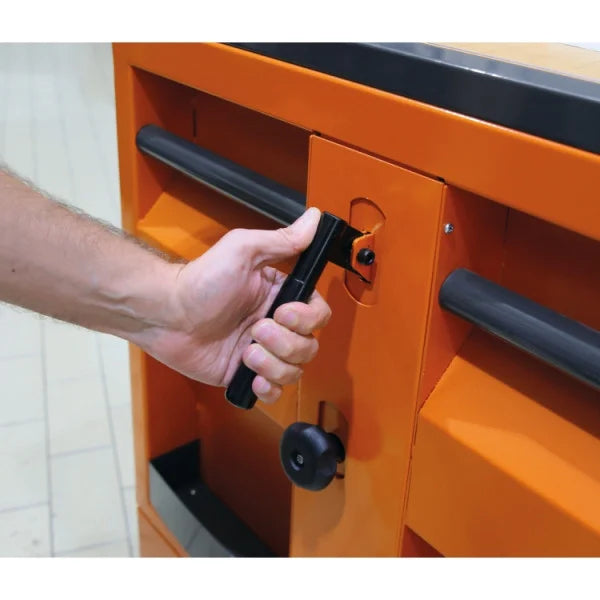

• Hydraulic Jack: Lifts the front section of the unit for easy repositioning — reduces manual effort when moving loaded unit
• Rear Casters (fixed): 2 × Ø170mm (6.7") — primary rolling axis
• Front Casters (swivel with brakes): 2 × Ø150mm (5.9") — steering and stationary locking
• Static Load Capacity: 1,800 kg (3,968 lbs)

Weight: 143 lbs (approx.)

SKU: 30000300

Origin: Beta Tools (Italy-designed)

Footprint, Load Distribution & Use Case Considerations

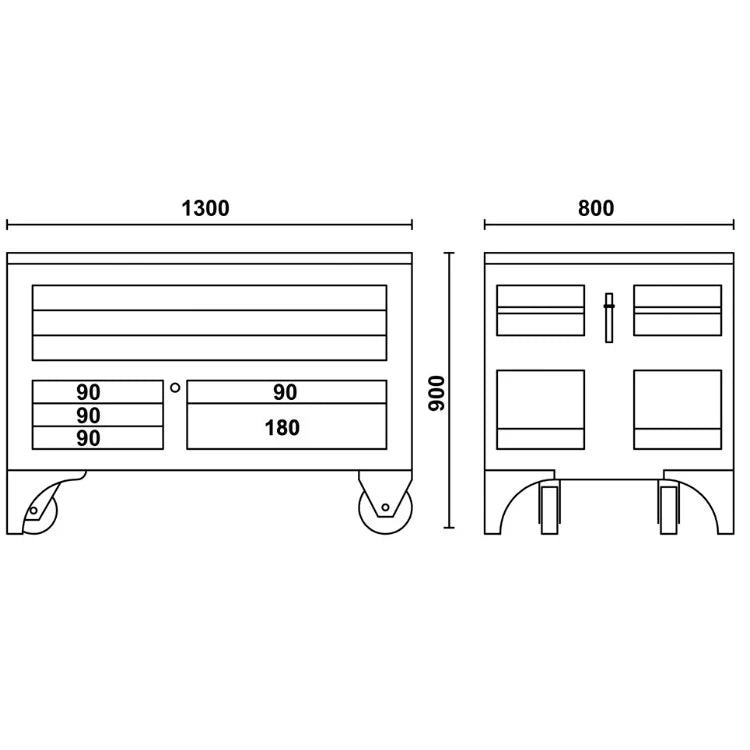

• Worktop Footprint: 1300×800mm (51.2"× 31.5") — significantly wider and deeper than any rolling cabinet in the Beta lineup; verify bay clearance and aisle width before positioning
• Drain System Use: The drain hole channels fluids into an integrated collection tank — empty the tank regularly during fluid-intensive work (engine rebuilds, coolant flushes) to prevent overflow
• Hydraulic Jack Operation: The jack lifts the front section to facilitate repositioning of a loaded unit — engage front caster brakes before releasing the jack after repositioning
• Caster Surface Note: 170mm rear fixed casters and 150mm front swivel casters on smooth epoxy or Diamondtrax tile floors roll freely under load — engage both front swivel caster brakes before performing work that applies lateral force to the worktop
• Load Distribution: 3,968 lb static load rating — highest of any Beta Tools unit in the GarageForm catalog; distribute load across all drawers and the storage compartment; the wide deep drawer (180mm) is suited for power tools and heavy equipment cases
• Rubber Worktop vs. Stainless: The oil-proof rubber surface handles workshop fluids and provides tool grip but is not rated for chemical sanitation wash-downs — for those requirements, see the C04TSS/7 stainless steel cabinet
• C30M MaxiTank vs. RSC24 Series: Choose the MaxiTank for a mobile workbench with a full rubber-coated work surface, drain system, and 3,968 lb load capacity; choose the RSC24 series for a higher drawer count in a narrower footprint without a worktop
• C30M MaxiTank vs. C45PRO Systems: Choose the MaxiTank for mobile deployment across the shop floor; choose the C45PRO systems for fixed wall-mounted installations with overhead cabinet storage
• Delivery Note: At 143 lbs, this unit ships freight — confirm delivery access (driveway width, lift gate requirement) before ordering
