Giraffe Tools Wall Mounted Hose Reel - 304 Stainless Steel 200ft Capacity
The Giraffe Tools SW-8 is a wall-mounted manual hose reel constructed from 304 stainless steel — featuring the G-Guiding System for tangle-free winding, ergonomic manual crank, solid brass connectors, 3/4" NPT fitting, and 6ft leader hose. Capacity: 200ft of 1/2in hose or 150ft of 5/8in hose. Rated to 116 PSI. Weight: 19.6 lbs (without hose). Available without hose, with 100ft hybrid hose, or with 100ft stainless steel hose and nozzle.
304 Stainless Steel. Solid Brass Connectors. Wall-Mounted Manual Crank — Built for Coastal, Humid, and High-Corrosion Environments.
The SW-8 is the material-upgrade choice in the Giraffe Tools lineup — where the AW series uses UV-proof PP housing, the SW-8 uses 304 stainless steel throughout. That matters in coastal environments, humid climates, and high-UV installations where polymer housings degrade over time regardless of UV coating. The solid brass connectors at the inlet and outlet won’t crack, corrode, or seize — a common failure point on plastic-connector reels after a few seasons. The G-Guiding System channels the hose onto the drum in even layers as you crank — no tangles, no uneven winding. The 3/4" NPT fitting is standard for residential and commercial water supply connections. Manual crank operation — no spring mechanism to wear out or fail.
See it in action

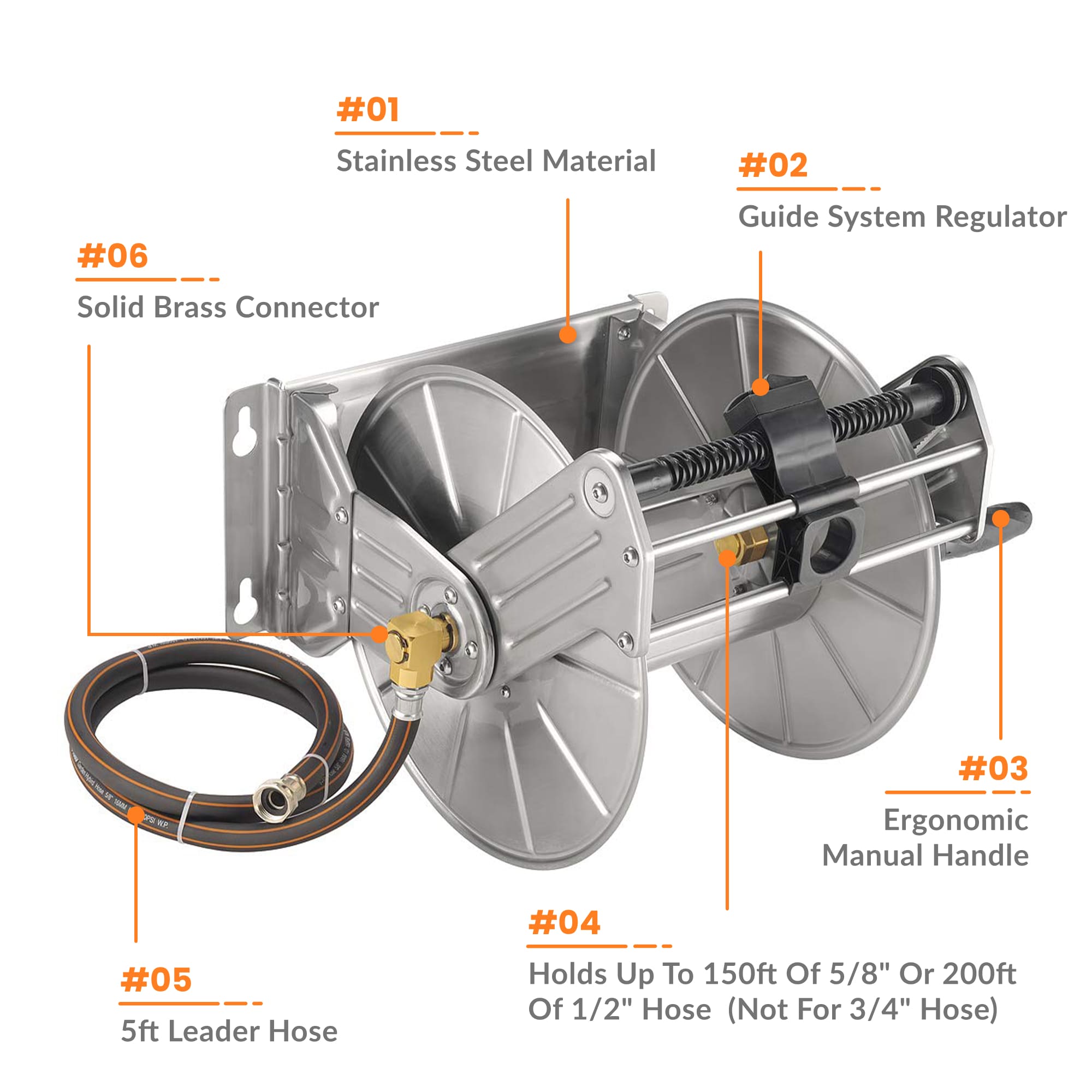

Reel, Drum & Connector Specifications
- Model: SW-8 (SKU: GWRH1V004 / GWRH1V003 / SW8US+SG-WS12A100M)

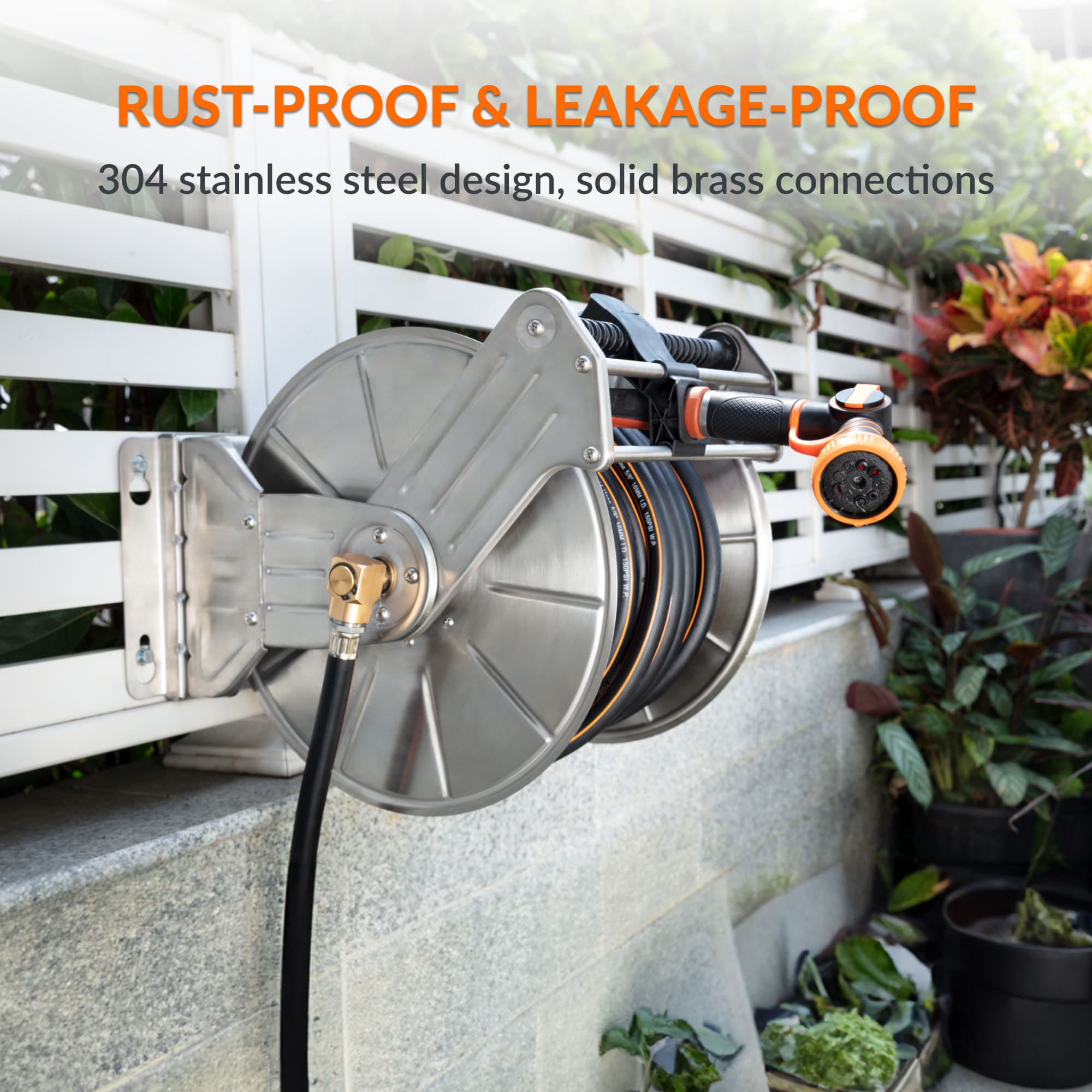

- Frame & Drum Material: 304 stainless steel — rust-proof, corrosion-resistant, no painting or coating required
- Connectors: Solid brass — leak-proof, crack-resistant, won’t seize from corrosion
- Fitting: 3/4" NPT — standard residential and commercial water supply compatibility
- Hose Capacity: 200ft of 1/2in hose or 150ft of 5/8in hose
- Leader Hose: 6ft included

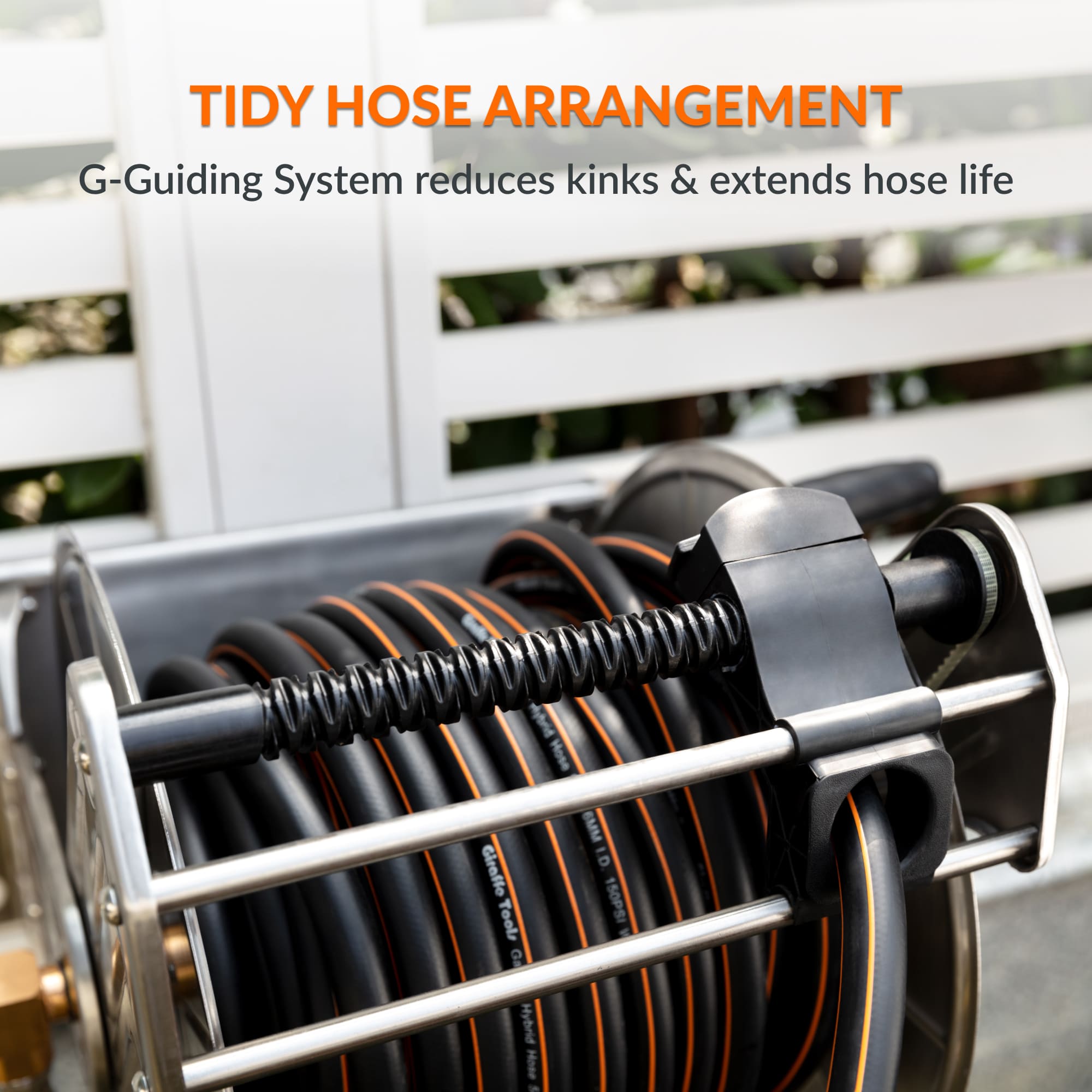

- Winding System: G-Guiding System — channels hose onto drum in even layers, prevents tangles

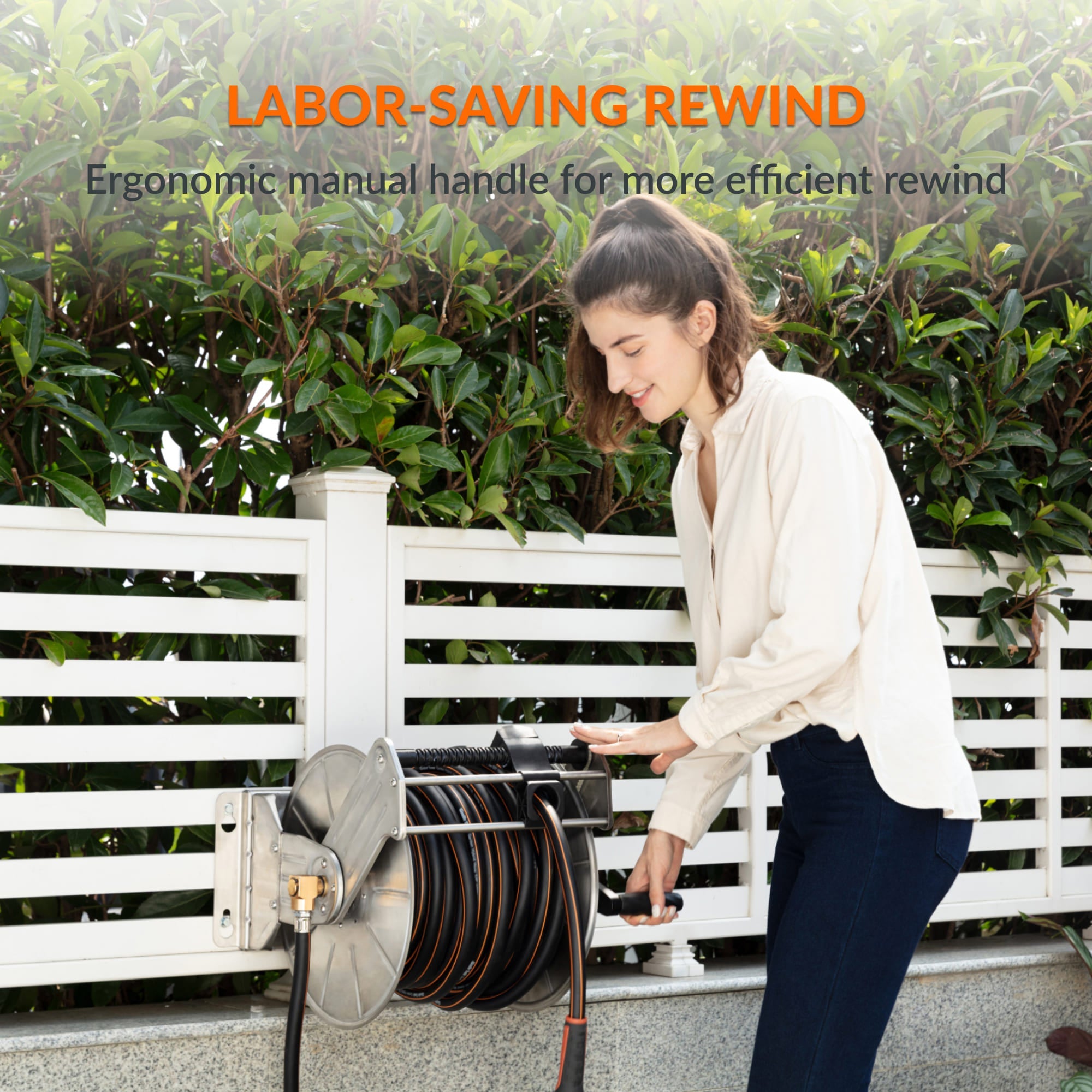

- Operation: Manual crank with ergonomic handle — no spring mechanism to wear out
- Maximum Pressure: 116 PSI (0.8 MPA)
- Operating Temperature: 32°F to 122°F
- Reel Dimensions: 17" × 21.2" × 16"
- Shipping Box: 19" × 22" × 18"
- Weight: 19.6 lbs without hose / 37 lbs with hose
- Drill Size: 5/8"
- UV Resistant: Yes
- Color: Silver
- Brand: Giraffe Tools
Choosing Your Variant
Hose option:
- Without Hose: Reel only — use your existing hose or select a hose separately. Capacity: up to 200ft (1/2in) or 150ft (5/8in).

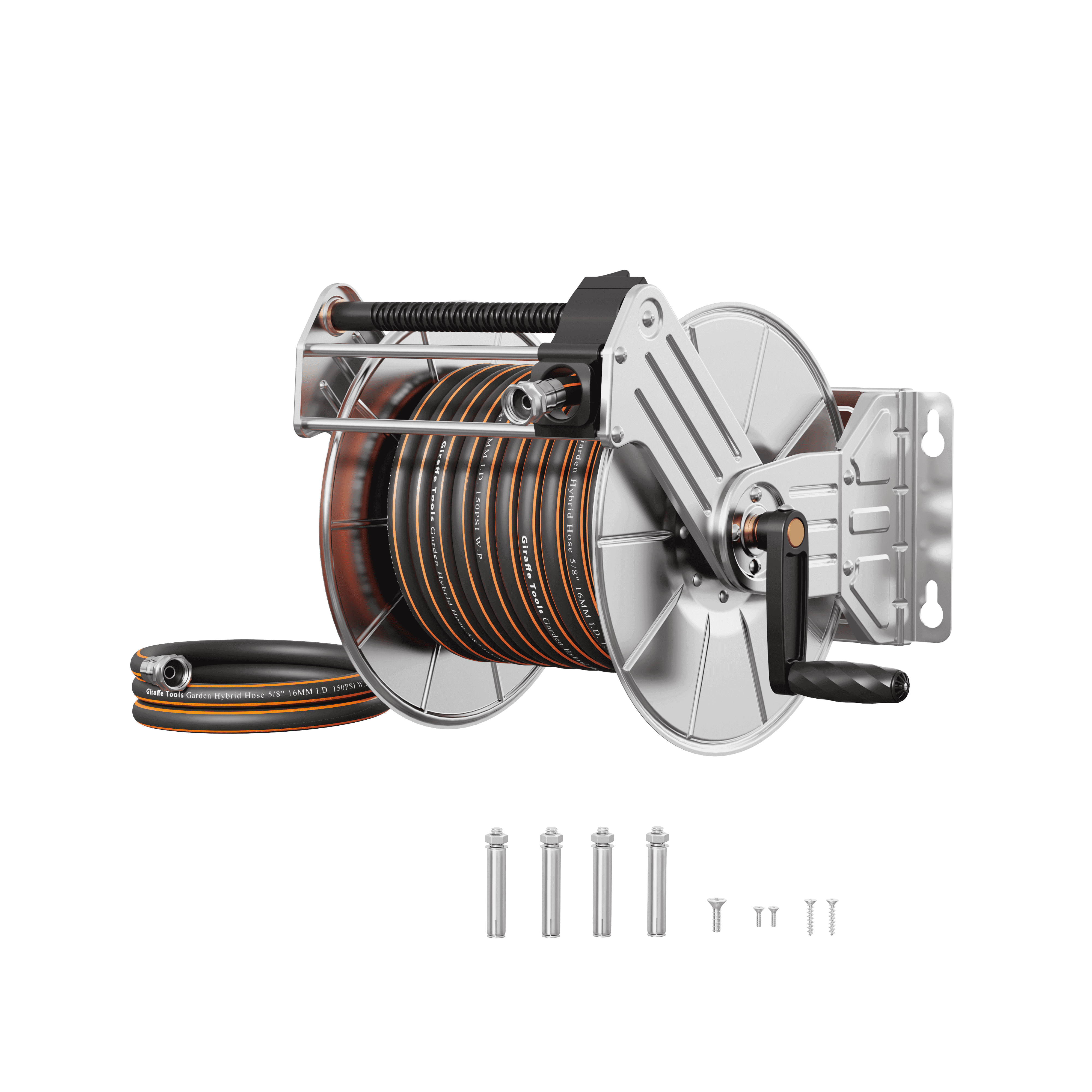

- With 100ft Hybrid Hose: Complete setup — reel + 100ft premium hybrid hose included. Ready to install and use.

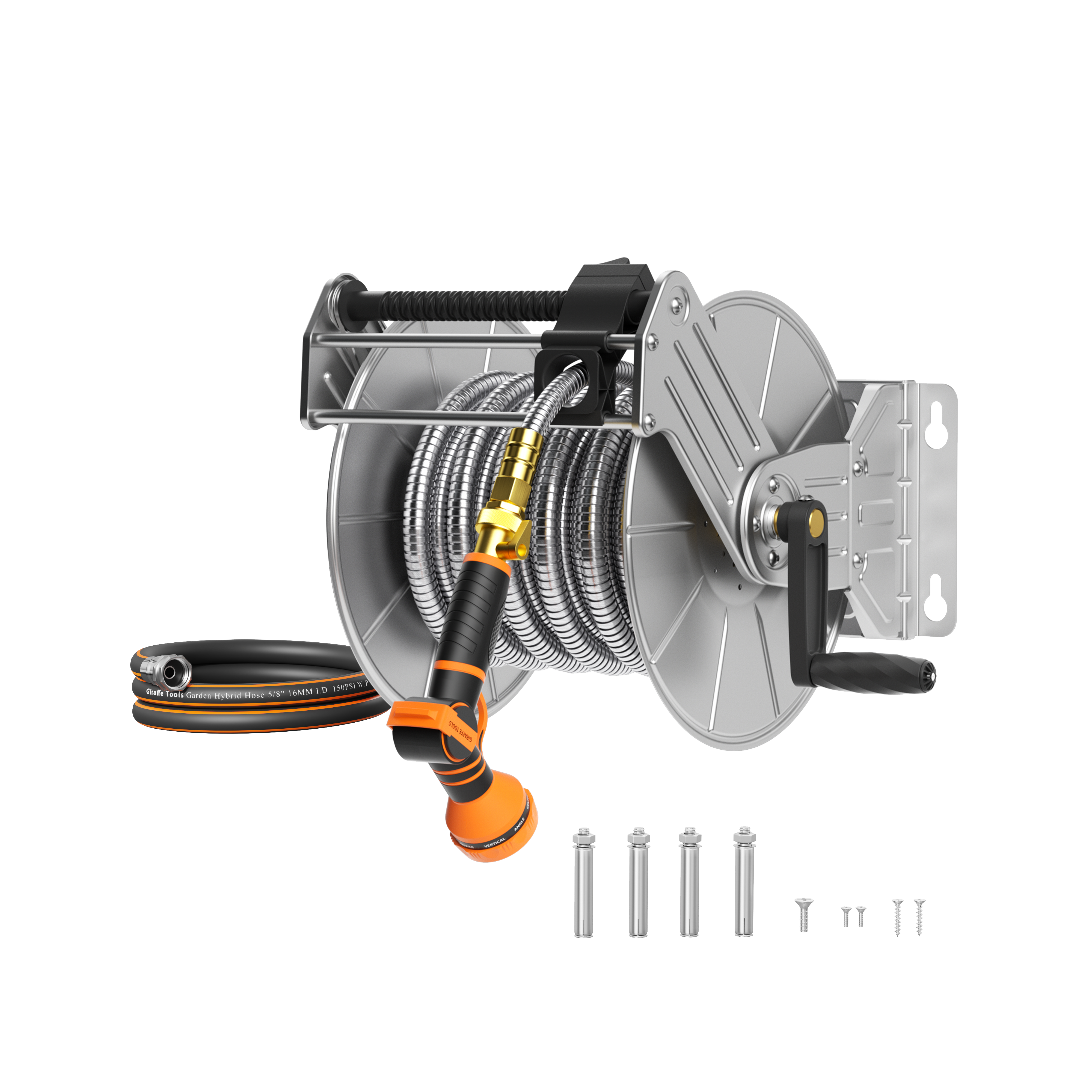

- With 100ft Stainless Steel Hose & Nozzle: Full stainless package — reel + 100ft stainless steel hose + spray nozzle. Best for maximum corrosion resistance throughout the entire system, including the hose.
SW-8 vs. AW series retractable reels — which is right for you?
- SW-8 (this model): 304 stainless steel construction, solid brass connectors, manual crank, 200ft capacity. Best for: coastal environments, humid climates, high-UV installations, or buyers who prioritize material longevity over auto-rewind convenience.
- AW series retractable (PP housing): Auto-rewind, UV-proof PP housing, 65–155ft, lighter weight. Best for: standard residential use where auto-rewind convenience is the priority. See the AW series lineup.
Installation, Mounting & Use Case Considerations
- Wall Substrate: Expansion bolts (Ø12mm × 70mm) — designed for masonry and concrete; confirm stud spacing for wood-frame walls using self-tapping screws included in kit
- Drill Size: 5/8" pilot holes for expansion bolts
- Fitting: 3/4" NPT — use thread seal tape on all connections to ensure leak-free installation
- Hose Loading: Crank slowly on first load to allow G-Guiding System to seat the hose in even layers — uneven initial winding can cause tangles on subsequent use
- Coastal & Humid Environments: 304 stainless steel resists salt air and humidity without surface treatment — rinse with fresh water periodically in salt-spray environments to prevent surface deposit buildup
- Winterization: Drain hose fully before freezing temperatures — disconnect leader hose from water source, retract hose fully, and leave drain port open to prevent water from sitting in the drum

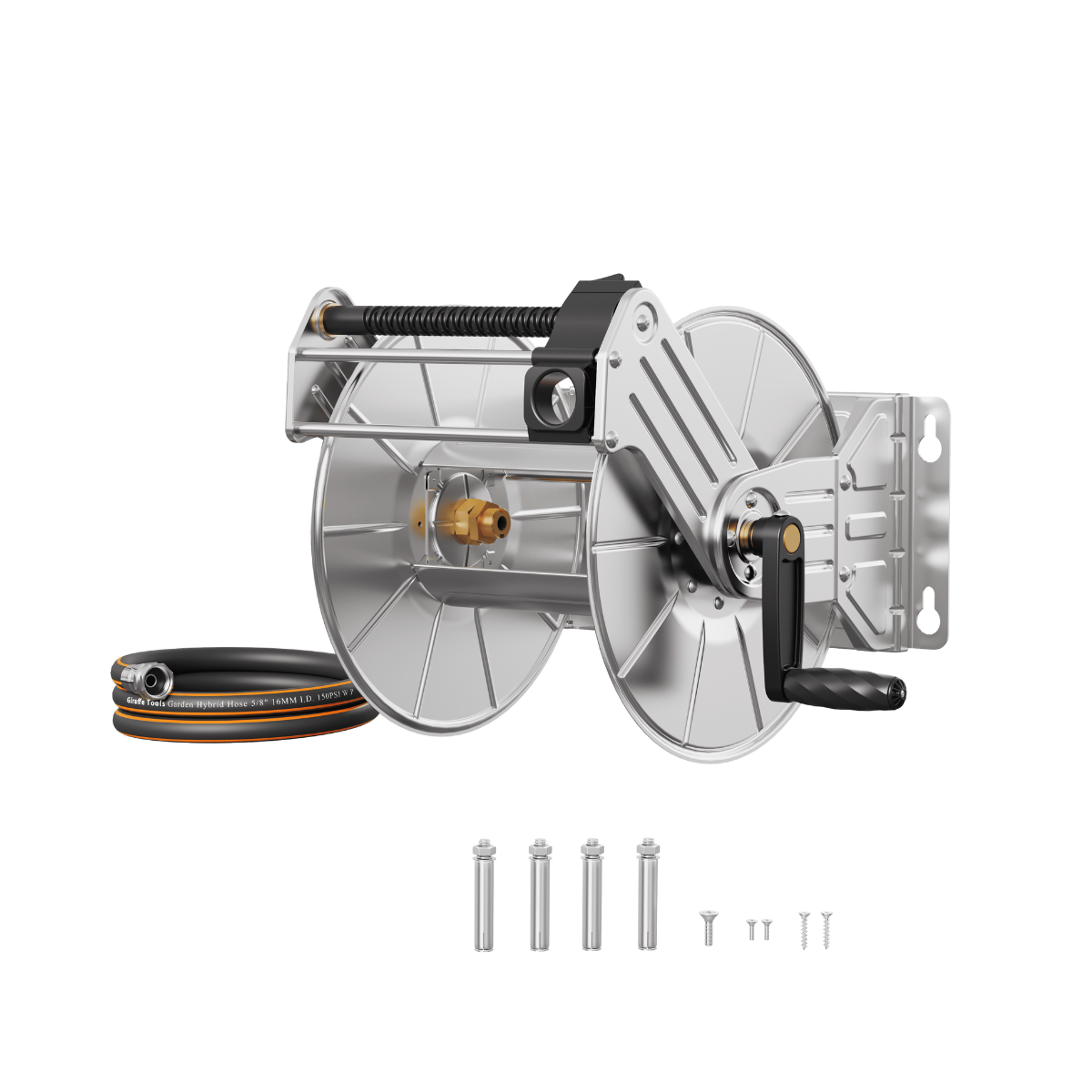

- What's in the Box: SW-8 stainless steel wall-mounted reel, 6ft leader hose, Allen wrench with Phillips head, fastener kit (4× expansion bolts Ø12mm × 70mm, 2× self-tapping screws M4-14, 1× Phillips screw M8-12, 2× Phillips screws M6-10), product manual. Optional: 100ft hose (hybrid or stainless steel) and nozzle depending on variant selected.
