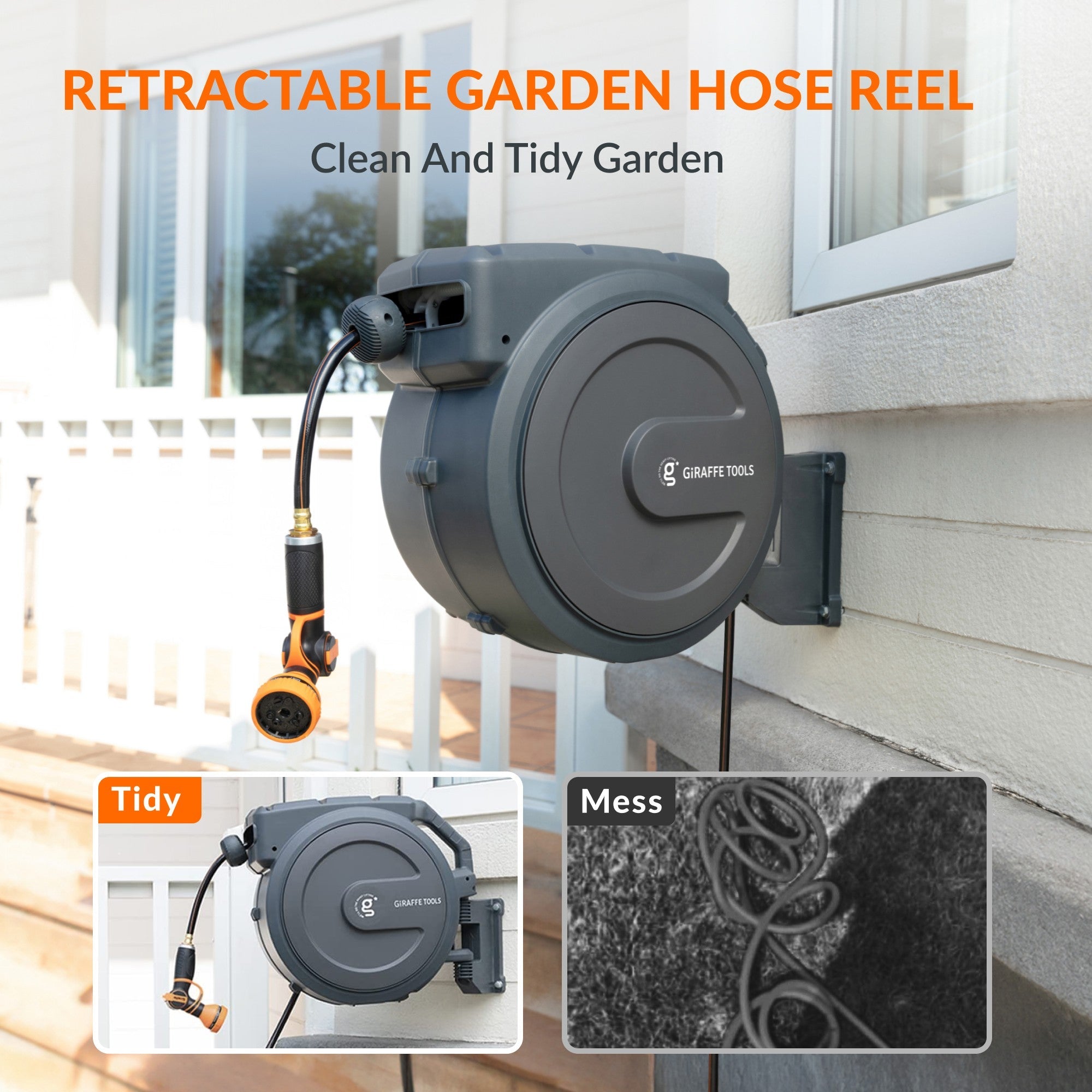

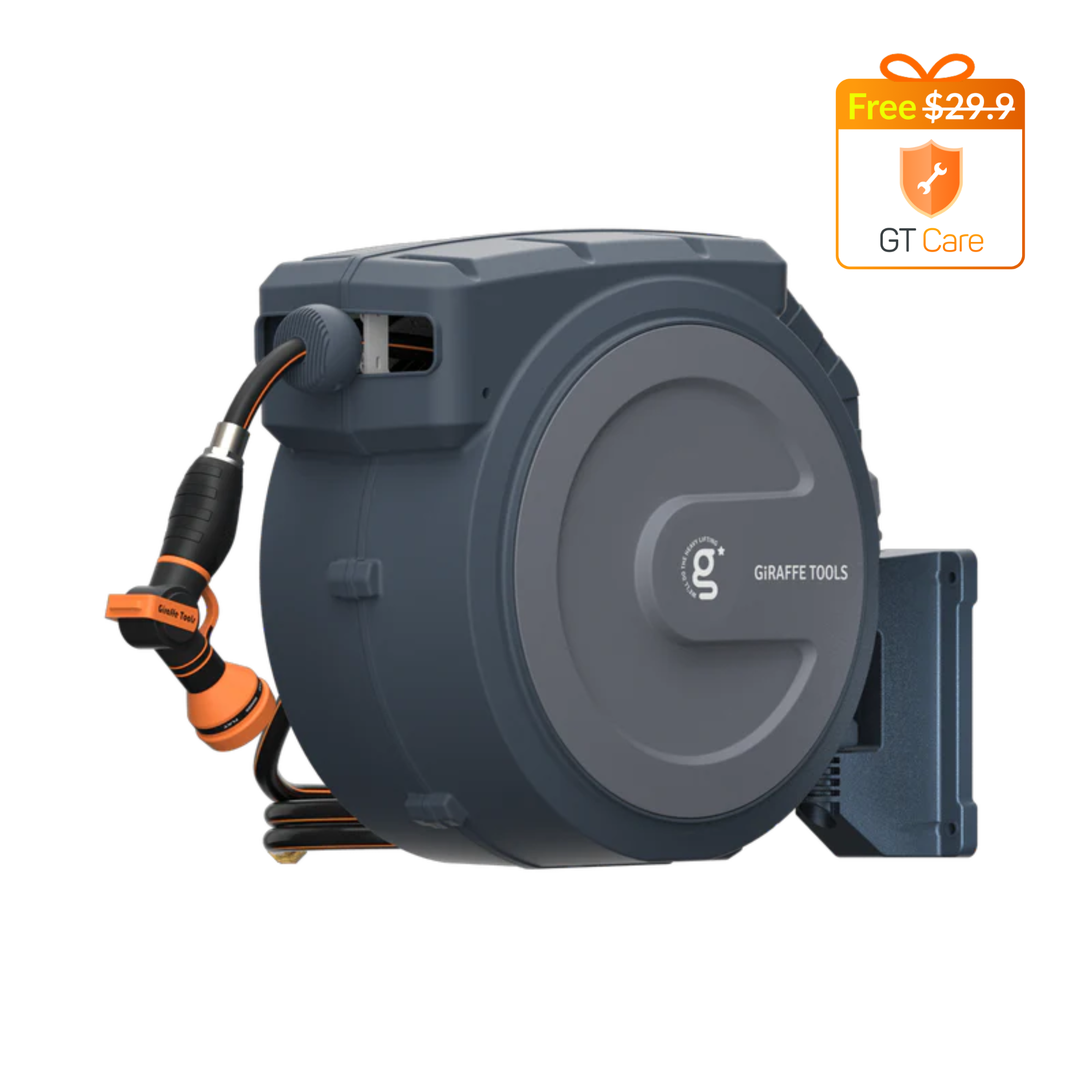

Giraffe Tools Retractable Garden Hose Reel - 78ft Wall Mount Auto Rewind

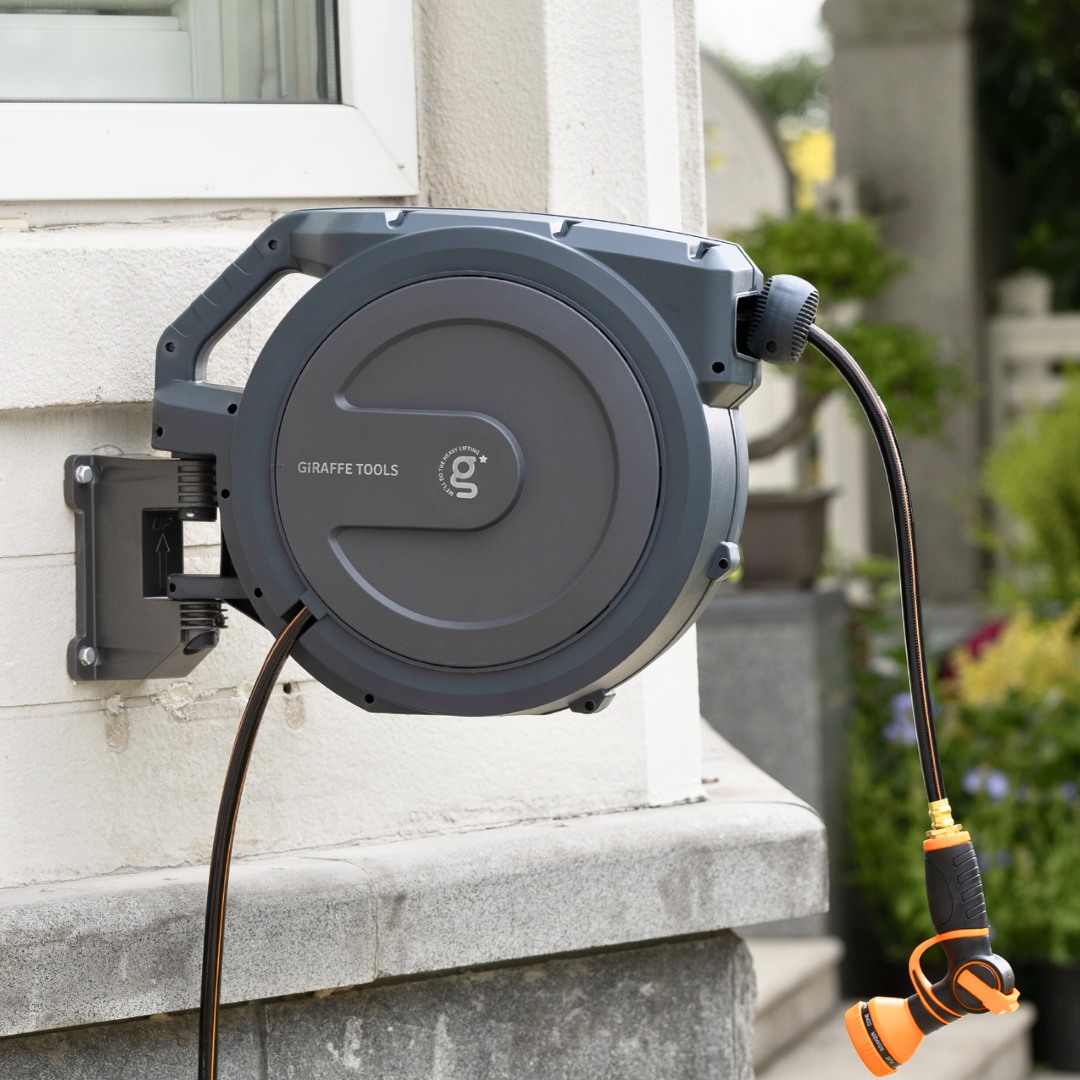

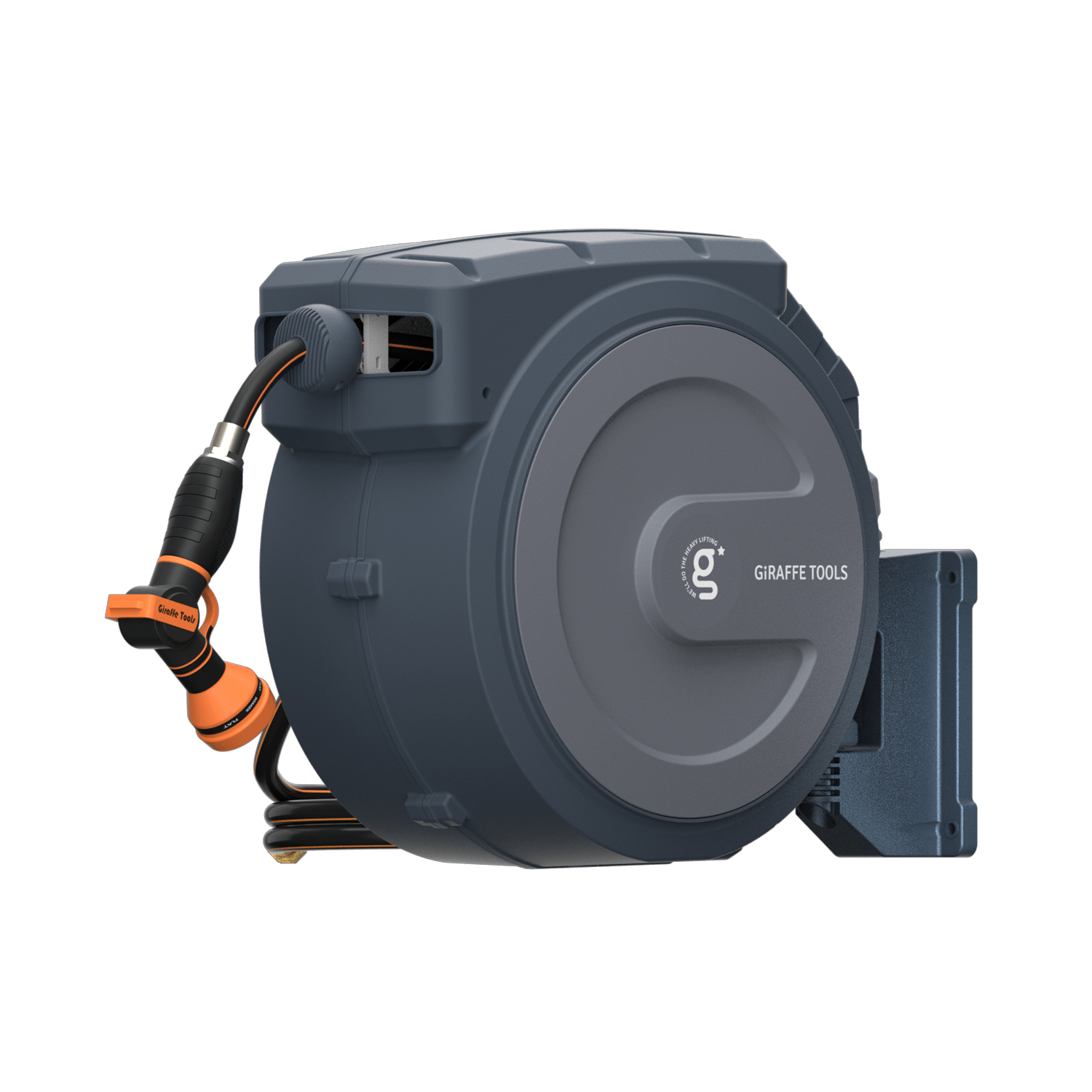

The Giraffe Tools Retractable Garden Hose Reel (Model AW25) is a wall- or post-mounted auto-rewind hose management system with 78ft of 1/2in hybrid hose and an included 300 lb heavy-duty metal bracket — featuring adaptive layering auto-retraction, 180° swivel, precise length-locking, 9-pattern nozzle, and UV-proof housing rated to 116 PSI working / 600 PSI burst. Color: Dark Grey. Net weight: 21 lbs (9.5 kg).

78 Feet of Reach. Heavy-Duty Metal Bracket Included. No Coiling, No Kinking, No Hose Pile on the Ground.

The AW25 covers a single-car garage bay, standard driveway, and medium yard from one mount point. The 300 lb metal bracket ships in the box — no upgrade needed, no polymer bracket to crack under load. The adaptive layering system winds the hose evenly on every retraction — no tangles, no resistance on the next pull. A controlled slow-retract cycle prevents snapback. The locking mechanism holds at any extension length. The 180° swivel bracket covers the full arc of a garage bay or side yard without repositioning the reel. UV-proof housing resists fading and cracking through full outdoor exposure. The included 9-pattern nozzle handles fine mist through jet spray without a separate attachment.

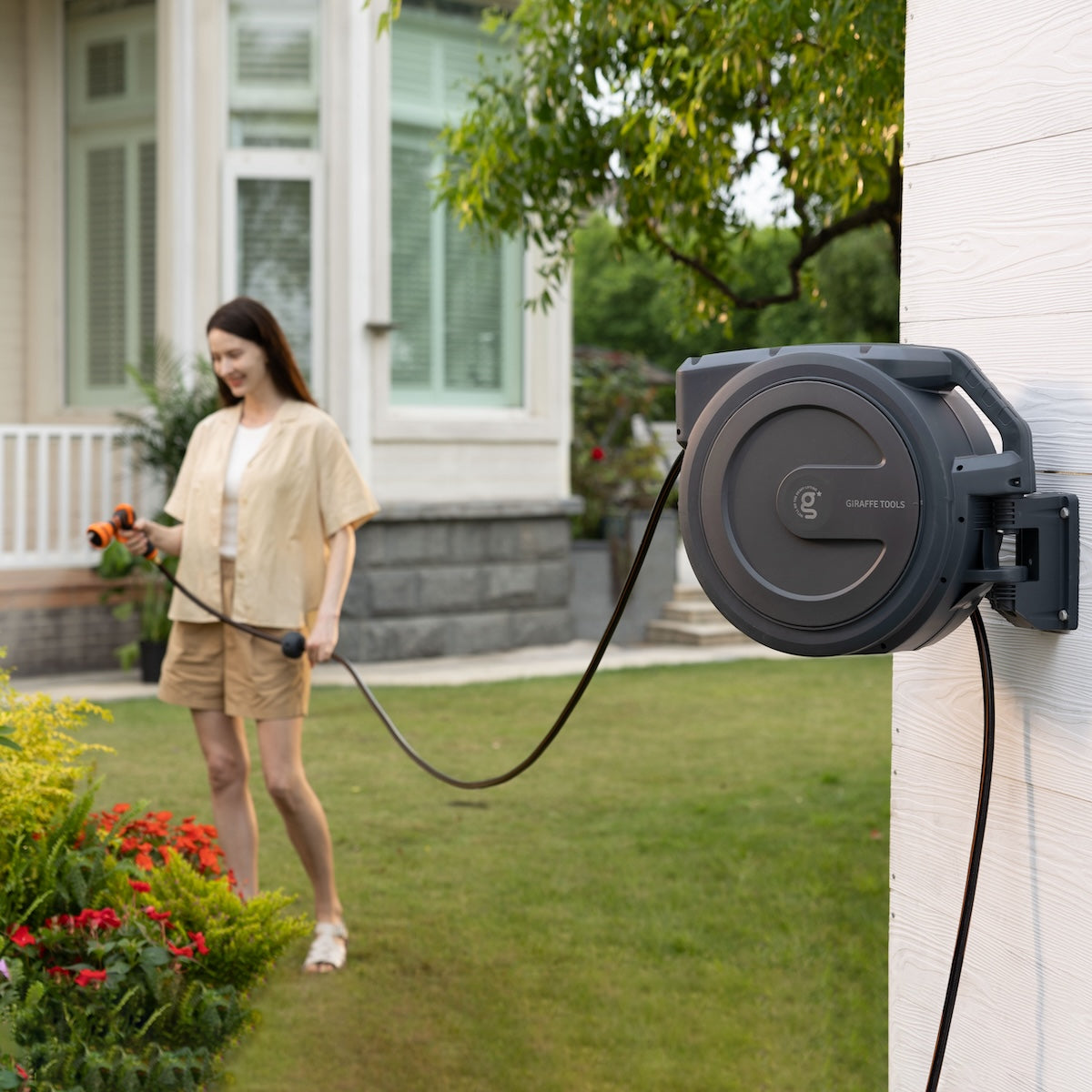

See it in action

Hose, Bracket, Mount & Nozzle Specifications

Hose:

• Model: AW25 (SKU: AW2512US)
• Length: 78ft (1/2in diameter)
• Inner Diameter: 0.45in / Outer Diameter: 0.61in
• Construction: Premium hybrid — abrasion-resistant, kink-resistant, leak-proof
• Pressure Rating: 116 PSI working / 600 PSI burst
• Operating Temperature: 32°F to 122°F
• Lead-in Hose: 6.56ft (2m) integrated

Retraction System:

• Retraction Type: Auto-rewind with controlled slow-retract cycle — prevents snapback, safe for bystanders

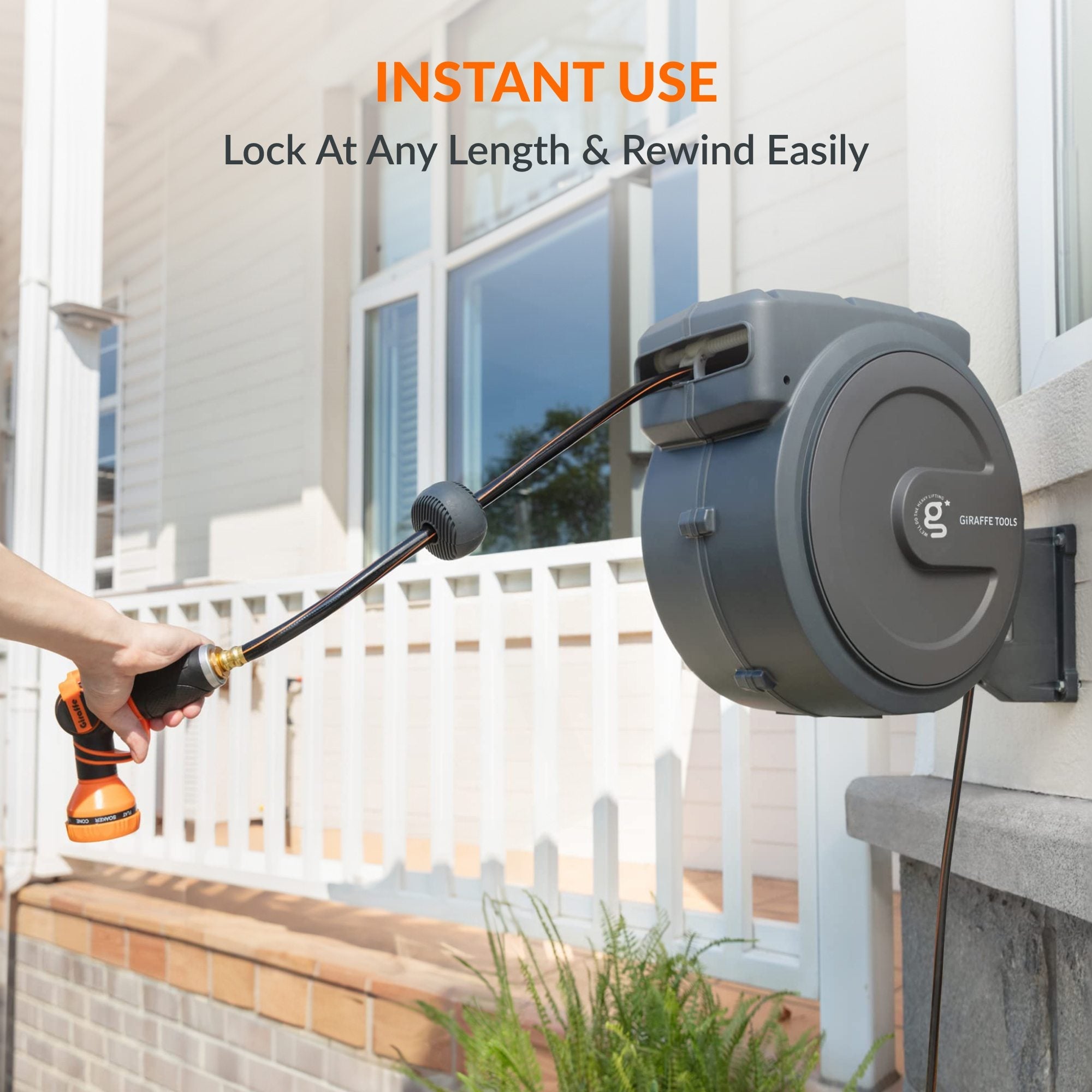

• Locking: Locks at any extension length — no excess slack, no tension
• Winding: Adaptive layering system — winds evenly on every retraction, feeds out tangle-free

Bracket & Mount:

• Bracket Type: Heavy-duty metal — 300 lb rated, warp-resistant, included in box
• Mount Type: Wall-mount or post-mount (post minimum 4" × 4")

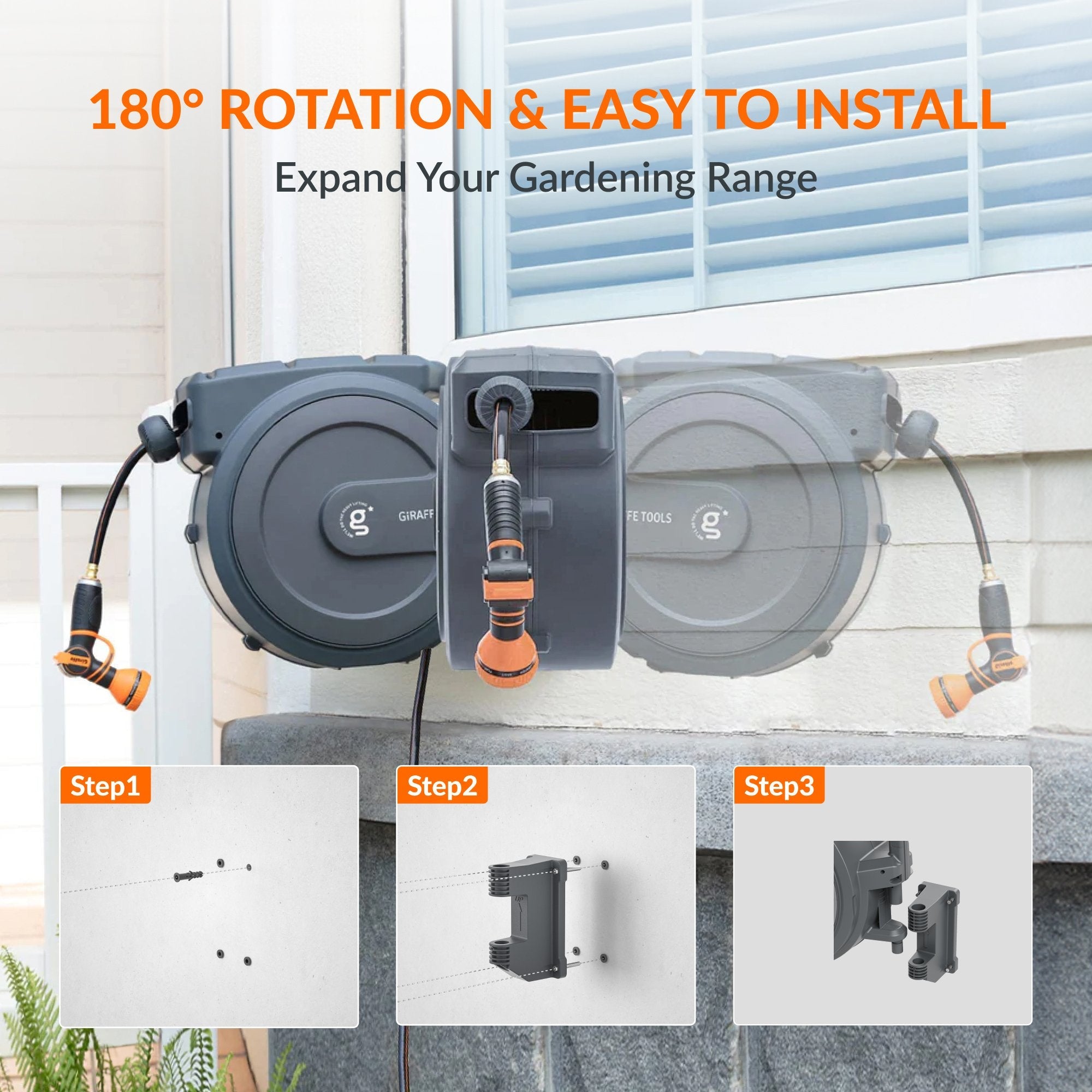

• Swivel Range: 180° rotation — covers full arc from a single mount point
• Bracket Dimensions: 4.21" × 3.31" × 8.5"
• Reel Dimensions: 20" × 14.7" × 8.9"

Housing, Nozzle & Weight:

• Housing Material: UV-proof PP — resists fading, cracking, and degradation from sun exposure
• Hose Material: PVC with PP reel, metal screws, plastic plugs
• Included Nozzle: 9-pattern adjustable — fine mist, flat spray, jet, and intermediate settings
• Color: Dark Grey
• Net Weight: 21 lbs (9.5 kg) / Gross Weight: 20.5 lbs (9.3 kg)
• Package Size: 19.5" × 9.8" × 15.9"

Choosing Your Configuration

• AW25 78ft (this model): Compact and light at 21 lbs — ideal for single-car garage, standard driveway, or medium yard. 300 lb metal bracket included standard. Integrated 6.56ft lead-in hose.
• Need more reach? See the Giraffe Tools multi-variant reel for 90–155ft options with ordinary or metal bracket, or the AW50 155ft for maximum reach at 40 lbs.

Placement, Mounting & Use Case Considerations

• Mount Height: Install at a height that allows the hose to retract fully without dragging — typically 5–6ft from the floor for a 21 lb unit
• Wall Substrate: Metal bracket rated to 300 lb — anchor into studs or masonry; use the included ribbed anchors (Ø12mm × 50mm) for masonry installations
• Post Mounting: Post must be minimum 4" × 4" for stability (smaller minimum than the AW50 due to lighter unit weight)
• Swivel Coverage: The 180° swivel covers a full wall-to-wall arc — position the mount at the midpoint of the area you need to cover for maximum reach in both directions
• Lead-in Hose: 6.56ft integrated (not detachable) — factor this into mount placement relative to your water source connection point
• Garage vs. Outdoor Use: UV-proof housing is rated for full outdoor exposure — no cover or shelter required; suitable for garage exterior walls, fence lines, and exposed garden walls
• Winterization: Drain the hose fully before freezing temperatures — retract completely and disconnect the inlet to prevent water from sitting in the reel housing

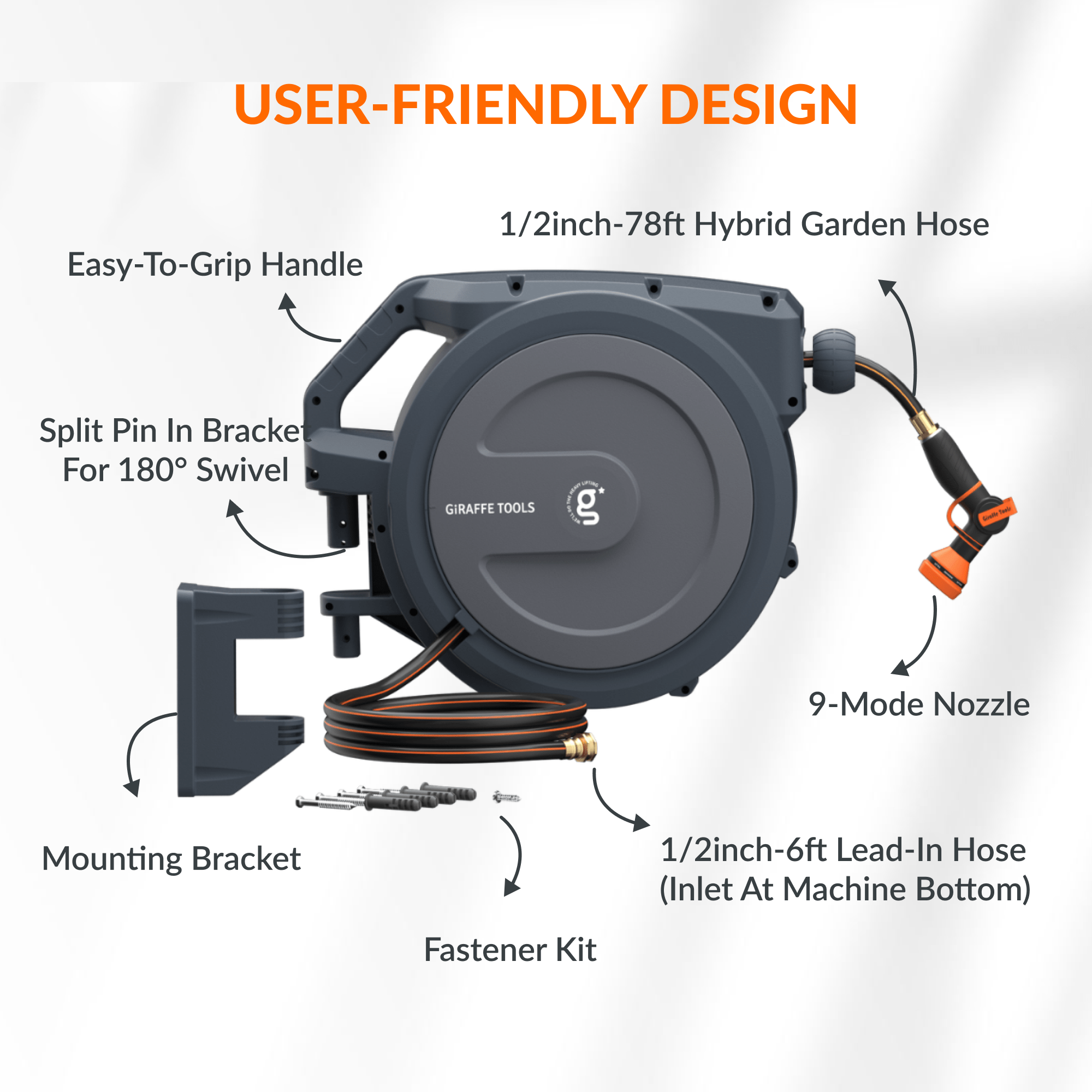

• What's in the Box: Reel with 78ft hose, 300 lb heavy-duty metal bracket, 9-pattern nozzle, integrated 6.56ft lead-in hose, fastener kit (4× ribbed anchors Ø12mm × 50mm, 4× screws Ø8mm × 70mm, 1× small screw), product manual

The GarageForm Difference: Technical Authority, Not Just a Catalog

Technical Screening: We don't list garage and outdoor tools without vetting them. The Giraffe Tools AW25 has been evaluated for retraction mechanism quality, hose construction integrity, metal bracket load rating, and UV housing durability to ensure the performance data on this page reflects the actual product.

Direct Expert Support: If you need assistance confirming 78ft coverage for your property layout, selecting between wall and post mounting for your substrate, or comparing the AW25 to longer-reach models, our experts provide pre-sale consulting at no charge.

Straightforward Purchasing: Free shipping on this reel. If the Giraffe Tools AW25 doesn't meet your reach or installation requirements after delivery, our return process is handled by our specialized team — not a generalist call center.
