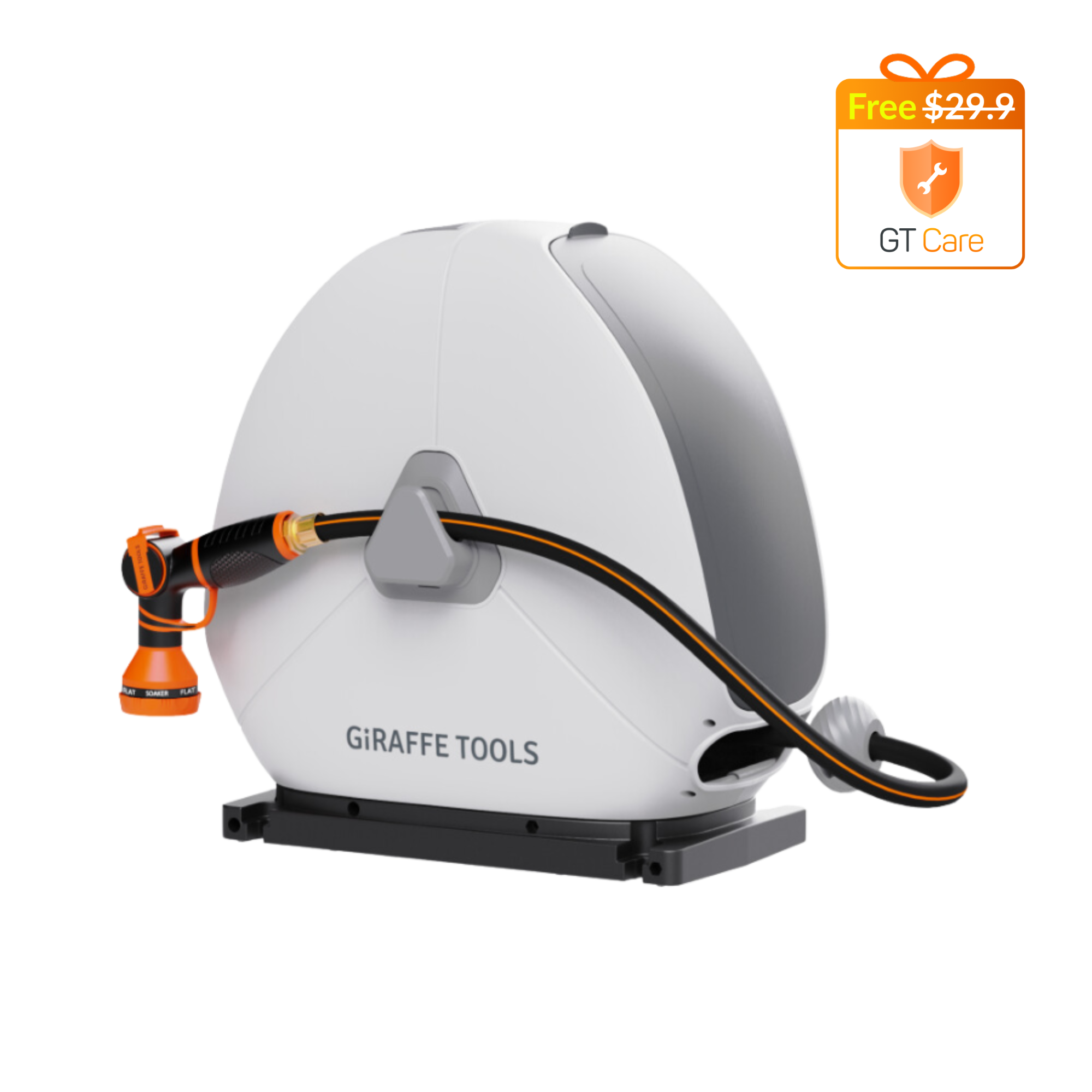

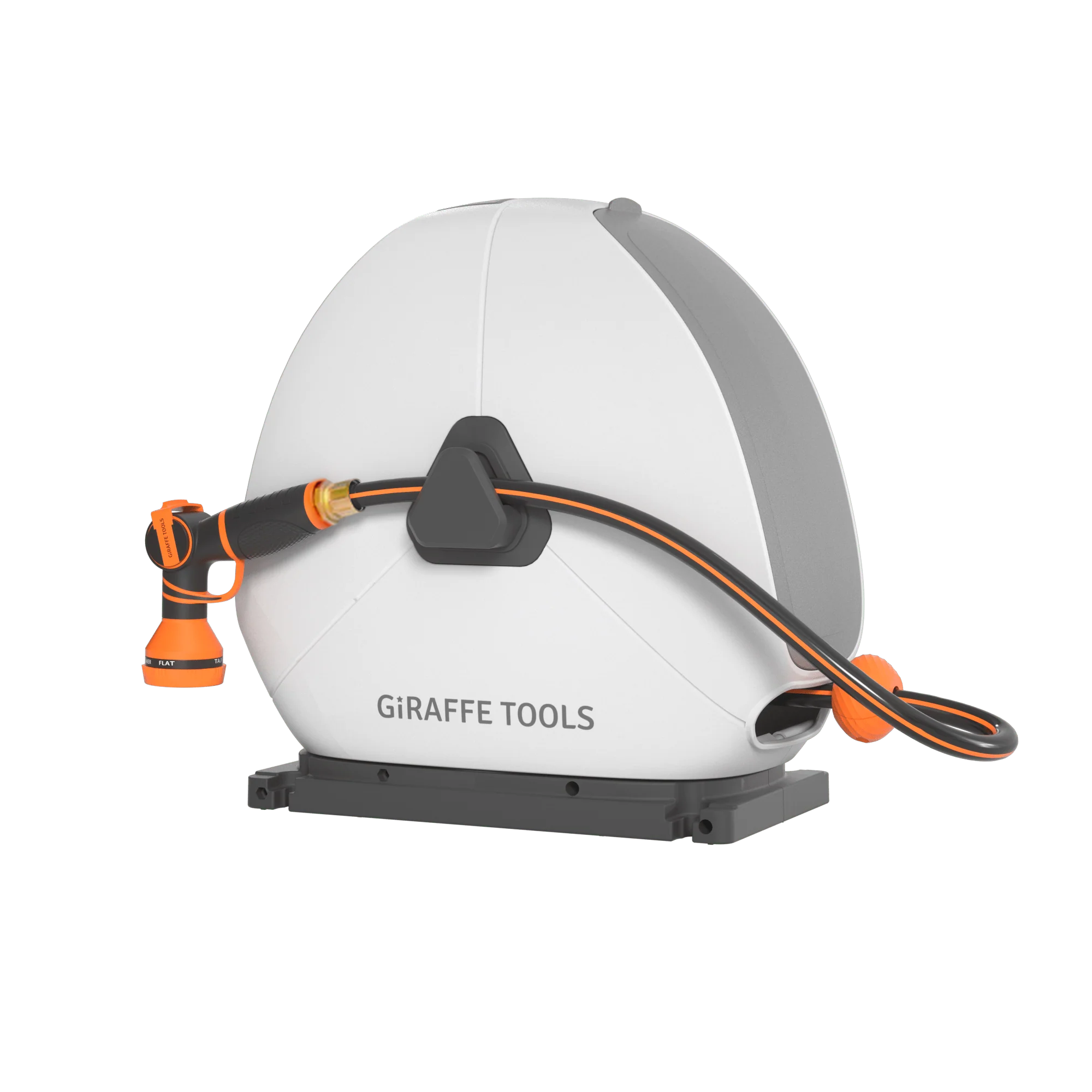

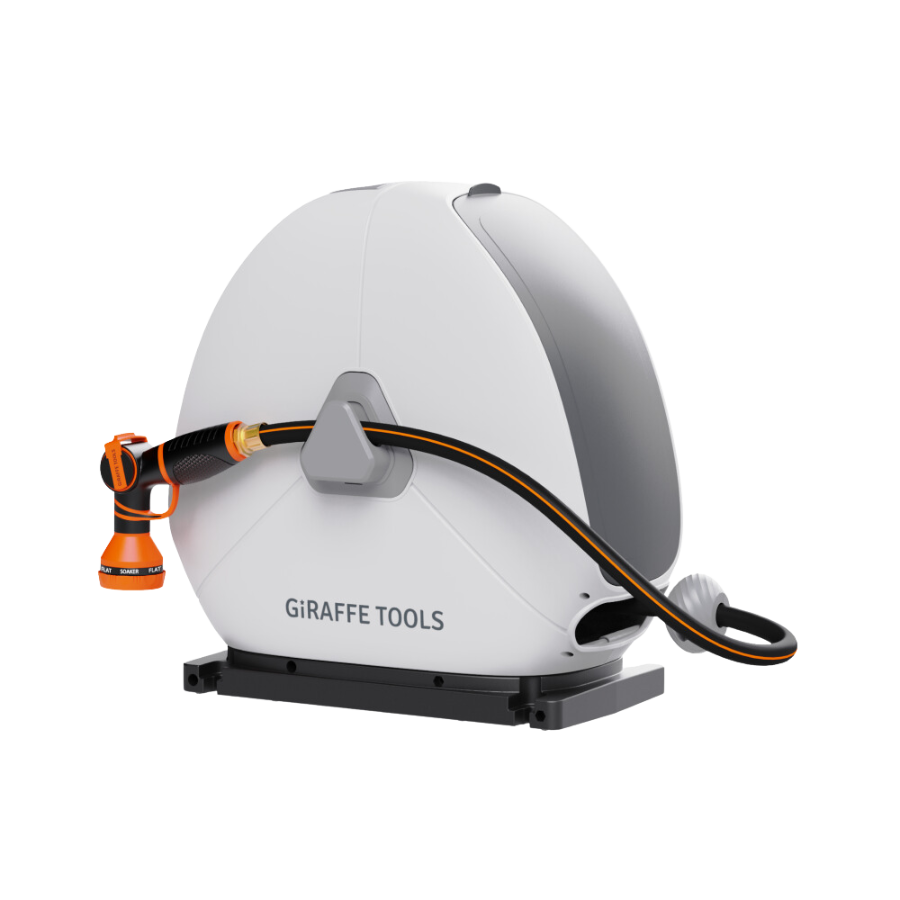

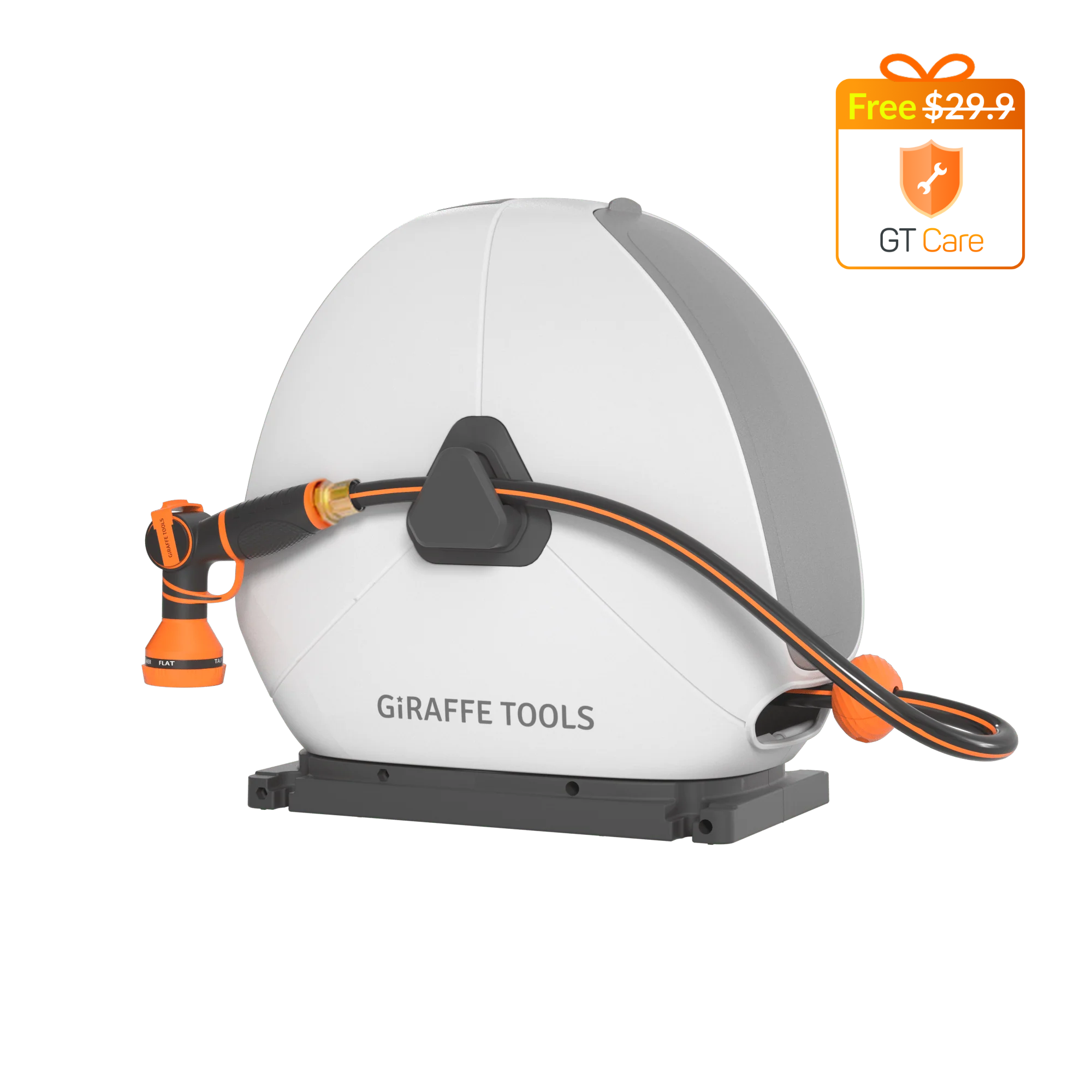

Giraffe Tools Ground-Mounted Retractable Hose Reel - Auto Rewind

The Giraffe Tools Ground-Mounted Retractable Hose Reel is a no-drill auto-rewind hose management system that installs directly into your lawn or concrete — featuring 360° swivel, auto-retraction, shift-lock at any extension length, portable carry handle, openable side cover for maintenance, and an included 9-pattern nozzle. Available in 82ft (1/2in), 92ft (5/8in), 100ft (1/2in), and 130ft (1/2in). Color: Light Grey. Weight: 22.3 lbs.

No Wall. No Drilling. 360° Coverage from Ground Level — Move It Anywhere in Your Yard.

The ground-mount reel solves the wall-mount’s core limitation: you can’t move it. This reel drives into your lawn with garden pins or anchors into concrete — no wall damage, no stud-finding, no bracket. The carry handle lets you pull it out and reposition it to a different watering zone entirely. The 360° swivel covers the full circle around the reel from a single ground position — vs. 180° on wall-mount models. Position it behind plants, at the center of a garden bed, or at the edge of a patio. The auto-retract stores the hose with a gentle tug. The openable side cover makes cleaning and maintenance accessible without tools.

See it in action

Hose, Retraction, Mount & Nozzle Specifications

Hose:

• Available Lengths: 82ft (1/2in), 92ft (5/8in), 100ft (1/2in), 130ft (1/2in)
• Diameter Options: 1/2in (lighter, easier to handle) or 5/8in (higher flow and pressure)

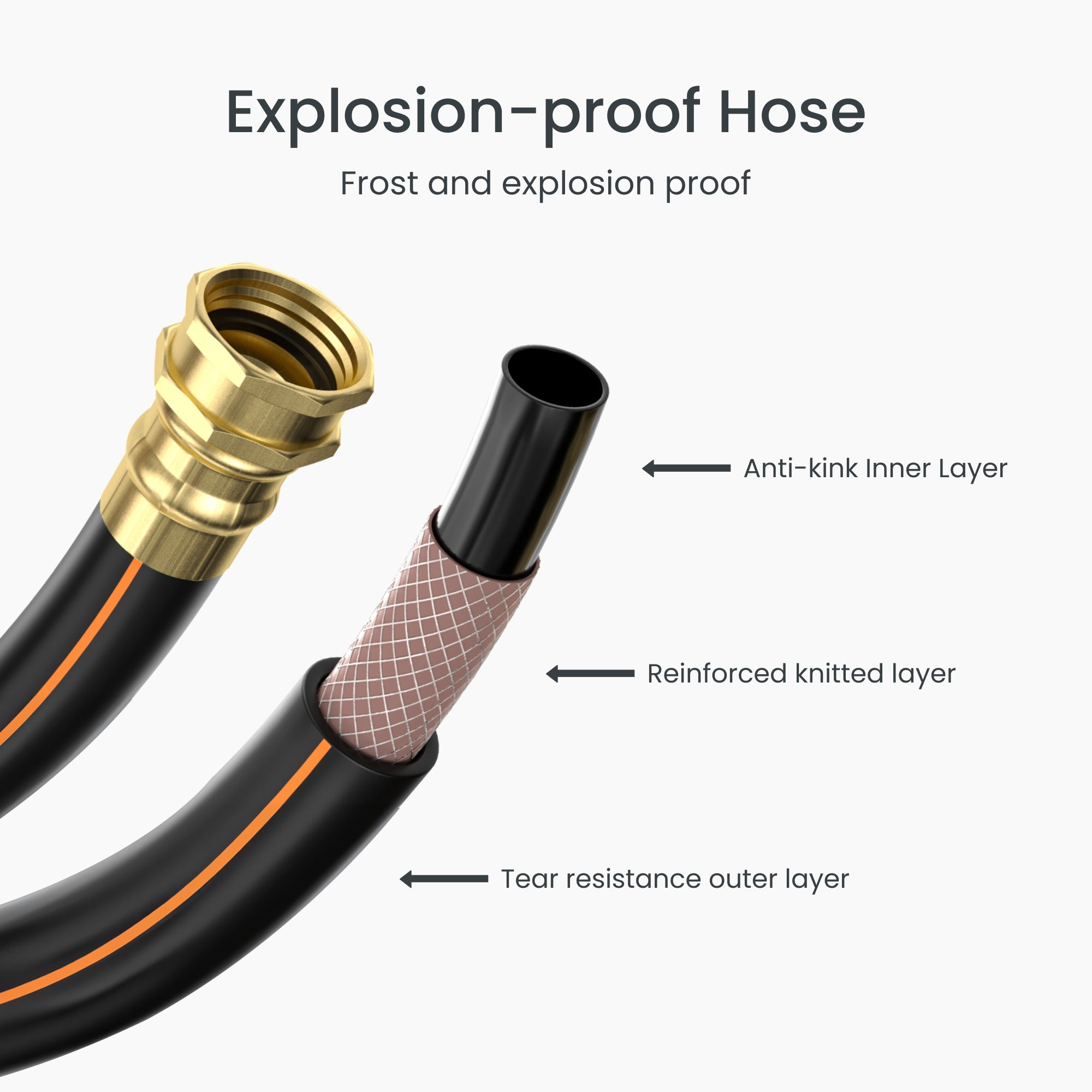

• Construction: All-weather PVC — leak-proof, abrasion-resistant
• Pressure Rating: 116 PSI (0.8 MPA)
• Operating Temperature: 32°F to 122°F
• Lead-in Hose: Integrated (included)

Retraction & Lock:

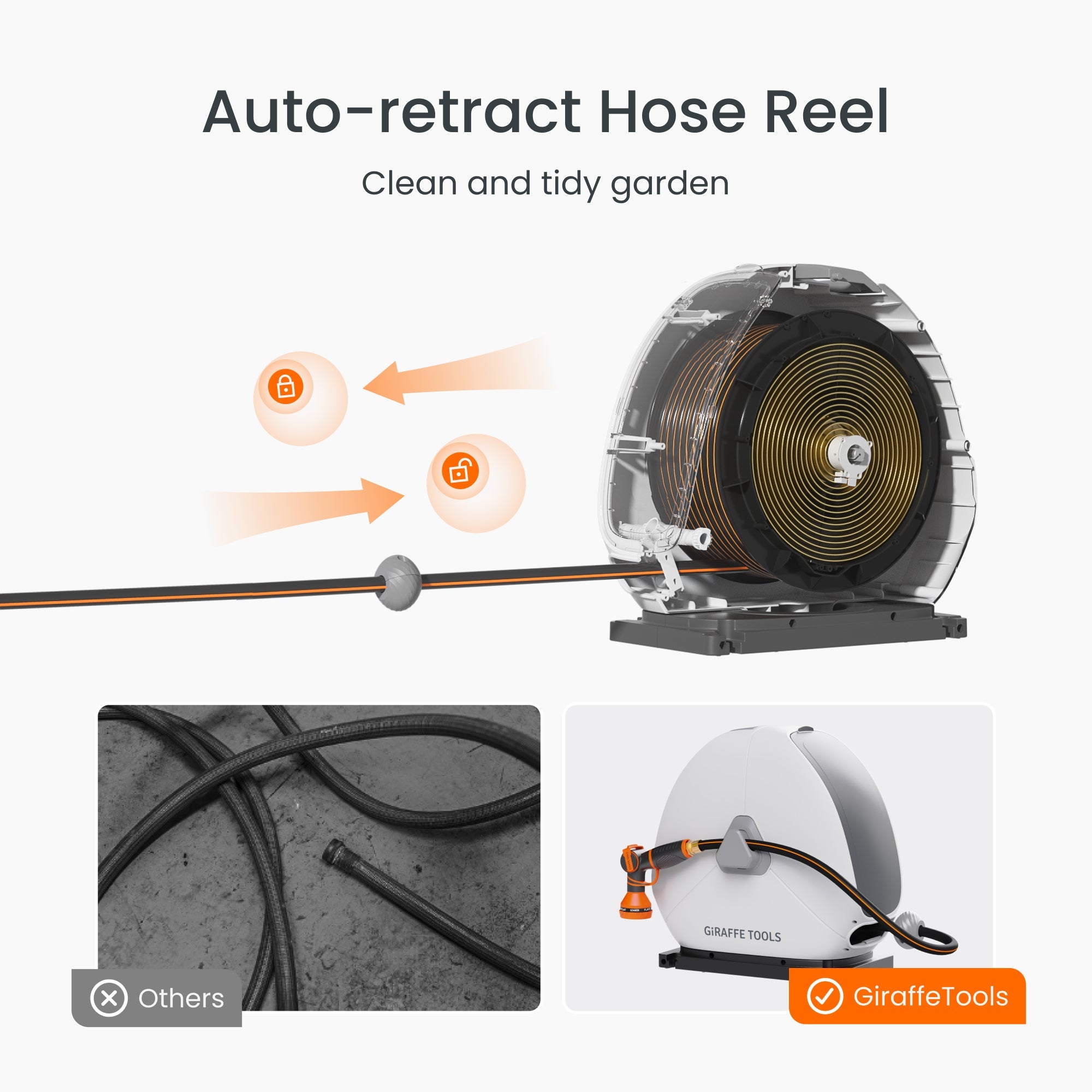

• Retraction Type: Auto-rewind — gentle tug activates retraction
• Locking: Shift-lock — holds at any extension length

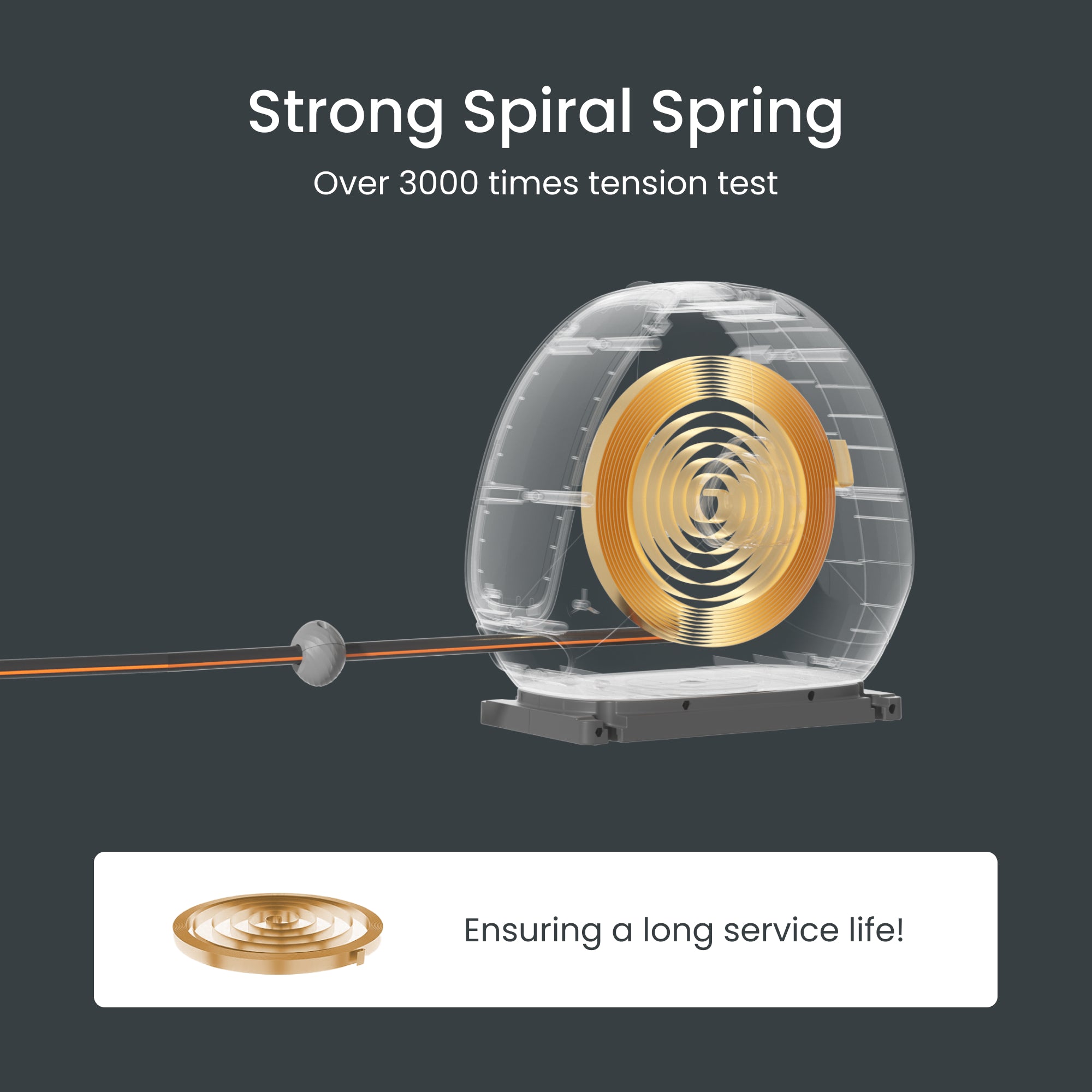

• Durability: Reinforced joints tested to 3,000 pulls

Mount & Rotation:

• Mount Type: Ground-mount — lawn (garden pins) or concrete (anchors + screws)
• Swivel Range: 360° full rotation — complete coverage around the reel from one position
• Portability: Carry handle — reposition to different watering zones without tools
• Reel Dimensions: 15.66" W × 9.45" D × 16.06" H

Housing, Nozzle & Weight:

• Housing Material: UV-resistant PP — resists cracking, fading, and yellowing
• Maintenance: Openable side cover — no dirt traps, accessible for cleaning

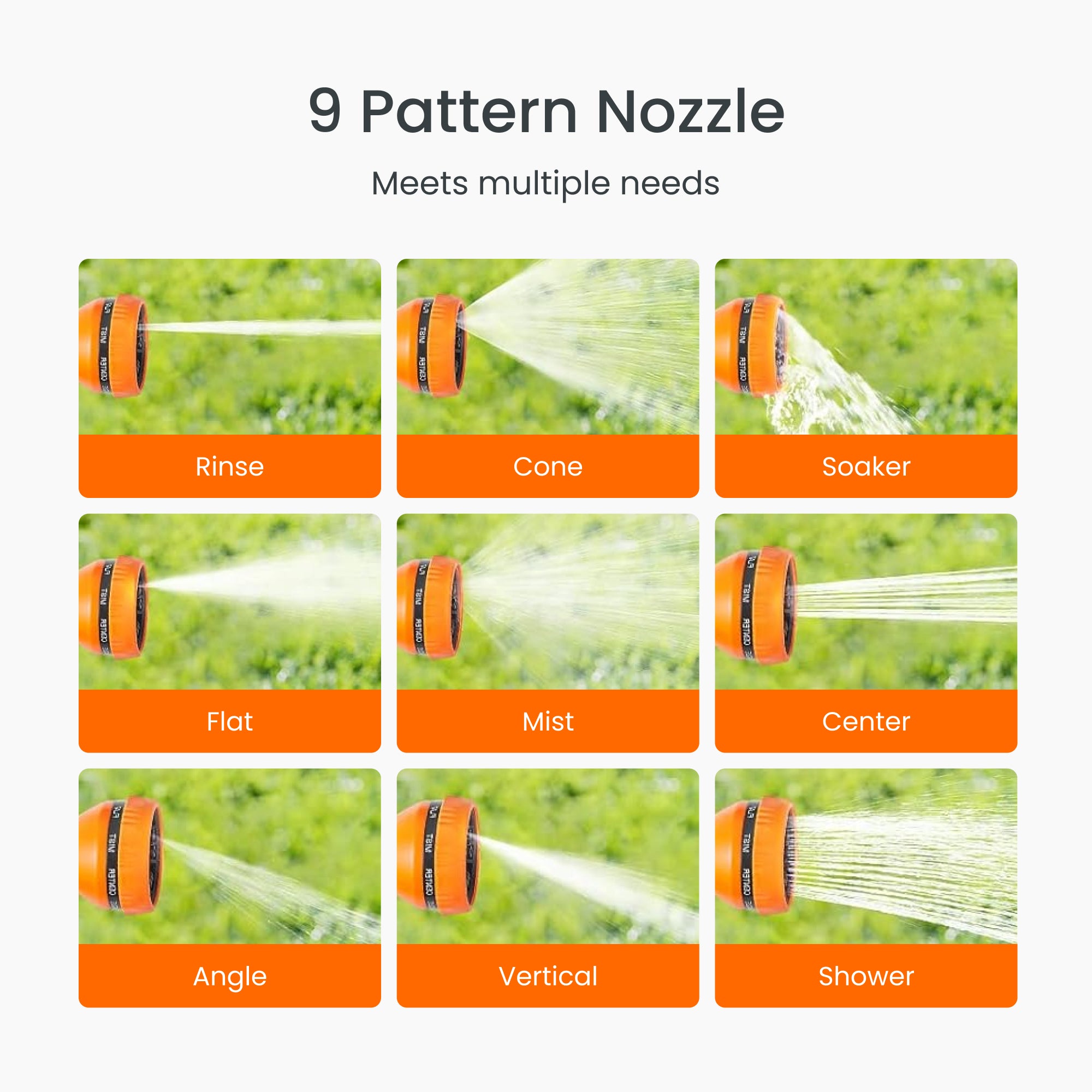

• Included Nozzle: 9-pattern adjustable — fine mist, flat spray, jet, and intermediate settings
• Color: Light Grey
• Weight: 22.3 lbs (base model)
• Model: SGW-R12A82M (base)

Choosing Your Configuration

Diameter — 1/2in vs. 5/8in:

• 5/8in (92ft, $189.99): Higher water volume per minute — choose for vehicle rinsing, pressure nozzle use, or faster coverage of large areas.
• 1/2in (82ft, 100ft, 130ft): Lighter hose, easier to handle — choose for general garden watering, plant care, and everyday use.

Length — matching reach to your space:

• 82ft (1/2in) — $135.99: Small-to-medium yard, patio, or garden from a single ground position. In stock.
• 92ft (5/8in) — $189.99: Medium yard with high-flow demand. In stock.
• 100ft (1/2in) — $165.99: Medium-to-large yard. Currently out of stock.
• 130ft (1/2in) — $194.99: Large yard or multi-zone coverage. Currently out of stock.

Ground-Mount vs. Wall-Mount — which is right for you?

• Ground-mount (this model): No drilling, 360° swivel, portable, repositionable. Best for renters, multi-zone yards, garden beds, or anywhere wall mounting isn’t practical.
• Wall-mount (AW series): Permanent installation, 180° swivel, PP or metal bracket options, wider length range (65–155ft). Best for fixed coverage of a garage bay, driveway, or side yard. See the AW series lineup.

Placement, Installation & Use Case Considerations

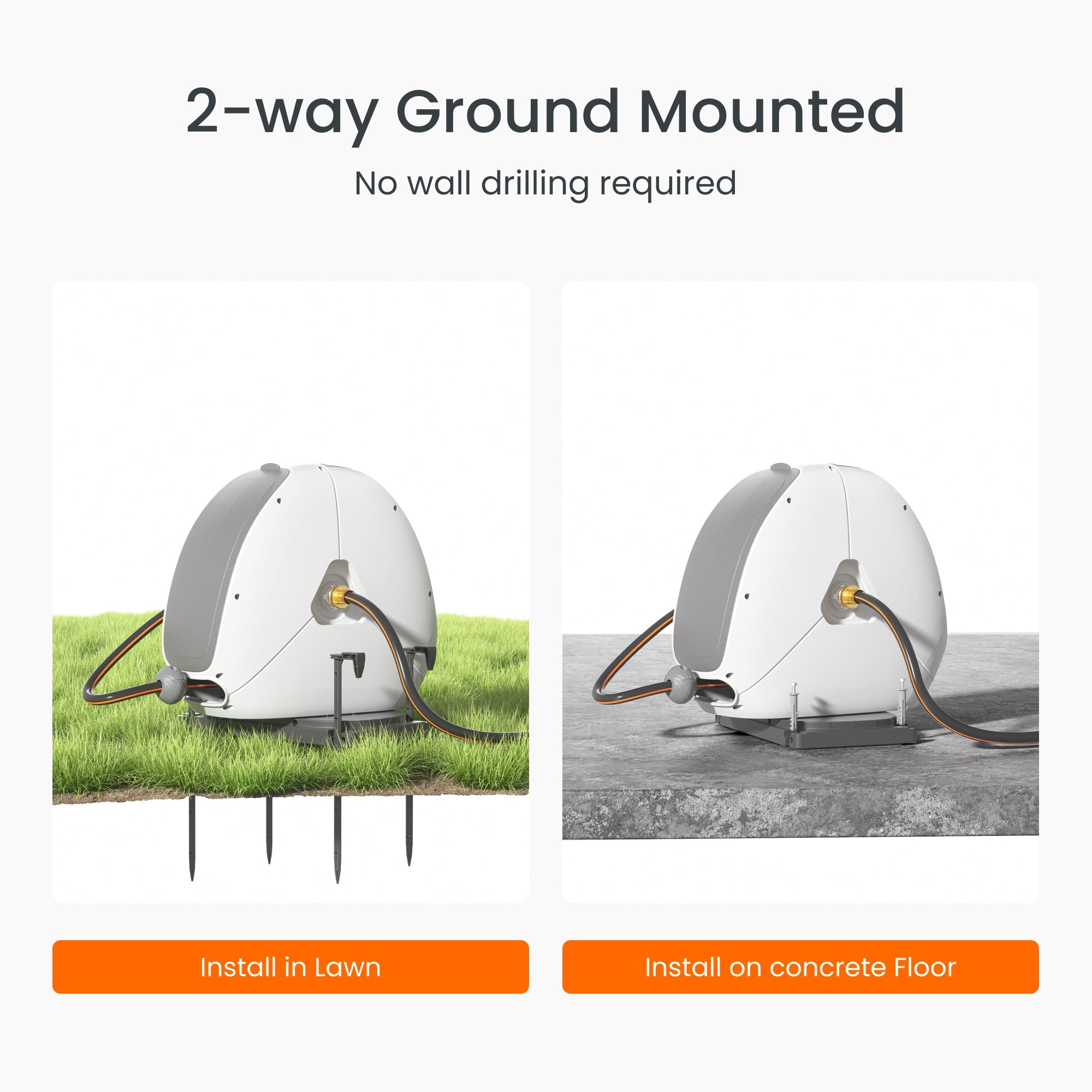

• Lawn Installation: Drive 4× garden pins (Ø11.5mm × 323mm) into firm soil — avoid loose or sandy soil where pull-out resistance may be insufficient under hose tension
• Concrete Installation: Use 4× ribbed anchors (Ø8mm × 60mm) + screws (Ø8mm × 70mm) — drill pilot holes to anchor depth before inserting

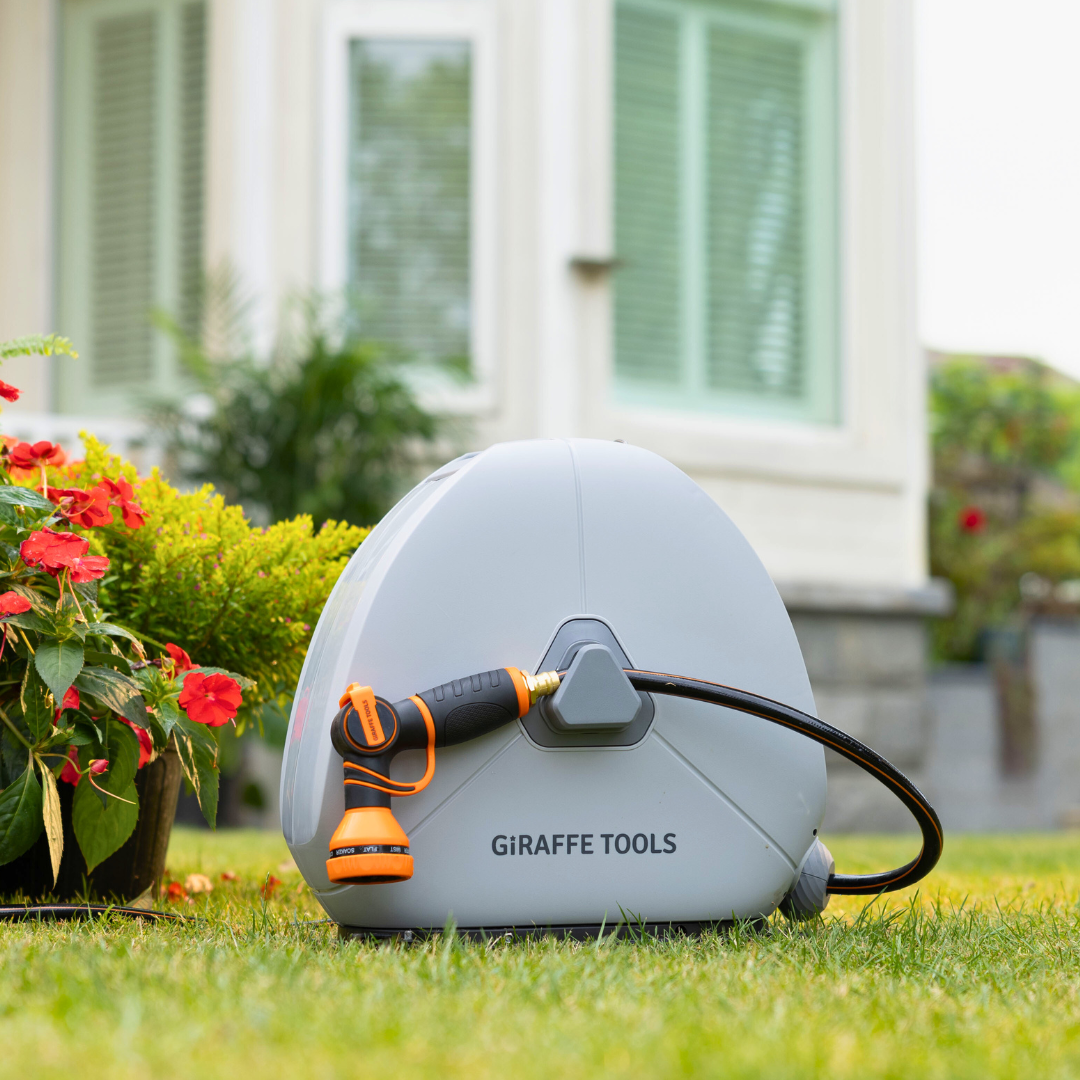

• Positioning: Place at the center of the area you need to cover — 360° swivel means equal reach in all directions from the ground position
• Portability: Carry handle allows full relocation — pull pins from lawn, move reel, re-stake in new position; no tools required
• Stability: Lowered center of gravity and reinforced joints prevent tipping — tested to 3,000 pulls; avoid positioning on slopes where lateral hose tension could tip the unit
• Maintenance: Openable side cover allows interior cleaning without disassembly — flush with water seasonally to clear debris
• Winterization: Pull pins, drain hose fully, retract completely, and store indoors or in a sheltered location — ground-mount units are more exposed to freeze risk than wall-mount units

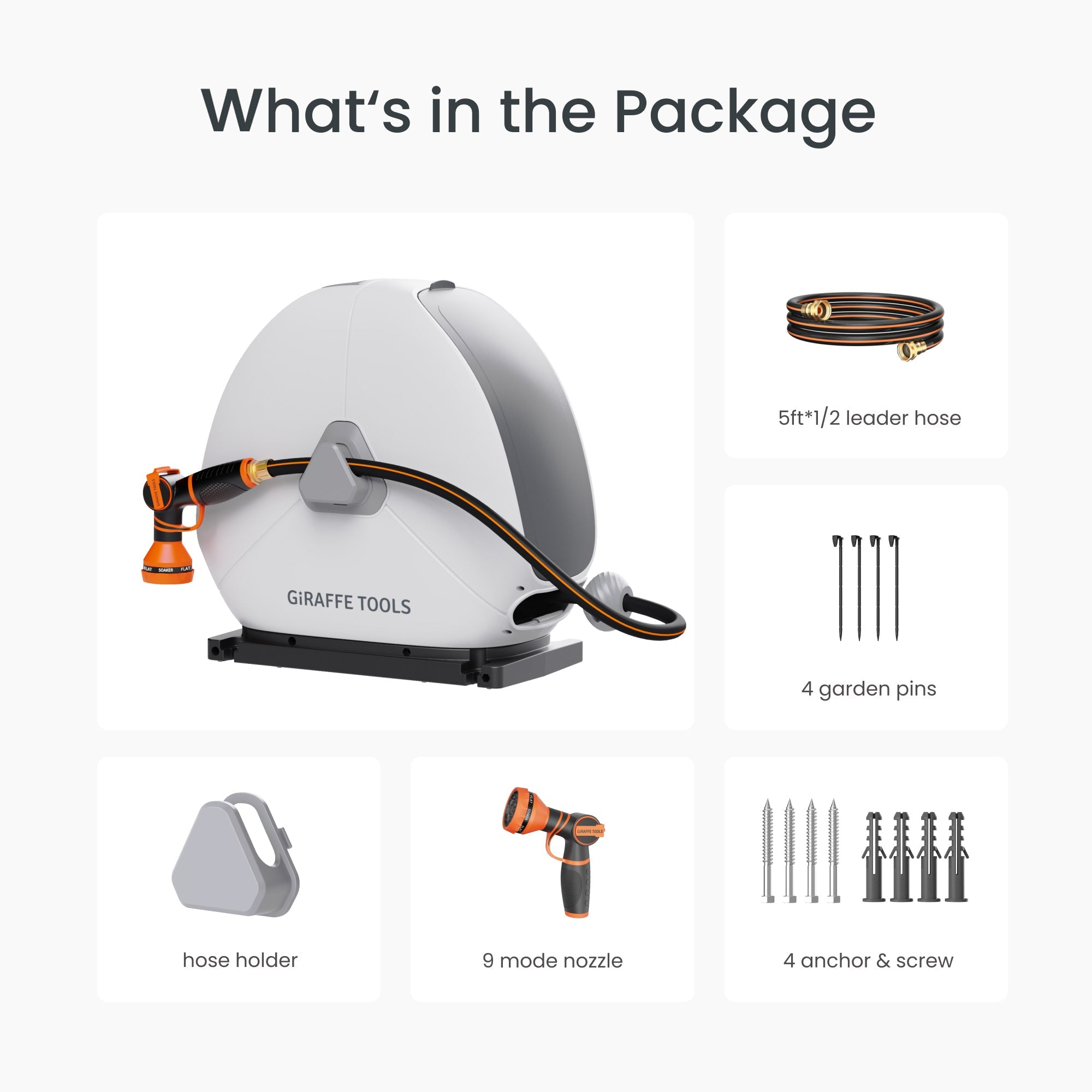

• What's in the Box: Reel with hose (length per variant), integrated lead-in hose, 9-pattern nozzle, 4× garden pins (Ø11.5mm × 323mm), 4× ribbed anchors (Ø8mm × 60mm), 4× screws (Ø8mm × 70mm), product manual
