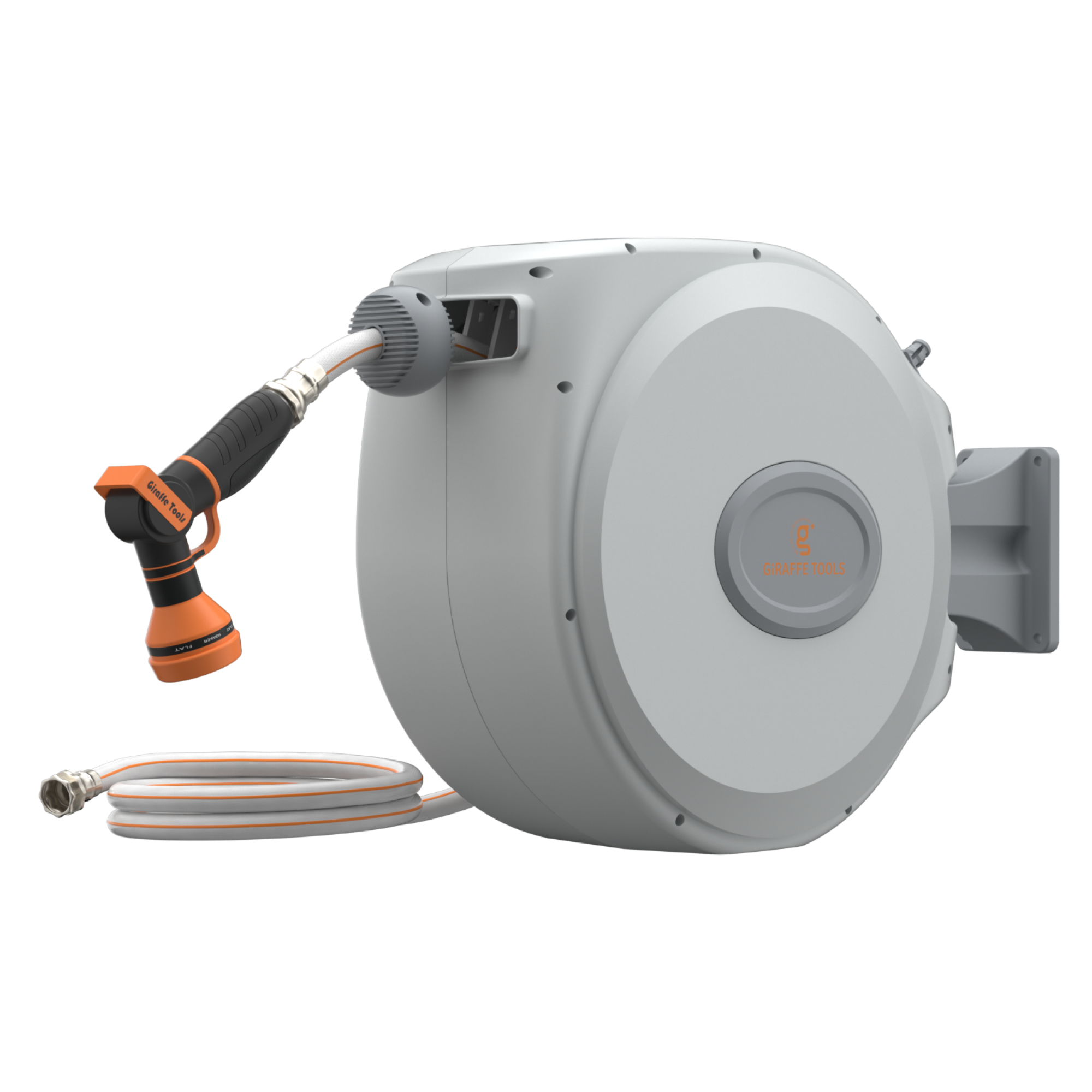

Giraffe Tools Retractable Garden Hose Reel - 65ft 5/8" Auto Rewind Wall Mount

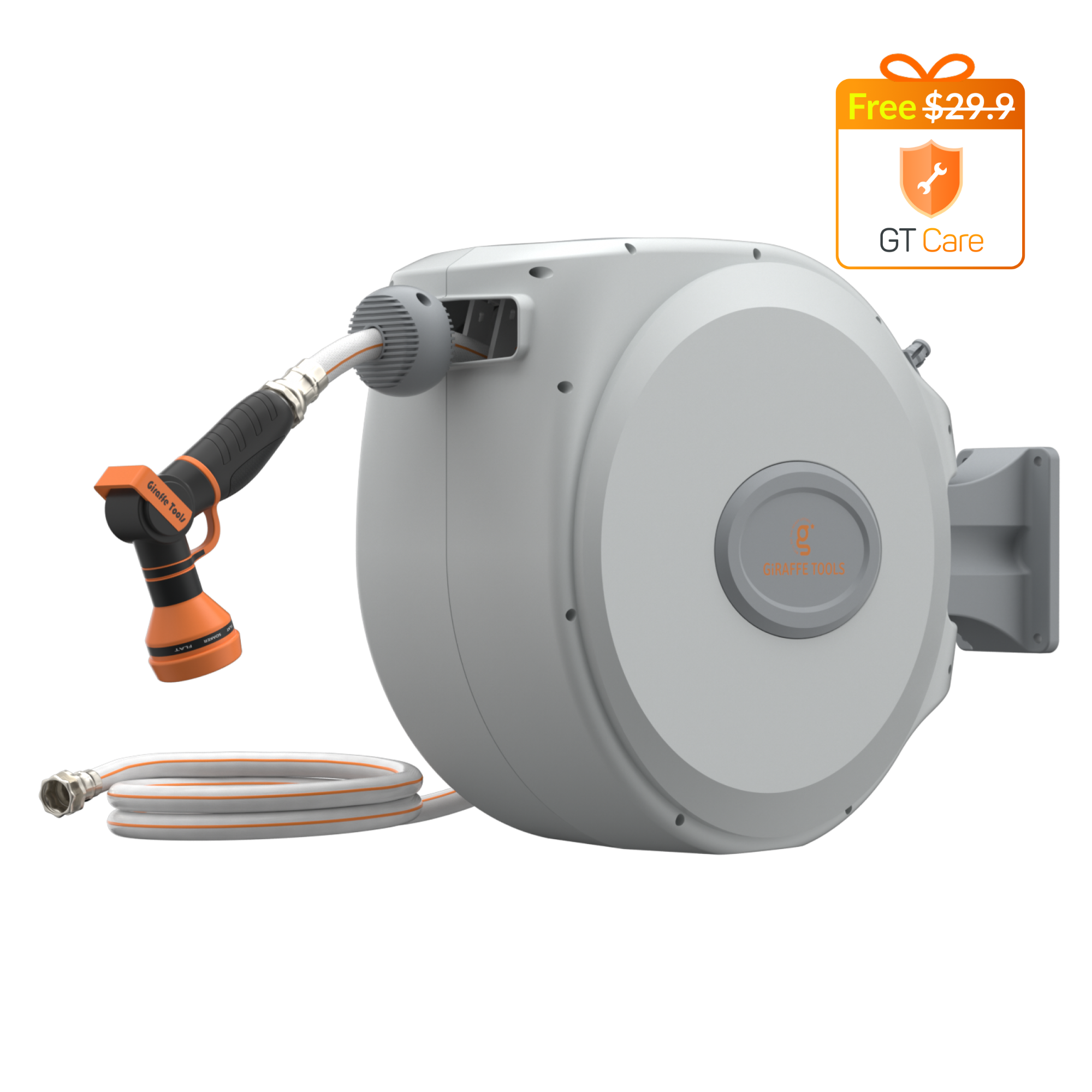

The Giraffe Tools CW20 Retractable Garden Hose Reel is a wall-mounted auto-rewind hose management system with 65ft of 5/8in hose — featuring the DS Trigger Mechanism for extended retraction life, G-Self-Layering System for tangle-free winding, shift-lock at any extension length, 180° rotating wall-mount, and an included 9-pattern nozzle. Single color: Light Grey. Net weight: ~20.7 lbs (9.4 kg).
65 Feet. 5/8in High-Flow. DS Trigger Auto-Rewind That Outlasts Standard Retraction Systems.
The CW20 is Giraffe Tools’ compact wall-mount reel — 65ft of 5/8in hose for high-flow coverage of a single-car garage apron, patio, side yard, or medium garden from one mount point. The DS Trigger Mechanism is the key internal differentiator: it extends the service life of the retraction system beyond standard spring-return designs, reducing wear over thousands of retraction cycles. The G-Self-Layering System guides the hose onto the drum in even layers on every retraction — no tangles, no resistance on the next pull. The shift-lock holds at any extension length without tension. The 180° rotating mount covers the full arc of a wall without repositioning the reel.
See it in action
Hose, Retraction, Mount & Nozzle Specifications
Hose:
- Model: CW20 (SKU: GWRAAV001)
- Length: 65ft (5/8in diameter)
- Flow Advantage: 5/8in delivers higher water volume per minute than 1/2in at the same inlet pressure
- Pressure Rating: Confirm with Giraffe Tools spec sheet — not listed in current product documentation
Retraction System:
- Retraction Type: Auto-rewind with DS Trigger Mechanism — extended service life vs. standard spring-return designs

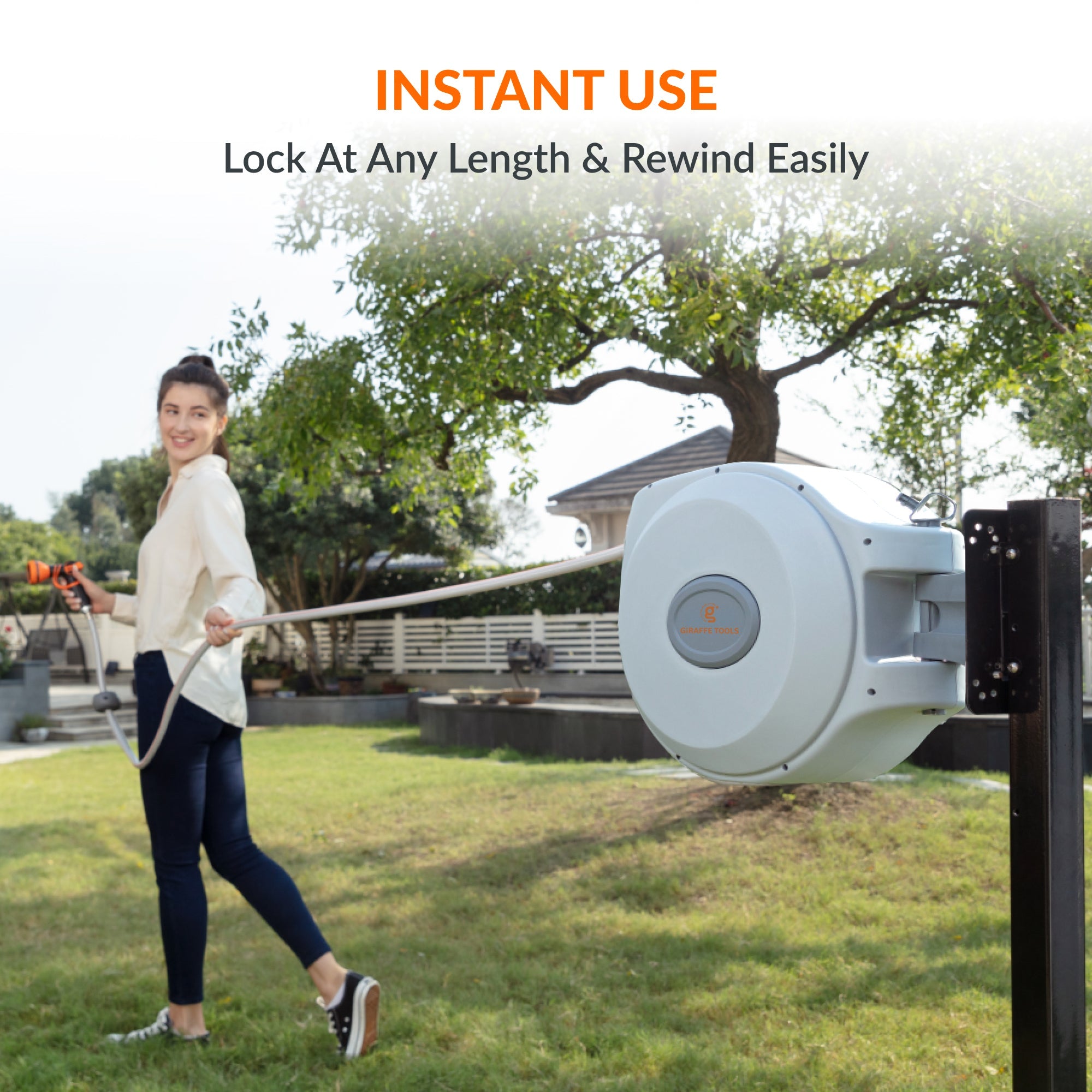

- Locking: Shift-lock — holds at any extension length without tension

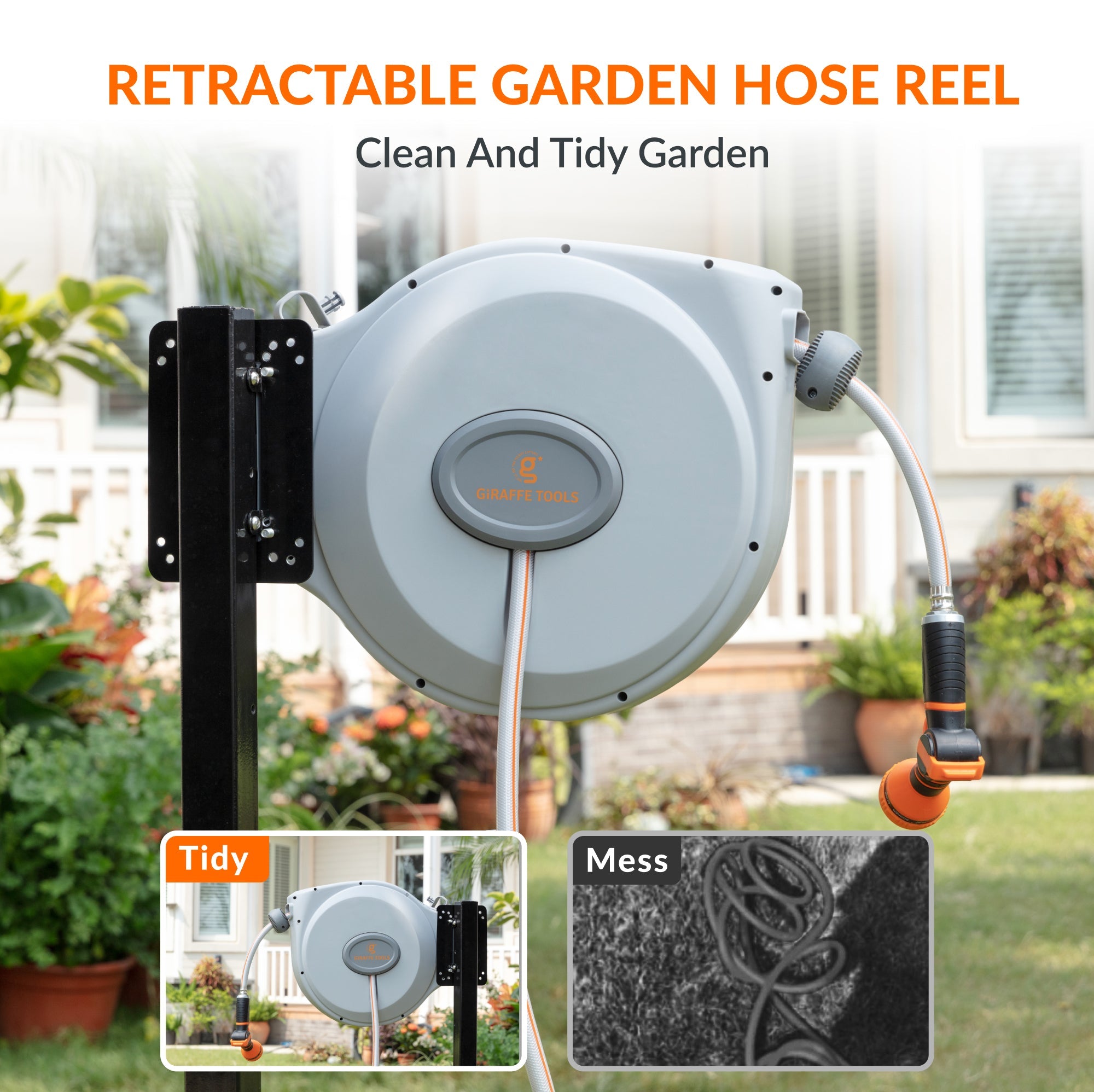

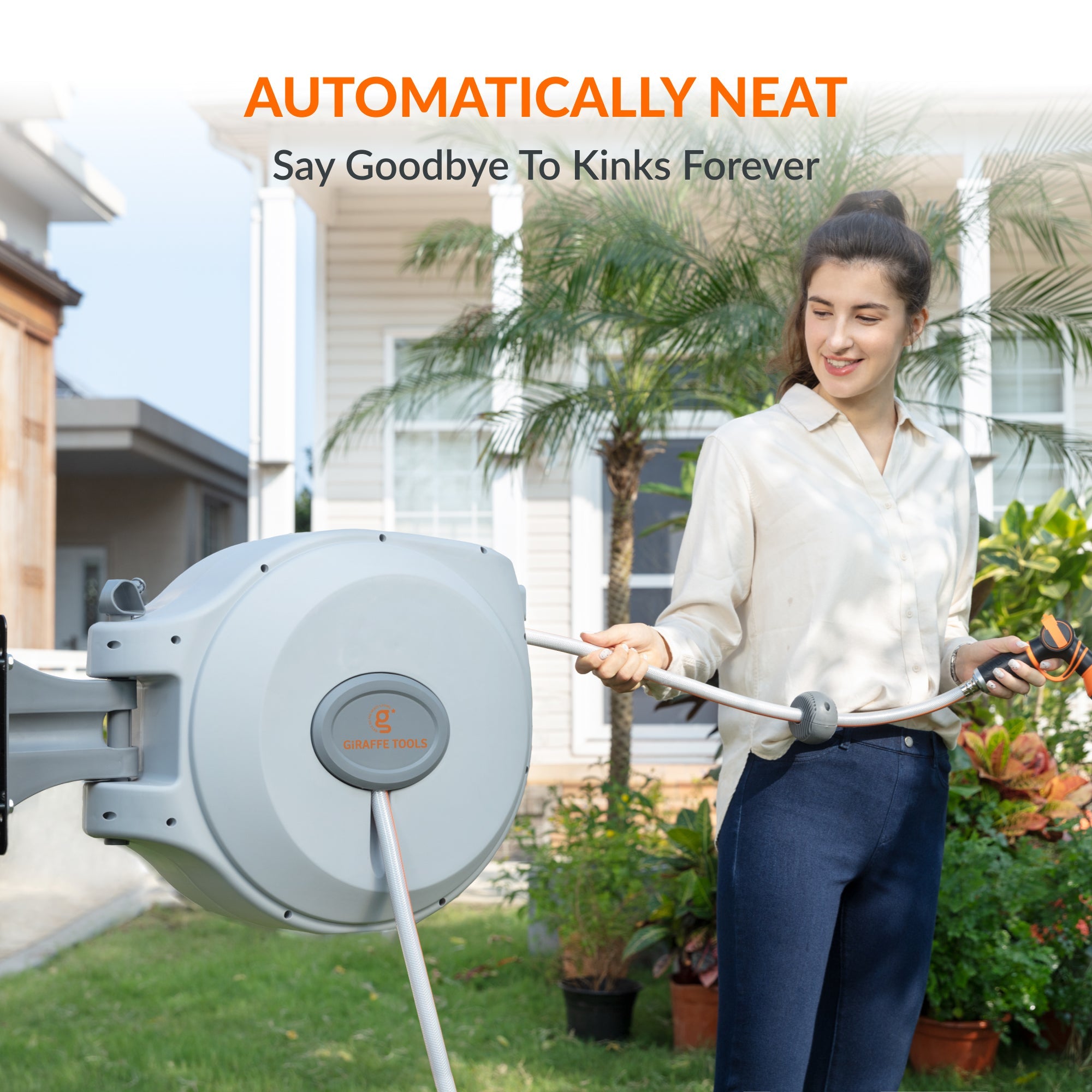

- Winding: G-Self-Layering System — guides hose onto drum in even layers, feeds out tangle-free
Mount & Rotation:
- Mount Type: Wall-mount, 180° rotating
- Design: All-in-one — hose, reel, and nozzle storage integrated in one unit
Housing, Nozzle & Weight:

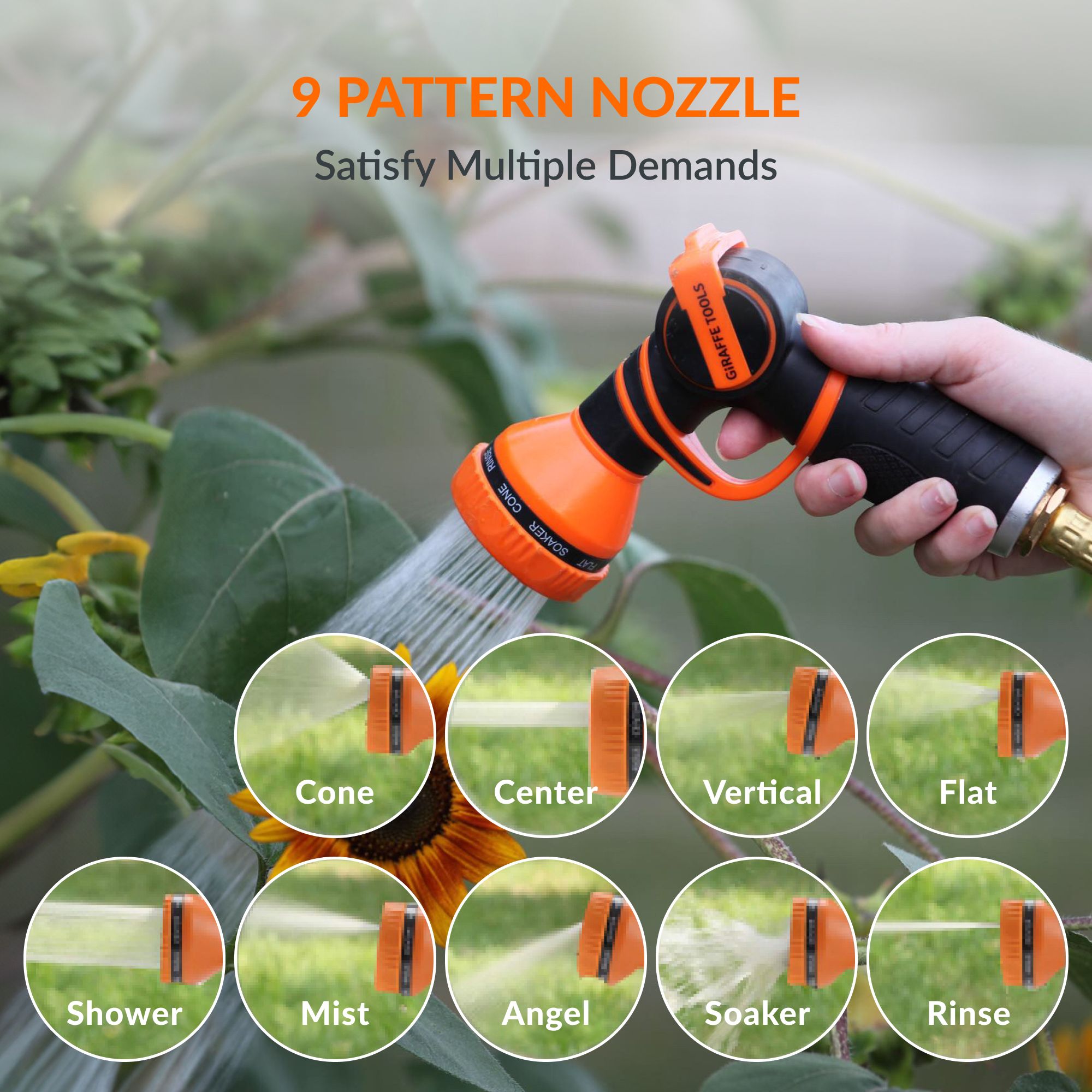

- Included Nozzle: 9-pattern adjustable — fine mist, flat spray, jet, and intermediate settings
- Color: Light Grey
- Net Weight: ~20.7 lbs (9.4 kg)
- Fastener Kit: 4× expansion bolts (Ø8mm × 70mm)
CW20 vs. AW Series — Which Reel Is Right for You?
- CW20 65ft 5/8in (this model, $134.99): Compact all-in-one design, DS Trigger for extended retraction life, G-Self-Layering, 5/8in high-flow. Best for: smaller properties, patios, side yards, or buyers who prioritize flow rate over reach. Lightest wall-mount reel in the lineup at ~20.7 lbs.
- AW series (90–155ft): Larger reel bodies with adaptive layering retraction, detachable or integrated lead-in hose, PP or metal bracket options, Grey or Light Grey. Best for: medium-to-large properties needing more reach. See the full lineup for all length and diameter combinations.
Placement, Mounting & Use Case Considerations
- Mount Height: Install at a height that allows the hose to retract fully without dragging — typically 5–6ft from the floor for a ~20.7 lb unit
- Wall Substrate: Fastener kit includes 4× expansion bolts (Ø8mm × 70mm) — suitable for masonry and concrete; confirm stud spacing for wood-frame walls

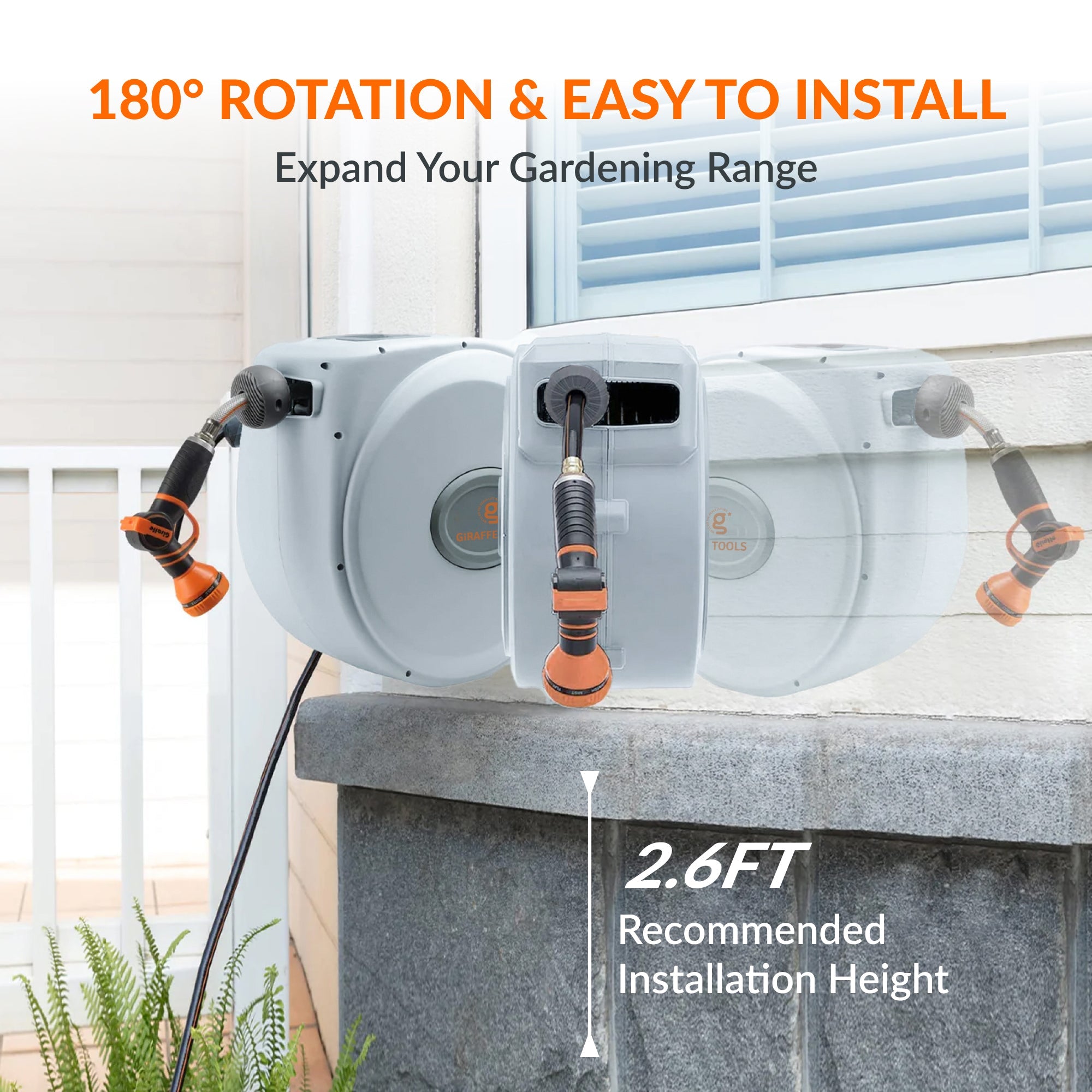

- Swivel Coverage: The 180° rotating mount covers a full wall-to-wall arc — position at the midpoint of the area you need to cover for maximum reach in both directions
- 5/8in at 65ft: Higher flow rate than 1/2in — well-suited for vehicle rinsing, pressure nozzle use, or faster coverage of a compact area; 65ft reach is ideal for single-car garage apron, patio, or side yard
- All-in-One Storage: Nozzle and lead-in hose store within the unit — no separate hooks or storage needed
- Garage vs. Outdoor Use: Confirm UV rating with Giraffe Tools spec sheet; suitable for sheltered outdoor installations
- Winterization: Drain the hose fully before freezing temperatures — retract completely and disconnect the inlet to prevent water from sitting in the reel housing

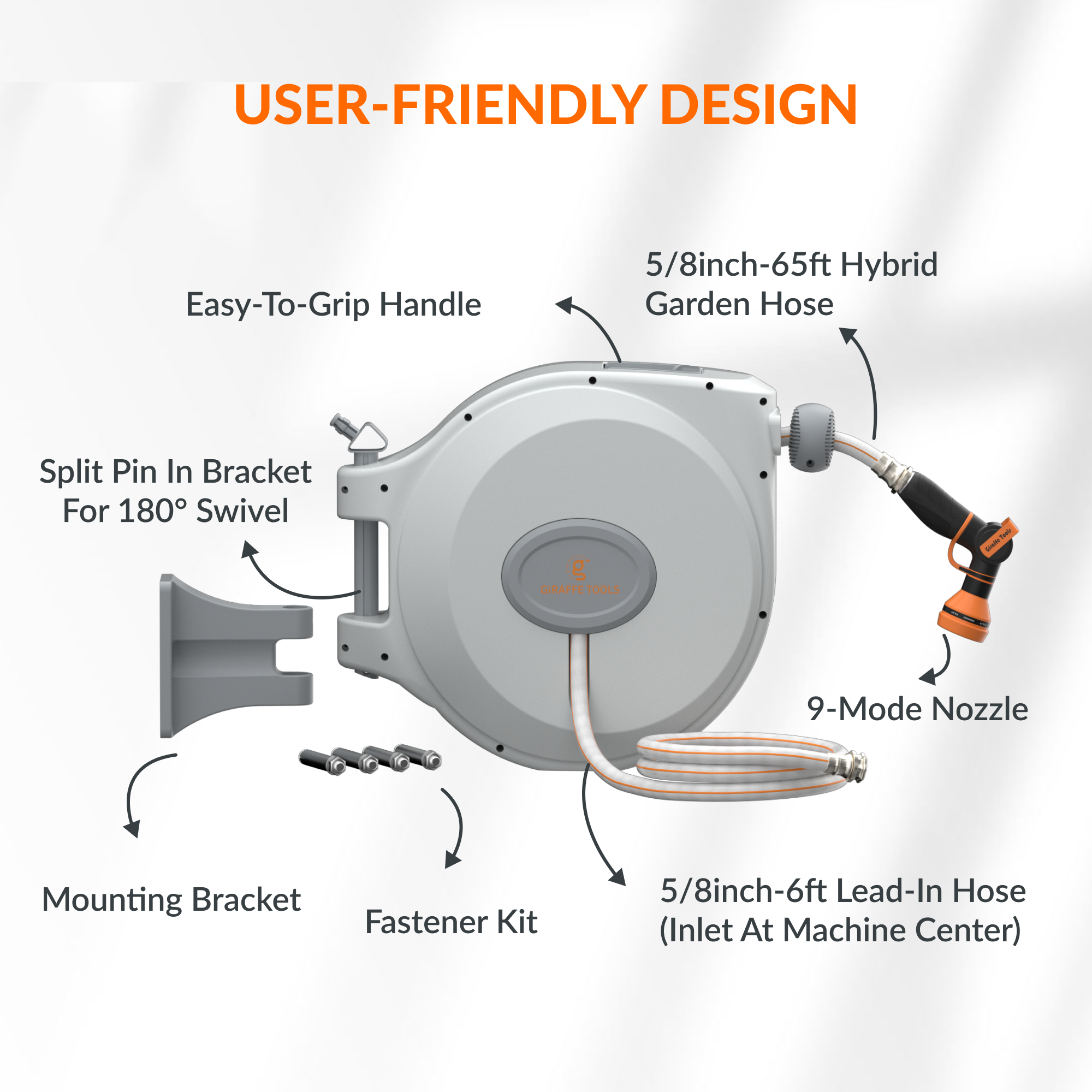

- What's in the Box: CW20 reel with 65ft 5/8in hose, 180° rotating wall-mount bracket, lead-in hose, 9-pattern nozzle, fastener kit (4× expansion bolts Ø8mm × 70mm), product manual
