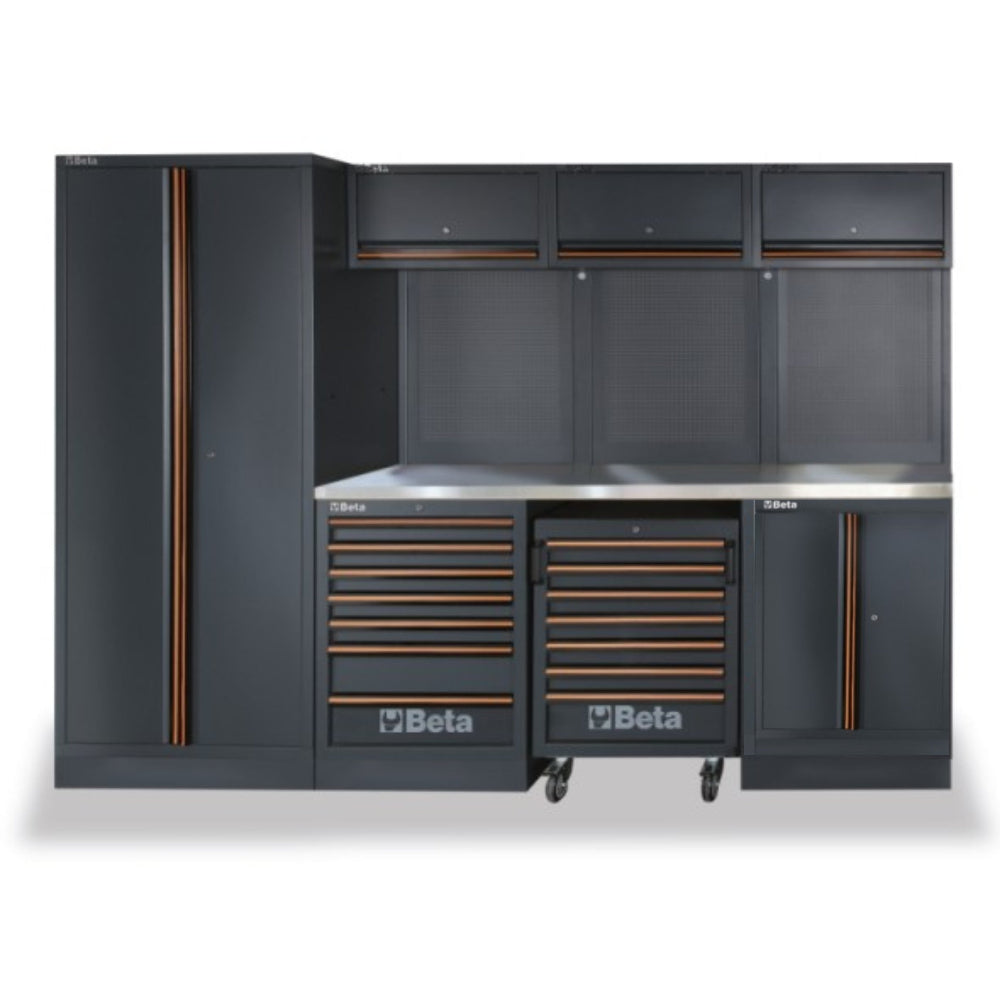

Beta Tools C45PRO Master Garage Cabinet System with Mobile Cart (116" - C45PRO XMA)
The Beta Tools C45PRO/XMA is a 116.3" × 19.5" × 78.7" modular garage cabinet system built from 18-gauge sheet steel, combining a fixed 7-drawer module, a dockable 7-drawer mobile roller cabinet, a two-door fixed module, a full-height locker, three wall-mounted cabinets, three perforated tool panels, and a continuous stainless steel coated MDF worktop — all in a single pre-configured system weighing 672.4 lbs.
Why Piecemeal Storage Fails the Professional Service Bay
Mismatched cabinet heights create uneven worktops. Incompatible module depths produce dead space. Mobile carts that don't dock leave gaps in the workflow. The C45PRO XMA resolves all three failure modes with a factory-configured system where every component — fixed modules, mobile cart, locker, wall cabinets, and perforated panels — is engineered to the same depth, height, and connection standard, producing a continuous 116" workstation with no compatibility guesswork.

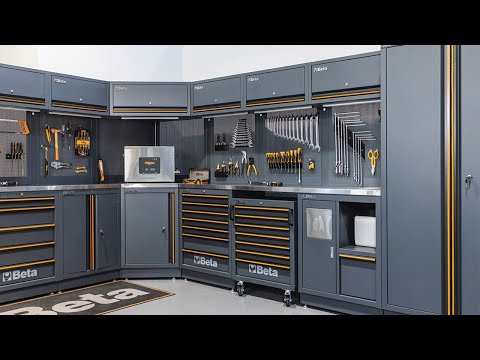

See it in action:
18-Gauge Steel Construction: System Components, Dimensions & Surface Specifications
System Dimensions: 116.3" W × 19.5" D × 78.7" H
Material: 18-gauge sheet steel throughout all modules
Worktop: Continuous stainless steel coated MDF — oil-resistant, chemical-resistant, rated for major teardowns and assembly work
Total System Weight: 672.4 lbs
Warranty: 1-year manufacturer warranty
Origin: China
SKU: 45001997
Included Components:

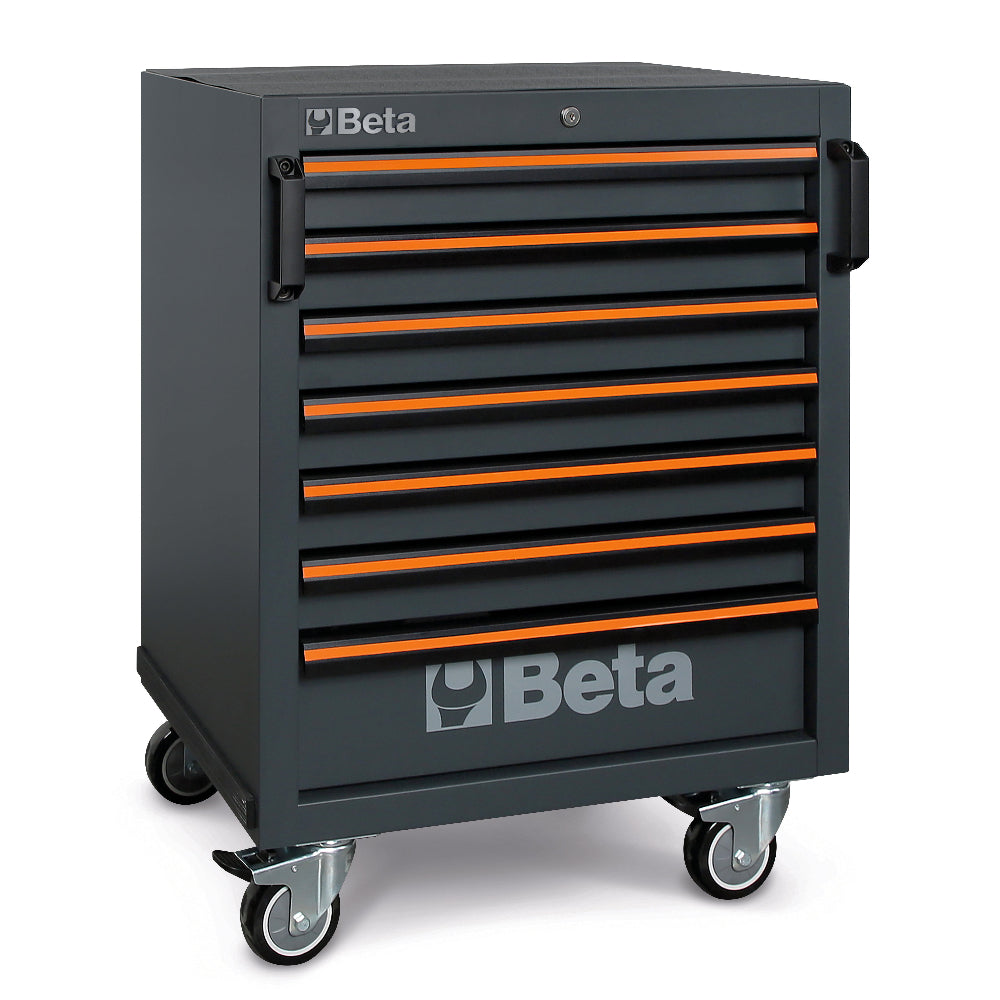

- 1 × Mobile Roller Cabinet — 7 drawers, ball-bearing slides, foam rubber mats, docks under worktop

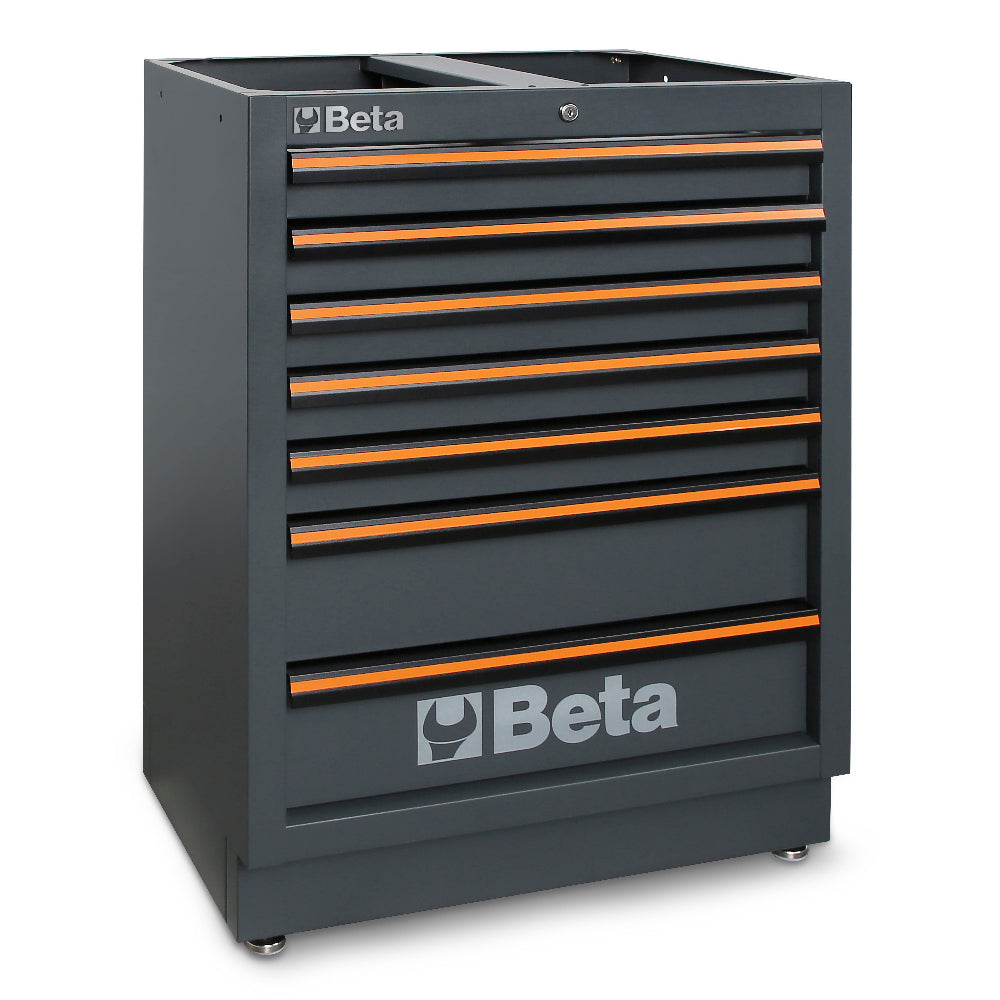

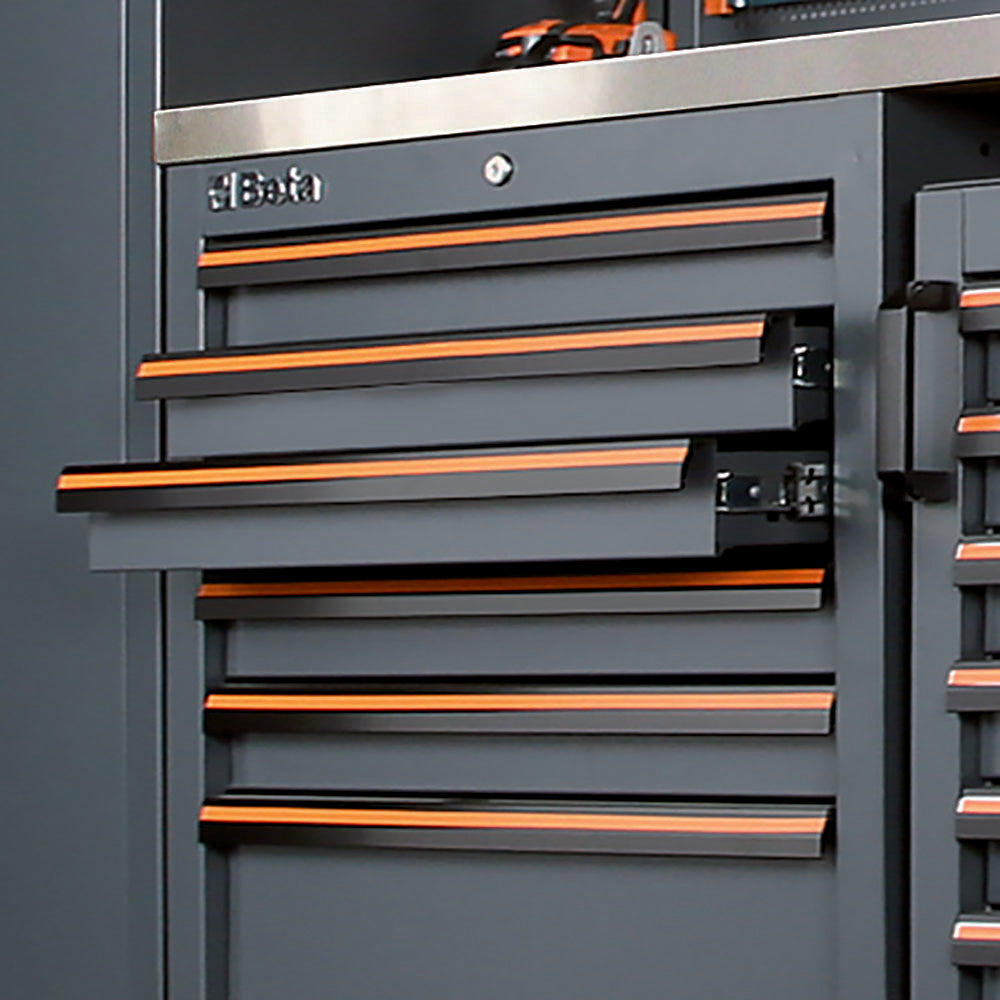

- 1 × Fixed 7-Drawer Module — ball-bearing slides, foam rubber mats, centralized locking

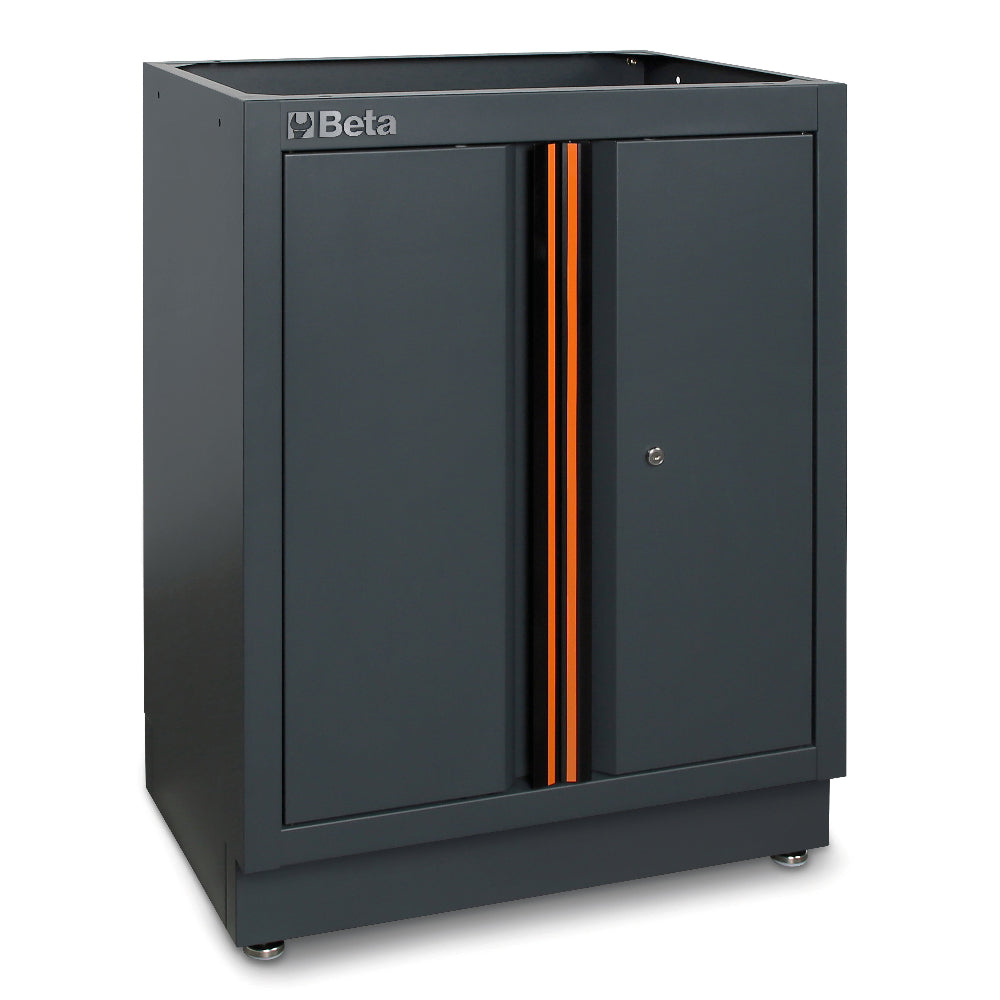

- 1 × Fixed Two-Door Module — enclosed storage for bulky items, cleaning supplies, or equipment cases
- 1 × Tall Single-Door Tool Cabinet (Locker) — full-height vertical storage with adjustable shelves for long items, coveralls, or large cases

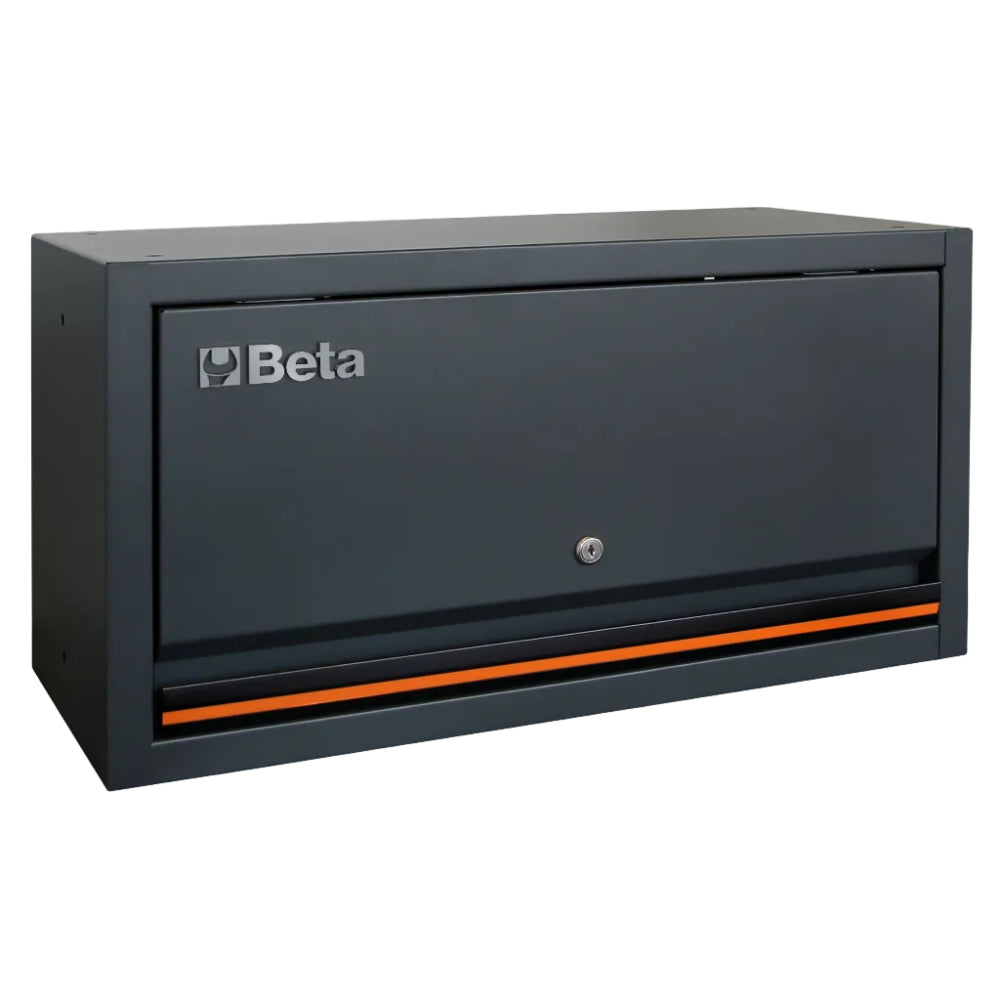

- 3 × Wall-Mounted Cabinets — overhead enclosed storage above the worktop

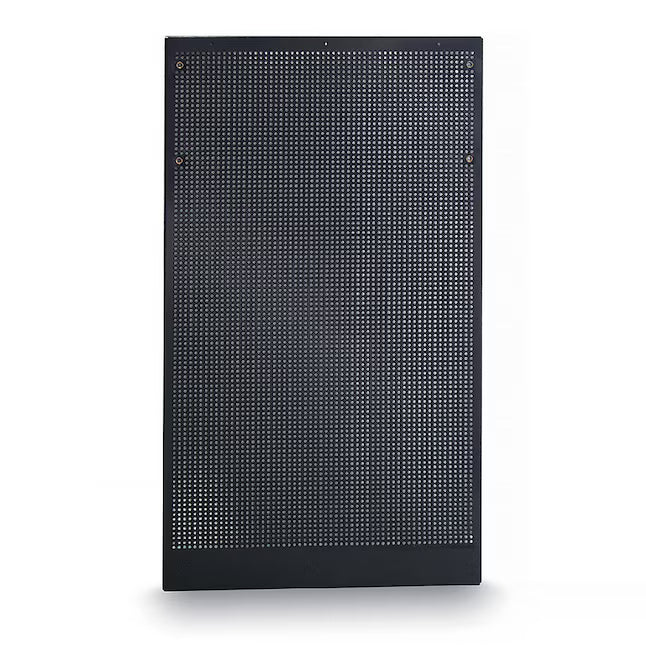

- 3 × Perforated Tool Panels — wall-mounted pegboard-style panels for hanging tools and accessories
- 4 × Wall Brackets — structural mounting hardware for wall cabinets and panels
- 1 × Continuous Worktop — 116" stainless steel coated MDF surface spanning all base modules
Installation Requirements: Wall Load, Floor Clearance & Bay Dimensions

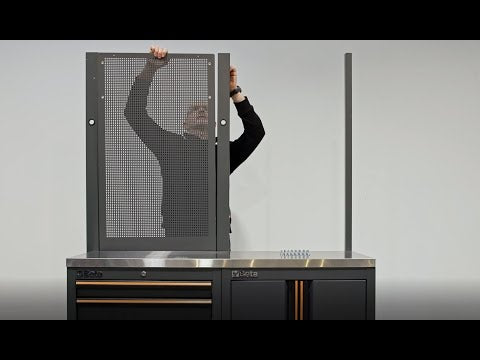

Watch the full assembly walkthrough before you begin:
- Minimum Bay Width: 116.3" (9' 8.3") for base modules — additional clearance required for wall cabinet installation above
- Floor Depth Requirement: 19.5" base module depth — verify wall-to-obstruction clearance before positioning
- System Height: 78.7" to top of wall cabinets — confirm ceiling clearance for wall cabinet installation
- Wall Load: Wall brackets support 3 overhead cabinets and 3 perforated panels — verify wall stud spacing and substrate before installation; drywall anchors alone are not rated for this load
- Floor Load: 672.4 lbs system weight — distributed across base module footprint; verify concrete slab or subfloor rating if installing over wood framing
- Mobile Cart Dock: The 7-drawer roller cabinet docks under the worktop — confirm dock clearance height matches cart height before final worktop installation
- Delivery Note: At 672.4 lbs, this system ships freight — confirm delivery access (driveway width, lift gate requirement) before ordering
