Beta Tools C45PRO Standard Garage Cabinet System with Locker (77" - C45PRO EX)

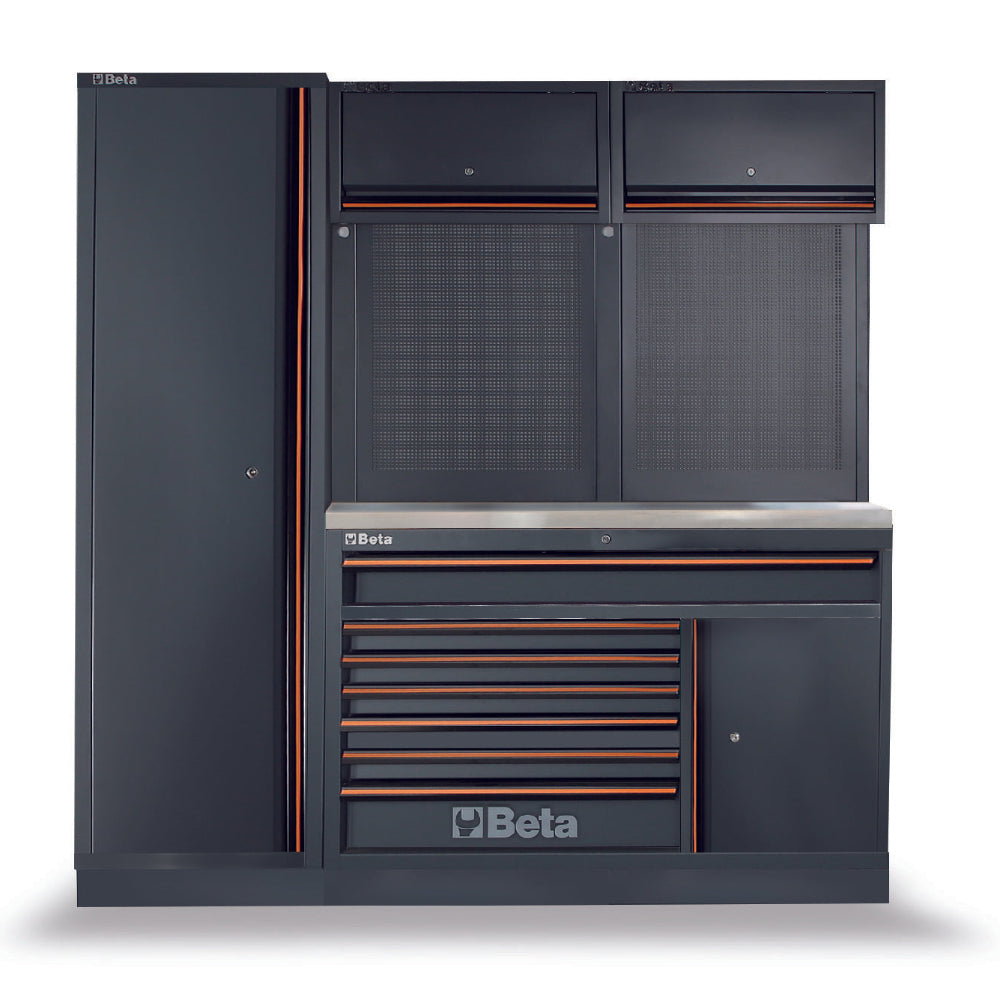

The Beta Tools C45PRO EX is a 77.17" × 19.49" × 78.74" modular garage cabinet system built from 18-gauge sheet steel, combining a fixed 7-drawer module, a single-door locker with adjustable shelves, a separate locking storage compartment, two wall-mounted cabinets, two perforated tool panels, and a continuous stainless steel coated MDF worktop — in a pre-configured system weighing 385 lbs.
A Complete Professional Garage Storage System Built Around Hand Tool Organization.
Most garage storage setups are assembled piecemeal — mismatched cabinet heights, incompatible depths, and no continuous worktop. The Beta Tools C45PRO EX ships as a factory-configured system where every component is engineered to the same depth, height, and connection standard: a fixed 7-drawer module for hand tools, socket sets, and precision instruments, a full-height locker for long items and coveralls, a separate locking storage compartment for secured gear, two overhead wall cabinets, and two perforated tool panels — all producing a continuous 77.17" workstation with a stainless steel coated MDF worktop. 18-gauge steel construction throughout. Centralized locking on all drawers. Adjustable leveling feet for uneven concrete. Everything in one order, one delivery, one installation.
See it in action:
18-Gauge Steel Construction: System Components, Dimensions & Surface Specifications
System Dimensions: 77.17" W × 19.49" D × 78.74" H
Material: 18-gauge sheet steel throughout all modules
Worktop: Continuous stainless steel coated MDF — oil-resistant, chemical-resistant surface spanning all base modules
Total System Weight: 385 lbs
Leveling: Adjustable feet on all base cabinets for leveling on uneven concrete floors
Locking: Centralized lock system on drawer module; separate keyed lock on storage compartment door
Warranty: 1-year manufacturer warranty
Origin: China
SKU: 45000033
Included Components:

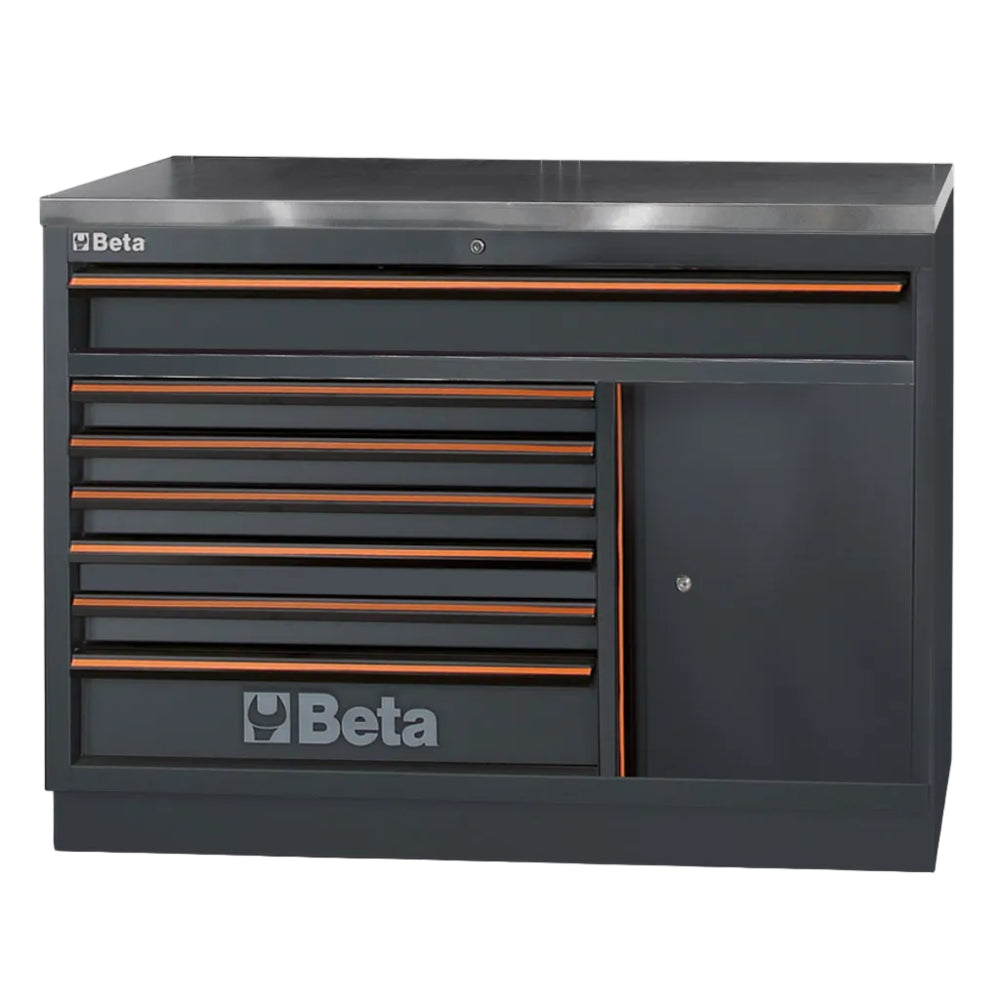

- 1 × Fixed 7-Drawer Module — ball-bearing slides, foam rubber mats, centralized locking
- 1 × Single-Door Tool Cabinet (Locker) — full-height vertical storage with adjustable shelves for long items, coveralls, or large cases
- 1 × Storage Compartment with Locking Door — dedicated secured storage zone with adjustable interior shelf; separate from the locker and drawer module
- 2 × Wall-Mounted Cabinets — overhead enclosed storage above the worktop
- 2 × Perforated Tool Panels — wall-mounted panels for hanging tools and accessories
- 3 × Wall Brackets — structural mounting hardware for wall cabinets and panels
- 1 × Continuous Worktop — 77.17" stainless steel coated MDF surface spanning all base modules
Installation Requirements & Configuration Selection
Watch the full assembly walkthrough before you begin:
- Minimum Bay Width: 77.17" (6' 5.2") for base modules — additional clearance required for wall cabinet installation above
- Floor Depth Requirement: 19.49" base module depth — verify wall-to-obstruction clearance before positioning
- System Height: 78.74" to top of wall cabinets — confirm ceiling clearance for wall cabinet installation
- Wall Load: Wall brackets support 2 overhead cabinets and 2 perforated panels — verify wall stud spacing and substrate before installation; drywall anchors alone are not rated for this load
- Floor Load: 385 lbs system weight — distributed across base module footprint; verify concrete slab or subfloor rating if installing over wood framing
- Need open-shelf base storage instead of maximum drawers? The C45PRO BX replaces two drawers with a two-door base module for bulky items, equipment cases, or cleaning supplies — same 77.17" footprint and price point
- Need more storage overall? The C45PRO XMA extends to 116" with a dockable mobile roller cart and higher total drawer count for full-bay coverage
- Delivery Note: At 385 lbs, this system ships freight — confirm delivery access (driveway width, lift gate requirement) before ordering
