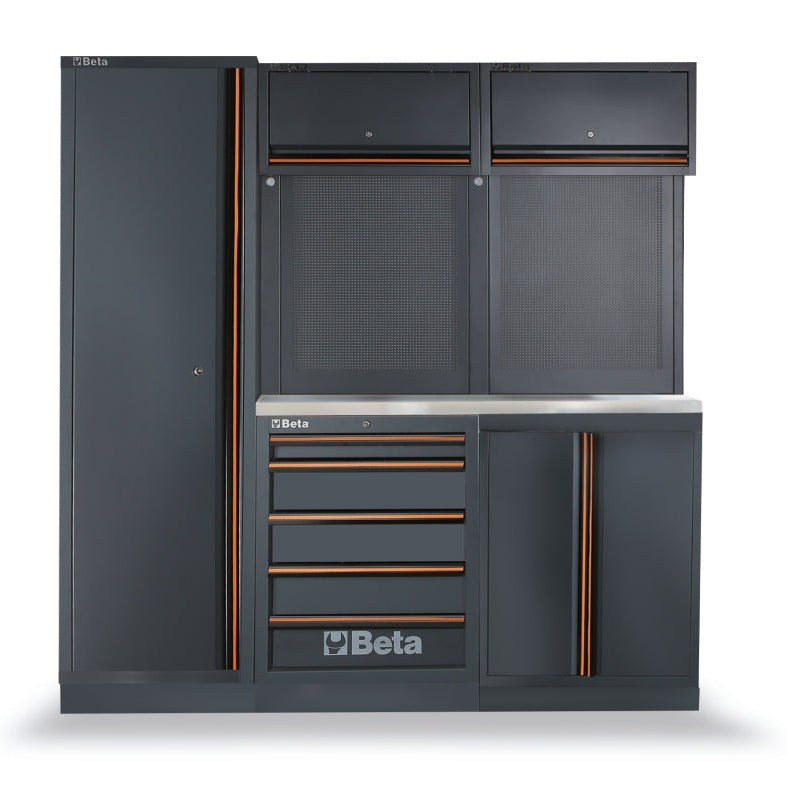

Beta Tools C45PRO Standard Garage Cabinet System with 5-Drawers & Locker (77" - C45PRO BX)
The Beta Tools C45PRO BX is a 77.17" × 19.49" × 78.74" modular garage cabinet system built from 18-gauge sheet steel, combining a fixed 5-drawer module, a two-door base cabinet, a full-height single-door locker, two wall-mounted cabinets, two perforated tool panels, and a continuous stainless steel coated MDF worktop — in a pre-configured system weighing 421 lbs.
A Complete Professional Garage Storage System. Pre-Configured. Ready to Install.
Most garage storage setups are assembled piecemeal — mismatched cabinet heights, incompatible depths, and no continuous worktop. The Beta Tools C45PRO BX ships as a factory-configured system where every component is engineered to the same depth, height, and connection standard: a fixed 5-drawer module, a two-door base cabinet, a full-height locker, two overhead wall cabinets, and two perforated tool panels — all producing a continuous 77.17" workstation with a stainless steel coated MDF worktop. 18-gauge steel construction throughout. Centralized locking on all drawers and doors. Adjustable leveling feet for uneven concrete. Everything in one order, one delivery, one installation.
See it in action:
18-Gauge Steel Construction: System Components, Dimensions & Surface Specifications
System Dimensions: 77.17" W × 19.49" D × 78.74" H
Material: 18-gauge sheet steel throughout all modules
Worktop: Continuous stainless steel coated MDF — oil-resistant, chemical-resistant surface spanning all base modules
Total System Weight: 421 lbs
Leveling: Adjustable feet on all base cabinets for leveling on uneven concrete floors
Locking: Centralized lock system secures all drawers and cabinet doors
Warranty: 1-year manufacturer warranty
Origin: China
SKU: 45001998
Included Components:

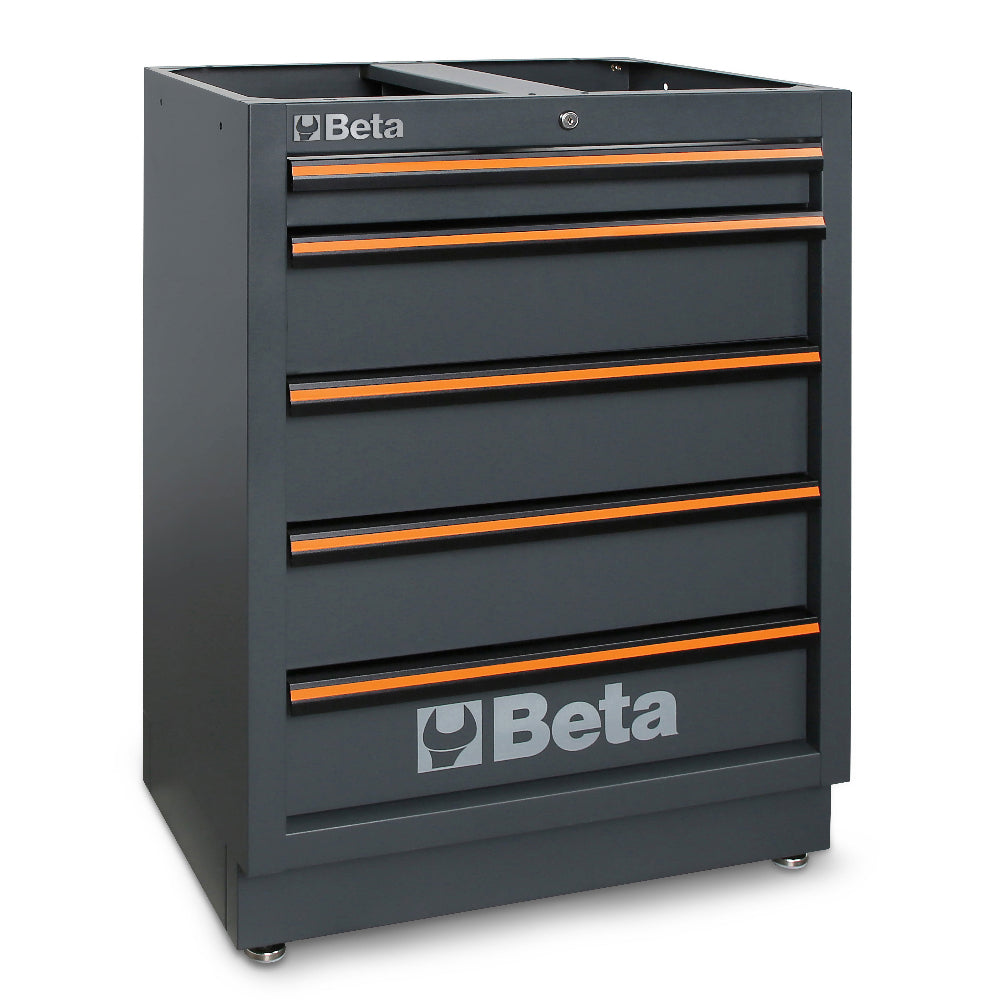

- 1 × Fixed 5-Drawer Module — ball-bearing slides, foam rubber mats, centralized locking
- 1 × Fixed Two-Door Module — enclosed base storage for bulky items, equipment cases, or cleaning supplies

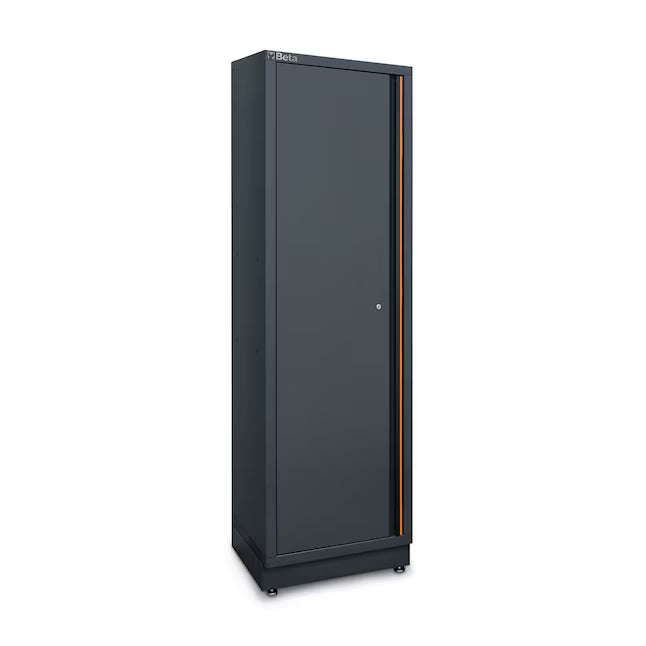

- 1 × Tall Single-Door Tool Cabinet (Locker) — full-height vertical storage with adjustable shelves for long items, coveralls, or large cases
- 2 × Wall-Mounted Cabinets — overhead enclosed storage above the worktop
- 2 × Perforated Tool Panels — wall-mounted pegboard-style panels for hanging tools and accessories
- 3 × Wall Brackets — structural mounting hardware for wall cabinets and panels
- 1 × Continuous Worktop — 77.17" stainless steel coated MDF surface spanning all base modules
Installation Requirements: Wall Load, Floor Clearance & Bay Dimensions
Watch the full assembly walkthrough before you begin:
- Minimum Bay Width: 77.17" (6' 5.2") for base modules — additional clearance required for wall cabinet installation above
- Floor Depth Requirement: 19.49" base module depth — verify wall-to-obstruction clearance before positioning
- System Height: 78.74" to top of wall cabinets — confirm ceiling clearance for wall cabinet installation
- Wall Load: Wall brackets support 2 overhead cabinets and 2 perforated panels — verify wall stud spacing and substrate before installation; drywall anchors alone are not rated for this load
- Floor Load: 421 lbs system weight — distributed across base module footprint; verify concrete slab or subfloor rating if installing over wood framing
- Leveling Feet: Adjust all base cabinet feet before final positioning — worktop continuity depends on consistent base heights across all modules
- Need more storage? The C45PRO XMA extends to 116" with a 7-drawer module, dockable mobile roller cart, and 3 wall cabinets for full-bay coverage
- Delivery Note: At 421 lbs, this system ships freight — confirm delivery access (driveway width, lift gate requirement) before ordering
Need a Precision Layout? Let Our Experts Do the Math.
The C45PRO BX is pre-configured for a standard compact bay, but garage dimensions, door placements, window positions, and existing infrastructure vary. If your bay requires a modified module sequence, a wall-to-wall fit calculation, or compatibility verification with existing Beta C45PRO components, our team will design the layout for your specific footprint at no charge.
- Email: support@garage-form.com with your bay dimensions and any existing components
- Chat: Use the site chat for real-time layout consultation
Not sure which C45PRO configuration is right for your shop? Read our full C45PRO configuration comparison guide →
The GarageForm Difference: Technical Authority, Not Just a Catalog
Technical Screening: We don't list cabinet systems without vetting them. The Beta Tools C45PRO BX has been verified for steel gauge accuracy, component count, worktop material specification, and system weight to ensure the data on this page reflects the actual system.
Direct Expert Support: We serve as your technical interface. If you need assistance verifying wall load capacity for overhead cabinet installation, calculating floor load distribution, choosing between the BX and XMA configurations, or designing a modified module sequence for a non-standard bay, our experts provide pre-sale consulting at no charge.
Straightforward Purchasing: Free shipping on this system where applicable — freight delivery terms apply at this weight. If the C45PRO BX doesn't meet your dimensional or structural requirements after delivery, our return process is handled by our specialized team — not a generalist call center.
