Wall Control vs. OmniWall: A Technical Comparison of Metal Pegboard Systems

The decision to upgrade from a masonite or wood pegboard to a metal system is straightforward. The harder decision is which metal system — and why. Wall Control and OmniWall are both American-manufactured, steel-panel systems that represent the upper tier of wall-mounted tool organization. But they are built on fundamentally different engineering philosophies: one optimizes for versatility and compatibility, the other for maximum accessory security and long-wall alignment. This post gives you the technical framework to choose correctly.

Why Metal Pegboard Outperforms Masonite and Wood

Before comparing the two systems, it’s worth establishing why metal is the correct material choice for a professional shop environment. The case is not aesthetic — it is structural and functional.

• Load Capacity: Standard 1/4" masonite pegboard is rated for light-duty loads. A single hook carrying a heavy impact wrench or torque wrench will deform the hole over time, causing hooks to loosen and eventually fail. Steel panels maintain hole geometry under repeated load cycles.
• Moisture Resistance: Masonite absorbs moisture in garage environments, leading to warping, delamination, and hook loosening. Galvanized or powder-coated steel panels are unaffected by humidity fluctuations.
• Magnetic Compatibility: Both Wall Control and OmniWall panels are steel — fully compatible with magnetic tool organizers, socket holders, LED light bars, and phone mounts. Masonite and wood offer zero magnetic utility.
• Hook Security: Standard round-hole pegboard hooks fall out when you remove a tool. Both metal systems addressed this failure mode with proprietary locking mechanisms — though through different engineering approaches.
• Longevity: A properly installed metal pegboard system is a permanent infrastructure investment. Masonite degrades. Steel does not.

One installation note that applies to both systems: Metal pegboard panels are slotted, which means the wall color behind them is visible through the openings. Paint your garage wall before installation — it takes 30 minutes and makes a significant difference in the finished appearance.

Brand Overview: Wall Control

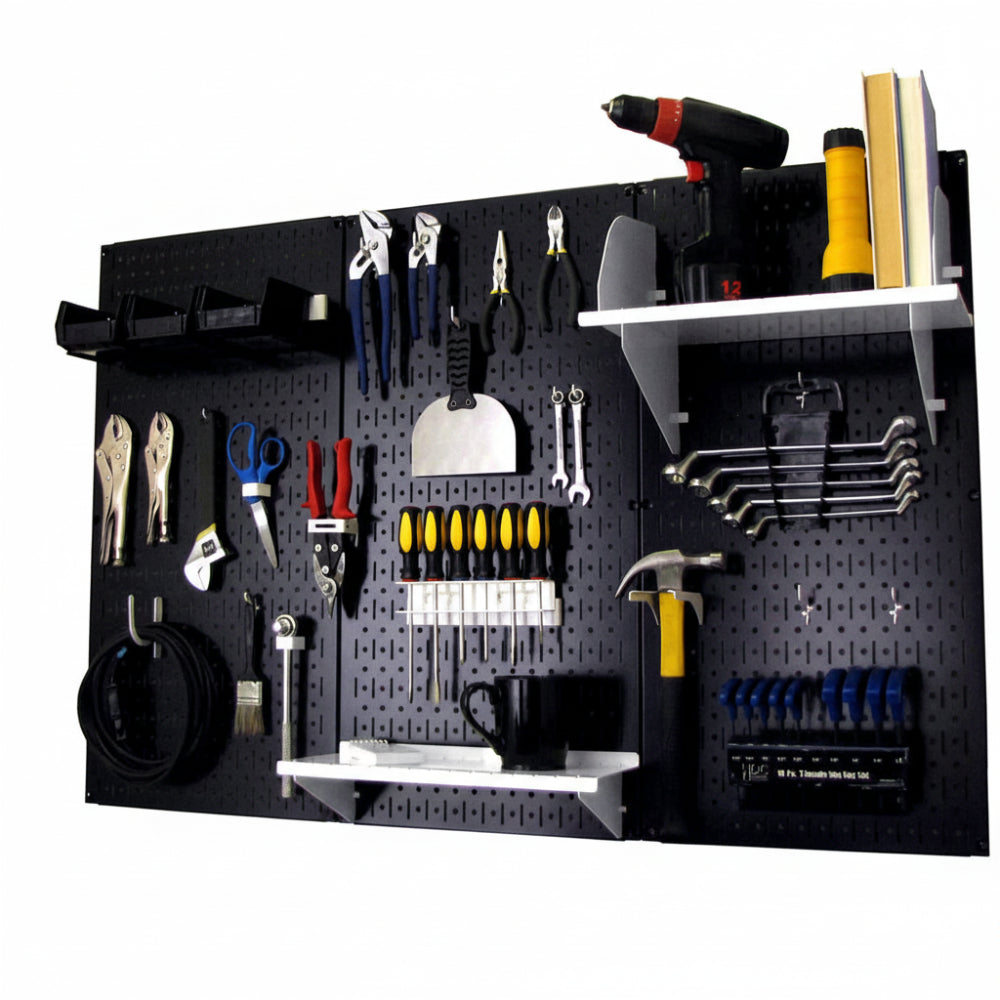

Wall Control is manufactured in the USA and has established itself as the dominant metal pegboard brand in the professional garage market. Their panels are 20-gauge powder-coated steel, available in 10+ colors including a galvanized metallic finish. Each 32" × 16" panel mounts independently, allowing modular configuration across any wall layout.

The defining engineering decision at Wall Control is the Hybrid hole pattern — a patented double-slotted design that accepts both Wall Control’s proprietary slotted hooks AND standard 1/4" round pegboard pegs. This means your existing round-peg accessory collection is not obsolete on day one. It also means Wall Control panels are the most accessory-compatible metal pegboard system on the market.

GarageForm carries Wall Control in three kit sizes to match your wall coverage requirements:

All three kits share the same 20-gauge steel construction, Hybrid hole pattern, Direct Flange mounting system, and Limited Lifetime Warranty. The 5ft Pro-Grade Kit is available in galvanized finish only — the correct choice if you specifically need that size in a rust-resistant finish. The 4ft kit offers the broadest finish selection, including galvanized, for shops that want maximum color flexibility at the smaller footprint.

Wall Control — Product Overview

See the Wall Control metal pegboard system in action, including the Hybrid hole pattern, Direct Flange mounting, and accessory ecosystem.

Brand Overview: OmniWall

OmniWall is also manufactured in the USA and targets the professional mechanic and high-security tool storage market. Their panels are 18-gauge galvannealed steel — two gauges thicker than Wall Control’s 20-gauge panels — with accessories manufactured from 16-gauge galvaneal. The material choice reflects a deliberate engineering priority: maximum rigidity under heavy tool loads.

OmniWall’s defining engineering decision is the Tab-Lock system. Rather than a slotted or round-hole pattern, OmniWall uses a proprietary tab-and-slot design where accessories are secured with OmniClips — plastic push-pin fasteners similar to automotive panel clips. Once clipped in, an accessory cannot fall out when a tool is removed. This is the highest level of accessory retention available in a wall-mounted pegboard system.

The 3-panel OmniWall kit covers 32" × 48" (approximately 10.5 sq. ft.) and includes a curated accessory set: 3 heavy-duty shelves, 3 tool cradles, 3 plastic bins, 3 serious hooks, a screwdriver holder, plier holder, and wrench holder.

OmniWall — Product Overview

See the OmniWall Tab-Lock system, OmniClip accessory retention, and backbone/cleat mounting demonstrated in the field.

Mounting System Comparison: Direct Flange vs. Cleat/Backbone

This is the most operationally significant difference between the two systems for anyone planning a long-wall installation.

Wall Control: Direct Flange Mounting

Wall Control panels feature a pre-formed 3/4" integrated return flange along the mounting edge. The panel mounts directly to wall studs or drywall anchors — no separate framework, no top bracket, no cleat required. The flange provides the necessary standoff distance for hooks to clear the wall surface. Each panel is mounted independently, which means long-wall alignment requires careful leveling of each panel in sequence.

Advantage: Simpler system with fewer components. Works on any wall surface without pre-installed hardware. Panels can be repositioned or removed individually without disturbing adjacent panels.

Consideration: On a long wall (8ft+), achieving a perfectly level run requires attention to each panel’s individual mounting position. A laser level is recommended for multi-panel installations.

OmniWall: Cleat/Backbone Mounting

OmniWall uses a top bracket (backbone/cleat) system. A single horizontal bracket is leveled and mounted to the wall first — this is the only critical alignment step. All panels then hang from this bracket, automatically inheriting its level. For a 4-foot or 8-foot run, you level once and the entire system aligns.

Advantage: Significantly simpler alignment on long-wall installations. One level reference point governs the entire system. Panels can be added or removed from the cleat without re-leveling.

Consideration: The backbone must be mounted correctly on the first attempt. Requires stud access or appropriate anchoring for the cleat load.

Hole Pattern & Accessory Security: Hybrid vs. Tab-Lock

The practical implication: Wall Control’s Hybrid pattern gives you a large, open accessory ecosystem. You can use Wall Control’s proprietary slotted hooks for security, or drop in any standard 1/4" round peg accessory you already own. OmniWall’s Tab-Lock system is a closed ecosystem — you are committed to OmniWall accessories — but the OmniClip retention is the most mechanically secure accessory fastening available in this product category.

Steel Gauge & Material Comparison

On gauge: lower gauge numbers indicate thicker steel. OmniWall’s 18-gauge panels are measurably stiffer than Wall Control’s 20-gauge panels under point load. For the majority of hand tool storage applications, 20-gauge is more than sufficient. For shops storing heavy pneumatic tools, large impact sets, or high-torque equipment directly on wall hooks, the 18-gauge OmniWall panel provides additional rigidity margin.

Full System Comparison

Which System Is Right for Your Shop?

Choose Wall Control if:

• You have an existing round-peg accessory collection you want to keep using
• You want the widest color selection and aesthetic flexibility
• You are building a modular system that may expand or reconfigure over time
• You want fast accessory repositioning without a clip tool
• You are equipping a home garage, workshop, or light-duty professional space
• You want a Limited Lifetime Warranty

Choose OmniWall if:

• You are a professional mechanic or fabricator storing heavy pneumatic or high-torque tools on wall hooks
• Maximum accessory retention is non-negotiable — you cannot have hooks fall out during tool removal
• You are planning a long-wall installation and want single-point alignment via the backbone system
• You want the thickest panel gauge (18-gauge) and thickest accessory gauge (16-gauge) available in this category
• You want a boltable continuous top shelf above your panels

Frequently Asked Questions

Can I use my existing pegboard hooks on a Wall Control panel?

Yes. Wall Control’s Hybrid hole pattern accepts standard 1/4" round pegboard pegs in addition to Wall Control’s proprietary slotted hooks. Your existing hook collection is compatible. Note that standard round pegs do not lock — only Wall Control’s slotted hooks provide the locking retention feature.

Can I use standard pegboard hooks on OmniWall panels?

No. OmniWall uses a proprietary Tab-Lock pattern that only accepts OmniWall accessories secured with OmniClips. If you have an existing round-peg hook collection, it is not compatible with OmniWall panels.

Do metal pegboard panels rust?

Wall Control panels are powder-coated steel; the Galvanized variant adds a zinc coating for maximum rust resistance in high-humidity environments. OmniWall panels are galvannealed steel, which provides inherent rust resistance as part of the base material. Both systems are appropriate for garage environments. For coastal or high-humidity shops, specify galvanized or galvannealed options.

What color should I paint my wall before installing metal pegboard?

Because metal pegboard panels are slotted, the wall behind them is visible through the openings. A flat or eggshell finish in a contrasting or complementary color to your panels is recommended. White or light gray walls behind dark panels (black, red, blue) create strong visual contrast and make tools easier to locate at a glance.

Are both systems compatible with magnetic accessories?

Yes. Both Wall Control and OmniWall panels are steel and fully compatible with magnetic tool organizers, socket holders, LED light bars, and phone mounts. This is a significant functional upgrade over masonite or wood pegboard, which offer no magnetic utility.

Which system is easier to install on a long wall?

OmniWall’s backbone/cleat system has a meaningful installation advantage on long walls. You level the top bracket once, and all panels hang from it in alignment. Wall Control’s direct flange system requires individual leveling of each panel — manageable with a laser level, but more time-intensive on an 8ft+ run.

Which Wall Control kit size should I choose?

The 4ft Premium Kit (3 panels, 10.5 sq. ft.) is the right starting point for a single workbench zone or dedicated tool wall in a compact garage — available in the widest finish selection including galvanized. The 5ft Pro-Grade Kit (4 panels, 14 sq. ft.) covers a wider bay in galvanized finish only. The 8ft Master Kit (6 panels, 21 sq. ft.) is the full-bay solution for shops that need continuous wall coverage from corner to corner.

The GarageForm Difference

Both Wall Control and OmniWall are products we stand behind. We carry Wall Control across our full kit lineup — 4ft, 5ft, and 8ft configurations — and we are adding OmniWall to our catalog because it solves a specific problem that Wall Control does not: maximum accessory security for heavy professional tool loads.

At GarageForm, we are the technical interface between you and the right system for your shop. We don’t recommend products based on margin — we recommend based on your tool inventory, wall layout, and workflow requirements. If you’re not sure which system fits your shop, contact us before you order.
